Description
From thread to hose

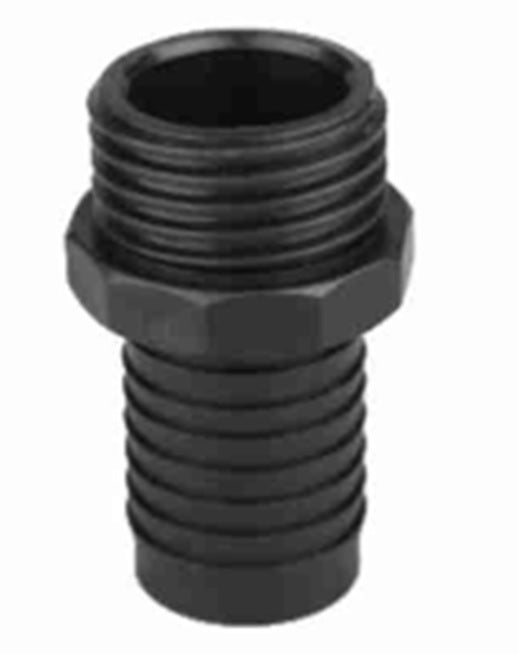

Build a hose connection from a female S60x6 fitting with this black plastic adapter. The coarse male thread connects to the matching socket, while the barbed tail fits inside 50mm (2-inch) internal diameter hose.
The hexagonal shoulder separates the two ends, making the threaded connection and hose attachment easy to identify. Choose it when your assembly needs an external S60x6 thread rather than a female collar.
One adapter supplied. Hose, hose clip, seals and mating fittings are sold separately.
Fit the hose over the tail
The hose slides over the barbed section. Select a suitable hose clip for the outside diameter of the fitted hose; the hose wall adds to the 50mm bore, so the clip size is not simply 50mm.
Seat the hose fully on the tail and secure it using the hose and clip manufacturers' fitting guidance. Support the hose run so its weight and bends do not pull on the adapter.
The coarse thread stays separate from the hose attachment. It needs a matching female S60x6 connection and the sealing arrangement appropriate to that fitting.
Before you fit it
- Thread: S60x6 male, with the thread on the outside. It will not screw directly onto a male IBC outlet.
- Hose: 50mm internal diameter. Measure the bore rather than the outside of the hose.
- Assembly: isolate and drain the supply, match the thread before tightening, then check the completed connection before use.
This fitting provides a connection only. Use a separate valve wherever you need to shut off or control the flow.
Choosing the right connection
Is this the adapter for a male IBC outlet?
No. This adapter also has a male S60x6 thread. A male outlet normally needs a matching female-collar adapter instead. Check the existing connection before ordering.
Does the hose clip come with it?
No. One plastic adapter is supplied. Choose the hose and a suitably sized clip separately; the connection image illustrates how those parts fit together.
Product information & technical details
| SKU | IBCS60X6M-2B001 |
|---|---|
| Product type | |
| Thread gender | Male |
| IBC thread size | S60X6 (2") |
| Barb size | 50mm (2") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection layout | Male S60x6 coarse thread to barbed tail for 50mm (2-inch) internal diameter hose. |
| Supplied item | 1 black plastic adapter. Hose, hose clip, seals and mating fittings sold separately. |
