Description
Room for your fitting
Bring a 1-inch BSP female connection forward from a matching IBC outlet. This black extended adapter gives you a longer body to work with when a short adapter leaves your fitting close to the tank.
The large female S60x6 collar attaches to the existing male tank or valve outlet. Your separate 1-inch BSP male fitting screws into the smaller socket at the other end.
One adapter supplied. Tap, hose, tank, valve and the loose tank cap shown in the photo are not included.
Check the space you need

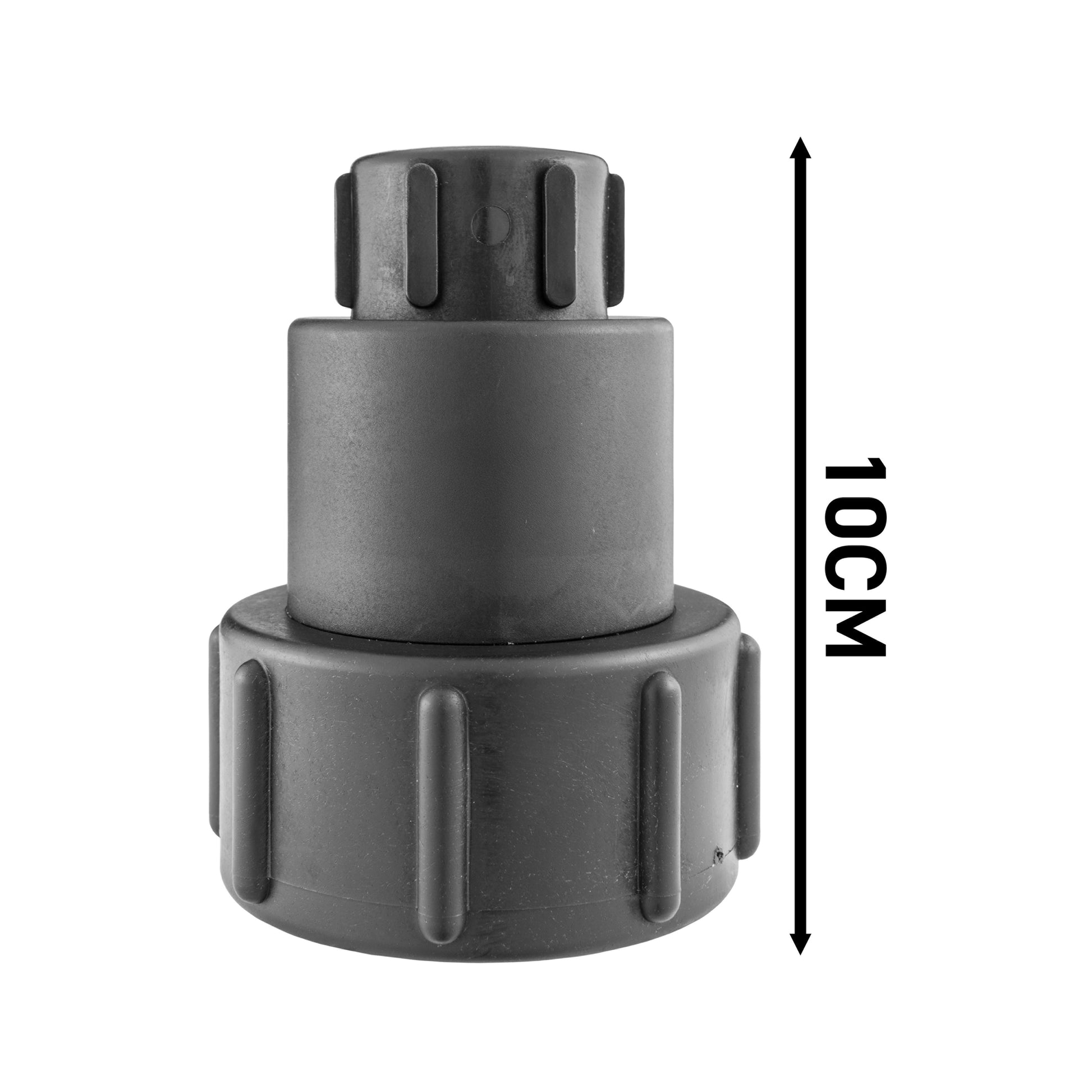

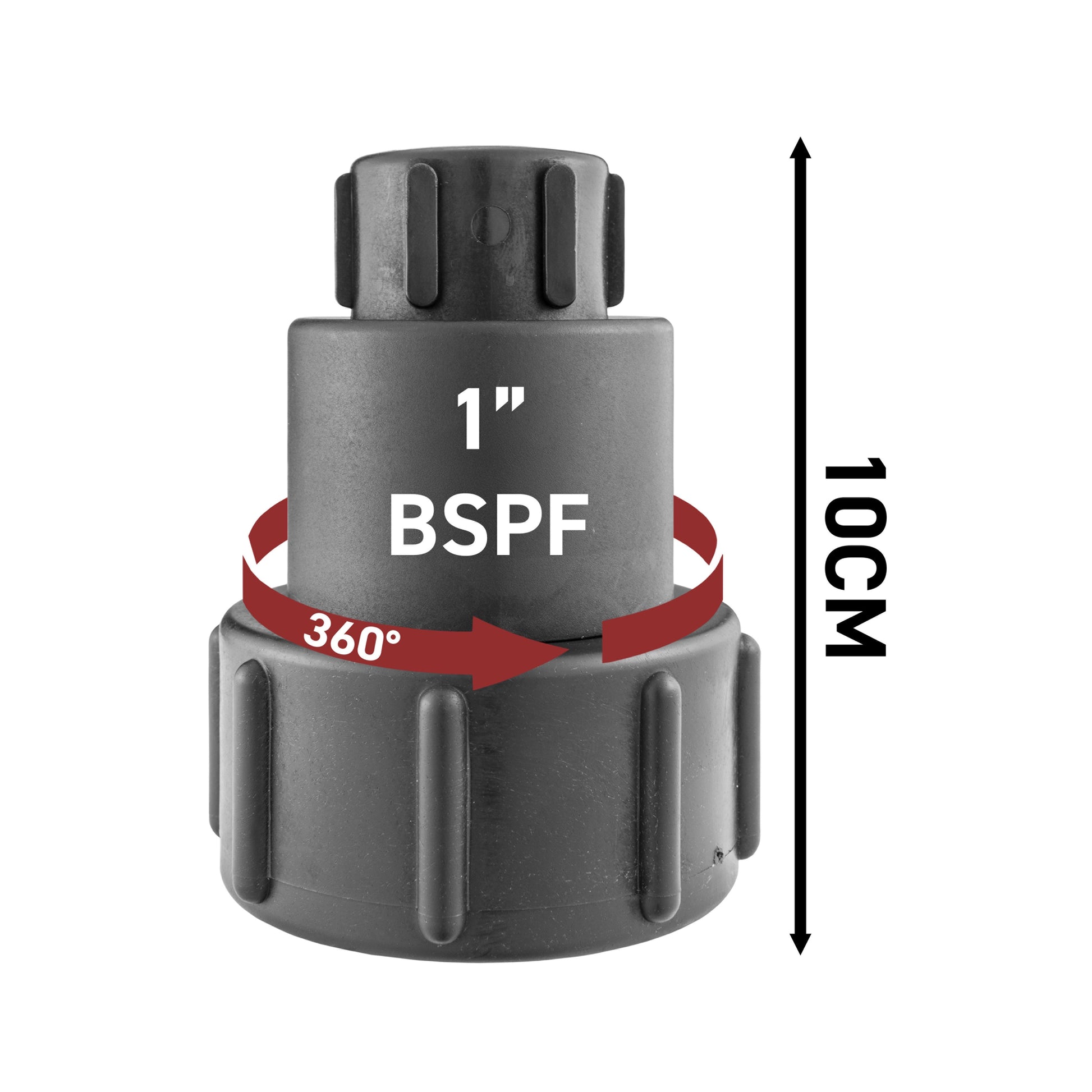

The labelled 10cm is the adapter's overall length. Part of the tank connection overlaps when fitted, so it does not add a full 10cm of clear reach beyond the existing thread.

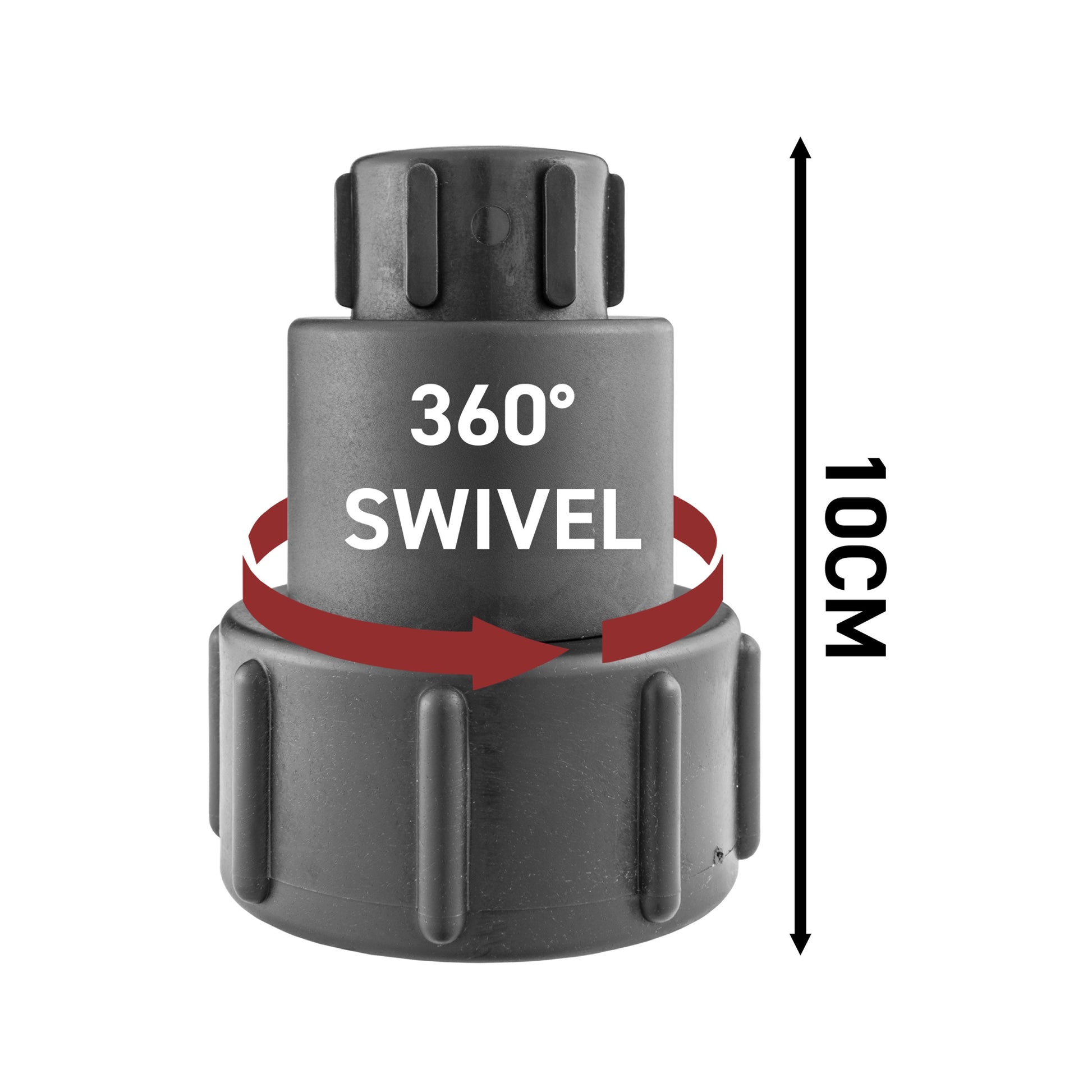

Allow room for the adapter, the fitting you intend to add and access to the tank's valve handle. The swivel collar helps you position the assembly while connecting it; set the position with the supply off.
Match the tank's male S60x6 coarse thread and the downstream fitting's 1-inch BSP male thread separately. BSP sizes are nominal thread sizes, not a direct hose-bore measurement.
Support your connection
- Close the tank valve. Inspect the mating thread and sealing face, then start the S60x6 collar straight by hand. Do not force a mismatched thread.
- Fit the BSP component. Use the sealing method appropriate to your matching male fitting. Hold the adapter body as needed rather than twisting the tank valve or attached pipework.
- Support the finished assembly. Keep heavy taps and long pipe runs supported. Open the tank valve gradually and inspect both connections before use.
The adapter provides a connection, not a tap or automatic shut-off. Keep the existing tank valve accessible and close it before adjusting or disconnecting the assembly.
Choosing the right extension
Does a bare 1-inch hose push into the outlet?
No. The outlet is a 1-inch BSP female threaded socket, not a hose tail or push-fit hose connector. Use a matching male-threaded fitting suitable for your hose or pipe.
Does the 10cm measurement mean 10cm of extra reach?
No. It is the overall length shown on the dimension photo. Thread engagement overlaps the tank connection, so check the installed clearance for your particular valve and downstream fitting.
Product information & technical details
| SKU | IBC-EX-S60X6-1BSPF-001 |
|---|---|
| Product type | |
| Length | 100mm overall |
| BSP thread size | 1" |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
|---|---|
| Colour | Black |
| Material | Plastic |
| Connection layout | Female S60x6 tank collar to female 1-inch BSP socket. Swivel collar for positioning during fitting. |
| Supplied item | 1 black extended adapter. Tap, hose, tank, valve and loose tank cap excluded. |
What is BSP?
What is BSP thread size?

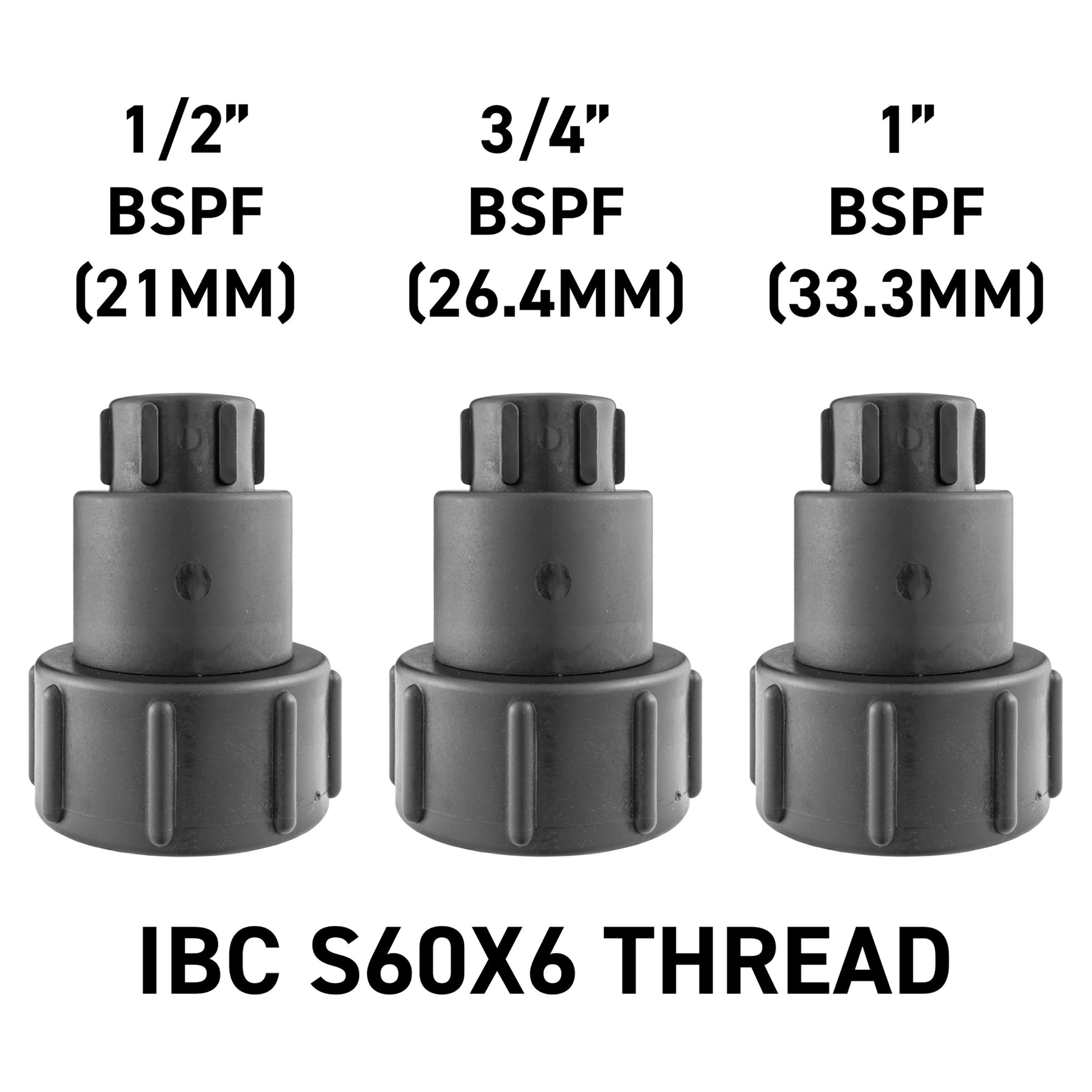

BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
