Description
Bring your hose connection within reach

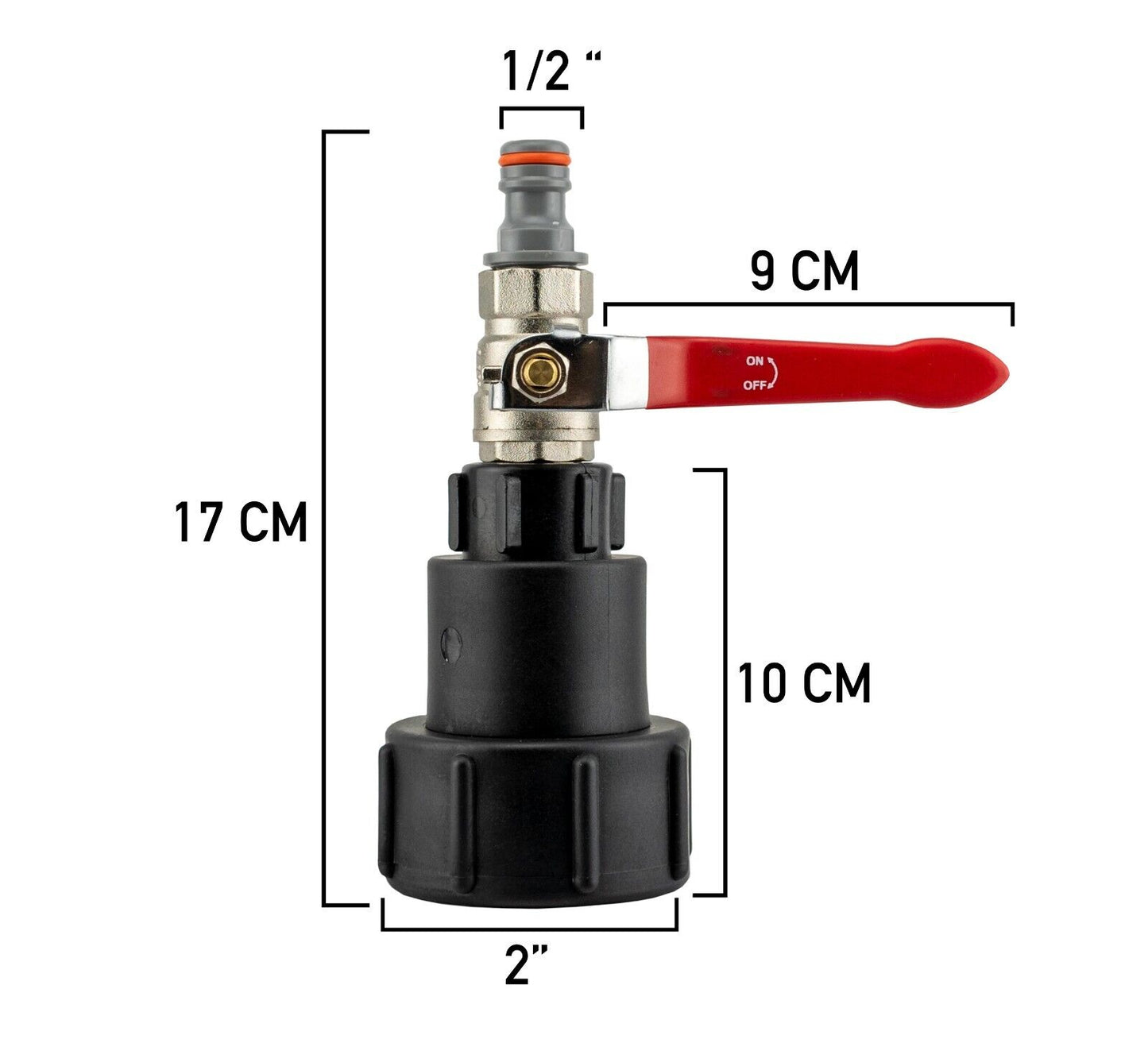

Move the valve and hose connection further out from a matching IBC outlet with this extended S60x6 adapter kit. Its plated brass lever valve gives you manual shut-off, while the male garden quick plug connects to a separate compatible female hose-end socket.
The extended plastic adapter is 100mm long overall. It gives the assembly more reach than a compact cap, helping when you need room around the tank outlet. Check the available space and lever movement on your own tank.
Extended adapter, lever valve and male quick plug supplied. Tank, existing tank valve, hose, female hose connector and sealing tape are not included.
Screw the kit together. Click the hose on.
The extended adapter fits a matching male S60x6 tank outlet. Its smaller ½-inch BSP female port receives the valve's male inlet. The grey quick plug has a ½-inch BSP male thread that screws into the valve's female outlet.
At the hose end, a compatible female garden quick connector clicks over the male plug. This lets you detach the hose without unscrewing the adapter or valve. The plug is a separate supplied fitting, not part of the valve body.
The ½-inch BSP measurement describes the threaded joints. Choose the separate hose connector for both its matching quick-connect profile and your hose bore. A ½-inch female hose connector is available for compatible ½-inch garden hose.
Plan the tank and hose connection
Check the tank outlet
S60x6 is nominally 60mm across the male thread with a 6mm coarse pitch. Check the thread and sealing washer before fitting; not every IBC uses this size.
Allow working space
Check that the extended assembly and lever clear the tank cage. Support the hose independently so it does not pull on the valve. Make any fitting or orientation adjustments with the water off.
Seal and check
Start the BSP threads straight and use suitable sealing where needed; PTFE tape is sold separately. Engage the hose socket fully, open the supply gradually and inspect the connections.
Before connecting your hose
Is the female hose-end connector included?
No. The kit includes the male quick plug fitted to the valve. You need a separate compatible female garden quick connector on the hose. Turn off the supply and release trapped pressure before using that connector's release mechanism.
Will this make my watering equipment work from gravity feed?
The kit provides a connection and manual shut-off; it does not create pressure. Check your equipment's operating requirements against the available water head and the hose's bore and length before planning the system.
Product information & technical details
| SKU | IBC021J |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| IBC thread size | S60X6 (2") |
| Kit parts | Extended female S60x6 adapter with ½-inch BSP female port, Plated brass ½-inch BSP male-to-female lever valve, Plastic male garden quick plug with ½-inch BSP male thread |
| Colour | Black, Silver |
|---|---|
| Material | Plastic, Brass |
| Adapter overall length | 100mm (10cm) |
| Valve body | Plated brass, silver finish |
| Hose-side connection | Male garden quick plug; requires a separate compatible female socket |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
