Description
Make it your outlet

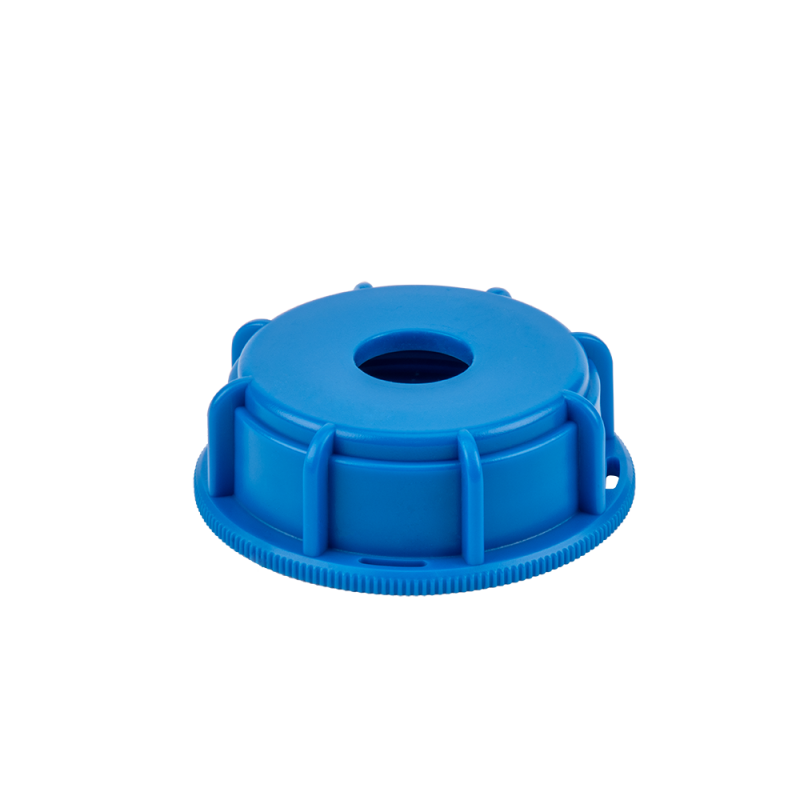

Use the outlet fitting that suits your setup. This blue S60x6 IBC cap has a plain centre hole for a ¾-inch BSP fitting, ready for a separately secured tap or connector.
The cap screws onto the tank connection, but the centre hole has no BSP thread. Your chosen fitting must pass through the opening and have a suitable retaining and sealing arrangement.

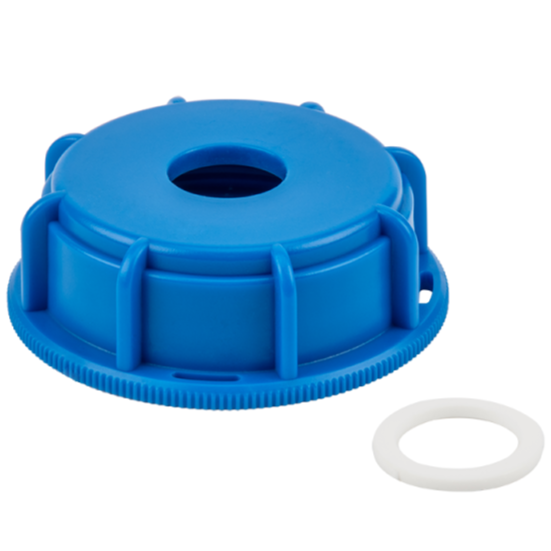

One cap with washer supplied. Outlet fitting, fixing nut, hose, tank and valve are separate.
Match both connections
First, the tank outlet. The cap fits a male S60x6 coarse thread. Check the actual tank or valve connection, rather than relying on a general 2-inch label.
Then, your separate fitting. Choose a ¾-inch BSP fitting designed to pass through a cap or wall, with seals and retaining hardware appropriate to the assembly. Check that its shank and usable thread length suit the cap and fixings.
A male adapter intended only to screw into a female socket will not secure itself in this plain hole. ¾-inch BSP is the nominal fitting size, not a claim that the hole measures 19.05mm.
Assemble it with the valve closed
- Fit the outlet hardware off the tank. Shut off the supply and remove the cap. Secure the separate fitting through the opening using its specified seals and retaining parts.
- Check the cap and washer. Keep the mating surfaces clean, make sure the sealing parts sit correctly and start the S60x6 thread squarely by hand. Stop if it binds.
- Support and inspect the finished connection. Avoid hanging unsupported pipework from the cap. Open the tank valve gradually and check the assembled joints before use.
The open-centre cap provides a mounting point; it does not stop the water. Keep your existing tank valve accessible for shut-off.
Before you choose your fitting
Is the centre a ¾-inch BSP female thread?
No. It is an unthreaded hole intended for a ¾-inch BSP fitting secured through the cap. If your fitting needs to screw directly into a female BSP socket, choose a threaded-port cap instead.
What else do I need to make an outlet?
This listing supplies one blue cap with washer. You will also need a suitable outlet fitting and its compatible retaining and sealing parts. Tap, connector, fixing nut and hose are not included; check the complete assembly before ordering.
Product information & technical details
| SKU | IBCS60F-034-001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Colour | Blue |
| Material | Plastic |
|---|---|
| Centre opening | Unthreaded hole for a ¾-inch BSP fitting; not a female BSP socket. Nominal fitting size, not measured hole diameter. |
| Fitting requirements | Separate compatible through-cap fitting, retaining hardware and sealing arrangement required. |
| Supplied item | 1 blue S60x6 cap with washer. Outlet fitting, fixing nut, hose, tank and valve excluded. |
