Description
Choose a fitting

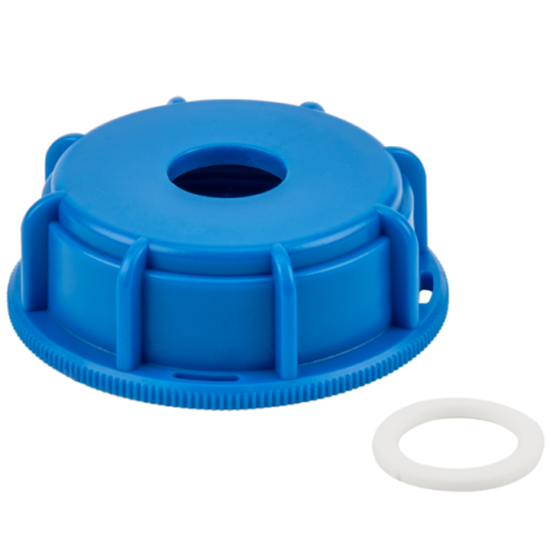

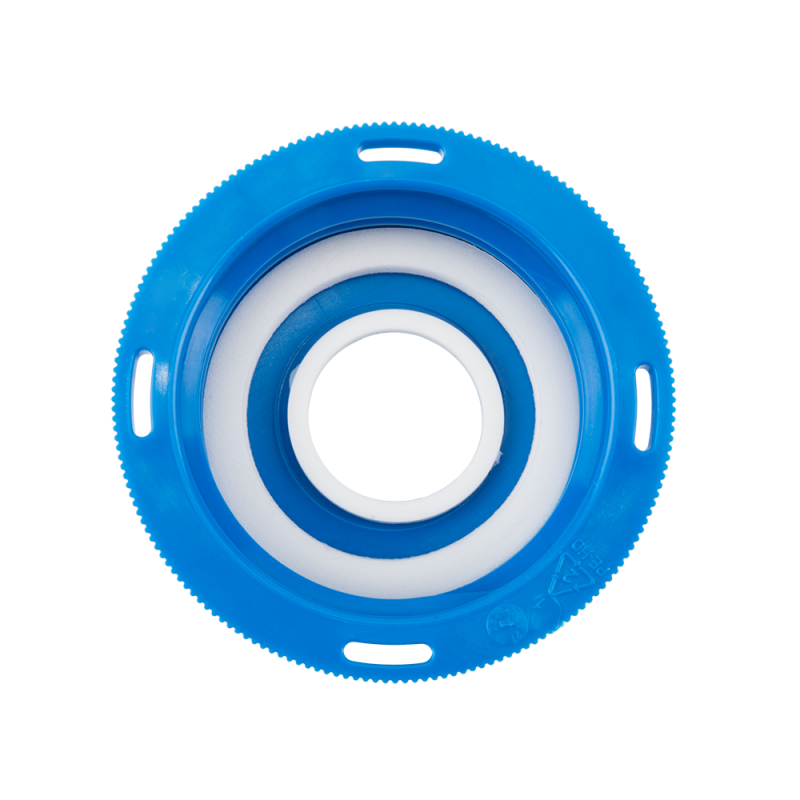

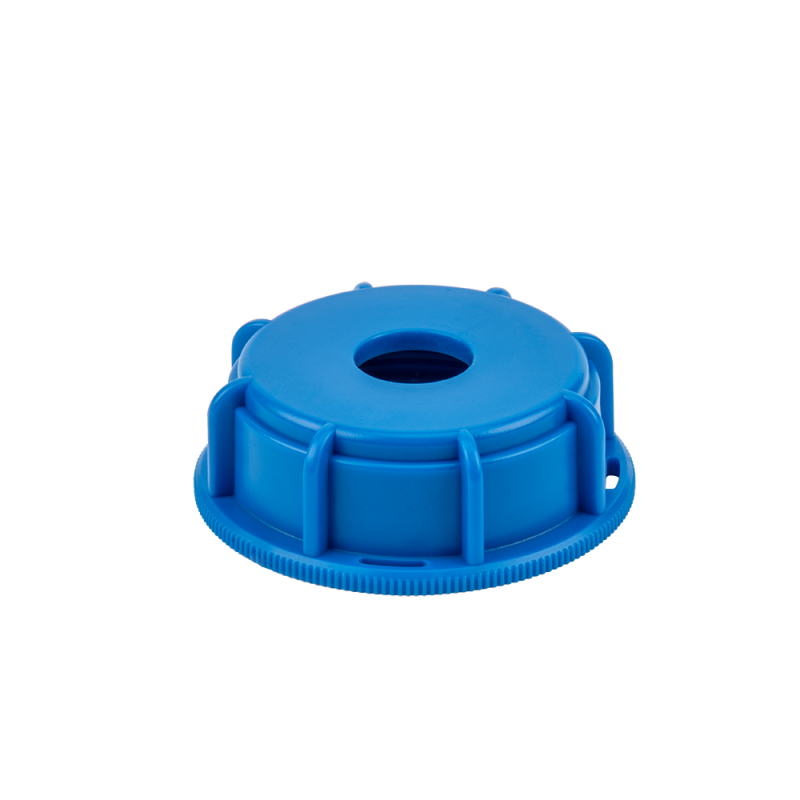

Build a connection around the fitting you need. This blue cap screws onto a matching male S60x6 IBC outlet and has an unthreaded centre hole for a ½-inch BSP fitting.
The centre is a pass-through opening, not a female BSP socket. Your separate fitting needs suitable fixing and sealing parts to secure it through the cap.
One cap with washer supplied. Tap, hose connector, fixing nut, tank and valve are not included.
Two checks before ordering
At the tank: match the cap's female S60x6 coarse thread to the actual male outlet on your tank or valve. A general 2-inch description does not confirm the thread standard.
At the centre: choose a fitting intended to pass through a cap or wall, with appropriate seals and retaining hardware. A short male BSP adapter designed only to screw into a threaded socket is not enough on its own.
½-inch BSP describes the intended fitting size; it does not mean the opening measures 12.7mm. Check your fitting's shank, sealing faces, thread length and fixing arrangement before assembling.
Make the connection before opening the valve
- Work with the supply shut off. Remove the cap from the tank to assemble your separate outlet fitting, following the fitting's instructions.
- Secure and seal the fitting through the opening. Use compatible retaining parts and seals. Do not try to cut a thread by forcing a fitting into the plain hole.
- Refit and check. Keep the cap's sealing face clean, start the S60x6 thread squarely by hand, support attached pipework and open the tank valve gradually to inspect the joints.
This cap has an open centre. It is neither a solid blanking cap nor a shut-off valve; use the existing tank valve to control flow.
Choosing the right cap
Does a ½-inch BSP male fitting screw into the centre?
No. The centre hole is unthreaded. A suitable fitting passes through it and needs its own compatible securing and sealing arrangement. Choose a threaded-port cap instead if you need a female BSP socket.
Are a tap and fixing nut included?
No. This listing supplies one blue S60x6 cap with washer. Choose the outlet fitting and any fixing nut or extra seals separately to suit your assembly.
Product information & technical details
| SKU | IBCS60F-012-001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Colour | Blue |
| Material | Plastic |
|---|---|
| Centre opening | Unthreaded hole for a ½-inch BSP fitting; not a ½-inch BSP female socket. Nominal fitting size, not measured hole diameter. |
| Fitting requirements | Separate compatible fitting, retaining hardware and sealing arrangement required. |
| Supplied item | 1 blue S60x6 cap with washer. Tap, hose connector, fixing nut, tank and valve excluded. |
