Description
Direct the outlet downwards

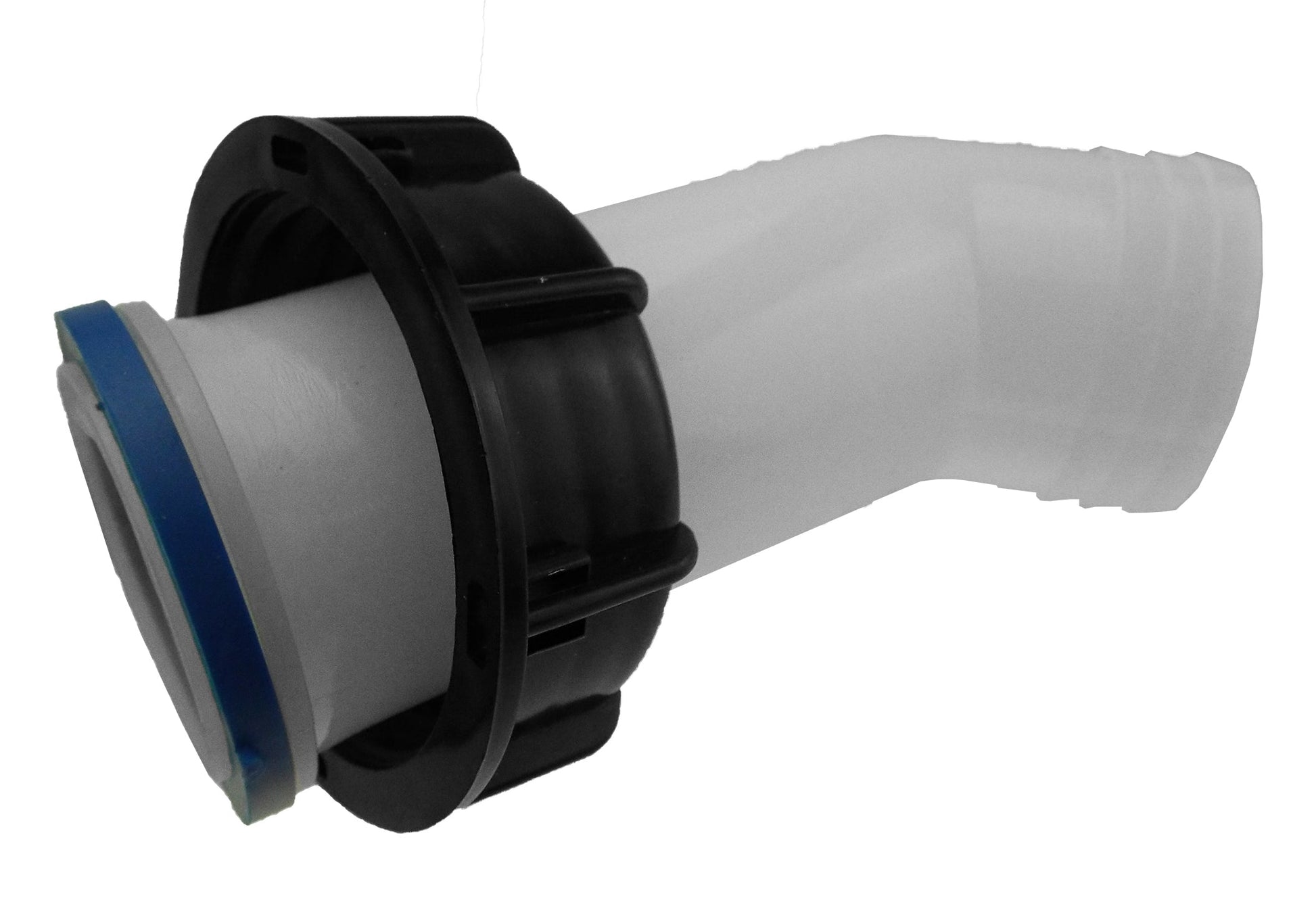

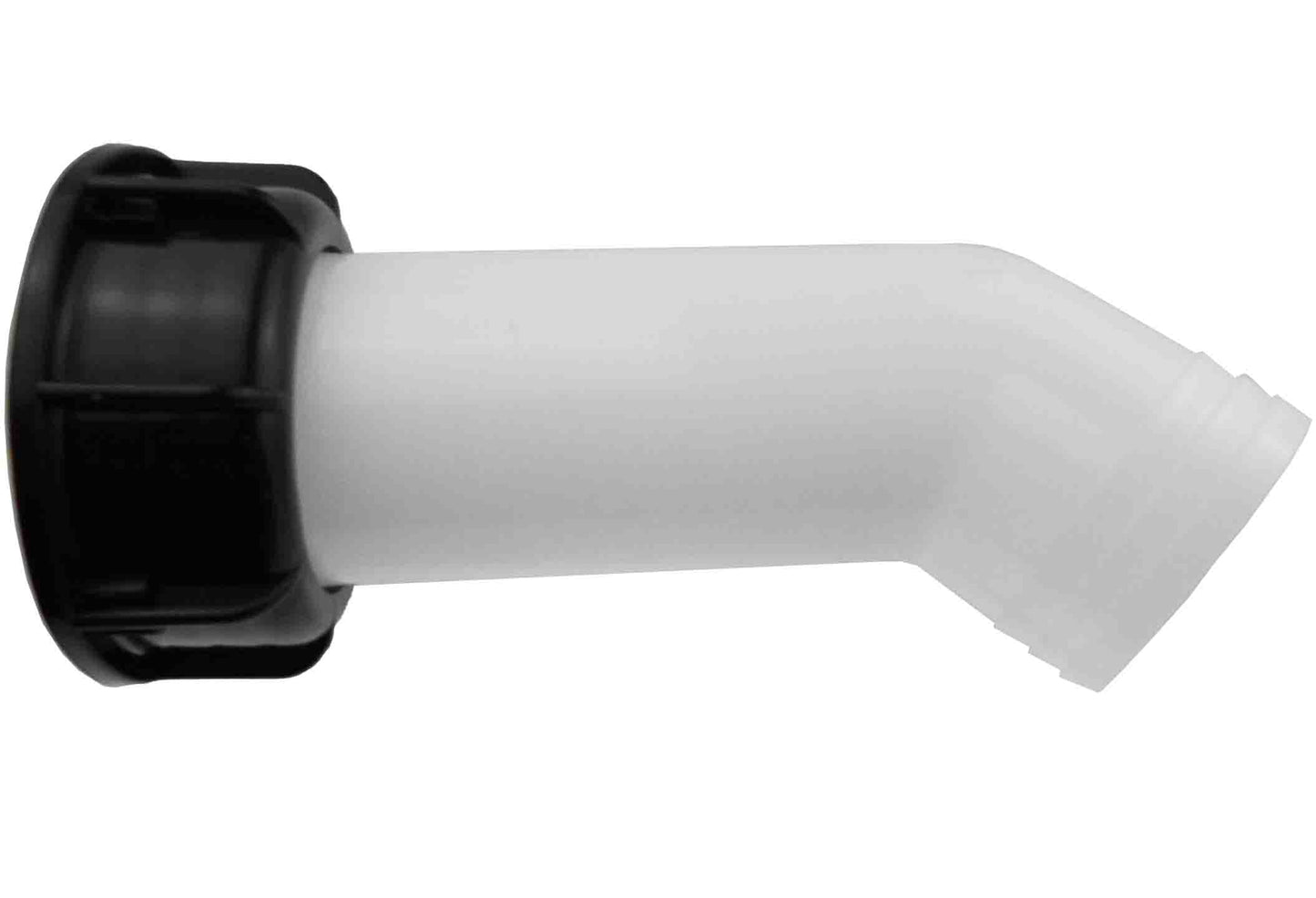

Give your IBC outlet a more useful direction with this white angled spout and black S60x6 union collar. The tube carries the discharge away from the tank face, then turns it downwards at the end.
The 50mm (2-inch) barbed hose tail also gives you a connection for a suitable large-bore hose. Match the hose's internal diameter and use a correctly sized retaining clip when making a hose connection.
One spout assembly with sealing ring supplied. Tank, valve, hose, clips and receiving container are separate.
Check the collar and hose size

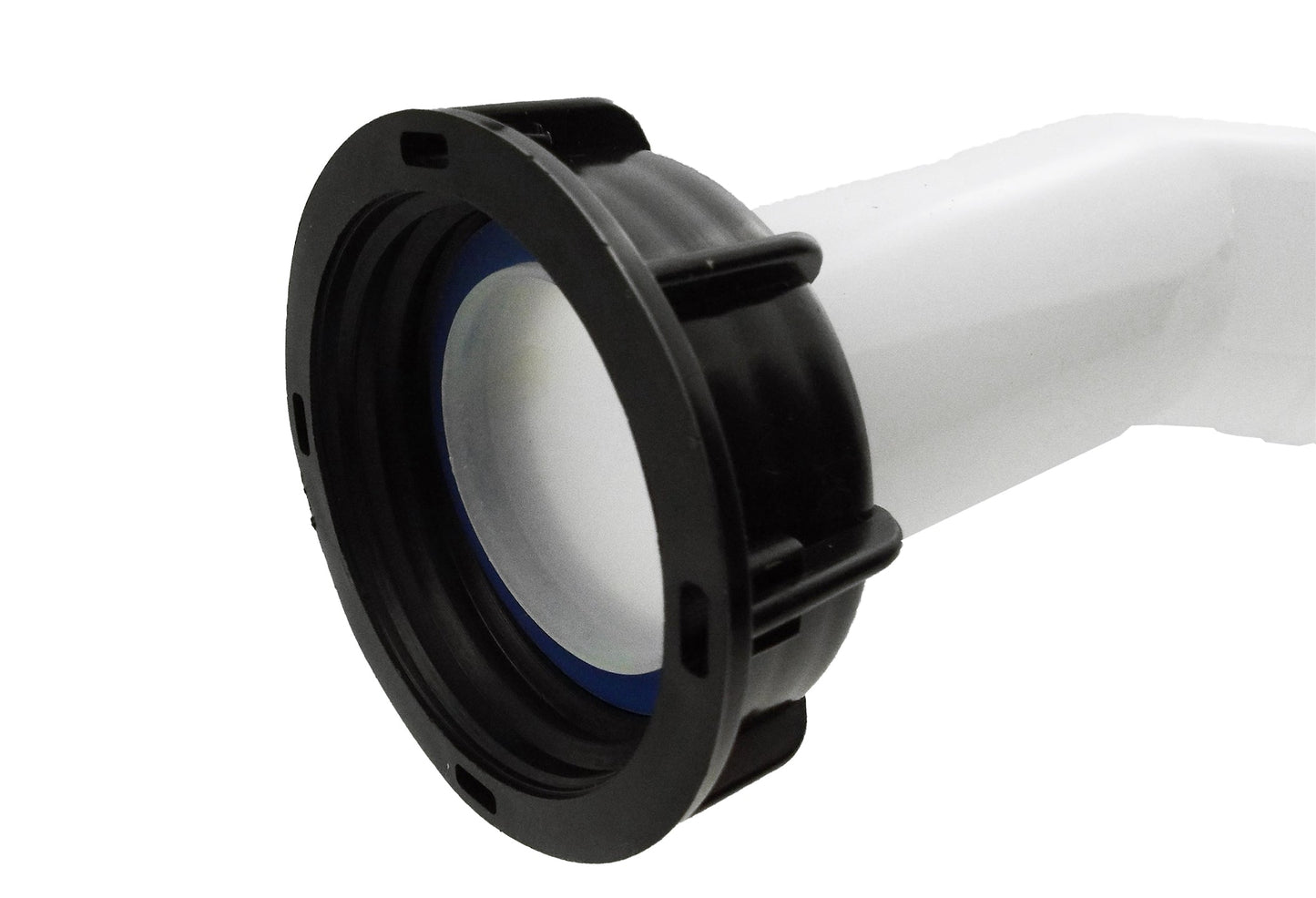

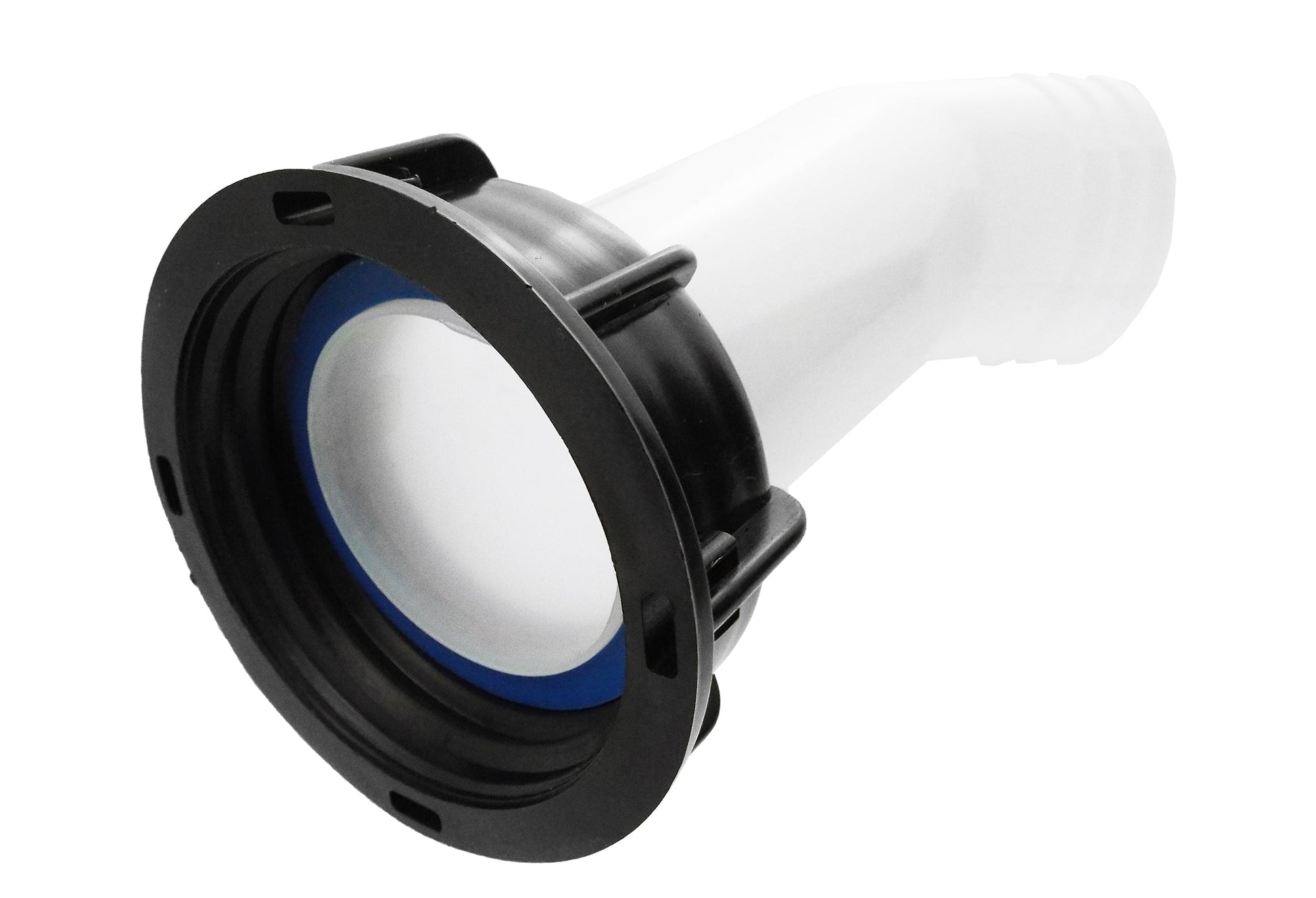

The black collar has a female S60x6 coarse thread for a matching male IBC outlet. The actual rear view shows the thread and blue ring that seals at the tank connection.
Check the thread on your tank or valve before ordering. A general 2-inch outlet label alone is not enough to establish S60x6 compatibility.
The hose tail is a separate size from that tank thread. Choose hose for the 50mm (2-inch) barbed end; this is much larger than an ordinary garden-hose connection. Hose and retaining clips are not supplied.
Leave room below the spout
Close the tank valve before fitting. Check the seal and mating face, position the spout for your setup and start the collar squarely by hand. Do not force mismatched threads or use the spout as a lever.
Allow clearance for the angled end and your receiving container or hose route. Support any attached hose so its weight does not pull on the plastic spout, and check the finished connection before use.
The spout directs the outlet; it does not turn the flow on or off. Keep control at the tank valve and attend the transfer when filling a container.
Before you fit the spout
Is this a tap with its own shut-off?
No. It is an angled outlet spout and hose tail. Use the valve on your tank to control flow; no separate tap or valve is included.
Will a normal garden hose fit the outlet?
No. The barbed end is sized for a 50mm (2-inch) hose connection. Select a suitable hose by its internal diameter and use an appropriate retaining clip. The S60x6 thread at the tank end is a different connection.
Product information & technical details
| SKU | IBCS60X6ANGLE001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Barb size | 50mm (2") |
| Colour | White |
|---|---|
| Material | Plastic |
| Connection layout | Tank: S60x6 female union collar. Outlet: angled 50mm (2-inch) barbed hose tail. |
| Supplied item | 1 white spout with black union collar and sealing ring. Tank, valve, hose, clips and container excluded. |
