Description
Two threads. One useful connection.
Bring a 2-inch BSP male fitting into your IBC setup. This short black plastic adapter joins a matching male S60x6 tank outlet to a female BSP socket, ready for your chosen hose tail, valve or pipe fitting.
The two openings look similar in size, but their threads do different jobs. The coarse S60x6 end goes onto the tank; the finer 2-inch BSP female end faces your accessory.
One adapter supplied. Tank, valve, hose and accessory fittings are separate.
Match the thread, not just the size

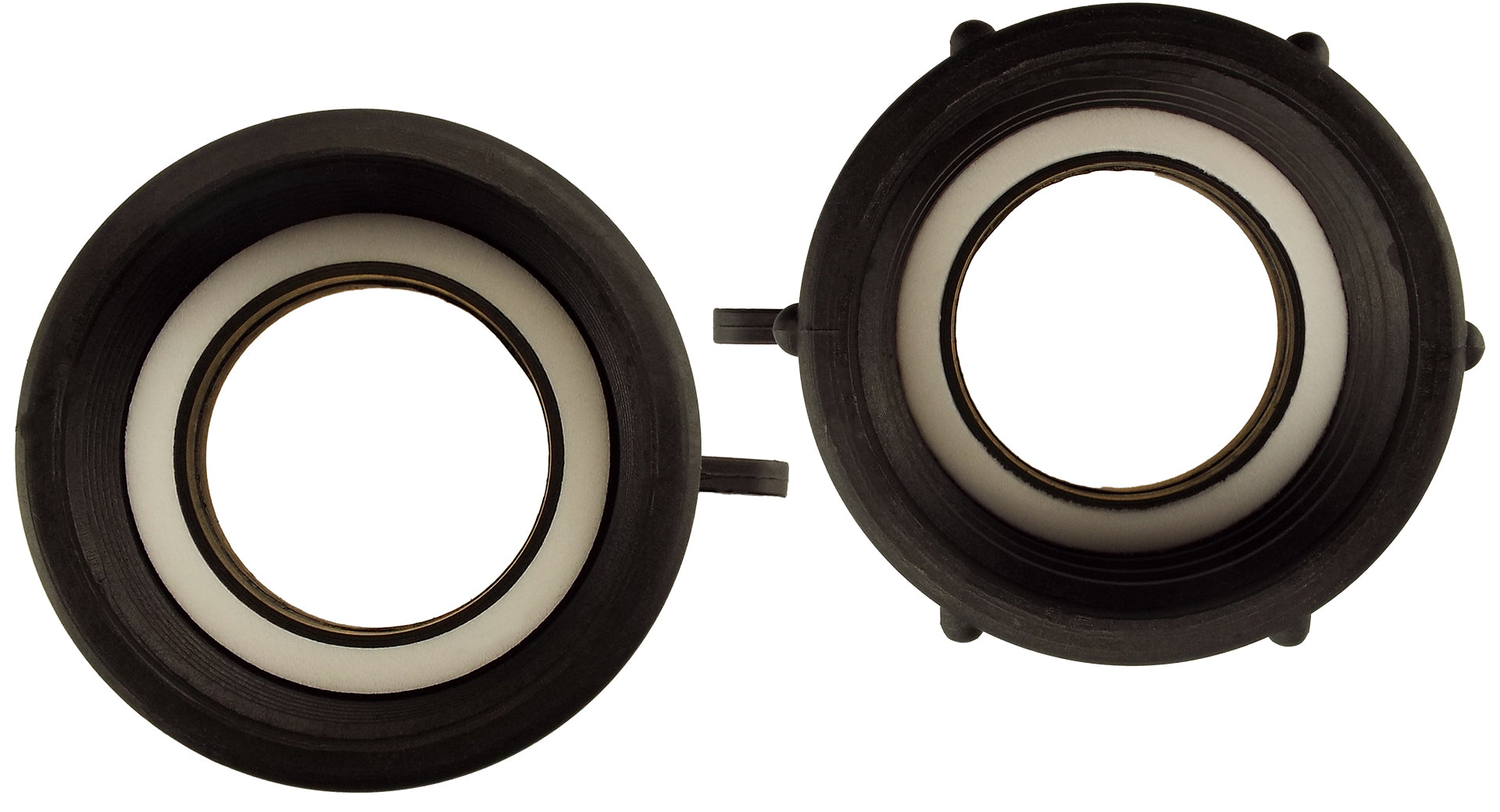

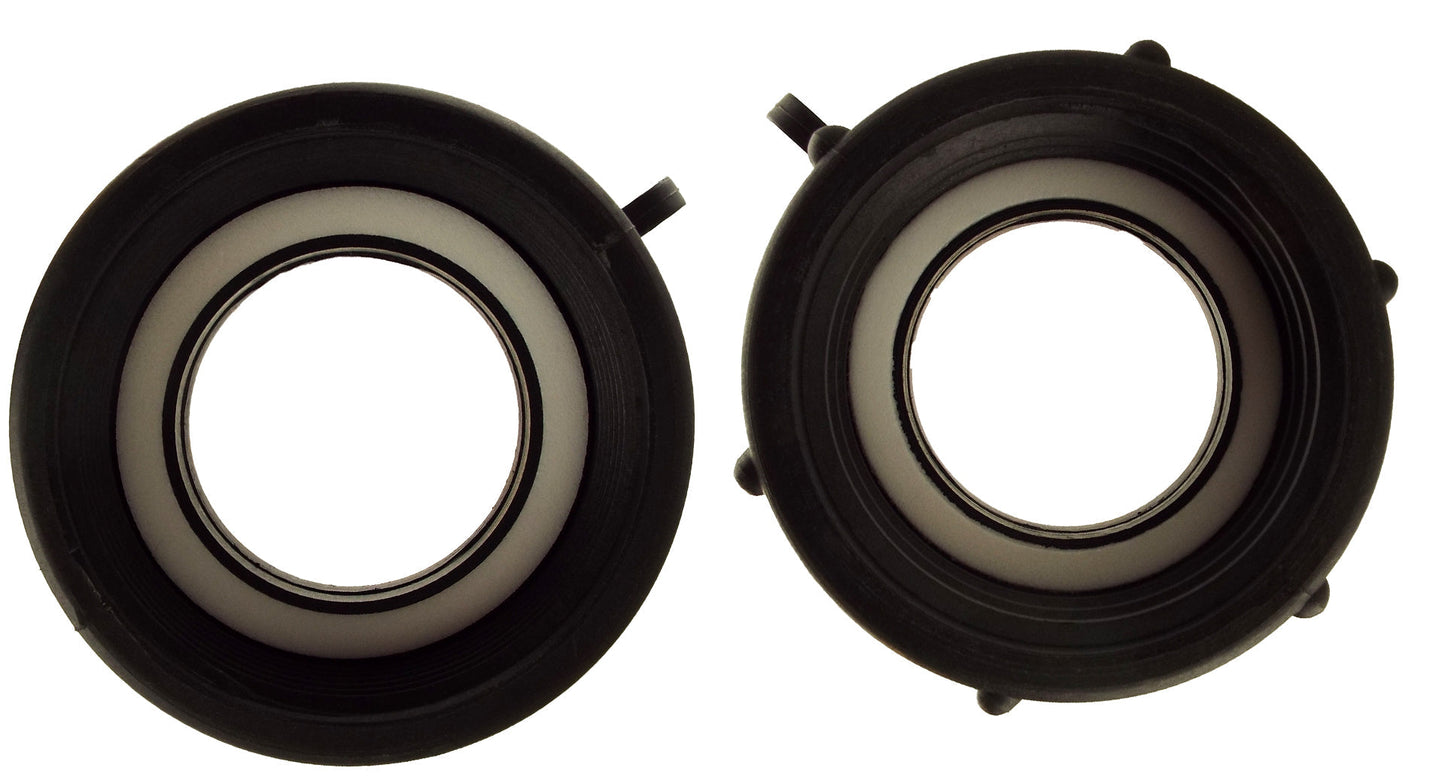

The actual product views show both ends of one adapter. On the left is the coarse S60x6 tank thread; on the right is the finer BSP accessory thread. White sealing rings are visible at the mating faces.
A tank described simply as having a 2-inch outlet is not enough to confirm fit. Check that its outlet is male S60x6, and choose a separate accessory with a 2-inch BSP male thread.
For a hose connection, select the hose tail for the hose's internal diameter as well as its BSP thread. Hose does not push directly into this threaded socket.
Build the outlet around your setup
Close the tank valve before fitting. Check the mating threads and sealing faces are clean, seat the rings correctly and start each connection squarely by hand. Stop if the threads bind rather than forcing them together.
Fit your chosen accessory using the sealing arrangement appropriate to that joint, support connected hose or pipe, then check the assembled outlet before use. This adapter changes the connection; it has no lever or shut-off mechanism of its own.
Choosing the right connection
Are S60x6 and 2-inch BSP interchangeable?
No. They are different thread standards. This adapter has a coarse S60x6 female tank end and a finer 2-inch BSP female accessory end, so the correct male fitting must be used at each side.
Does the adapter include a hose tail or valve?
No. One open-through adapter is supplied. Choose the downstream fitting separately for the hose or pipe you want to connect. Flow remains controlled by the tank valve or a separate valve in your installation.
Product information & technical details
| SKU | IBCS60X6-2BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection layout | Tank: S60x6 female coarse thread. Accessory: 2-inch BSP female thread. |
| Supplied item | 1 open-through adapter with sealing rings. Tank, valve, hose and downstream fittings excluded. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
