Description
Make the step from S100x8 to S60x6

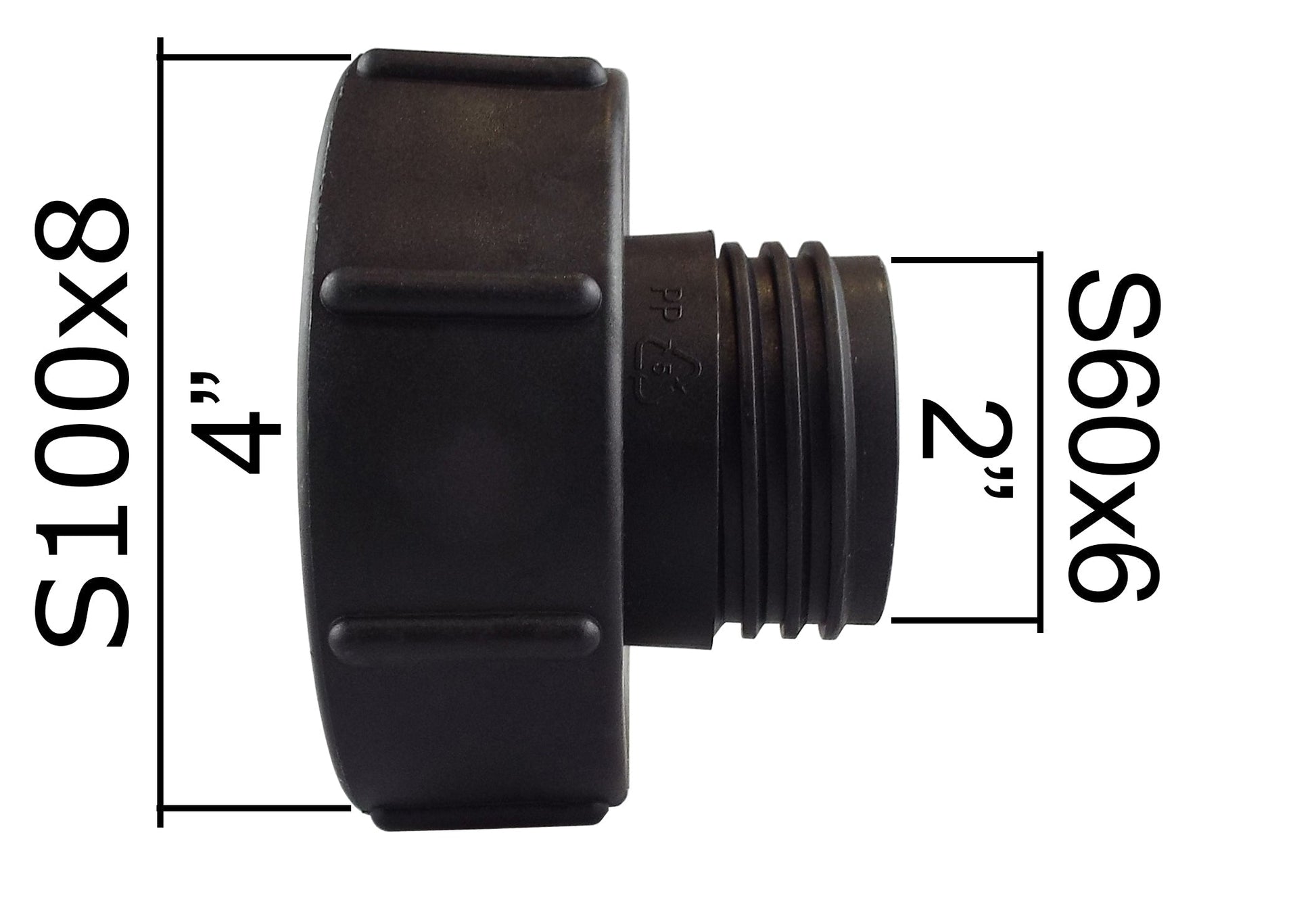

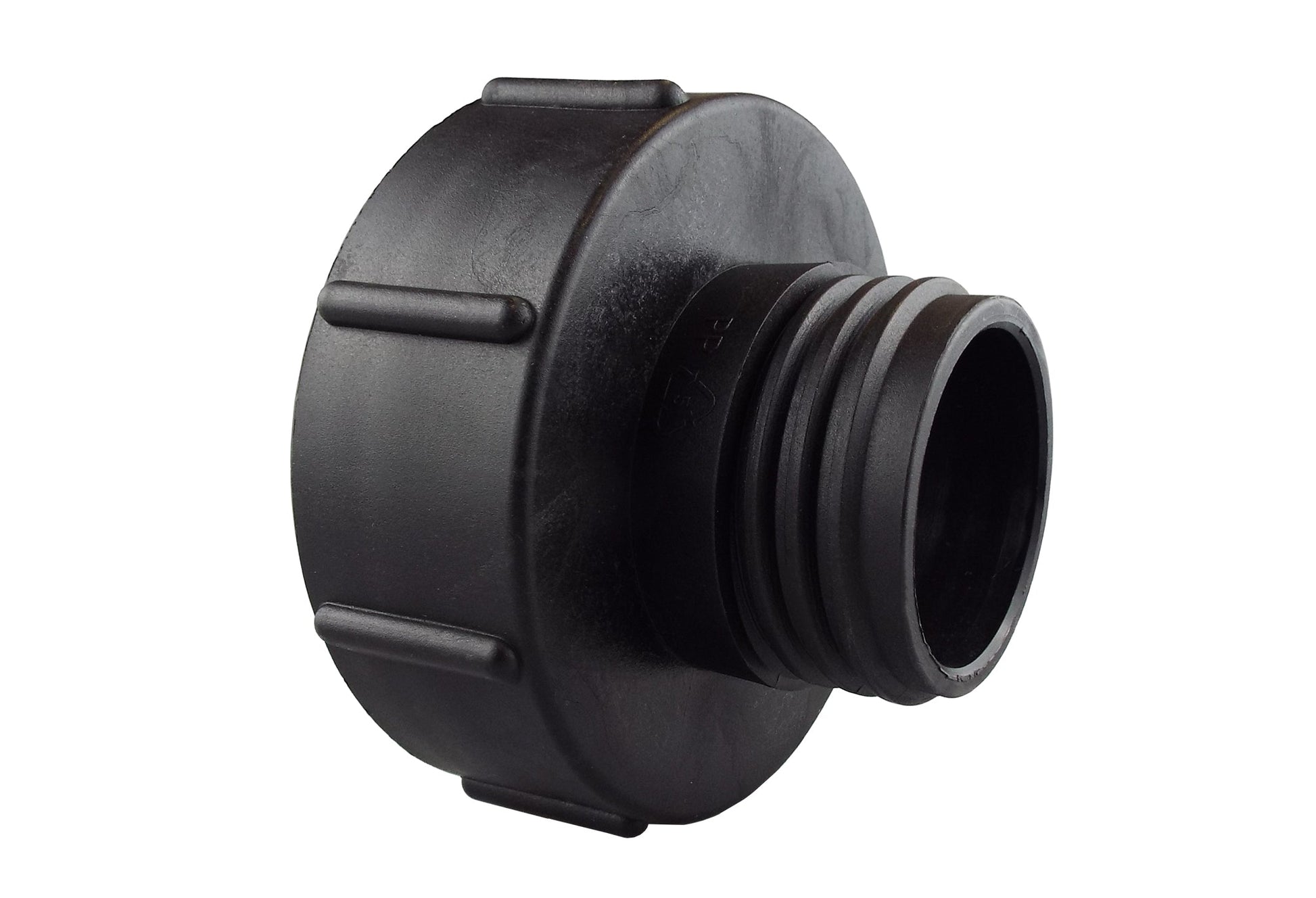

Use your larger tank outlet with a matching female S60x6 accessory. This reducing adapter screws onto a male S100x8 tank or valve connection and provides a smaller S60x6 male thread at the front.
The broad ribbed collar gives you a hand grip, and a sealing ring is fitted inside the tank end. Choose the next fitting for the hose, valve or cap you want to use; this adapter provides the thread transition, not the final hose connection.
One black plastic adapter supplied. Tank, valve and downstream fittings are separate.
Start with the connection on your tank
The large female end fits a matching male S100x8 outlet. Check the tank or valve's actual thread and sealing face before ordering; a size described simply as 4-inch does not confirm the thread standard.
The front has an external S60x6 male thread, ready for a matching female S60x6 fitting. The common 2-inch description does not make it a 2-inch BSP connection. It is also not a hose tail: bare hose needs a suitable separate fitting.

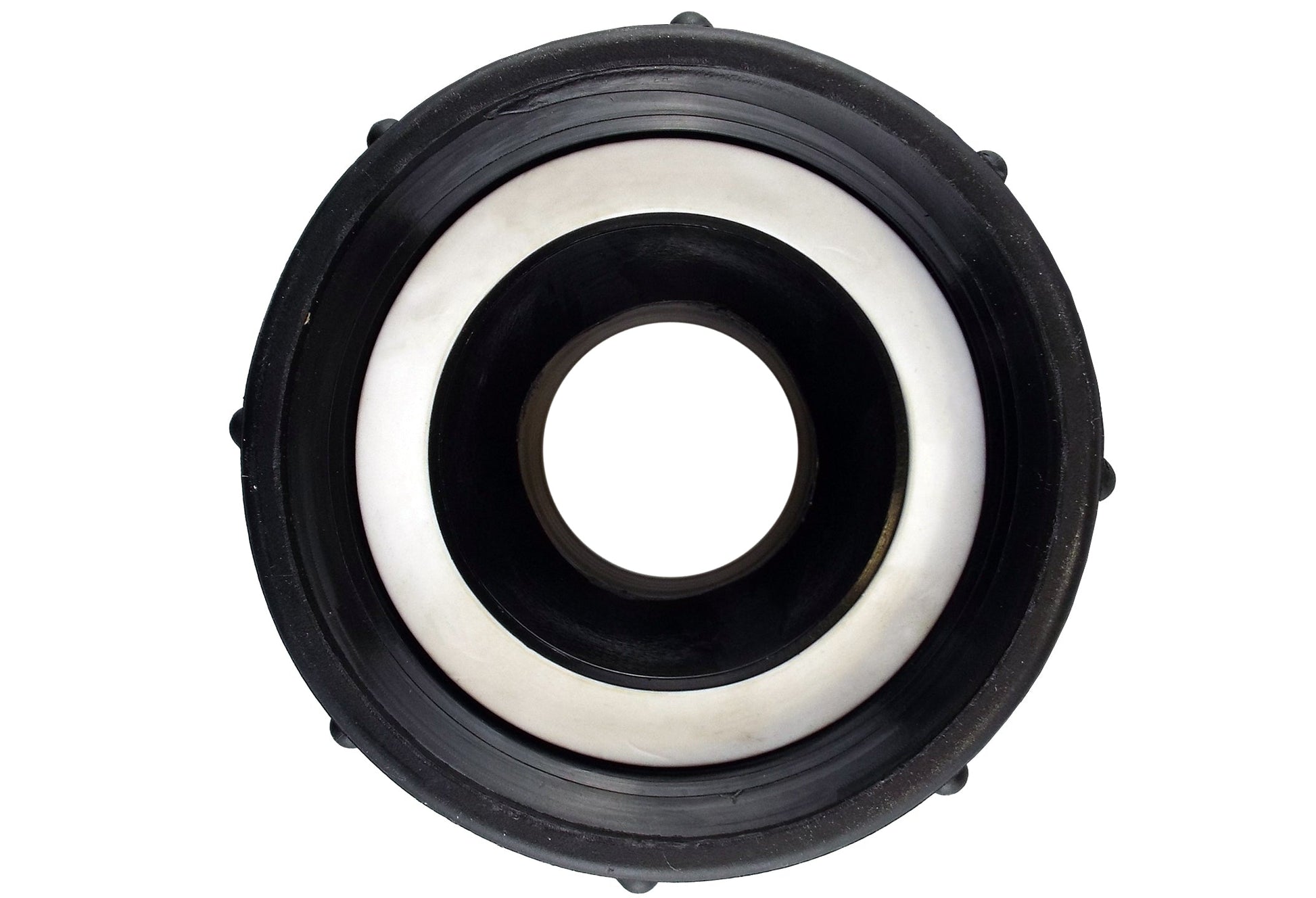

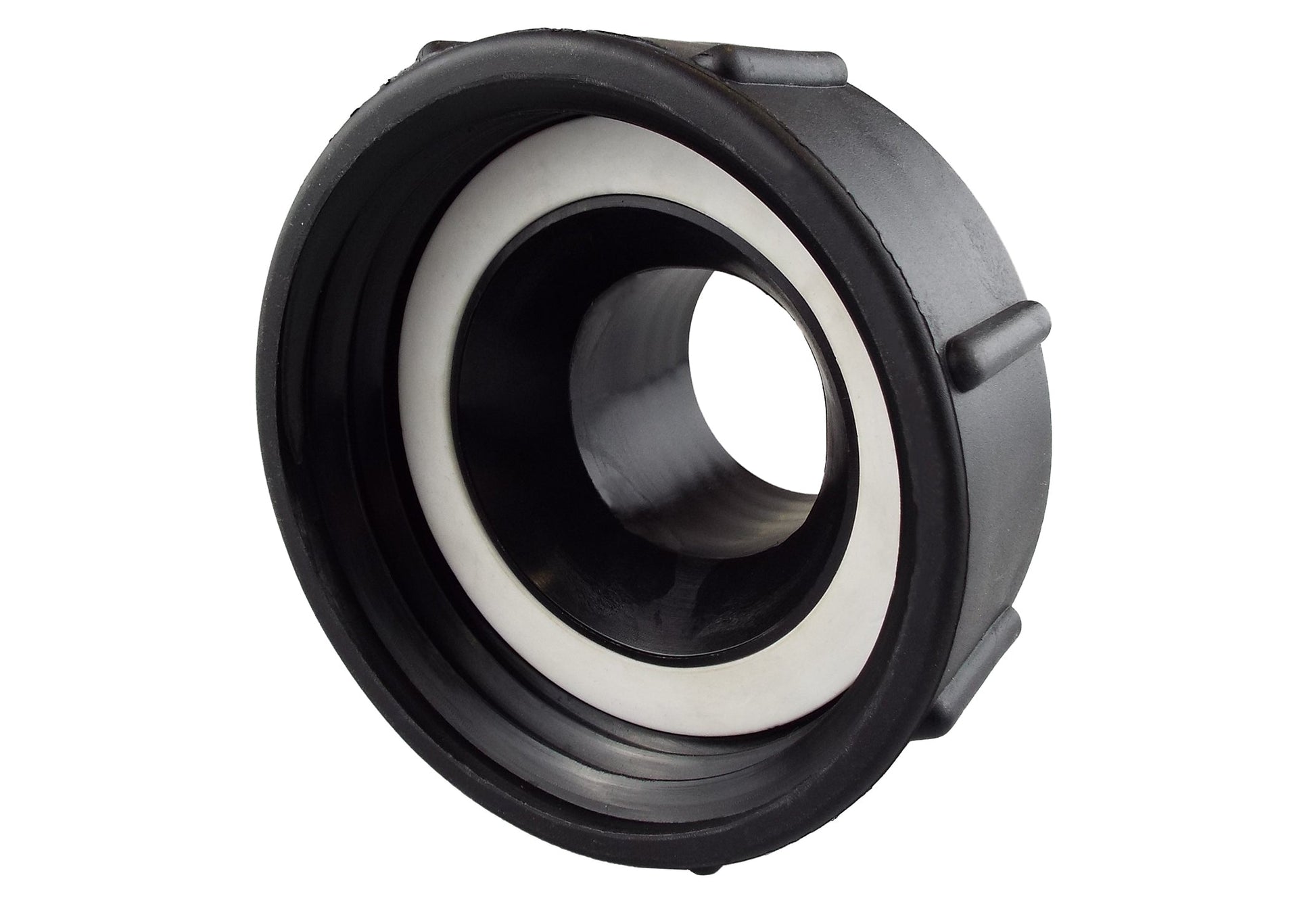

The real rear-view photo shows the internal tank-side thread and sealing ring. Keep this ring seated correctly and check that both mating faces are clean before fitting.
Fit the reducer, then your chosen accessory
Close the supply before fitting or removing the adapter. Start the large collar squarely by hand on the matching outlet, checking the sealing ring as it seats. Do not force a different thread to engage.
Attach your compatible female S60x6 fitting to the front and support any connected hose or equipment so its weight does not pull on the joint. Check the assembled connection before use. The reducer itself has no shut-off valve.
Choosing the right connection
Can I connect a hose directly to the outlet?
No. The outlet is an S60x6 male thread, not a hose barb or quick connector. Choose a matching female S60x6 hose adapter for the size and type of hose you want to use.
Will this fit every 4-inch IBC outlet?
No. The tank side must match S100x8 male coarse thread and the adapter's sealing arrangement. Confirm the actual connection rather than relying on the broad 4-inch size description.
Product information & technical details
| SKU | IBCS100X8-S60X6M001 |
|---|---|
| Product type | |
| Thread gender | Female, Male |
| IBC thread size | S60X6 (2"), S100X8 (4") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Tank-side connection | S100x8 female coarse thread. |
| Accessory connection | S60x6 male coarse thread; requires a matching female S60x6 fitting. |
| Supplied item | 1 adapter with tank-side sealing ring. Tank, valve and downstream fitting excluded. |
