Description
A BSP connection for your larger IBC outlet

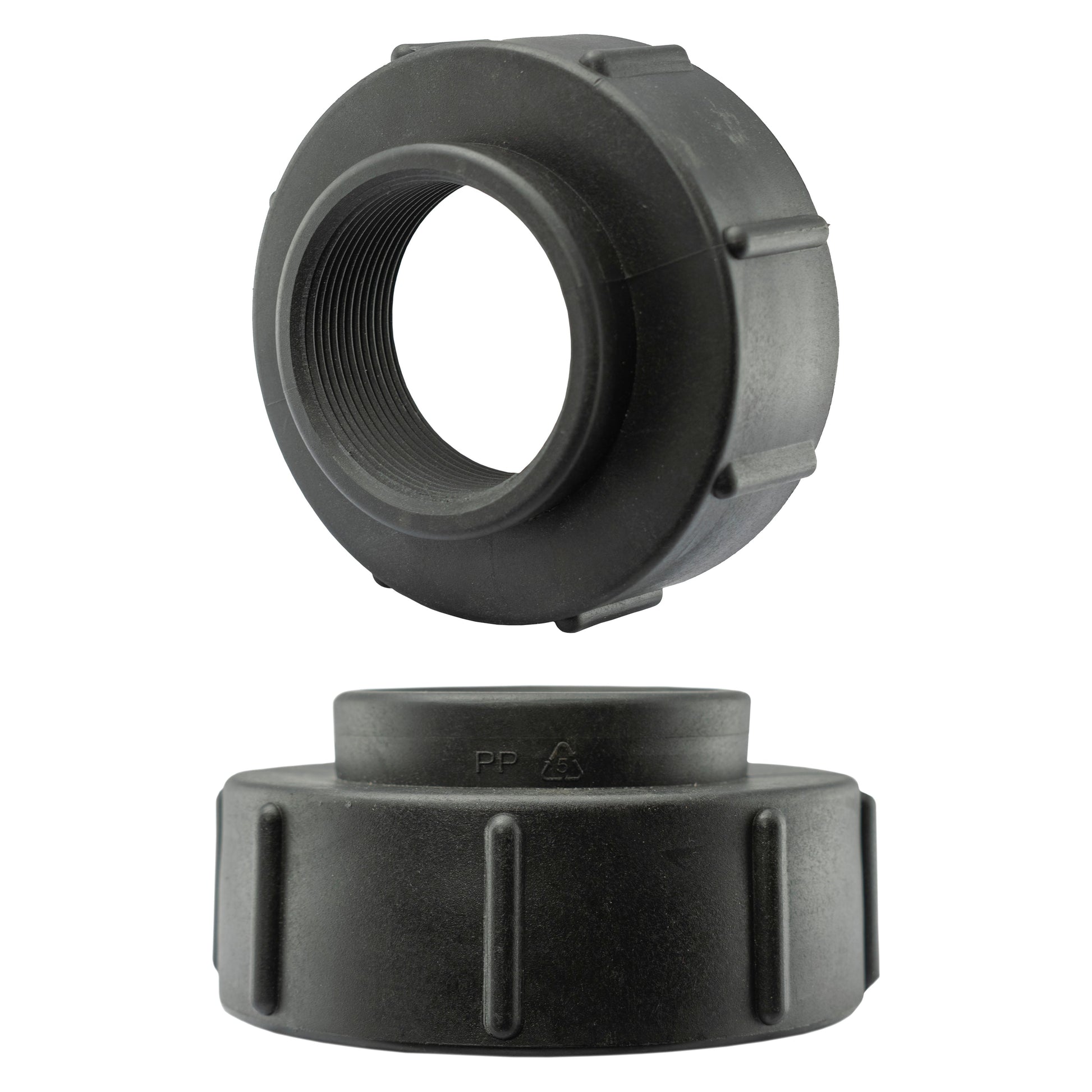

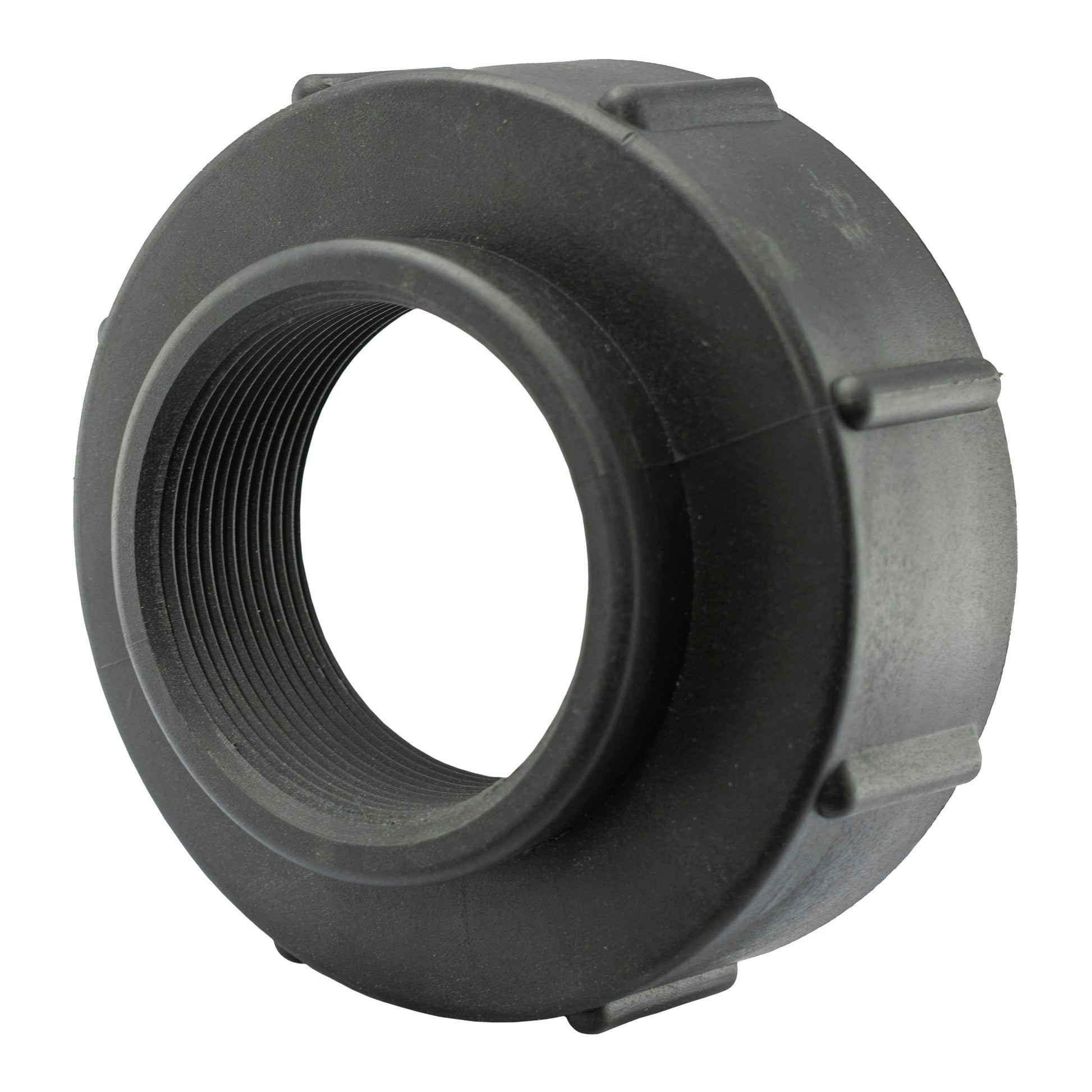

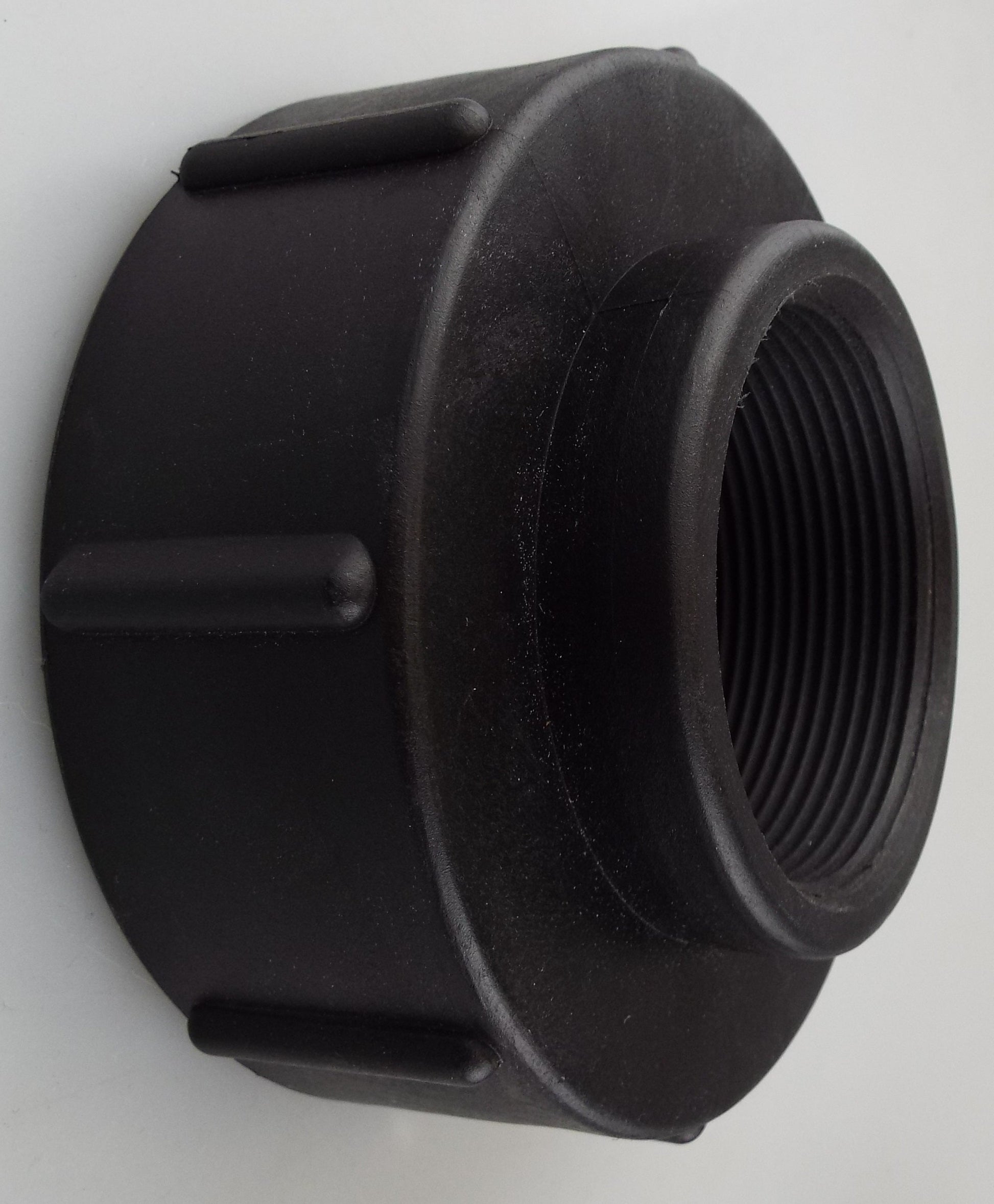

Use a 2-inch BSP male fitting with a matching S100x8 tank outlet. This black adapter screws onto the tank's coarse male thread and provides a 2-inch BSP female port for the next connection.

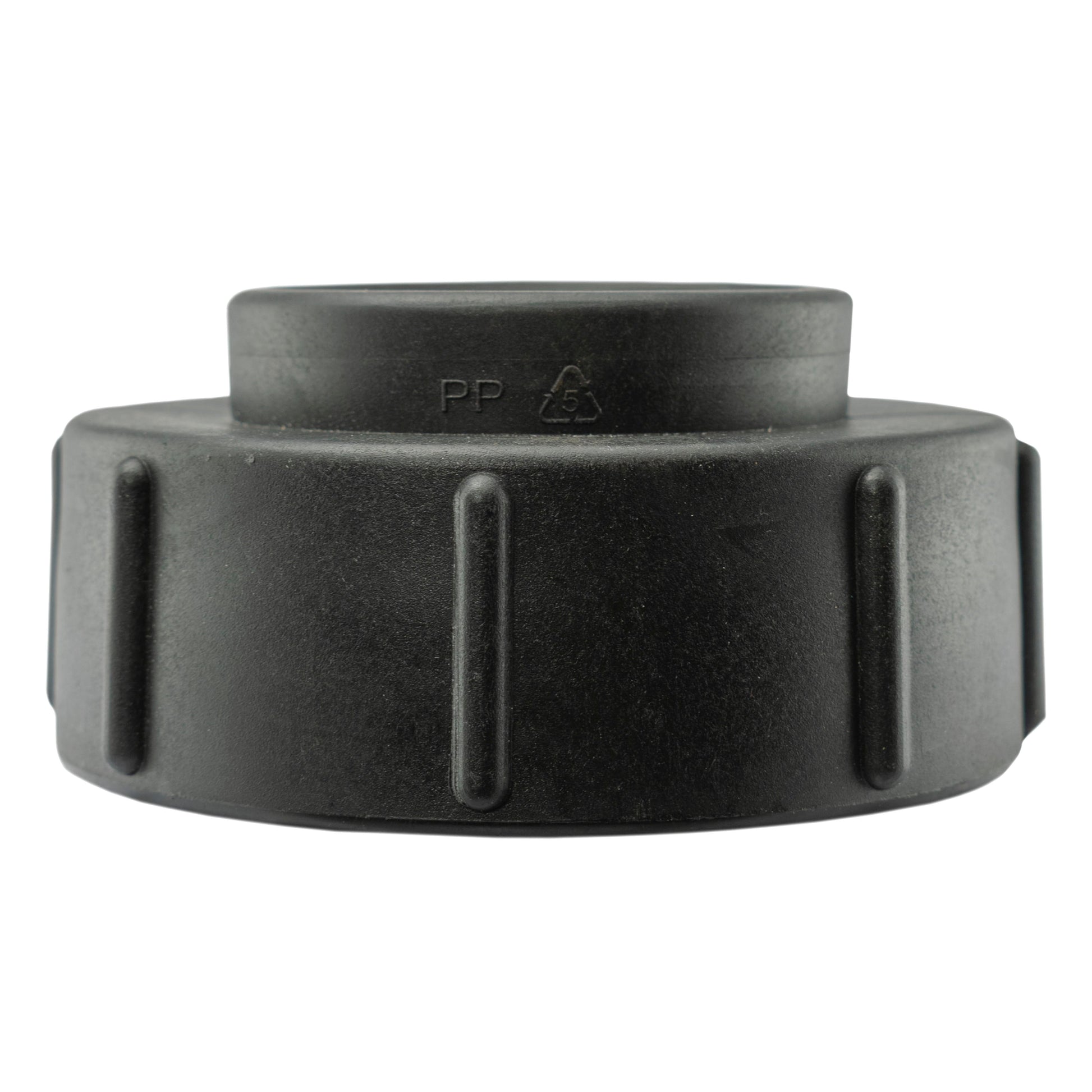

The moulded polypropylene body has raised ribs for grip. Its compact cap shape keeps the change between thread types close to the outlet, ready for your chosen compatible fitting.
One adapter supplied. Tank, existing valve, hose and other fittings are not included. The adapter has an open port; it is not a blanking cap or shut-off valve.

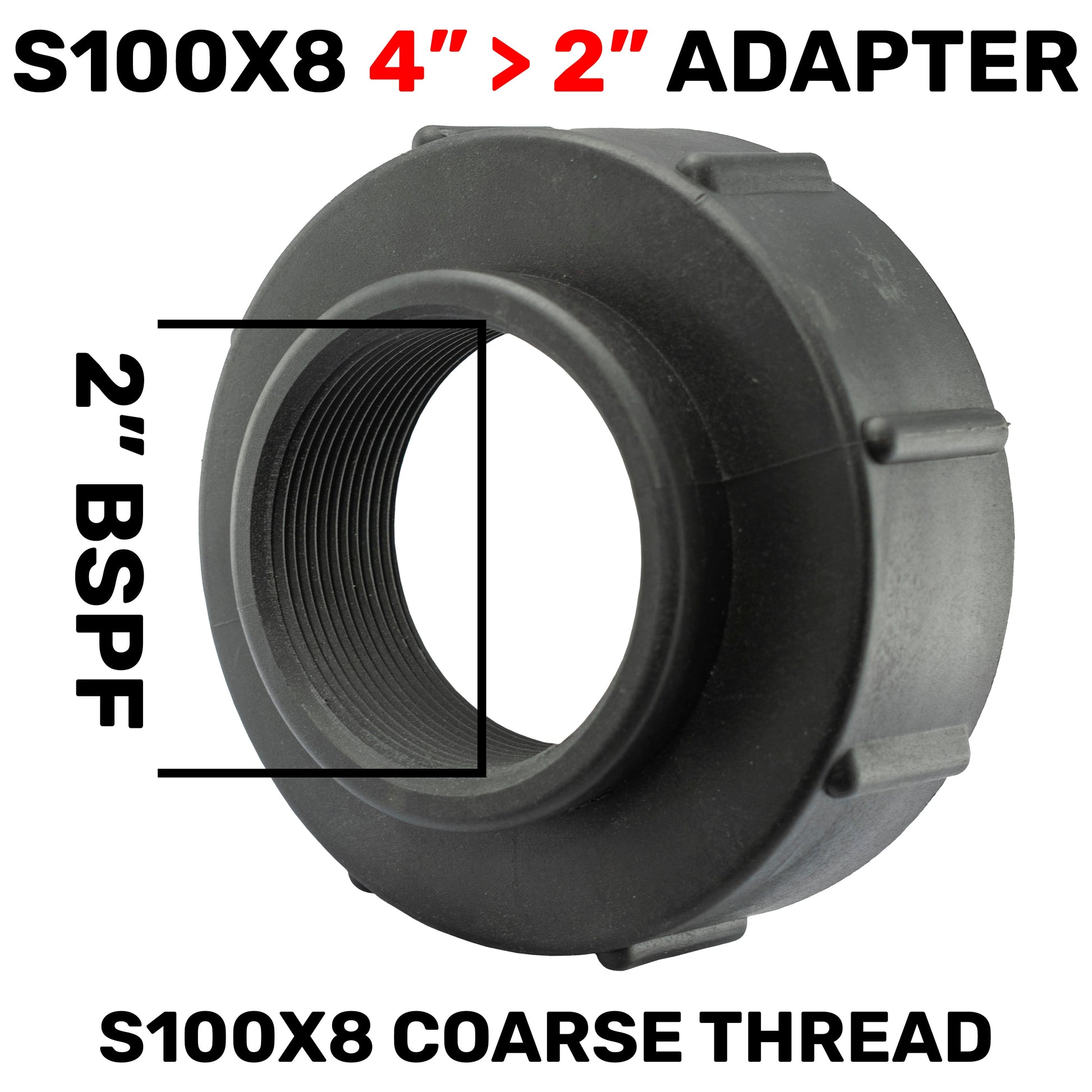

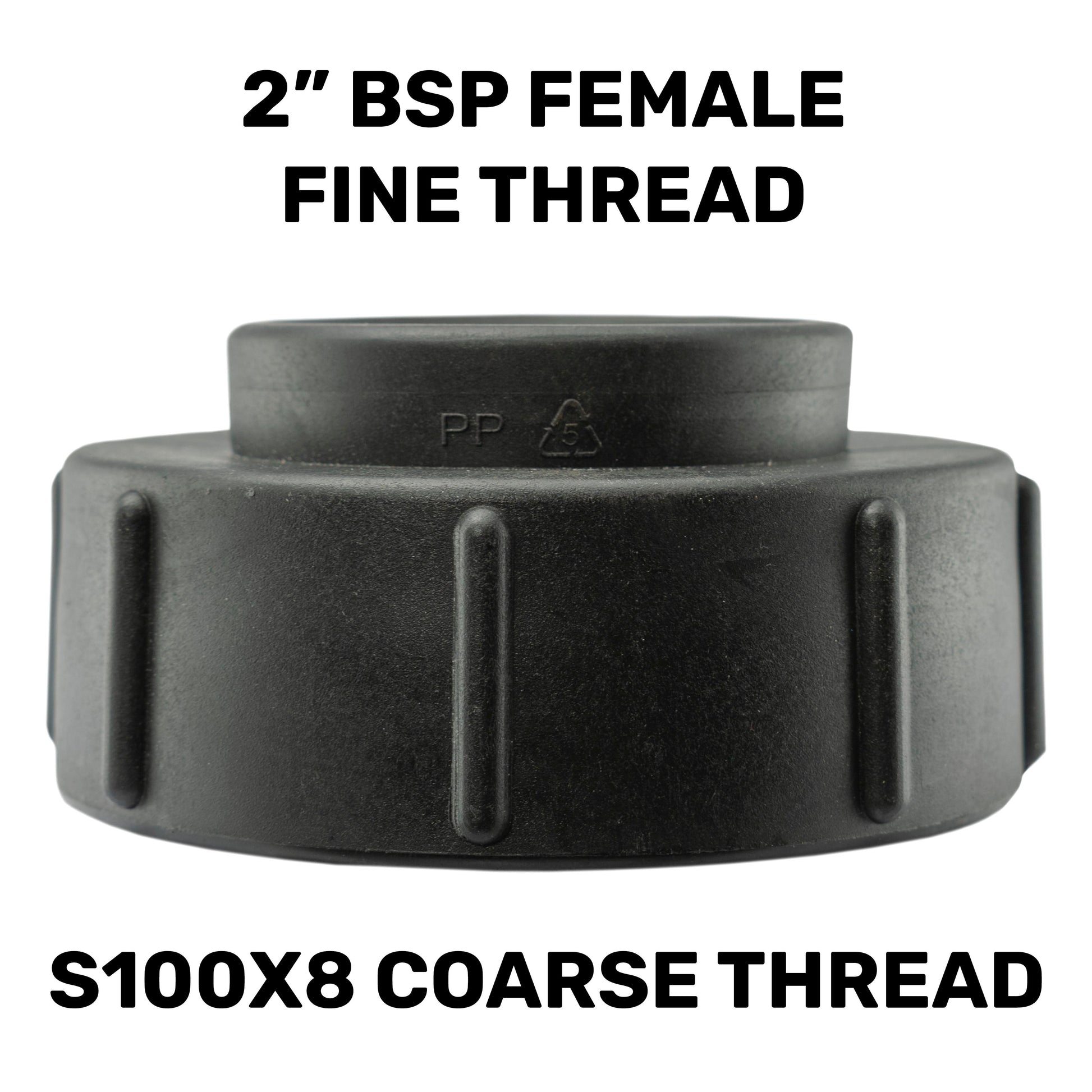

S100x8 inlet. 2-inch BSP outlet.
The larger S100x8 female thread fits a matching male coarse-thread IBC outlet. S100x8 identifies a nominal 100mm thread diameter with an 8mm pitch. Check your tank's actual thread rather than choosing by the tank's capacity.
The smaller 2-inch BSP female port takes a matching BSP male fitting. It is not a hose barb, garden quick-connect plug or external male thread. A bare hose will need its own suitable connector.
S100x8 and 2-inch BSP are different thread systems. This adapter does not fit an S60x6 tank outlet, and “2-inch BSP” is a nominal thread size rather than a 50.8mm hose measurement.
Check the connection before opening the tank
Identify the outlet
Compare the thread diameter, pitch and male/female arrangement. The coarse tank connection and finer BSP port must each match their mating fitting.
Fit without forcing
Close the supply first. Check the threads and sealing surfaces, start the joints straight and use the correct seals or sealing method for each connection.
Support the fittings
Avoid hanging heavy hose or pipework from the plastic adapter. Support the connected equipment, then open the supply gradually and inspect the joints.
Choosing the right adapter
Can I use it to seal off the IBC outlet?
No. The centre is open for a separate fitting. Use the tank's suitable shut-off valve to control the supply, or choose a matching blanking cap if you need to close the outlet.
Does the 2-inch BSP fitting screw into or over the adapter?
It screws into the adapter's female port. Choose a 2-inch BSP male fitting and check the connection's sealing requirements. PTFE tape is available separately for threaded joints where tape is appropriate; it does not replace a required face seal.
Product information & technical details
| SKU | IBCS100X8-2BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Female |
| IBC thread size | S100X8 (4") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection layout | S100x8 female tank connection to 2-inch BSP female port |
| Body material | Polypropylene (PP) |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
