Description
A simple way to water your lawn
Connect your garden hose and let the orange butterfly rotor do the turning. This Eco Line rotary sprinkler sits on a slim ground spike, giving you a simple watering point that can be moved to another patch of lawn when needed.
The black outer frame stays in place while the butterfly turns inside it. There are no long projecting spray arms or an impact spring to set up; keep the rotor clear and check the spray over your own lawn.
One sprinkler supplied. Hose and female garden connector are sold separately.
The movement is in the butterfly
Water drives the orange rotor around its vertical spindle. The surrounding frame and spike remain stationary. This is a rotary sprinkler, rather than an oscillating bar or a spring-loaded impact head.
Its stated maximum watering diameter is 12m: the width across the watering area, not a 12m reach from the spike. Available pressure and flow, hose length and wind affect the result. Watch where the water lands and move the sprinkler if another area needs attention.

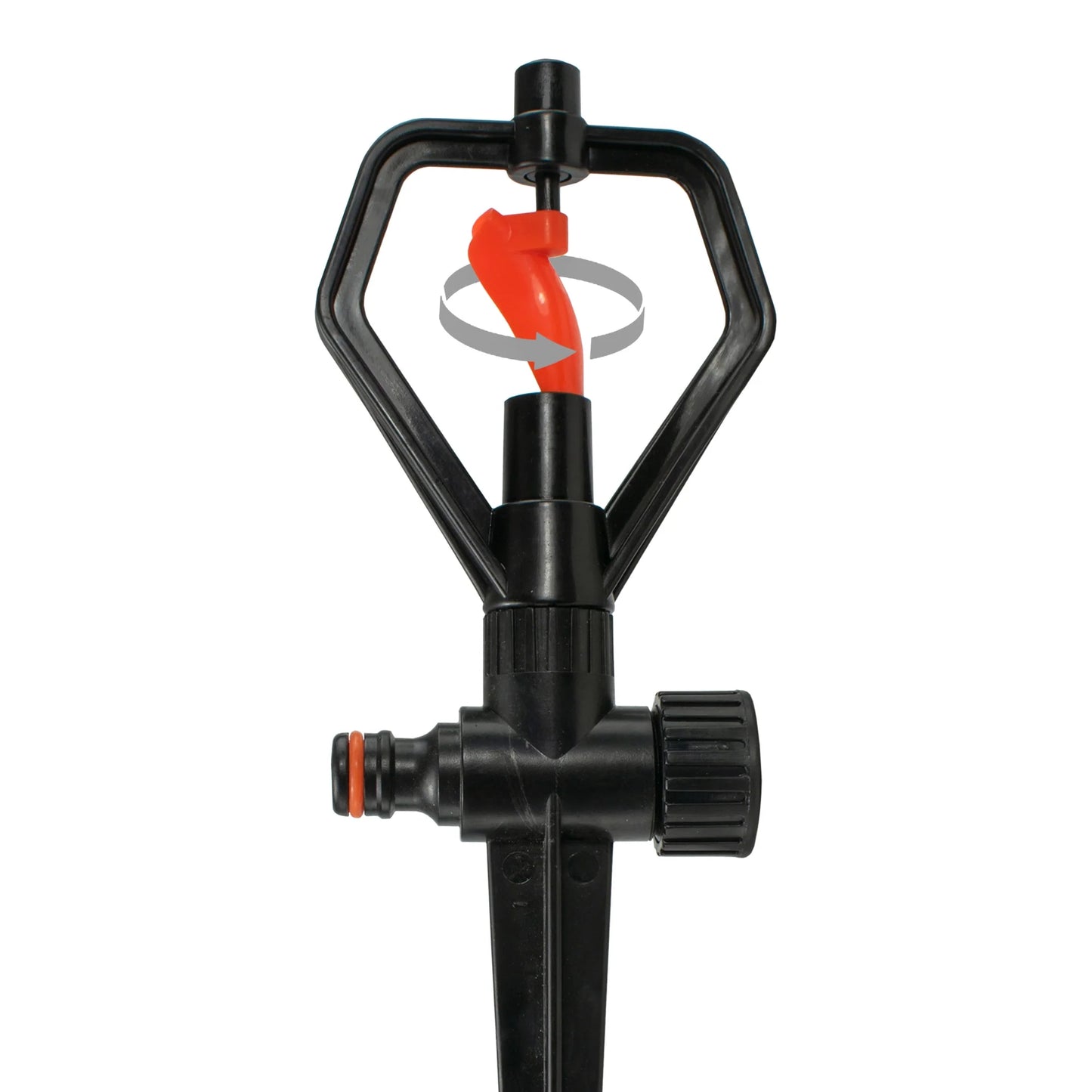

The arrow in the image illustrates rotation. Keep the moving rotor clear of stems, grass and other obstructions.
Make a simple watering setup
Position and click on
Insert the spike into suitable soil with the head upright. Keep the supply hose relaxed so it cannot pull the sprinkler sideways.
With the water off, click a compatible female garden hose socket onto the male side inlet. The optional black connector above is for ½-inch hose; a suitable socket already on your hose can also be used. Turn on the water gradually and check the connection, rotation and wetted area.
Extending the layout
The capped outlet on the opposite side allows series connection with suitable extra hose and fittings. Leave the cap fitted when using a single sprinkler, and turn off the water before changing connections.
Additional heads share the available flow. Test each sprinkler in the finished setup rather than assuming every unit will retain its single-head reach or give identical watering.
Butterfly sprinkler questions
Does the whole frame rotate?
No. The orange butterfly turns inside the black frame; the frame and ground spike remain stationary.
Is the female hose connector included?
No. This listing supplies one sprinkler with a male garden quick-connect inlet. The female socket and supply hose are separate.
Can I use it on paving or decking?
The spike needs suitable soil to hold the sprinkler upright. Choose a freestanding-base sprinkler if you need to position it on a hard surface.
Will another sprinkler in series have the same reach?
Not necessarily. Hose losses and the number of working heads affect the flow available to each unit. Check the movement and actual watering area of every sprinkler on your supply.
Product information & technical details
| SKU | ECO-TS1012-001 |
|---|---|
| Product type | |
| Colour | Black, Orange |
| Material | Plastic |
| Brand | Bradas |
| Range | Eco Line |
| Mechanism | Water-driven butterfly rotor inside a fixed frame |
|---|---|
| Maximum watering diameter | 12m; actual reach depends on supply and conditions |
| Mounting | Plastic ground spike |
| Supply connection | Male garden quick-connect inlet |
| Series connection | Capped continuation outlet; extra hose and fittings separate |
