Certifications: European standards (Reg. EU 10/2011 + Stimulants)
Internal diameter: 25mm
Outer diameter: 32mm
Wall thickness: 3.5mm
Maximum coil length: 50m
Working pressure: 8 BAR
Bursting pressure: 24 BAR (depends on the temperature of the fluid being transported)
Operating temperature: -20°C to +60°C
Description

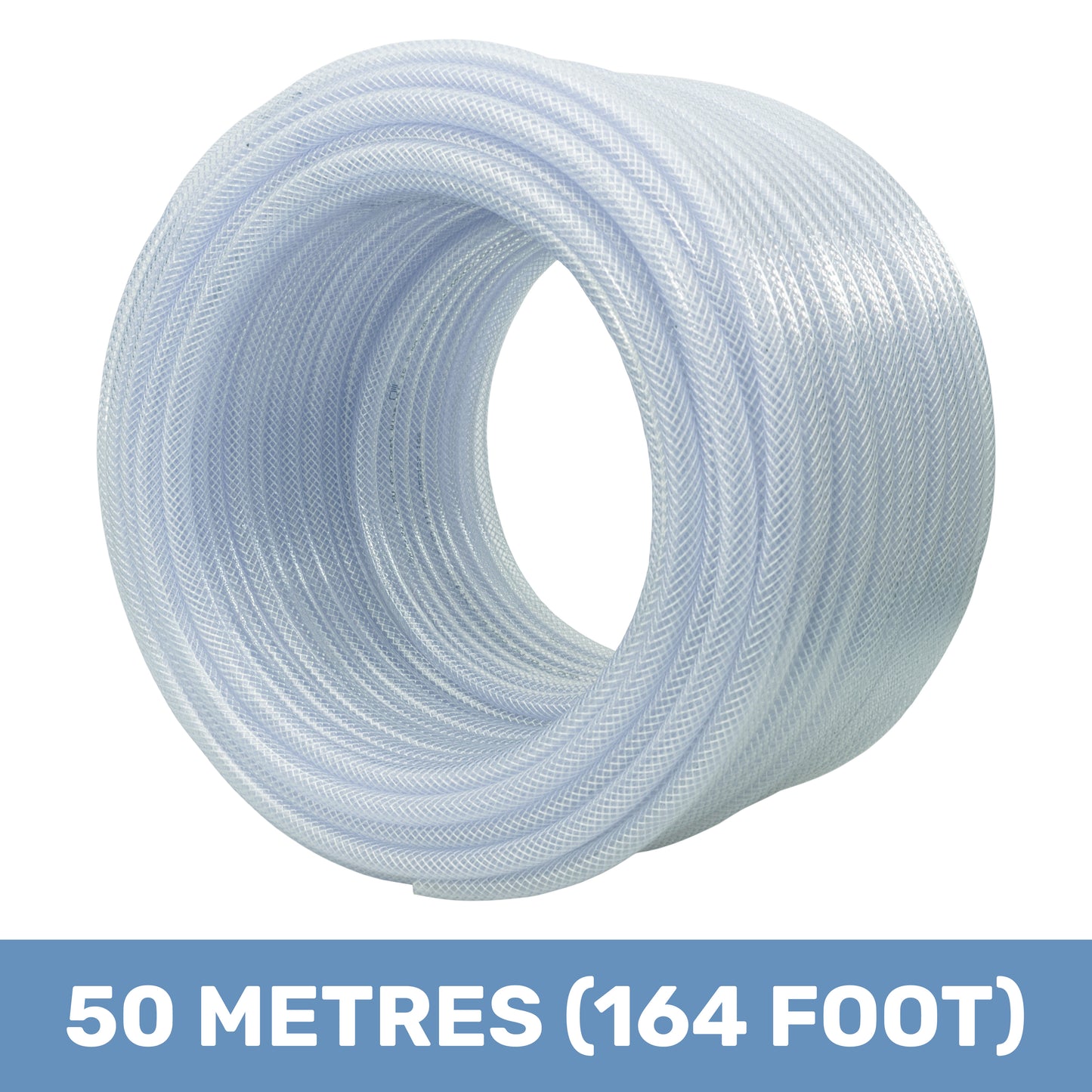

Our premium PVC Pipe is a 4-layer reinforced technical hose designed to meet the highest standards of quality and performance. Crafted with transparent walls, this hose provides exceptional clarity, allowing for easy monitoring of transported liquids to detect any potential contamination. Constructed from top-grade materials, including a triple polyester yarn and textile reinforcement, it boasts remarkable durability, flexibility, and resistance to light, oxygen, and abrasion.
This versatile hose is ideal for a wide range of applications, from transporting palatable liquids to air, plant protection fluids, and light chemicals. Engineered to withstand pressures, it ensures reliable performance in demanding environments. Operating flawlessly within a temperature range from -20°C to +60°C, it adapts seamlessly to varying conditions.
Compliant with the standards of the Reg. Directive (EU) 10/2011 + Stimulants, our PVC Pipe is safe for use with food, free from harmful substances such as cadmium, barium, lead, or phthalate. Its reinforced triple cross-shaped weave from polyester thread enhances its structural integrity, while its self-extinguishing properties offer added safety in case of fire.
Not only does this hose offer resistance to chemicals, but it is also conditionally resistant to oils, gasoline, and hot water, making it suitable for a wide array of industrial and commercial applications. Additionally, its suitability for sterilization underscores its hygiene credentials, ensuring peace of mind in sensitive environments. Trust our PVC Pipe for unparalleled performance, reliability, and safety in fluid transportation.
Designed for the passage of food, palatable liquids & materials, oils, chemicals, acids and fluids while under pressure.
Exhibits remarkable resilience against the deteriorating effects of light and oxygen, ensuring prolonged durability.
Boasts superior abrasion resistance, maintaining structural integrity even in demanding environments.
Self-extinguishes swiftly upon removal from a flame, enhancing safety measures and reducing fire hazards.
Shows outstanding resistance to a wide range of chemicals, acids & bases, oils, gasoline, and other petroleum-based substances, ensuring reliable performance in diverse applications.
Capable of efficiently transporting hot water (up to +60°C) without compromising integrity, minimizing operational risks.
Suitable for sterilization procedures, ensuring compliance with stringent hygiene standards.
Environmentally friendly design, devoid of cadmium, barium or lead and other harmful elements.
Free from toxic components such as phthalates, ensuring safety and regulatory compliance.
Suitable for a wide array of applications from aquariums and ponds to the food & automotive industry.
This is better than a previous irrigation system I used. But it would have been better if I had templated it first so I ordered the correct number of fittings. Do this and it should be fine.
