Description
A simple spike sprinkler you can position where needed

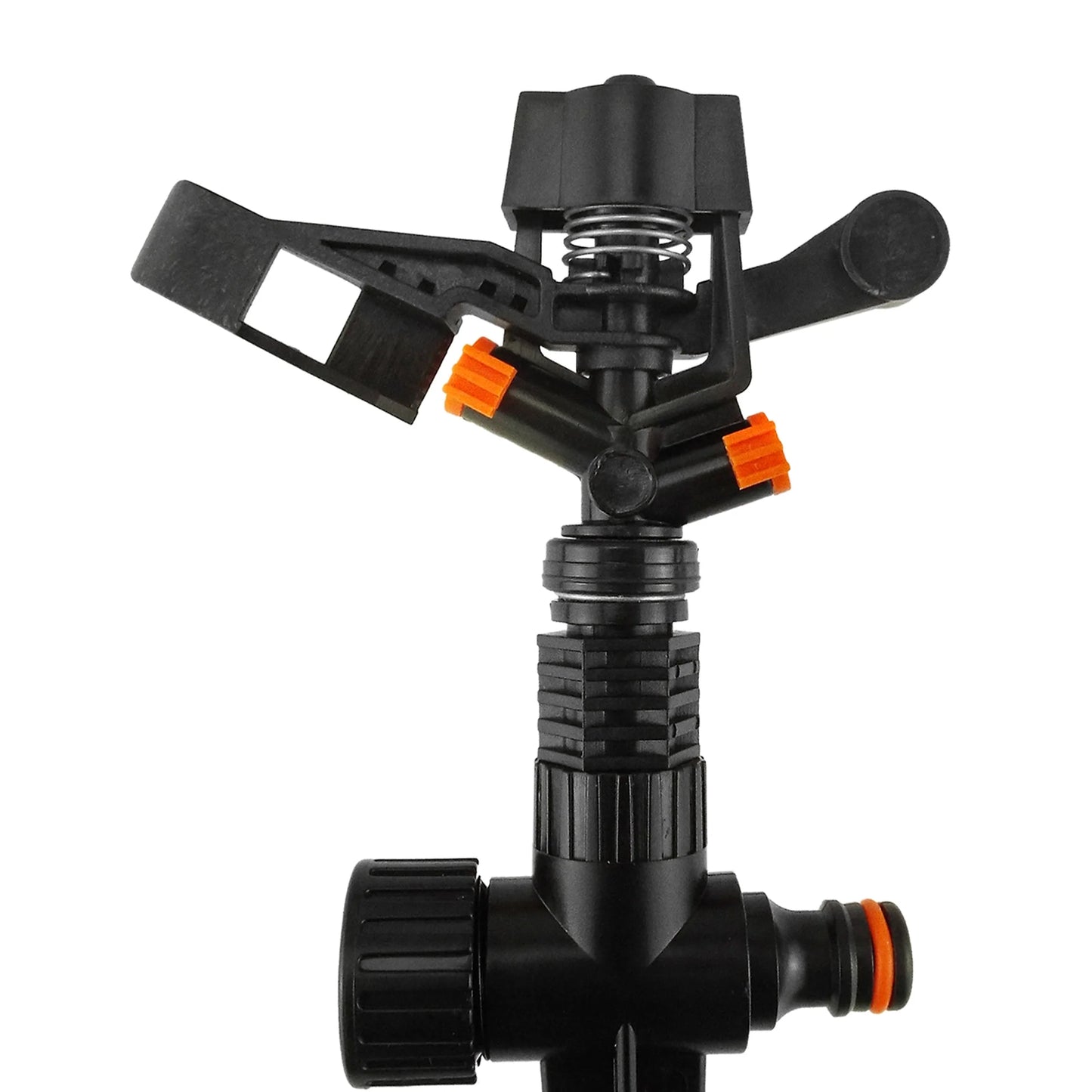

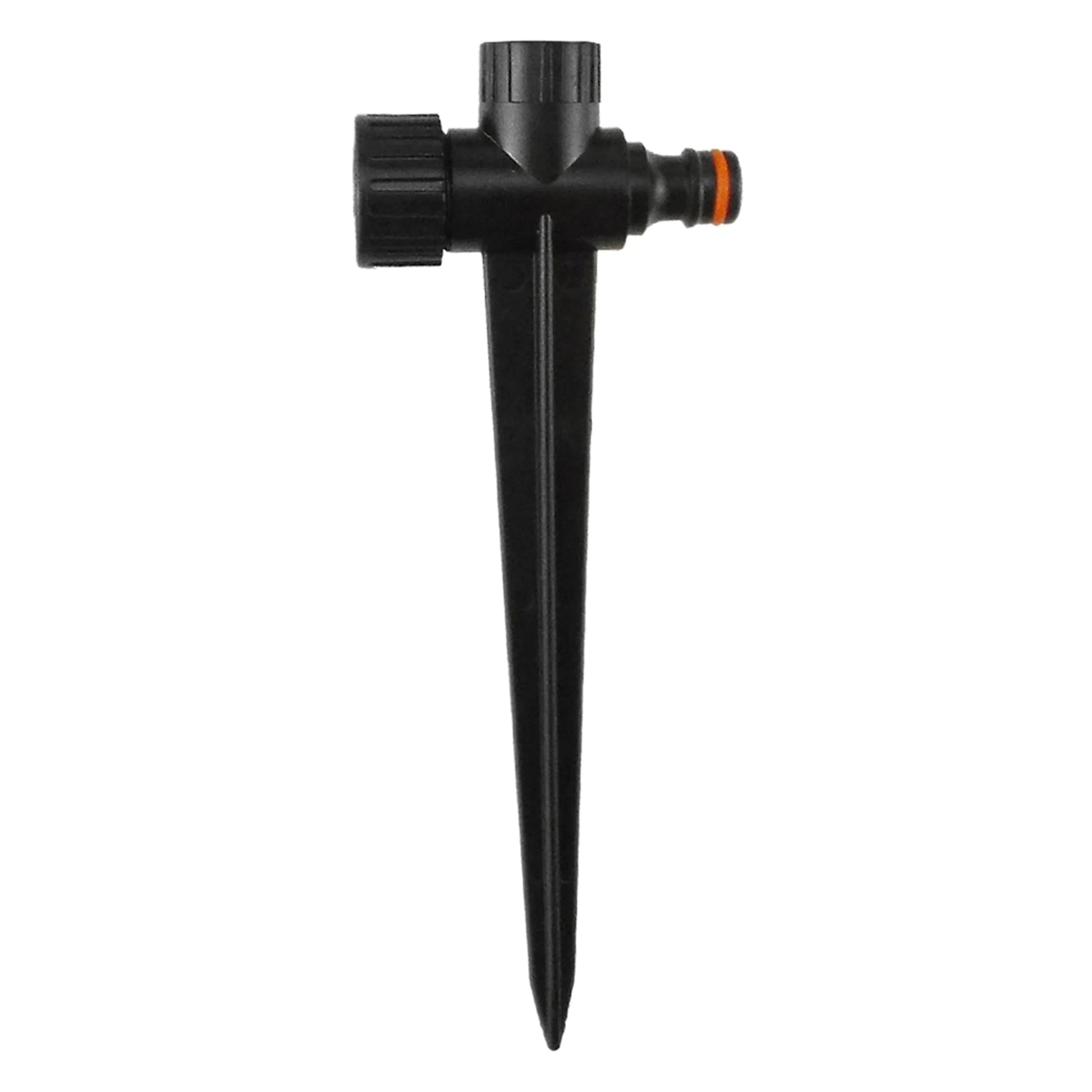

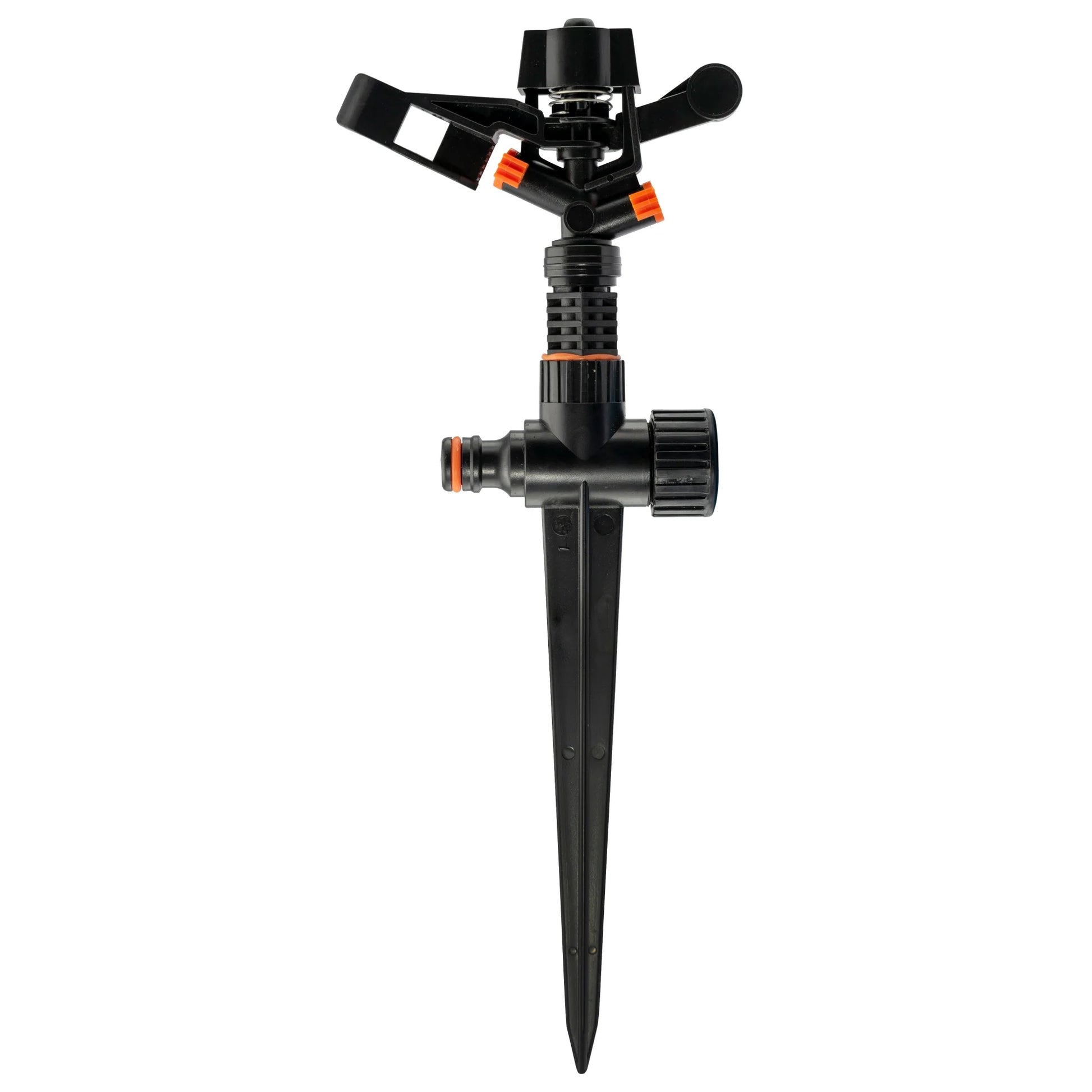

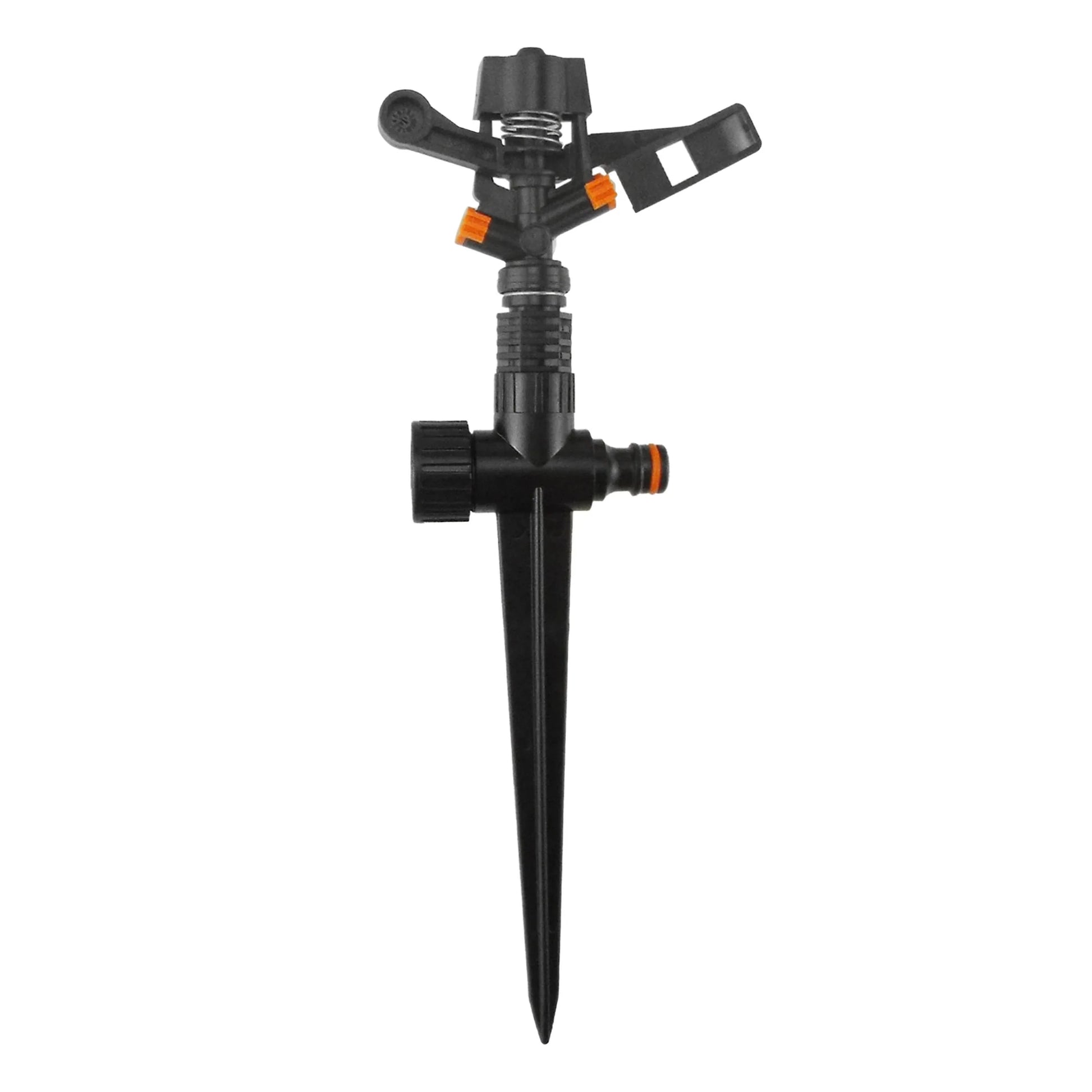

Use the Bradas ECO-6023 pulsating sprinkler to water a lawn from a secure ground position. Its black plastic body and orange adjustment parts sit above a ground spike, with a garden quick-connect inlet for your supply hose.
Place the spike in suitable soil, arrange the hose without pulling on the unit and check a short watering run. Move the sprinkler between positions as your lawn layout requires.
Check the pattern at the sprinkler

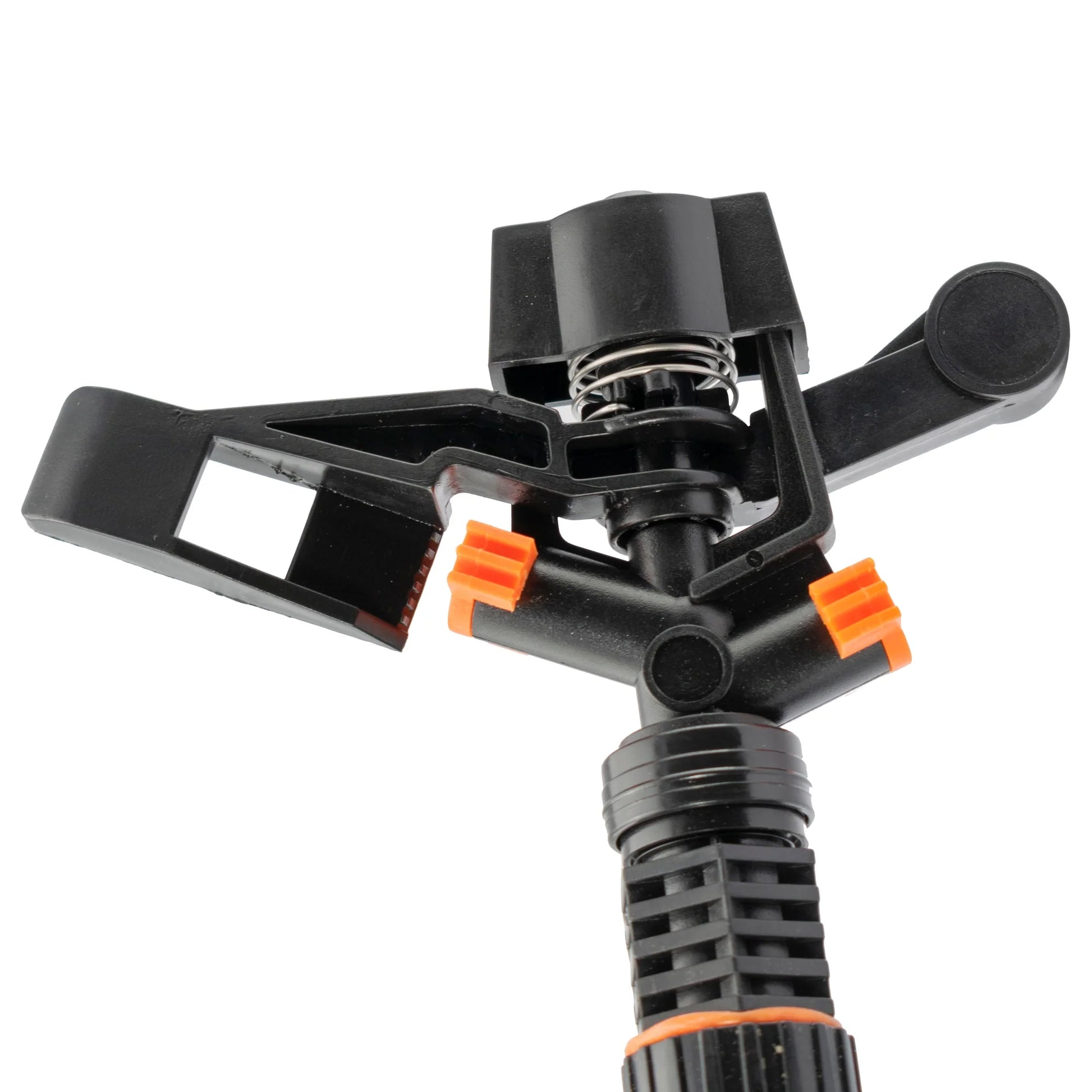

The pulsating impact head provides rotating lawn watering, including a full-circle option. Make adjustments with the water off, then watch the pattern to keep water within the area you want to irrigate.
The maximum specification for this listing is a 17m watering diameter. That is the width across the watered circle; the distance from the head to the edge is smaller. Actual reach depends on the pressure and flow arriving through your hose.
Use a watering time that suits your soil, planting and weather. Reposition the spike for areas beyond the observed spray pattern rather than assuming the quoted maximum is reached on every supply.
Connect one unit, then plan any extra coverage
The fitted male garden quick-connect nipple accepts a compatible female hose-end connector. This product includes one sprinkler with its spike. Your hose, female hose connector and tap fittings are separate.
The specified working pressure is 0.1-0.7MPa, equivalent to 1-7 bar. Check your supply at the sprinkler and stay within that range. Choose pressure controls appropriate to the supply if they are needed.
The through-flow body allows additional sprinklers to be linked with suitable hose and fittings. Each extra head draws from the same supply, so test the resulting pattern before committing to a multi-sprinkler arrangement.
Questions about the Eco spike sprinkler
Does the spike come with the sprinkler?
Yes. One black-and-orange Eco plastic pulsating sprinkler with its ground spike is supplied. Hose, separate hose-end connector and tap fittings are not included.
What hose connection do I need?
Attach a compatible female garden hose connector to the fitted male quick-connect nipple. If you need a separate connector for ½-inch hose, the optional product shown above is the component used in the matching connector kit.
What does the 17m coverage figure mean?
It is the specified maximum diameter across the watered circle, not a 17m radius from the head. Check the actual pattern on your water supply and move the sprinkler where needed.
What pressure does it need?
The stated working range is 0.1-0.7MPa, or 1-7 bar. Check the pressure reaching the sprinkler through your hose and fittings, particularly if you are adding further sprinklers.
Can several sprinklers share the same hose run?
The through-flow body supports in-line linking with extra hose and fittings. Your supply must provide enough water for the combined arrangement. Test the reach at each head; adding units can reduce performance at the others.
Product information & technical details
| SKU | ECO-6023-001 |
|---|---|
| Product type | |
| Colour | Black, Orange |
| Material | Plastic |
| Brand | Bradas |
| Model | ECO-6023 |
| Sprinkler mechanism | Pulsating / impact |
| Rotation | Full 360° option |
|---|---|
| Maximum watering diameter | Up to 17m; depends on water supply |
| Working pressure | 0.1-0.7MPa (1-7 bar) |
| Inlet connection | Male garden quick-connect nipple |
| Series connection | Supported; linking hose and fittings separate |
| Quantity supplied | 1 sprinkler with ground spike |
