Description
Timed watering for beds and borders
Take water to your planting with a timer, supply hose and porous soaker hose. The supply hose reaches from the timer to the bed; the black porous hose follows the plants, letting water seep into the soil along its route.
Choose a single, double or triple-zone kit for the number of separately timed routes you want. Each adds another 30m porous hose and 5m supply hose, with connectors for shaping the layout.
Check your supply pressure: the porous hose is rated to 0.7 bar maximum. Pressure control, where needed, is separate.
Compare the three bundles
One timer is supplied in each kit. Hose and fitting quantities increase with the zone count.

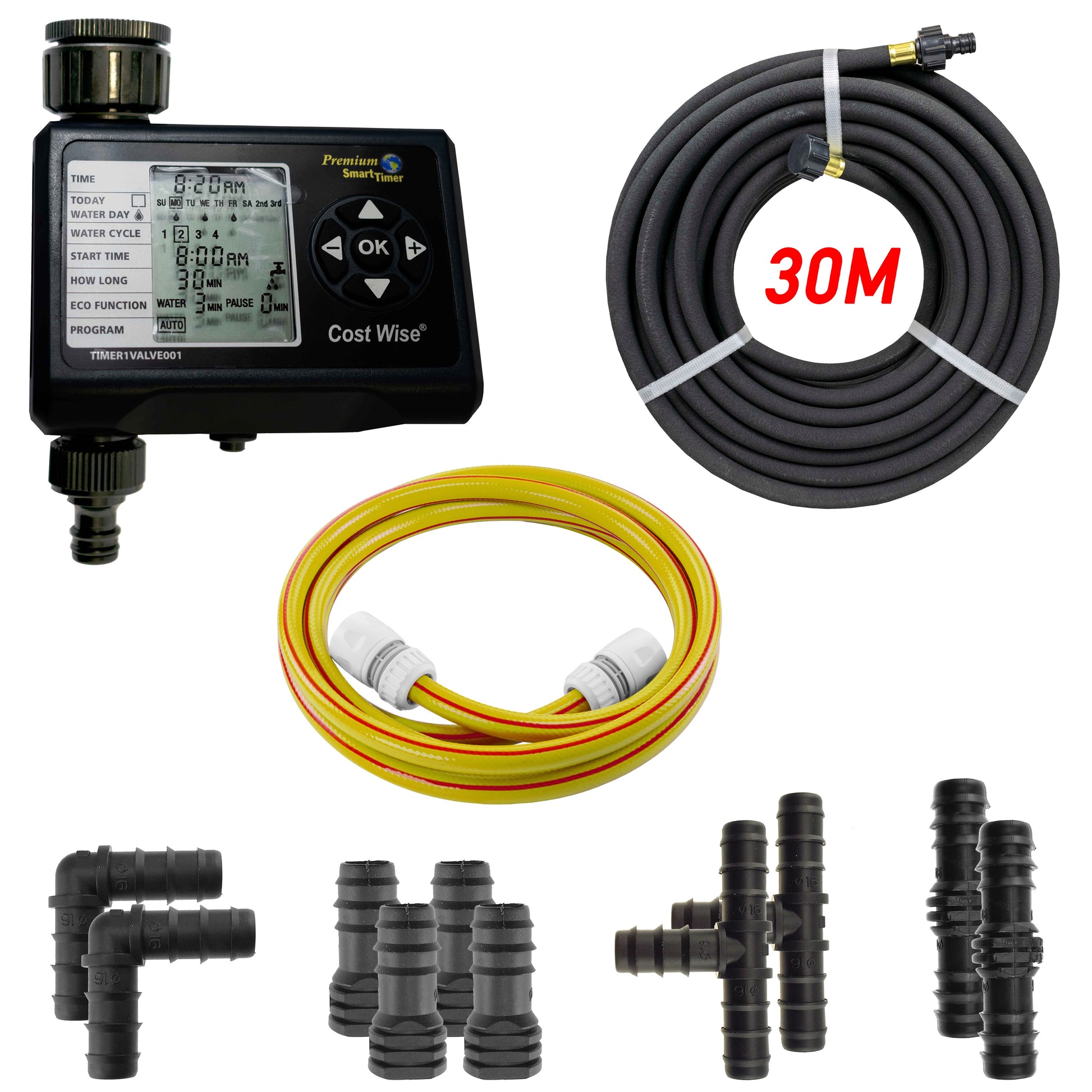

Single Timer Bundle
1 timer with 1 outlet
1 × 30m porous hose
1 × 5m supply hose
2 female hose sockets
2 elbows · 2 tees · 2 joiners
4 end plugs
Double Timer Bundle
1 timer with 2 outlets
2 × 30m porous hose
2 × 5m supply hose
4 female hose sockets
4 elbows · 4 tees · 4 joiners
8 end plugs
Triple Timer Bundle
1 timer with 3 outlets
3 × 30m porous hose
3 × 5m supply hose
6 female hose sockets
6 elbows · 6 tees · 6 joiners
12 end plugs
Plan the route, then set the routine
Lay out each zone
Place the porous hose near the root area. Plan bends, branches and capped ends before cutting; use the supplied ½-inch barbed fittings where required. Total hose length does not guarantee even watering in every layout.
Check pressure and flow
Keep pressure at the porous hose within 0.7 bar. Use suitable separate pressure control if required. Test the whole route and check moisture near both ends; the timer does not reduce pressure.
Programme and test
Set the clock, watering days, start times and durations, then enable AUTO. Each zone has four cycle slots. Try a short run before choosing a longer routine for your soil and plants.
Kit selection and care
Does the triple kit contain three timers?
No. It contains one three-outlet timer, three 30m porous hoses and three 5m supply hoses, plus the fittings listed above. Choose the bundle in the selector before ordering.
What else do I need?
A compatible tap, two AA alkaline batteries and any pressure control needed for your supply. Ground stakes are optional and separate. The porous hose is for garden watering, not drinking water or hot water.
Can I pause watering or add an extra session?
Yes. Use MANUAL for an extra session or DELAY to suspend the schedule for up to six days. Optional ECO intervals add water/pause periods. Follow the instruction sheet for your timer’s zone settings.
How should I store it over winter?
Turn off the tap and remove the timer. Open its valves in manual mode to drain water, remove the batteries and let the unit dry before storing it in a dry place. Drain the hoses and fittings too.
Product information & technical details
| SKU | TIMER1KIT |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Grey, Black |
| Material | Plastic |
| Brand | Cost Wise |
| Kit choices | Single, double or triple watering zone |
| Stored cycles | 4 per zone; 4, 8 or 12 in total |
|---|---|
| Watering duration | 1-240 minutes per cycle |
| Watering-day selection | Selected weekdays, every second day or every third day |
| Rain delay | Selectable programme pause of up to 6 days |
| Timer power | 2 × AA alkaline batteries; not included |
| Porous hose maximum pressure | 0.7 bar |
| Nominal hose size | ½-inch porous hose and supply hose |
| Water temperature during use | 0-38°C; protect the timer from frost |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
