Description

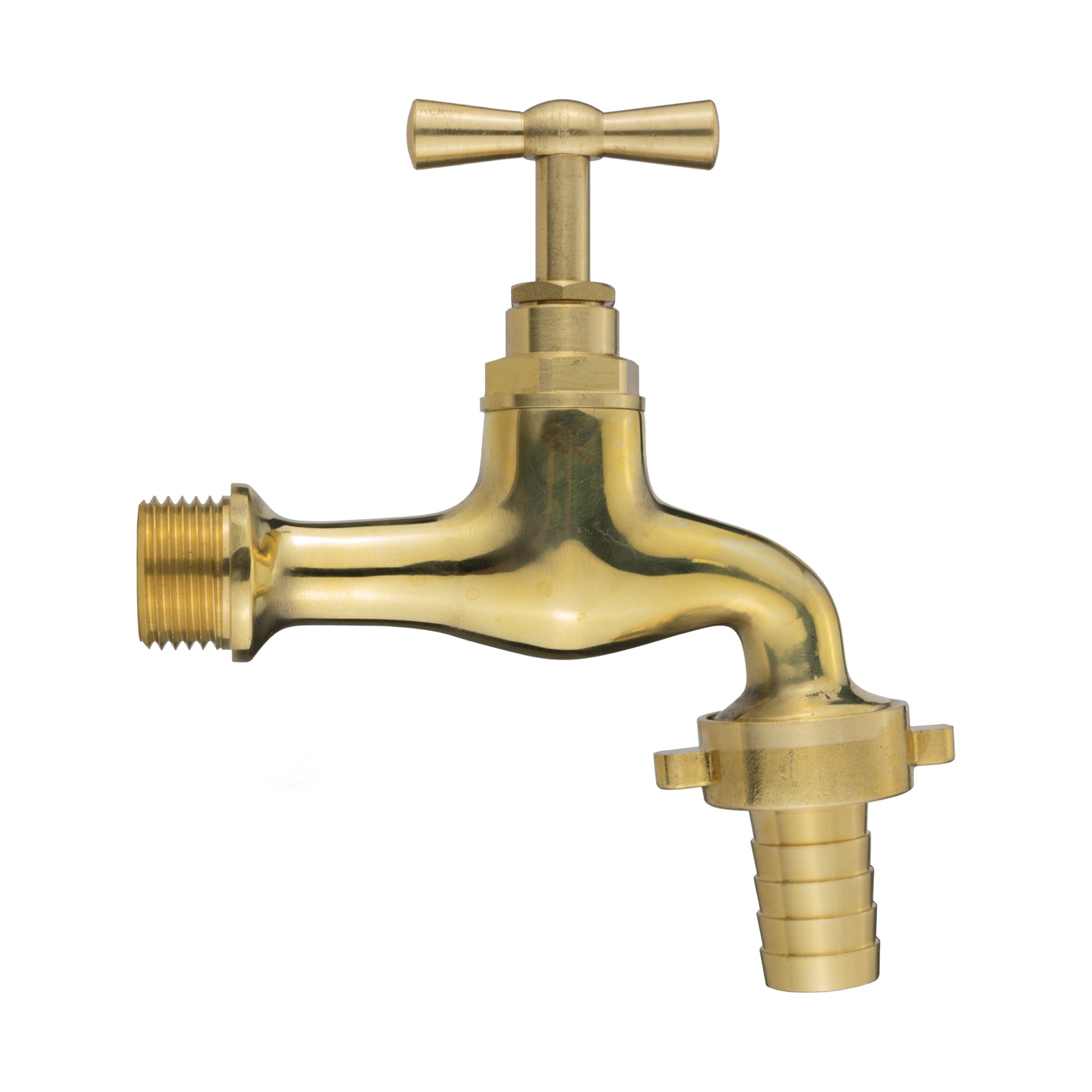

A brass bib tap with a direct hose connection
Bring a traditional brass finish to a garden water point with this 15mm hosetail bib tap. The curved spout leads to a ridged hose outlet, while the T-bar handle above controls the single outlet.

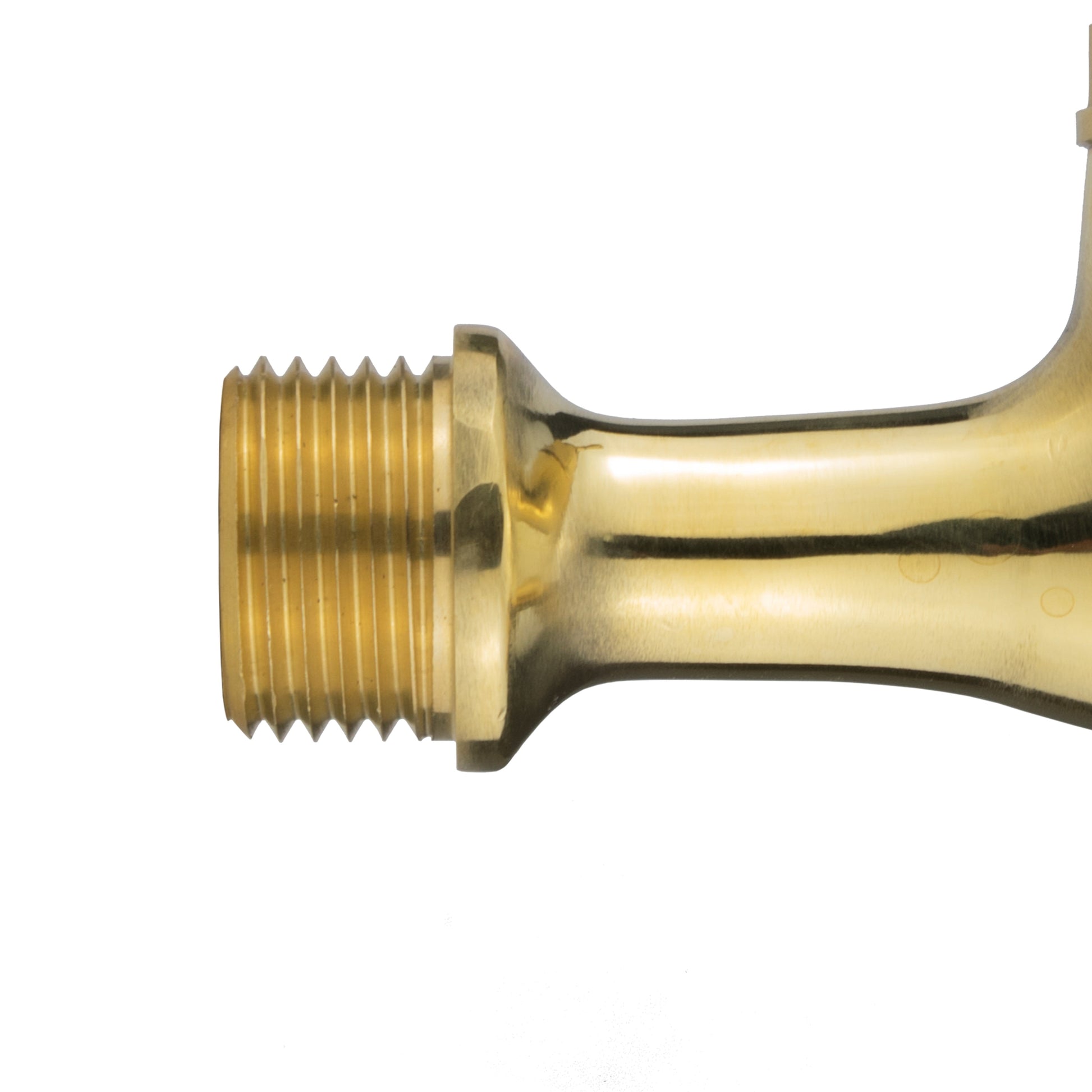

At the back, a ½-inch BSP male thread connects to a suitable matching female supply fitting. At the front, suitable flexible hose fits over the 15mm barb.
One tap with hosetail is supplied. Choose hose, retention, mounting and sealing parts for your installation; they are sold separately.
Two connections to check before ordering

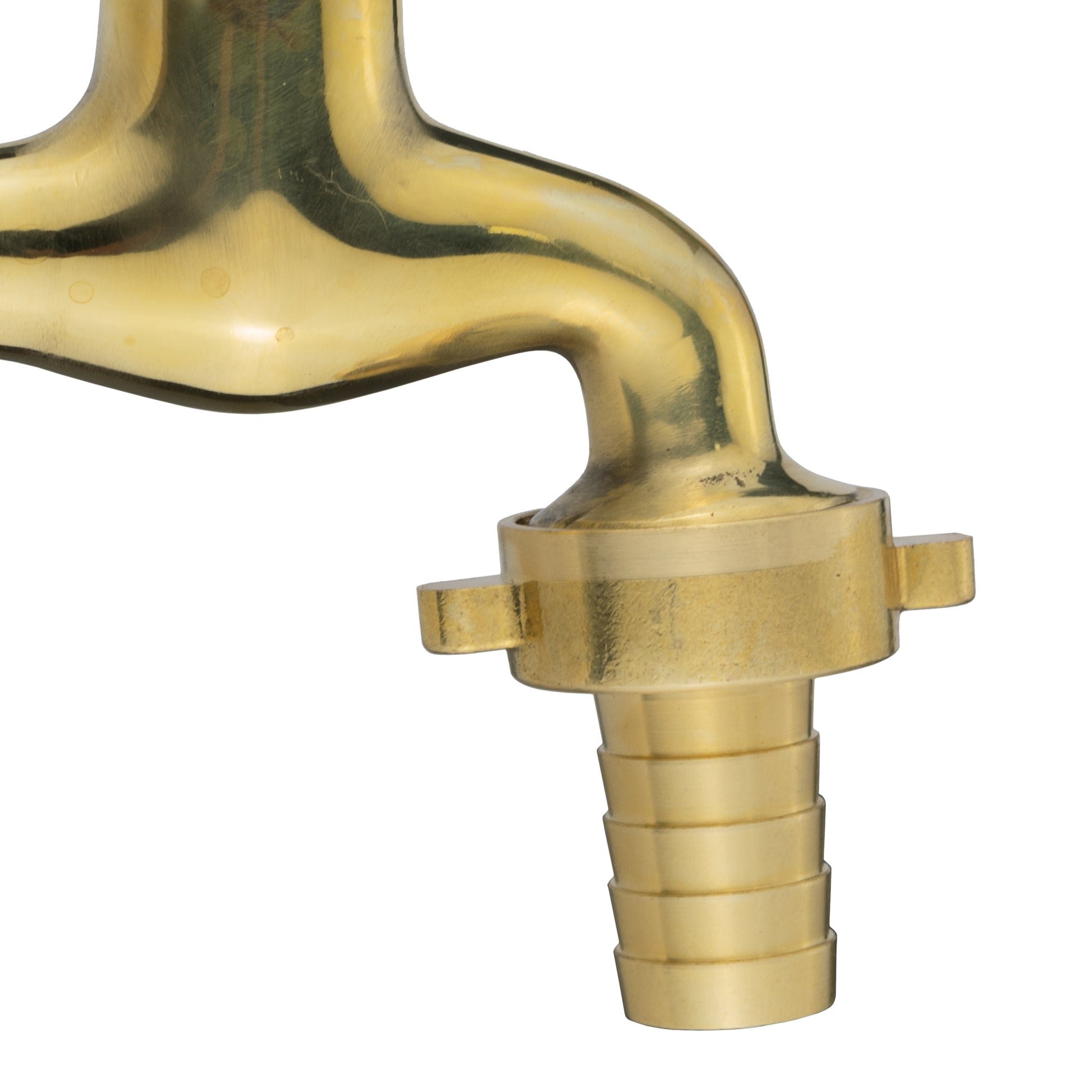

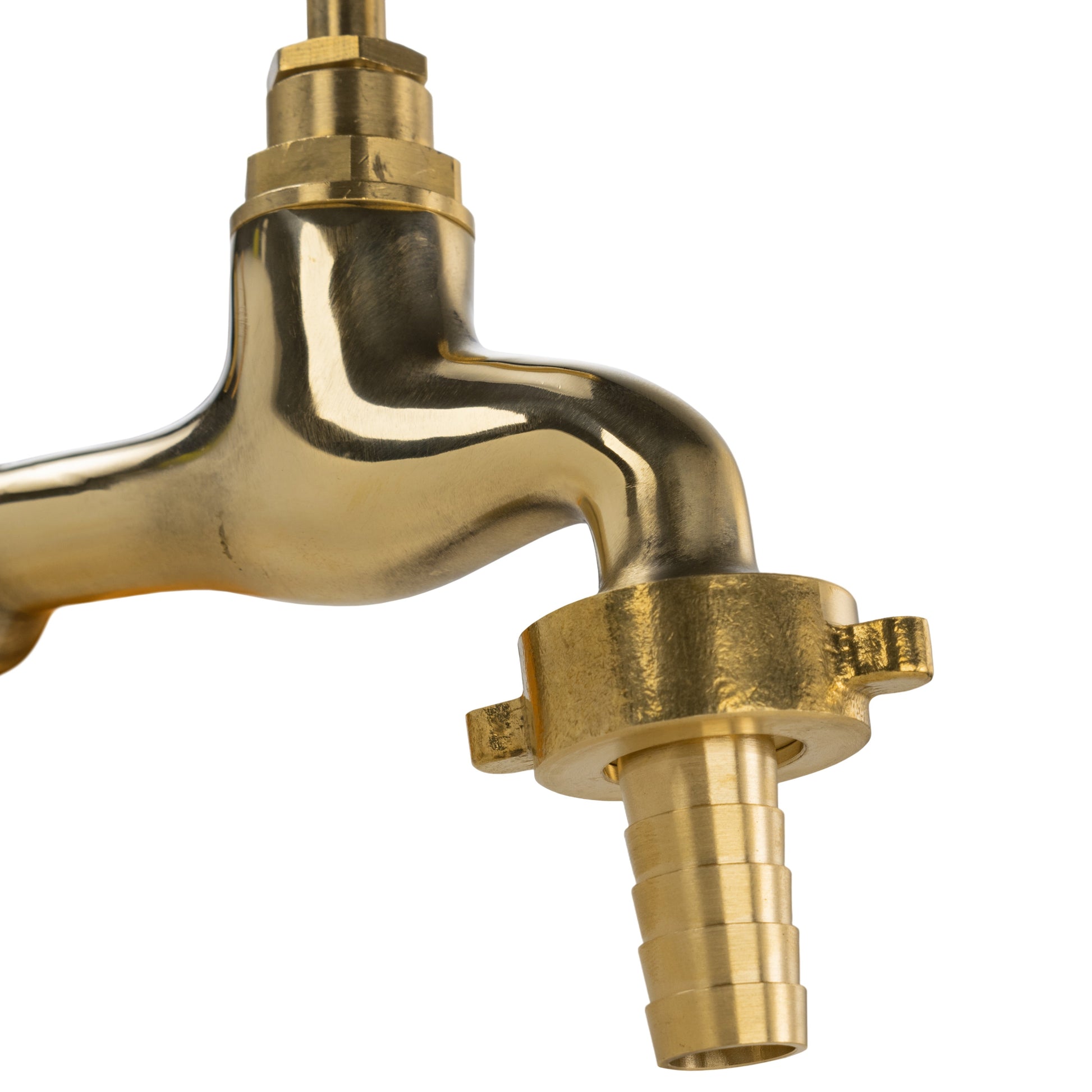

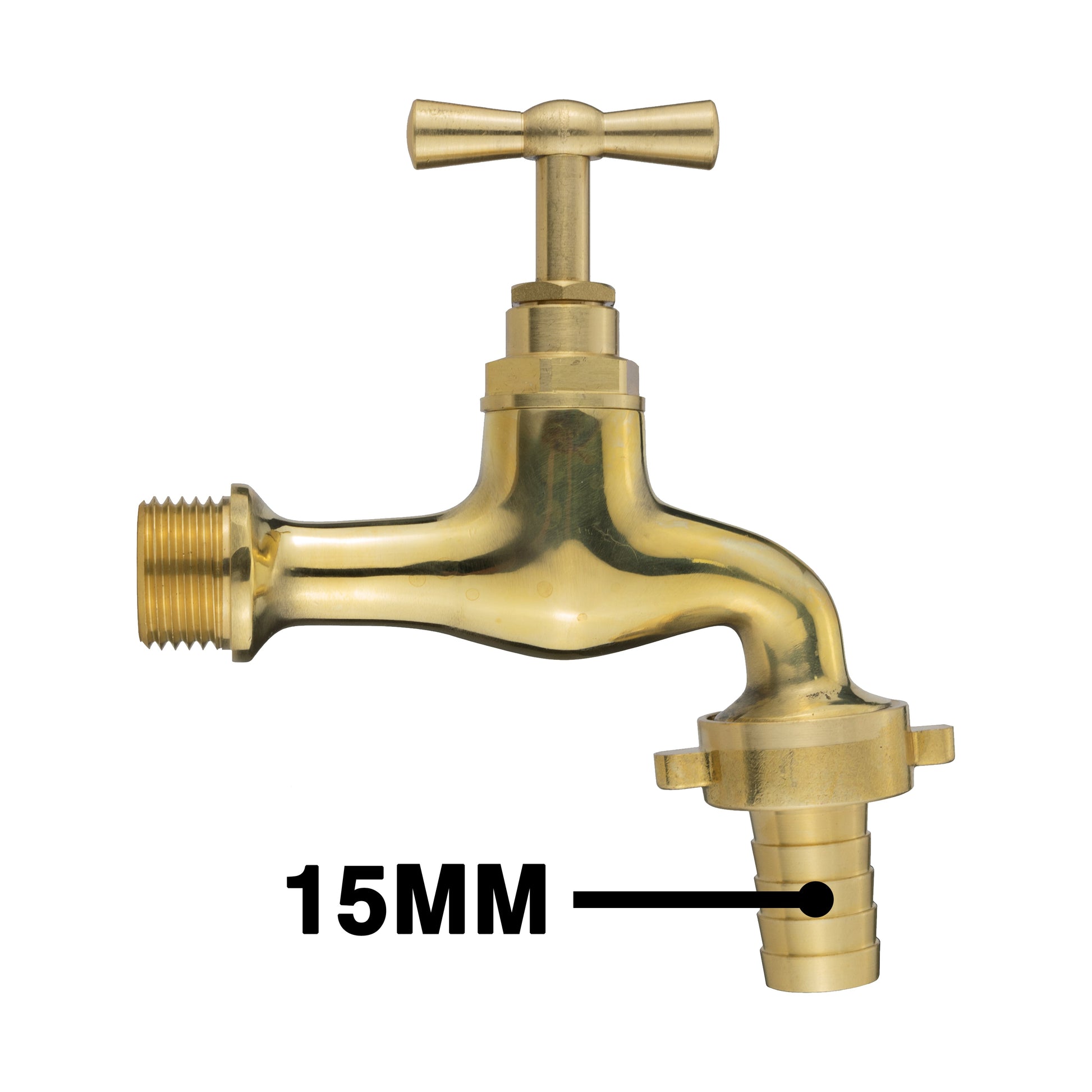

The 15mm measurement refers to the hose barb. Choose suitable flexible hose for that outlet and secure it using retention appropriate to the hose and application. Leave room below the spout so the hose can curve away without kinking.

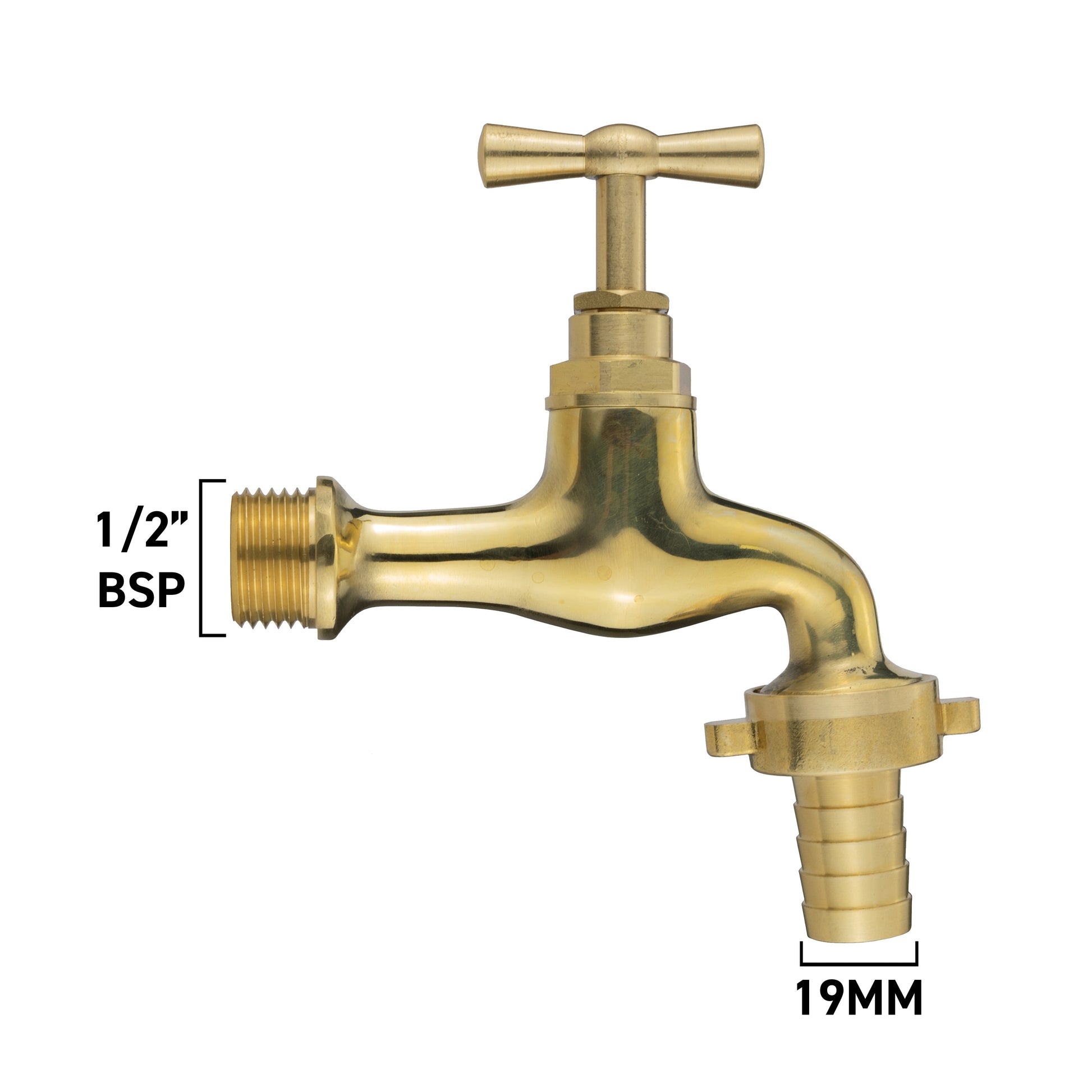

The ½-inch BSP measurement refers to the supply thread, not the hose. BSP sizes are nominal, so measuring the outside of the thread will not give the named ½-inch dimension.
This version has a direct hosetail. It does not have the male quick-connect plug used with a clip-on garden hose socket. Check which type of connection your hose setup needs.
Plan the mounting as well as the thread
A matching female supply connection must also provide an appropriate sealing arrangement and support for the tap. Depending on the water point, you may need a separate wall plate, tank adapter or other fitting.
Check those parts before removing an existing tap. A ½-inch BSP inlet does not make this a universal fit for every water butt opening or pipe connection.
Allow access around the T-bar handle and support the hose rather than letting it hang heavily from the spout. Hose movement should not pull on the supply joint.
From fitting to everyday use
A few checks help you prepare the complete installation.
Before fitting
Isolate the water supply. Check the female inlet fitting, sealing method, hose bore and available clearance. Have the separate mounting, sealing and hose-retention parts ready.
After connecting
Fit the tap into suitable support and avoid overtightening the joints. Restore water gradually, turn the handle and check the supply and hose connections before leaving the installation in use.
During use
Inspect joints and hose retention periodically. Drain exposed fittings before freezing weather. A pressure rating, temperature rating and drinking-water approval are not confirmed for this product.
Questions about this 15mm hosetail tap
Is this the 13mm or 15mm outlet version?
This listing supplies the 15mm barbed hosetail version, SKU GTBIB-PB-12BSPM-15MM001. Check your hose bore against that specification rather than choosing by the supply thread size.
Can I clip a garden hose connector onto it?
Not directly. The supplied outlet is a ridged hosetail for suitable hose, not a male quick-connect plug. Use the connection type required by your hose setup.
What is supplied with the tap?
One polished brass bib tap with its barbed hosetail. Hose, clips, wall plates, tank adapters and other mounting or sealing parts are not included.

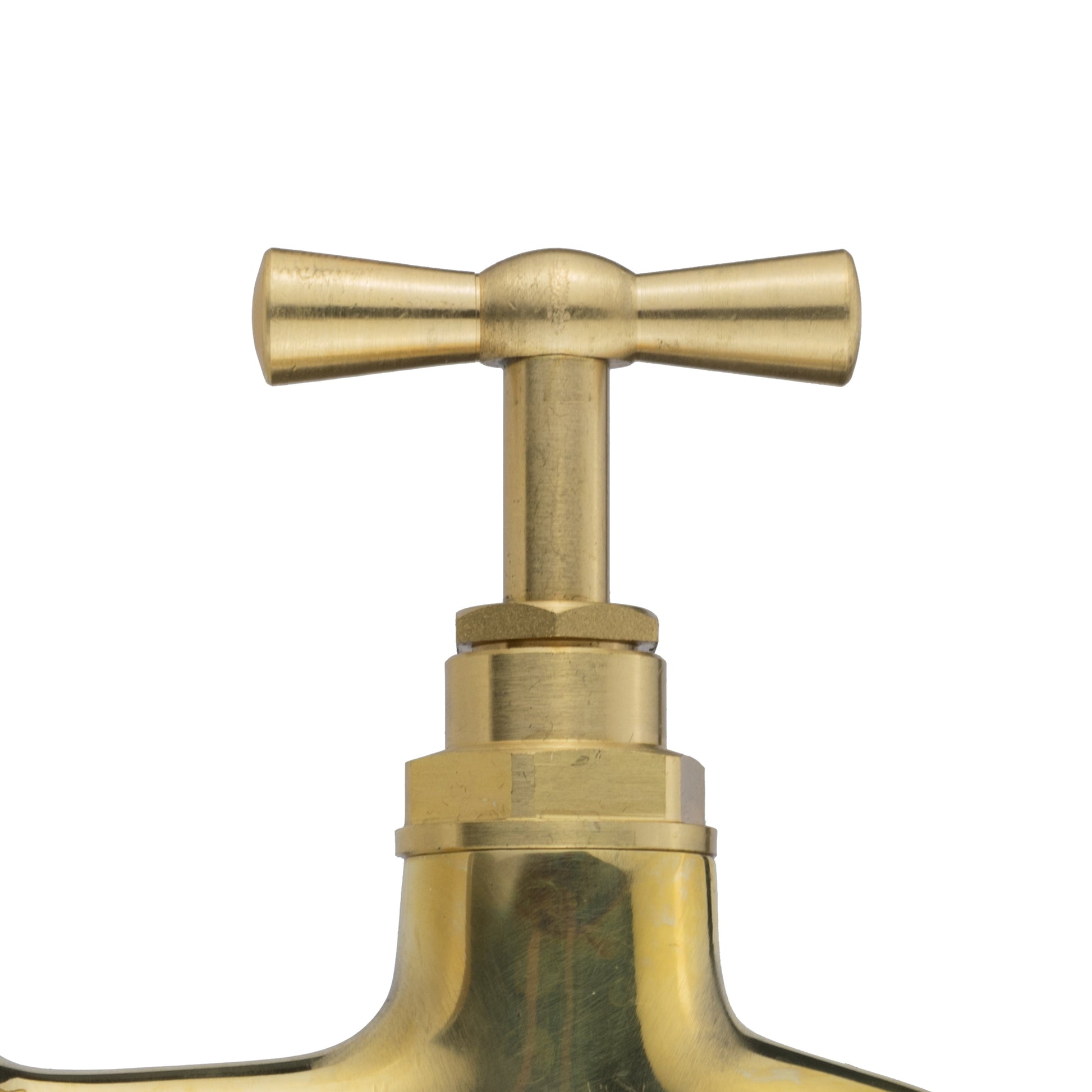

What kind of handle does it have?
It has the traditional T-bar turn handle shown in the photos, controlling a single downward-facing outlet.
Product information & technical details
| SKU | GTBIB-PB-12BSPM-15MM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Barb size | 15mm |
| Colour | Brass |
| Material | Brass |
| Finish | Polished brass |
|---|---|
| Handle | T-bar turn handle |
| Outlet connection | Barbed hosetail |
| Outlet count | One |
| Quantity supplied | One bib tap with hosetail |
| Hose, clips and mounting fittings | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
