Description
A curved spray bar with control at the hose end

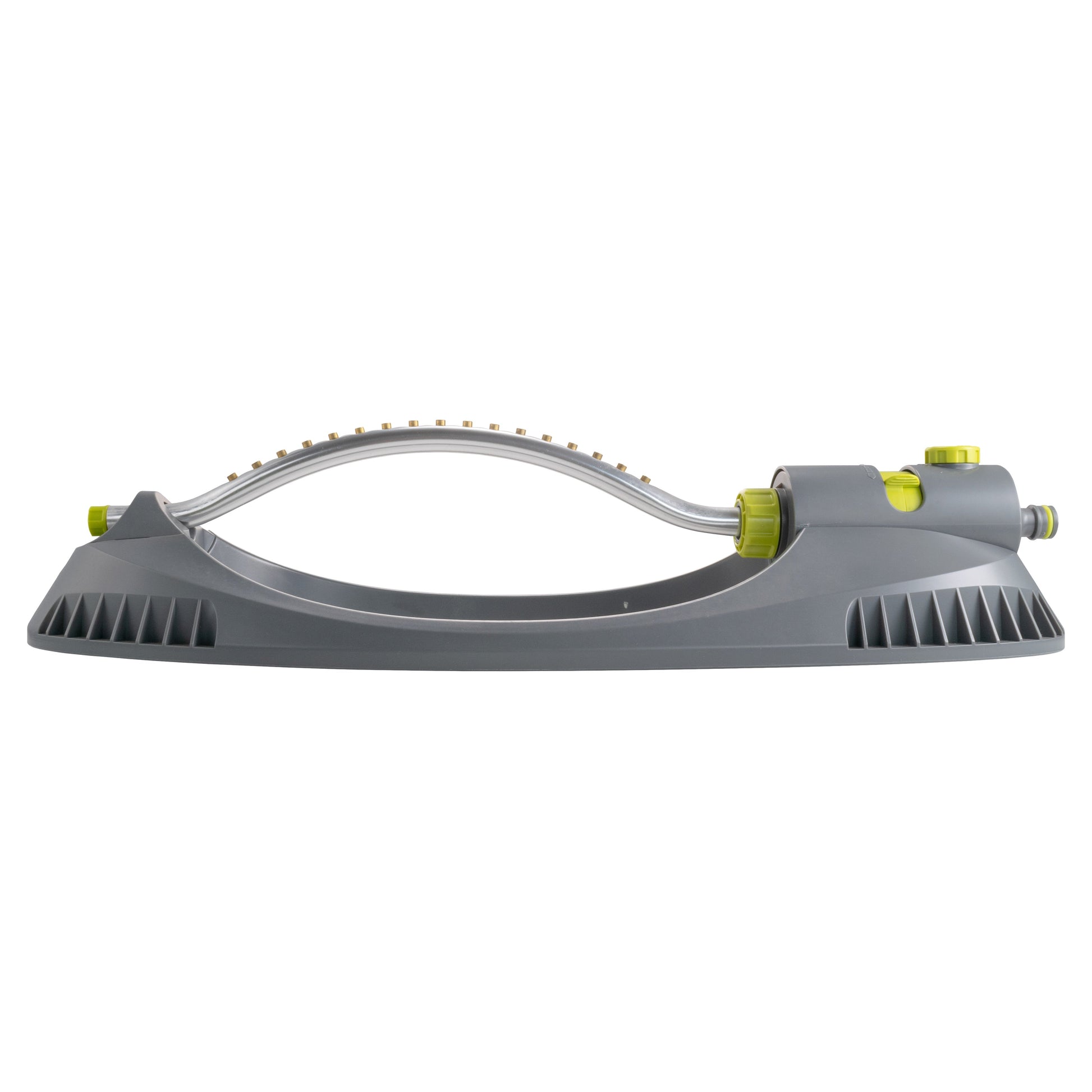

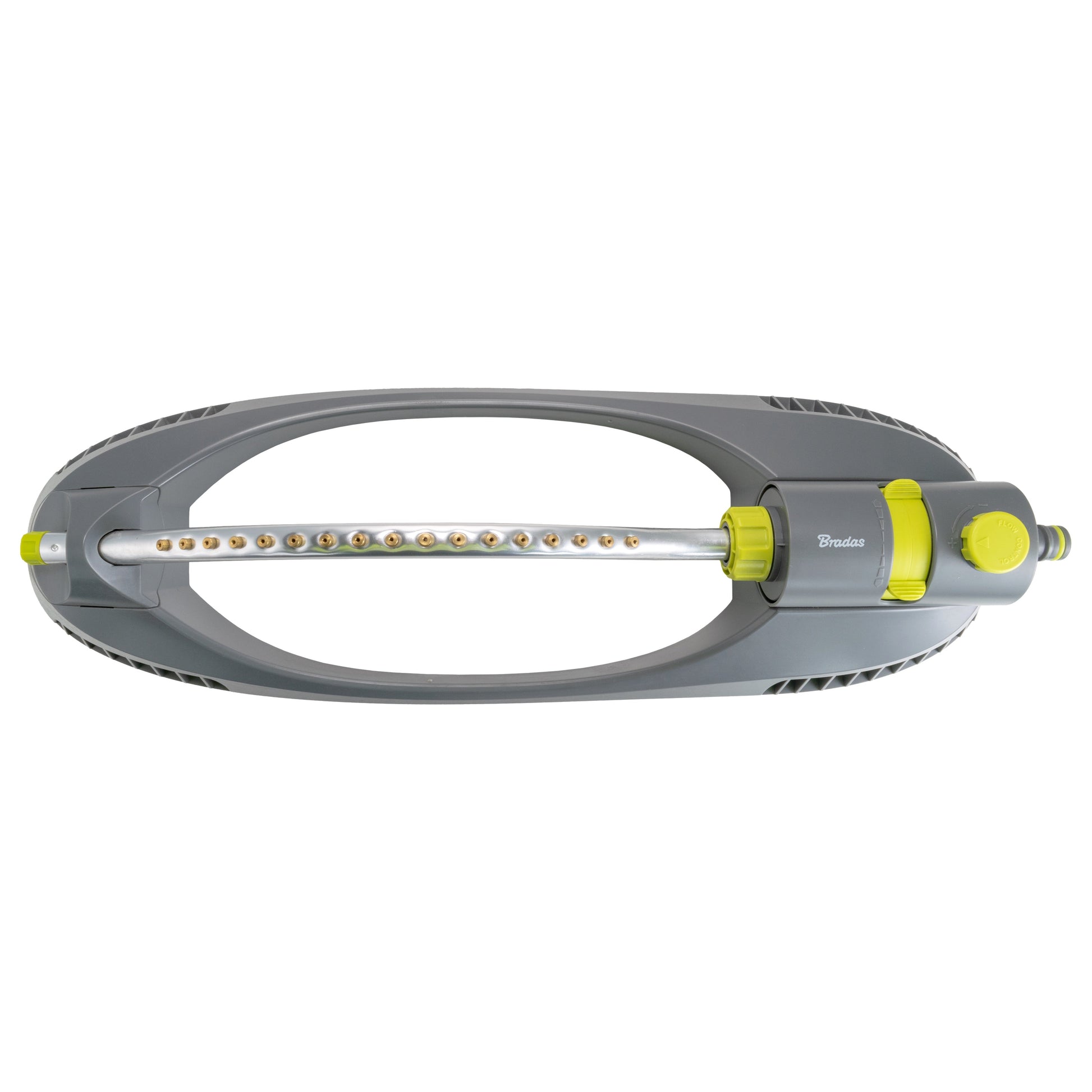

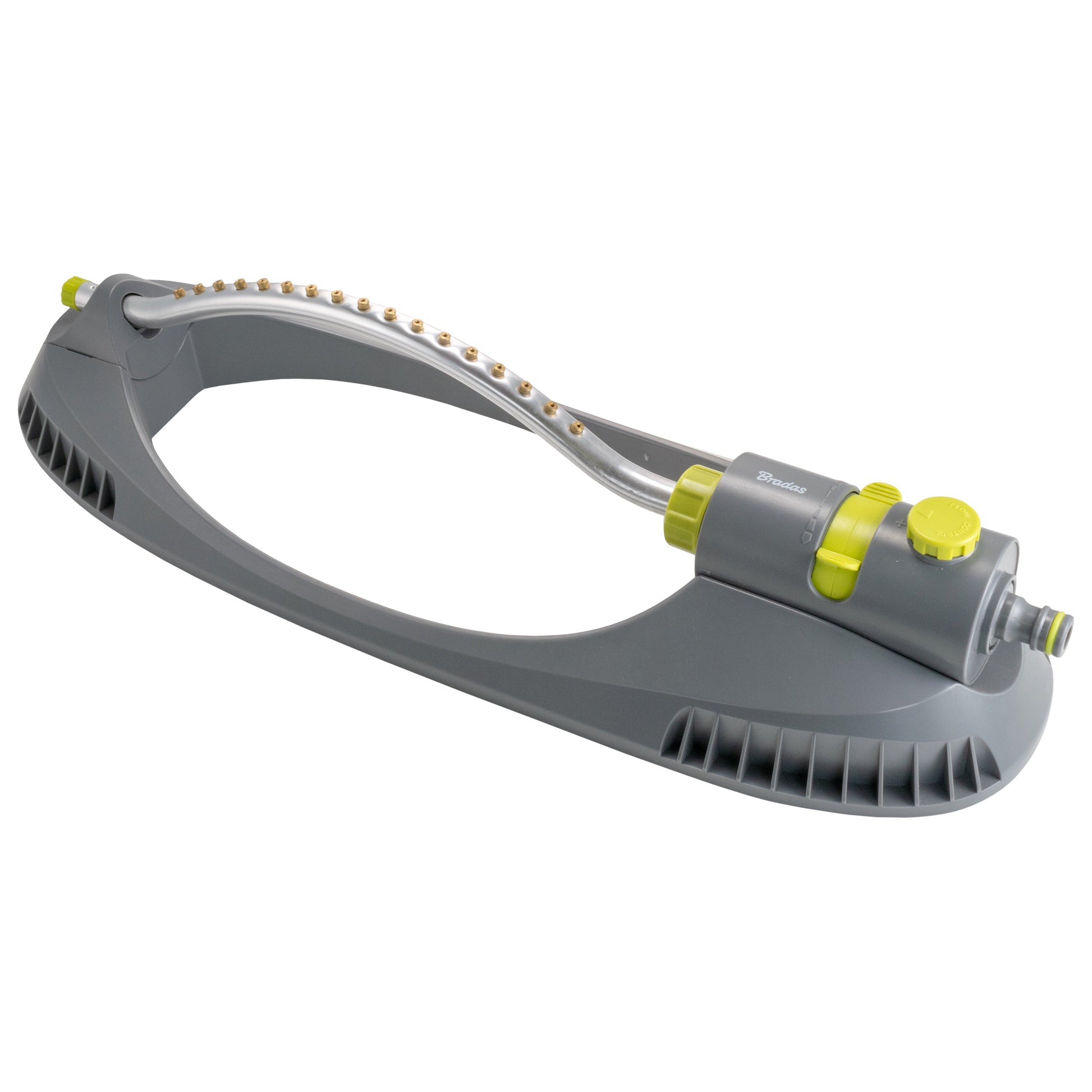

The Bradas LIME LINE Plus oscillating sprinkler combines a curved aluminium arm with 17 brass nozzles. Its dark grey frame stays on the ground while the bar swings the spray over the lawn.
Two adjustments let you set up the watering: travel limits for the sweep, and a separate dial for the water flow. Watch where the jets land and adjust the setting to suit the patch in front of you.
One LE-6304 sprinkler supplied. Hose, connectors and timer are not included.
Sweep and flow do different jobs

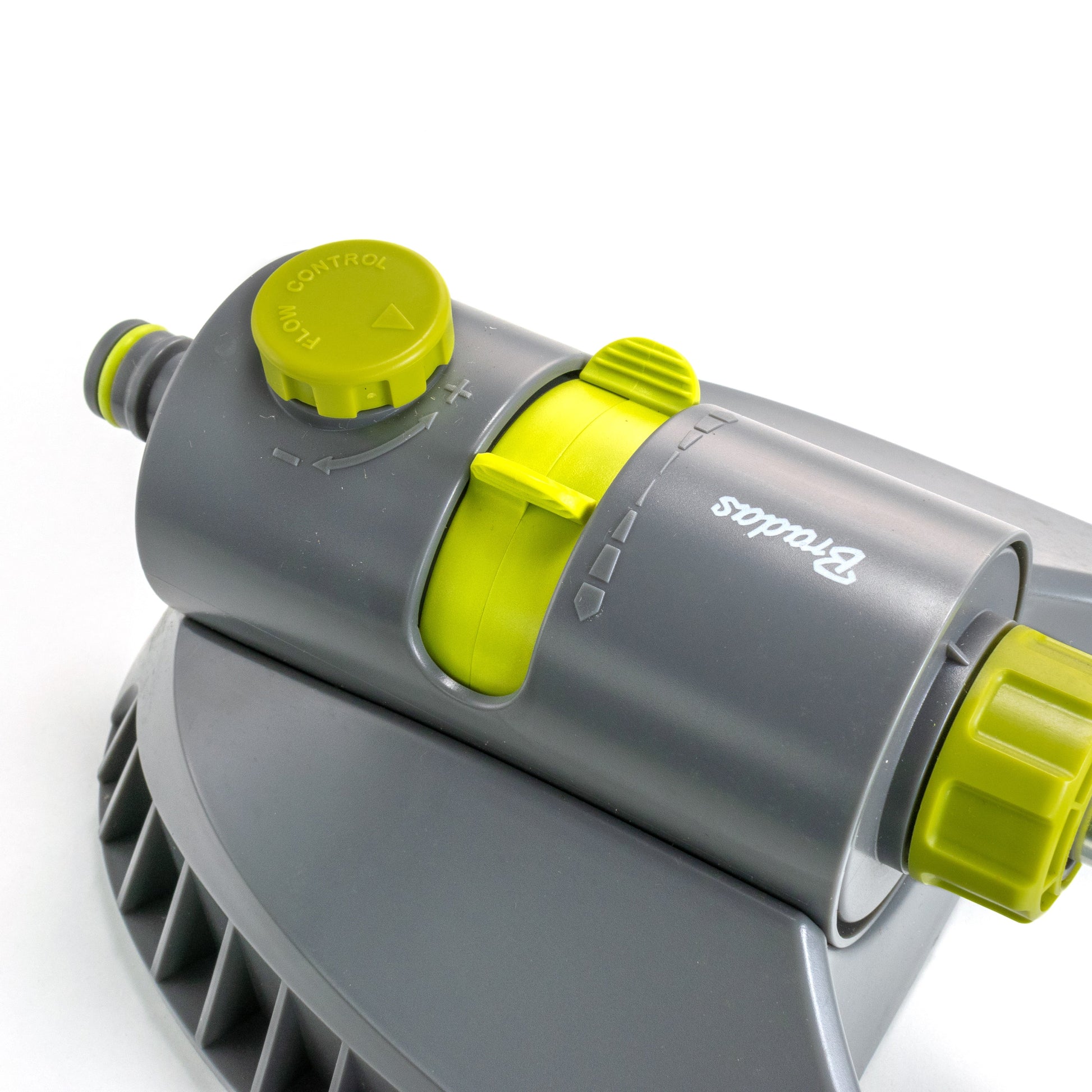

The lime travel-limit controls set how far the bar swings. The round dial marked FLOW CONTROL changes the water passing through the unit. These are separate adjustments, so check the pattern after changing either one.
Start with the sprinkler flat and the bar clear of plants. Make the sweep setting with the water off, open the supply gradually and watch a complete pass. Reducing the flow can also reduce the reach; the dial does not increase the pressure available from your tap.

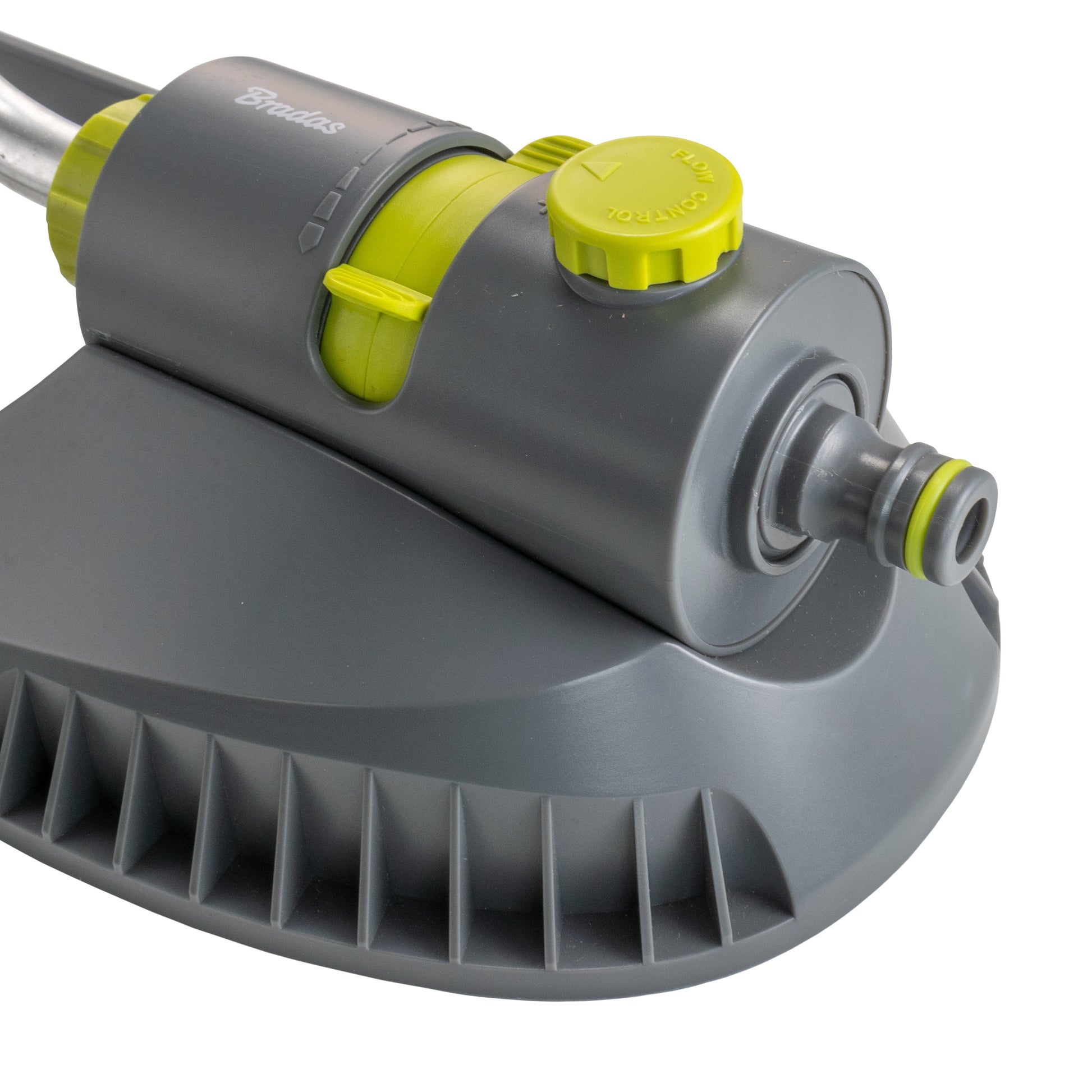

The grey plug below the dial takes a compatible female garden hose-end connector. Choose its hose attachment for your hose size and leave enough slack that the hose does not pull the frame sideways.
Set up for the patch you want to water
Look at where the water lands, rather than the height of the jets alone.
Position beside the lawn
Place the frame on level ground and orient the moving bar across the patch. Keep paths, furniture and nearby plants in mind when choosing the direction.
Check the whole sweep
Watch the start, middle and end of a pass. Use the travel limits and flow dial to tune the pattern, and recheck when wind changes where the water falls.
Keep an eye on the ground
Watering time depends on your soil and the conditions. Turn off when the area has had enough water. The sprinkler has no included timer or automatic shut-off.
Keep the moving bar and nozzles clear
The close-up shows the brass nozzle outlets on the curved metal arm. Leave clearance around the bar, and move the sprinkler with the water off when you need to cover another patch.
If an individual jet looks different, check its nozzle for dirt. The plug at the far end stores a fine cleaning needle. Shut off and release pressure before removing it, clear the opening gently without enlarging it, then refit the plug securely.
If the whole spray falls short, check the tap, hose and fittings for restrictions. Drain the unit after use and store it away from frost. Lift the frame when moving it rather than pulling it along by the hose.
Questions about the LIME LINE Plus
What does the round lime dial adjust?
It controls water flow through the sprinkler. The neighbouring travel-limit controls set the bar’s sweep. Changing flow can change reach, so check the full pattern after adjustment.
Is a hose connector included?
The sprinkler has a male garden quick-connect plug. Supply a compatible female hose-end connector matched to your hose, plus the hose and appropriate tap fittings. Those accessories are not included with this single sprinkler.
Does it move itself or turn off when finished?
No. The frame remains in place while the bar oscillates. Move the sprinkler yourself with the water off, and control watering time at the tap or with a suitable separate timer.
Where is the cleaning tool stored?
The nozzle-cleaning needle is stored in the plug at the end opposite the hose connection. Turn off the supply and release pressure before removing it. Use it gently and replace the plug before restarting.
Product information & technical details
| SKU | SPRBAR-6304-001 |
|---|---|
| Product type | |
| Colour | Grey |
| Material | Plastic |
| Brand | Bradas |
| Model | LIME LINE LE-6304 |
| Sprinkler action | Oscillating bar |
| Nozzles | 17 brass nozzles |
|---|---|
| Spray bar | Curved aluminium arm |
| Sweep adjustment | Lime travel-limit controls |
| Flow adjustment | Separate dial beside the hose inlet |
| Water inlet | Male garden quick-connect |
| Cleaning tool | Nozzle-cleaning needle stored in the end plug |
| Supplied contents | One sprinkler; hose, connectors and timer not included |
