Description
A sweeping spray above a green ground frame

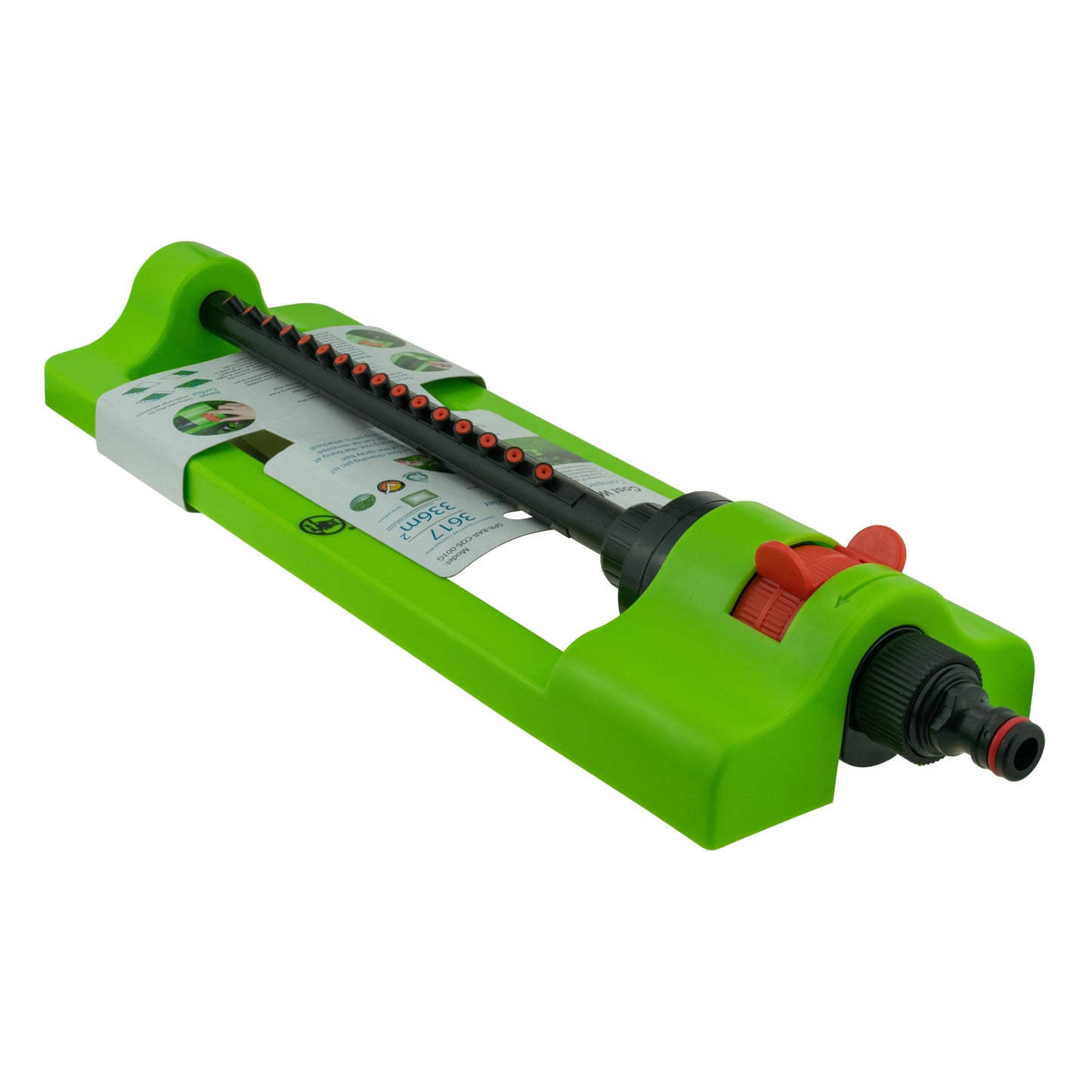

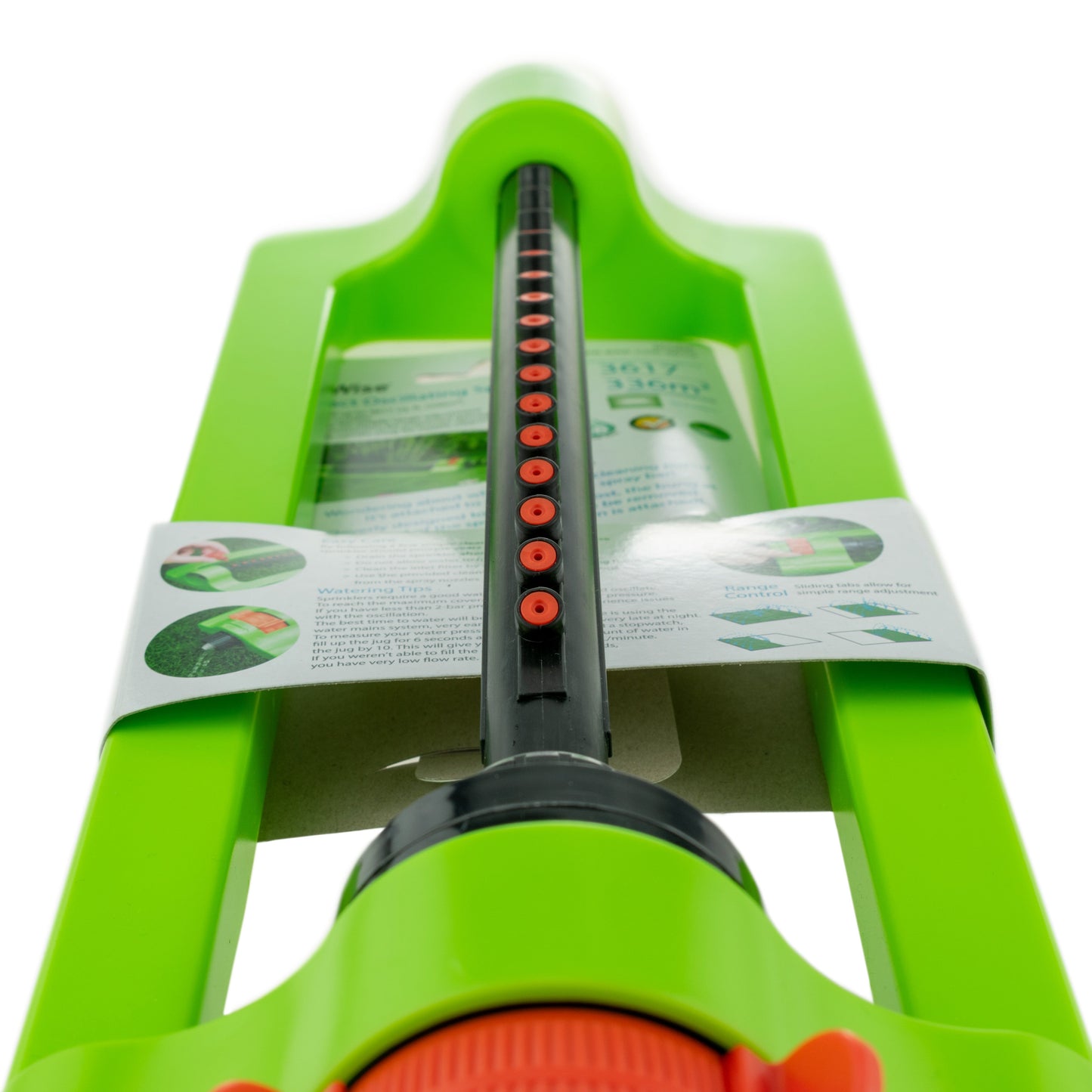

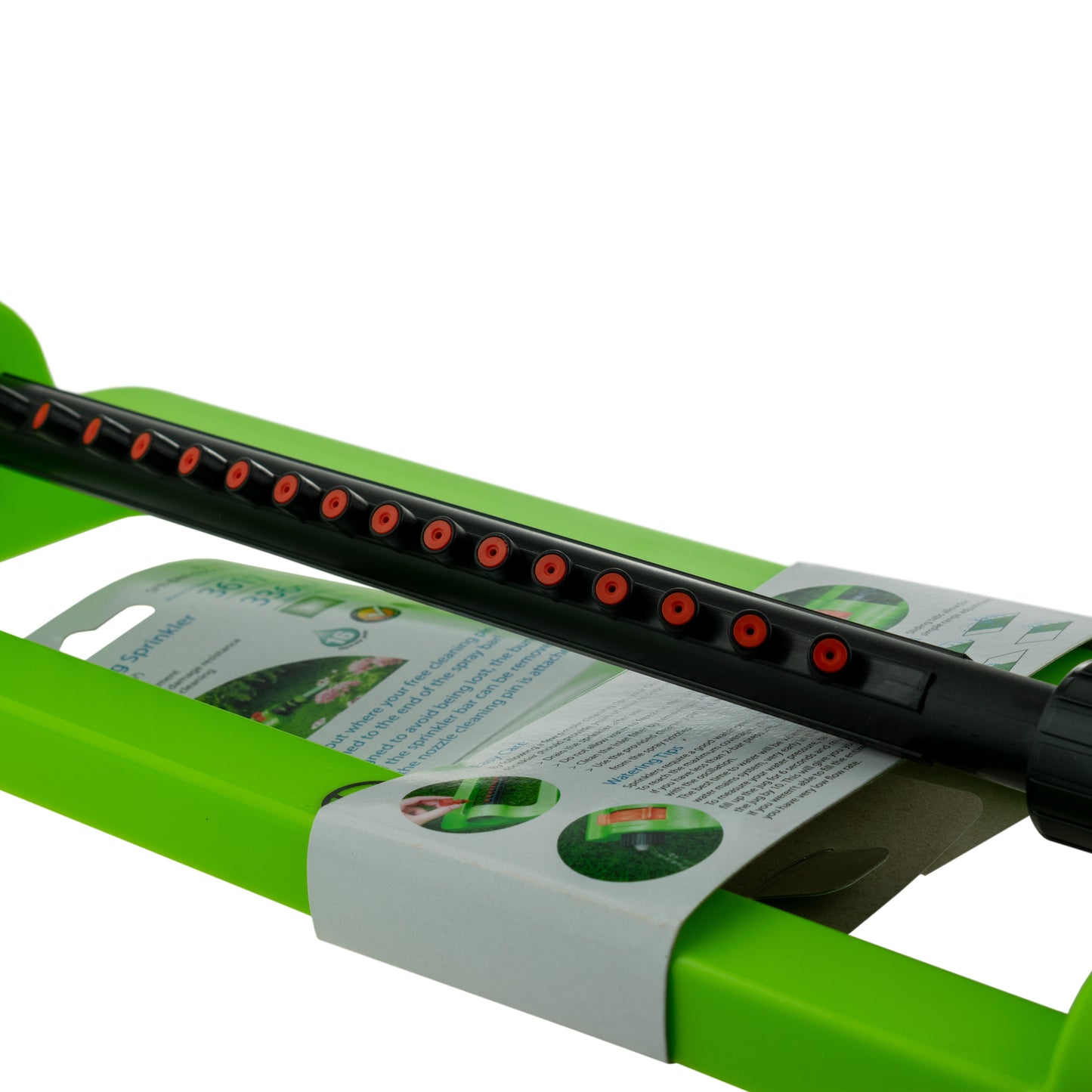

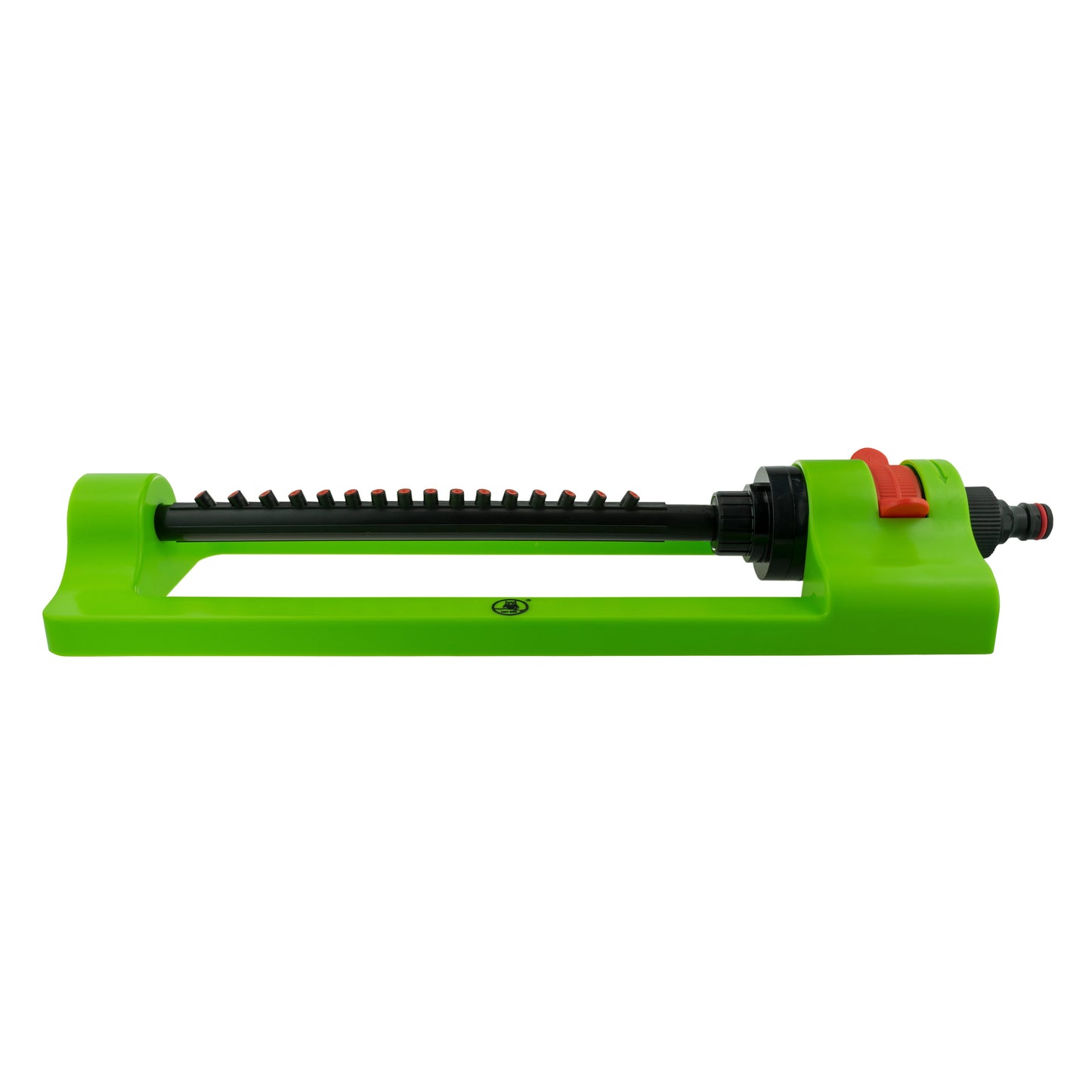

The Cost Wise green oscillating sprinkler has a straight black bar with 16 orange-tipped nozzles. Water passes through the male quick-connect inlet and out along the bar as it swings back and forth.
The green plastic frame stays on the ground while the bar moves. Put it beside the lawn patch you want to water, set the sweep and check the pattern before leaving it running.
One sprinkler supplied. Hose, connectors and timer are not included.
Choose where the bar starts and stops

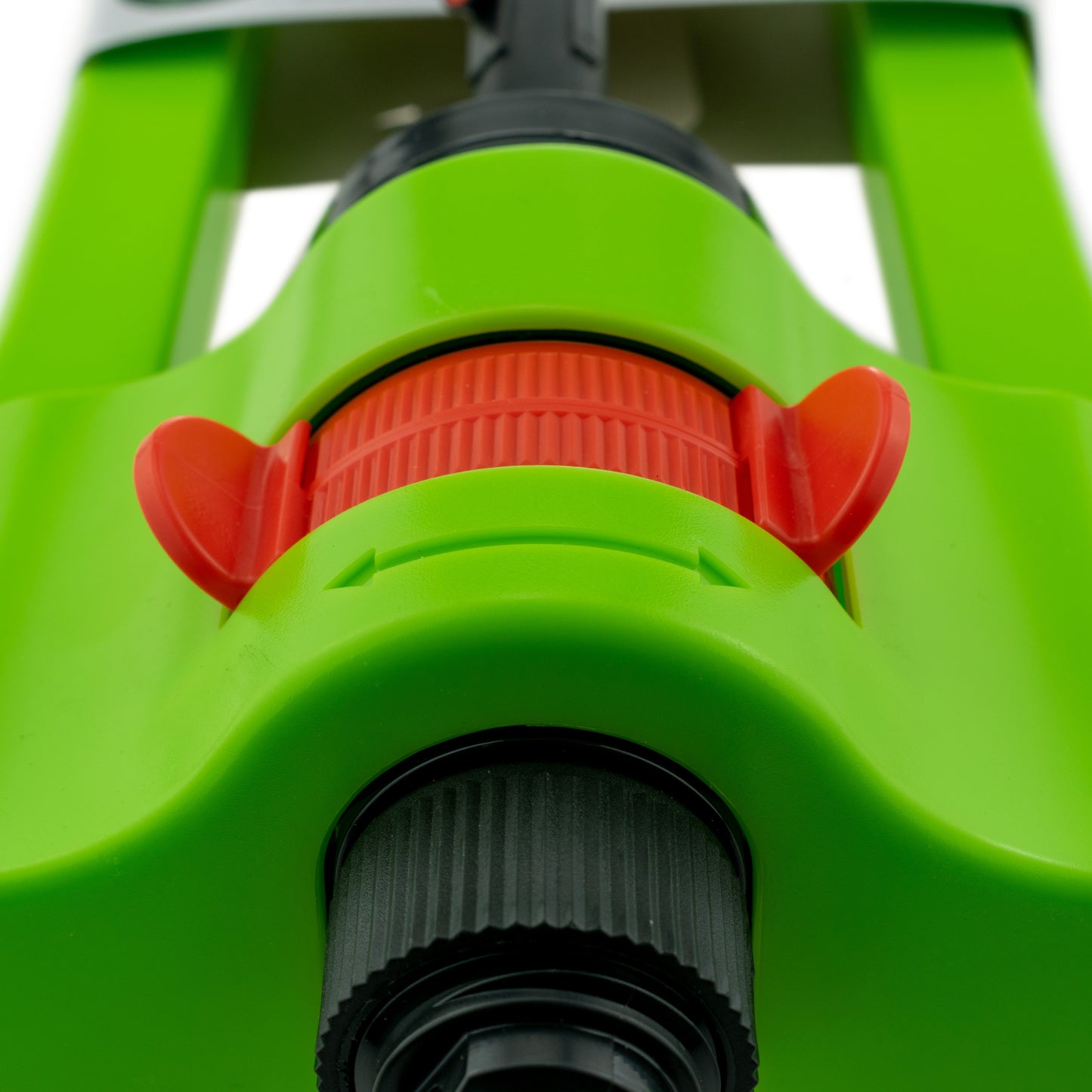

The paired orange tabs at the inlet end set the travel limits. They control the bar’s sweep, so you can concentrate the watering on the patch in front of the sprinkler.
Begin with the base flat and the moving bar clear of plants. Make the setting with the water off, open the tap gradually, then watch a complete pass in both directions. Check the edges of the watered ground as well as the centre.
Wind can carry the jets onto a path even when the setting looks right. Turn off before changing position and leave slack in the hose so it is not pulling the base sideways.
What the coverage figure means in your garden
Check the spray where you will actually use it.
Maximum area
Coverage is up to 336m². The packaging recommends a supply of around 2 bar to reach the maximum area; this is guidance for performance, not a maximum pressure rating.
Water arriving at the unit
Pressure and flow at the sprinkler depend on the supply, hose and fittings. Check for kinks, restrictions or a partly closed tap if the jets do not reach as expected.
The patch you need to water
The sweep setting and wind affect where the water lands. Watch the full pattern, adjust as needed and move the sprinkler yourself with the water off when another area needs watering.
Add the hose-end fitting that matches your hose
The close-up shows the male garden quick-connect plug. It needs a compatible female hose-end connector, with a hose attachment sized for your own hose.
This is the single sprinkler, so the hose, female connector and any adapter required at your tap are separate. Check the assembled joint before watering and keep the hose clear of the moving bar.
There is no included timer or automatic shut-off. Control the watering time at the tap, or use a suitable separate timer, and turn off when the patch has had enough water.
Cleaning and putting it away
Find the stored needle

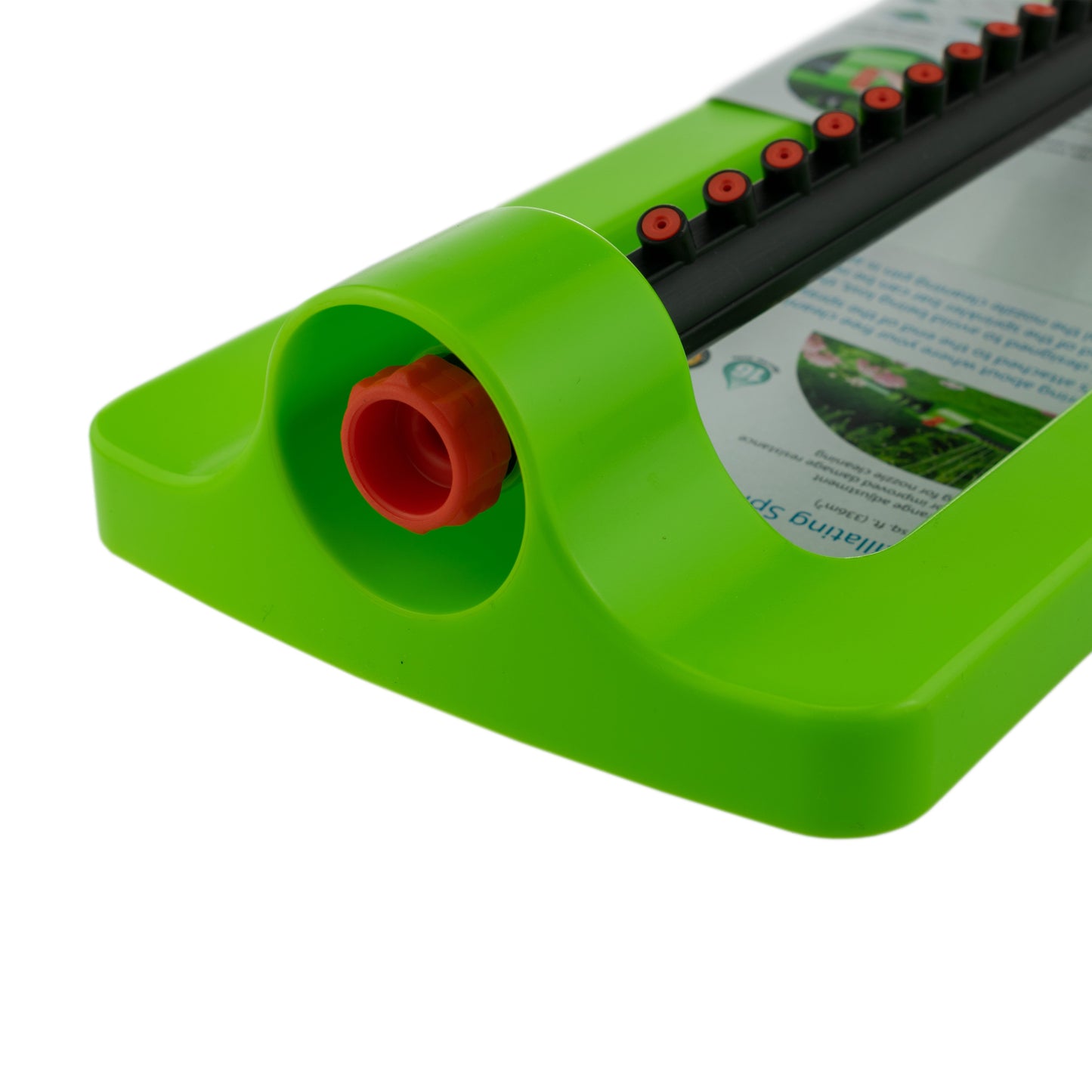

The orange plug at the far end holds a nozzle-cleaning needle. Shut off and release pressure before removing it or disconnecting the sprinkler.
Clear dirt gently
Use the fine pin at a dirty nozzle opening without forcing it or enlarging the hole. Return the plug securely before testing the water again.
Drain and lift
Drain the unit and hose after use, and store the sprinkler away from frost. Carry the green base when moving it rather than dragging it by the hose.
Questions about the green sprinkler
Does the sprinkler move across the lawn?
No. The green frame remains where you place it while the nozzle bar oscillates. Move the unit yourself with the water off when a different patch needs watering.
What do the orange tabs change?
They set the travel limits of the bar’s back-and-forth sweep. Check a complete pass after changing the setting so you can see where the jets land. They are not separate width-adjustment tabs.
Is a hose connector supplied?
No. One green sprinkler is supplied, with a male quick-connect inlet and stored cleaning needle. Provide a compatible female hose-end connector matched to your hose, plus the hose and suitable tap fittings.
Is the 336m² coverage guaranteed?
No. It is the maximum area. Packaging recommends around 2 bar to reach it, but actual coverage depends on the pressure and flow at the unit, hose restrictions, sweep setting and wind. Check the pattern in your garden rather than relying on the maximum alone.
Product information & technical details
| SKU | SPR-BAR-COS-001G |
|---|---|
| Product type | |
| Colour | Green |
| Material | Plastic |
| Brand | Cost Wise |
| Sprinkler action | Oscillating bar |
| Nozzle count | 16 |
| Maximum coverage | Up to 336m²; depends on supply and conditions |
|---|---|
| Water supply guidance | Around 2 bar recommended on packaging to reach maximum area |
| Sweep adjustment | Paired orange travel-limit tabs |
| Water inlet | Male garden quick-connect |
| Cleaning tool | Needle stored in the orange end plug |
| Frame style | Open rectangular ground base |
| Supplied contents | One sprinkler; hose, fittings and timer not included |
