Description
Two connections, with a lever at the main spout

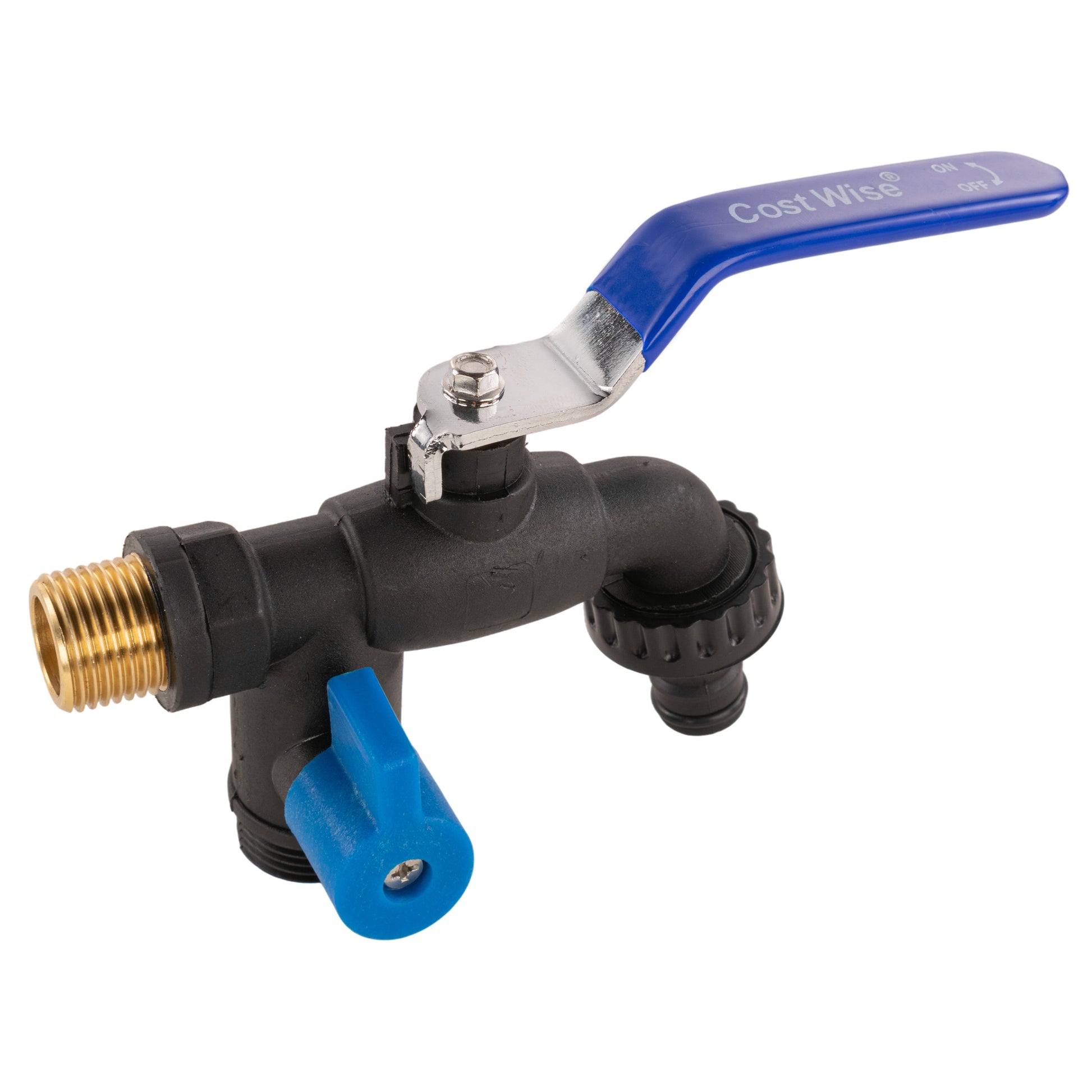

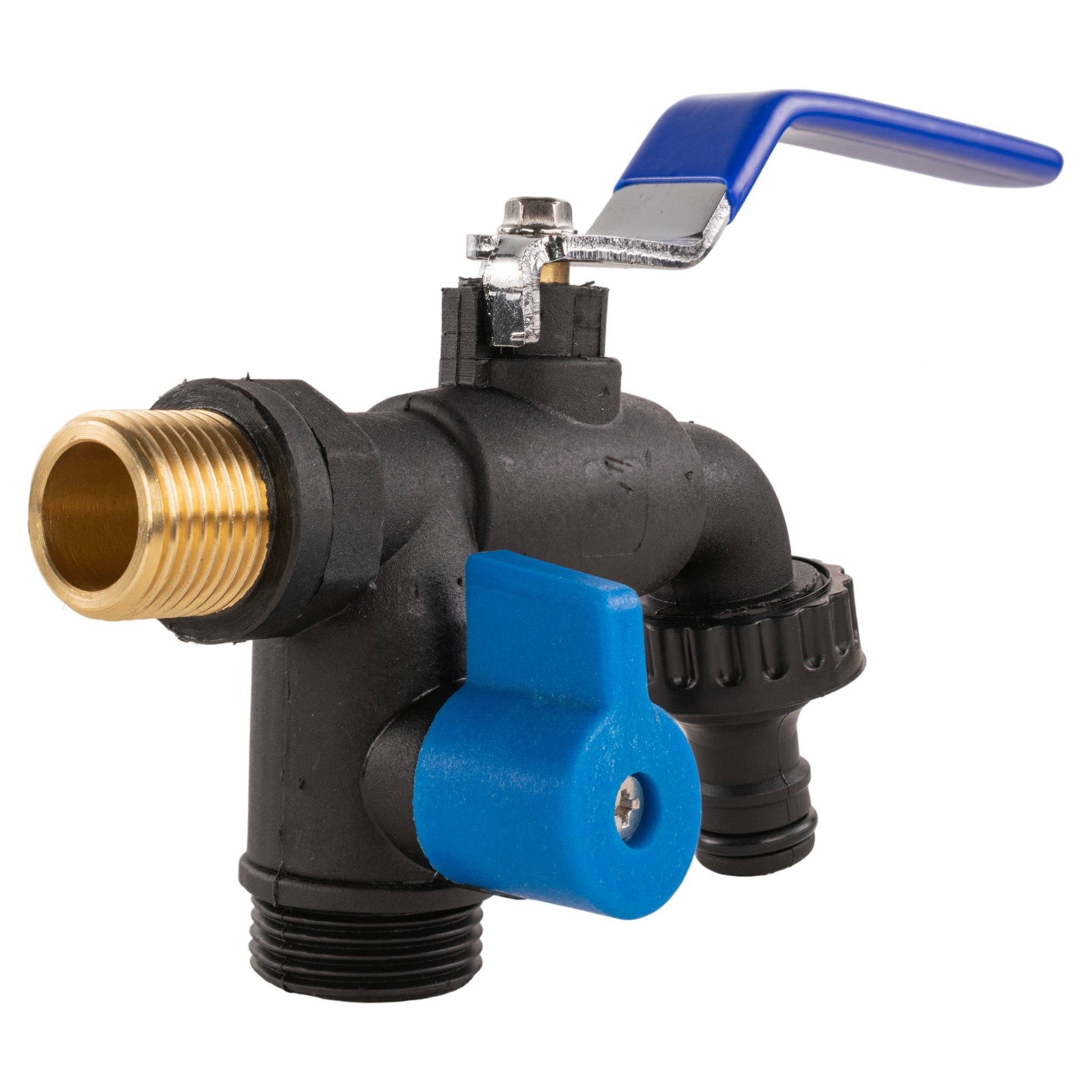

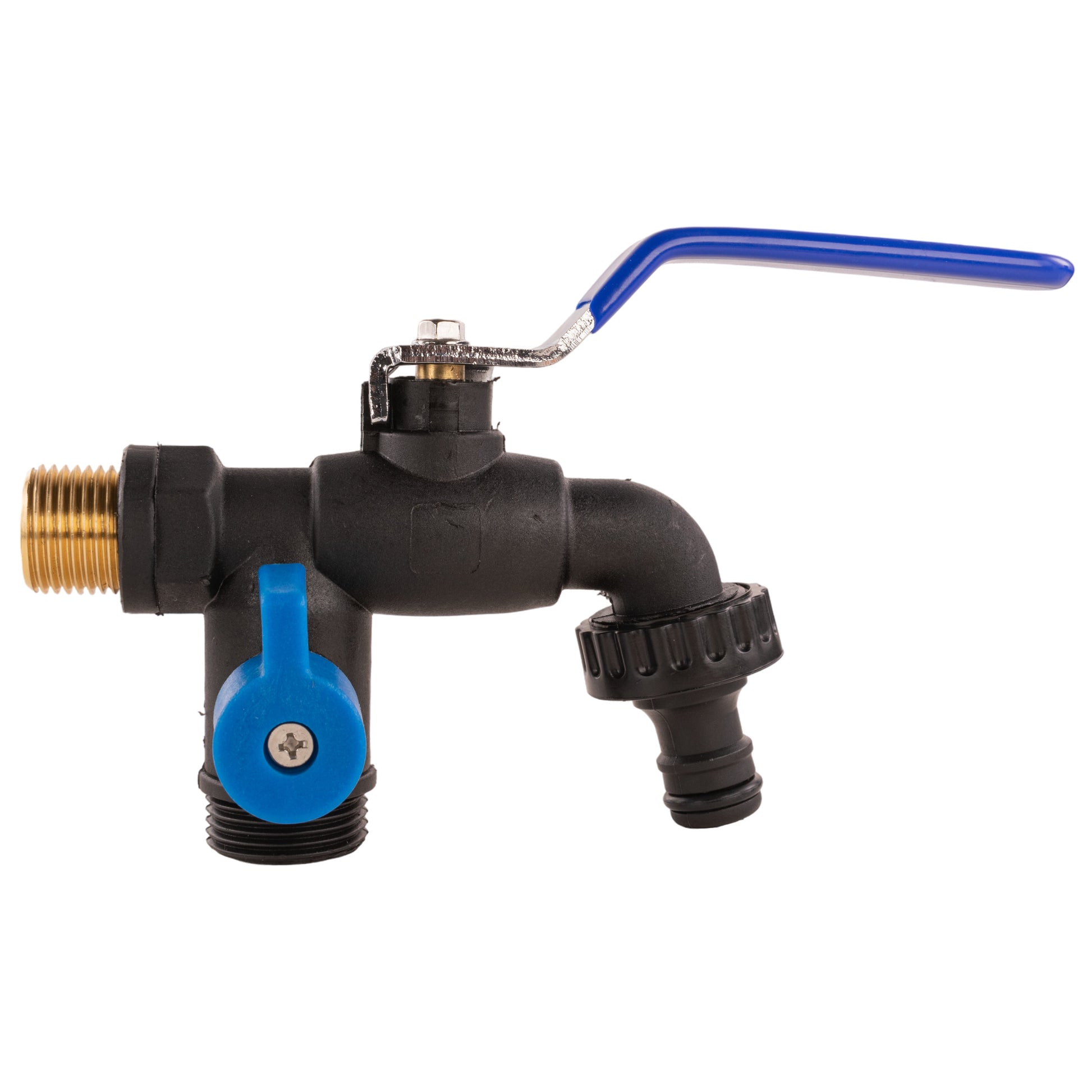

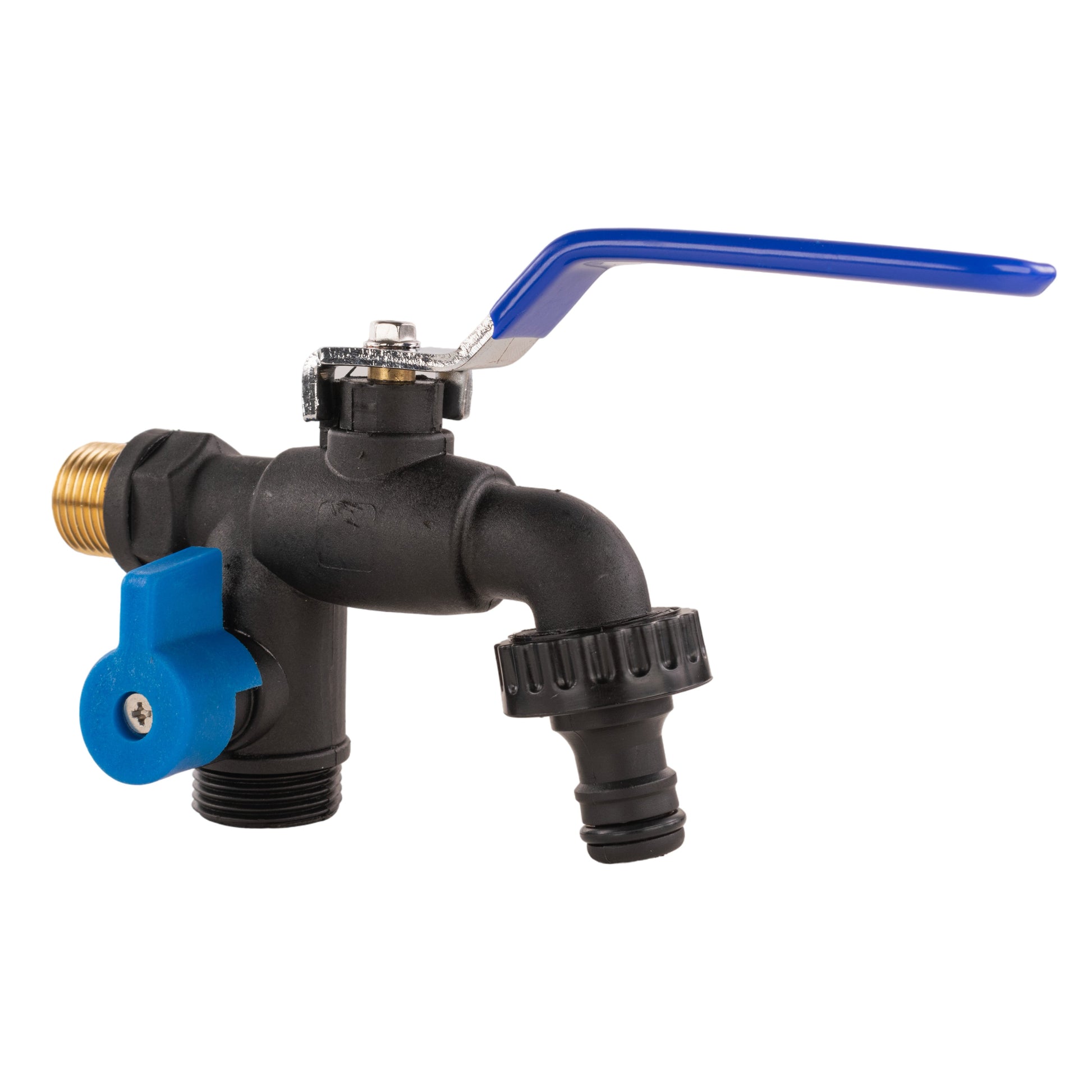

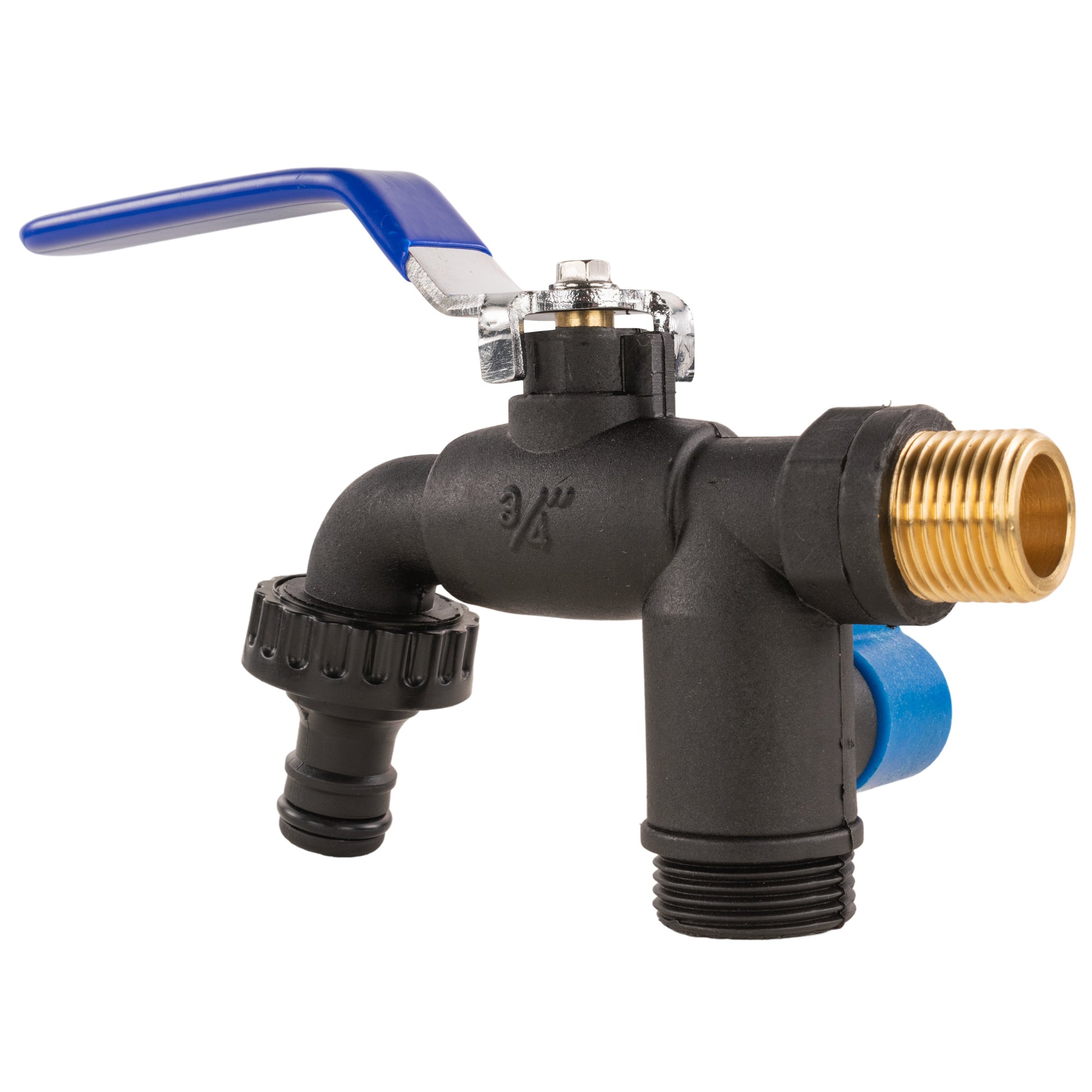

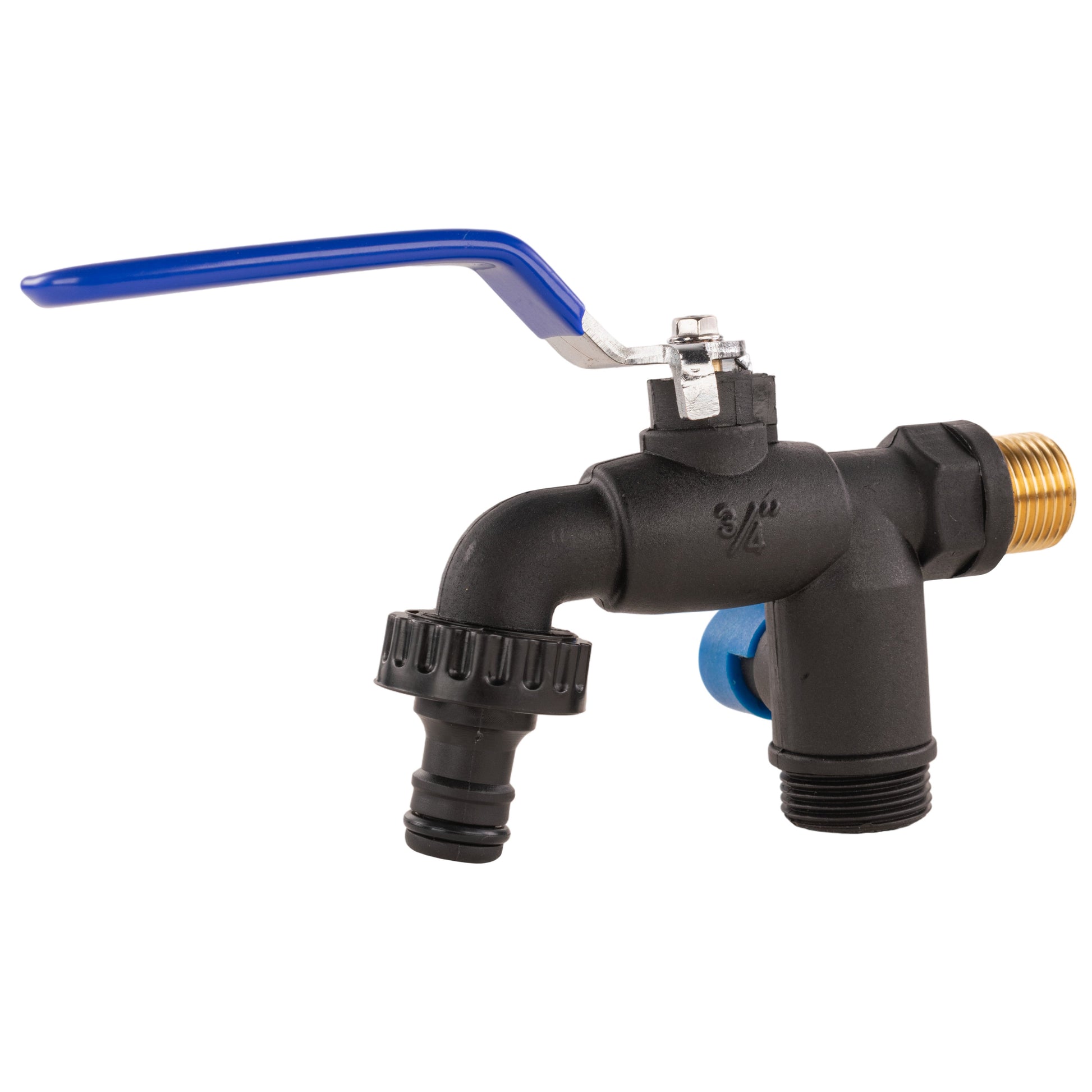

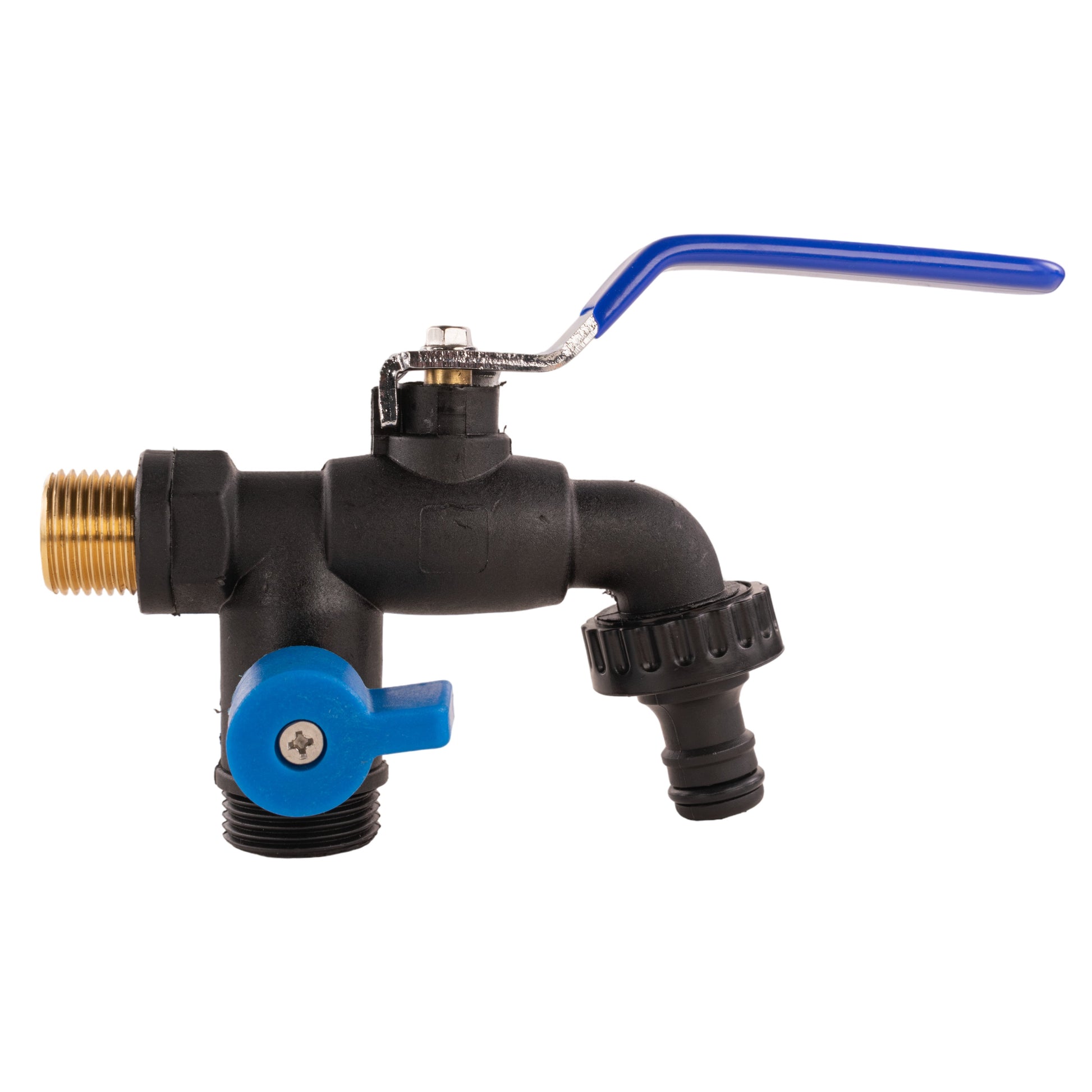

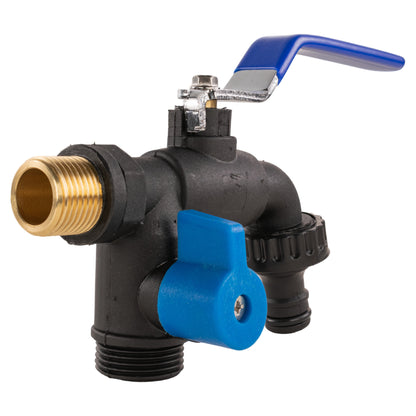

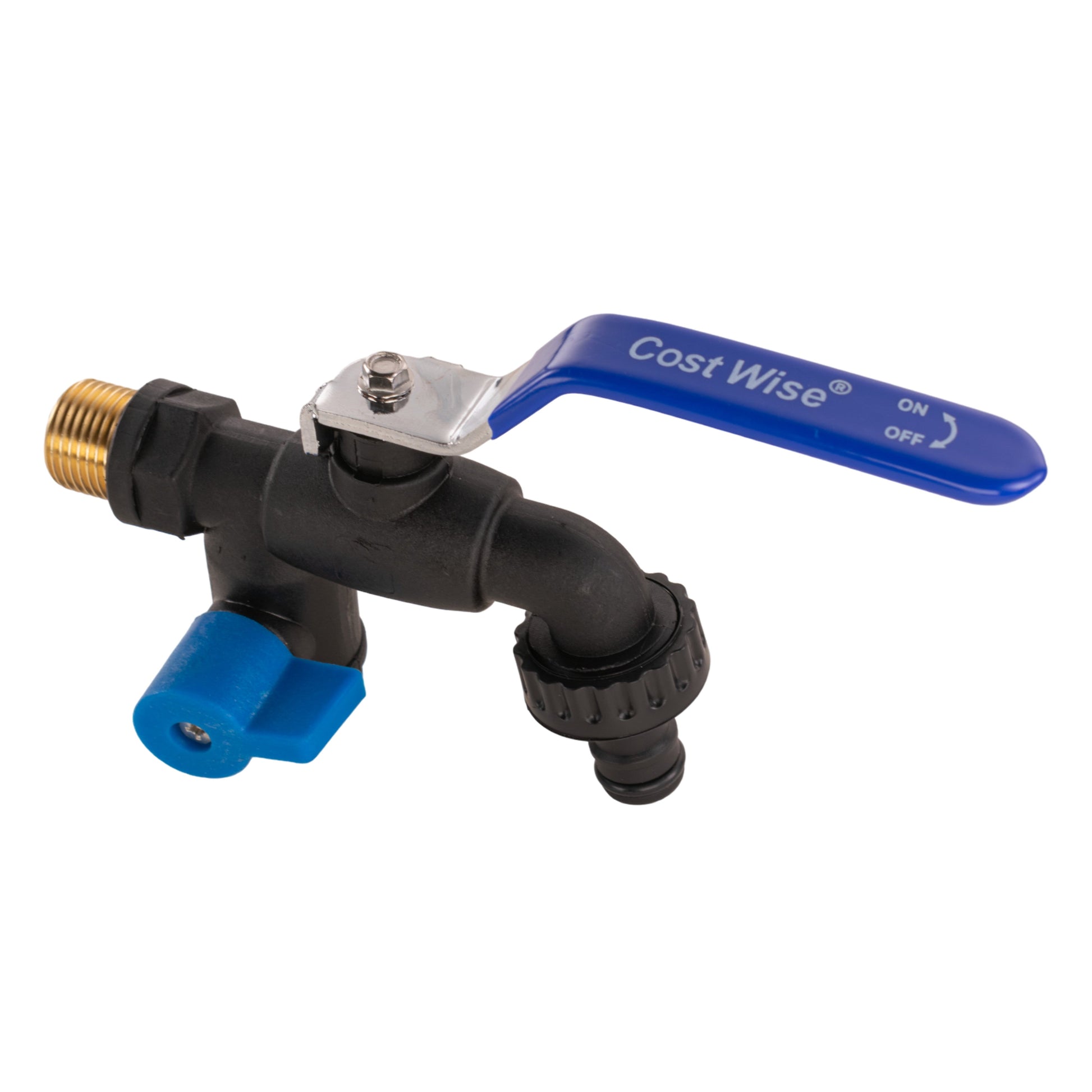

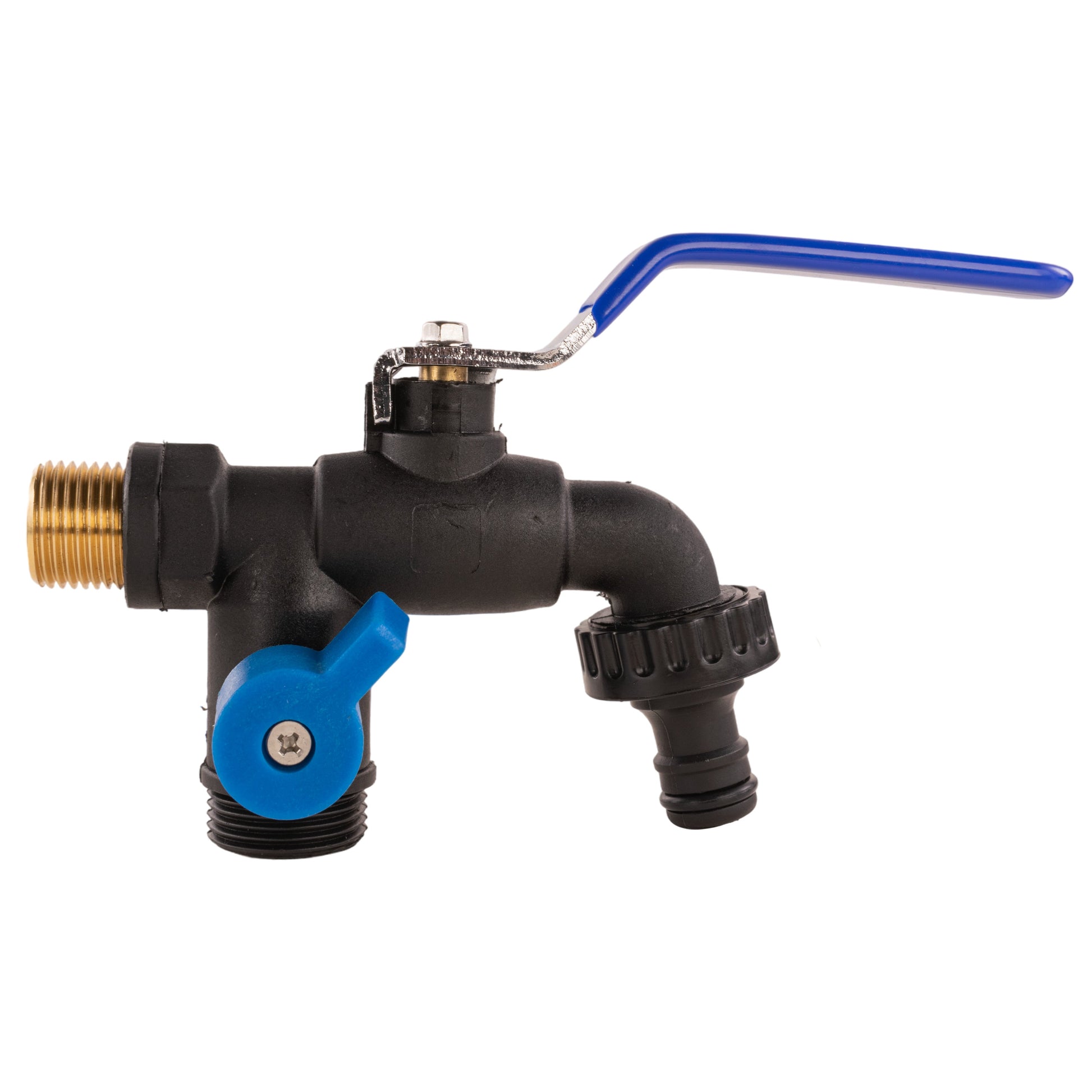

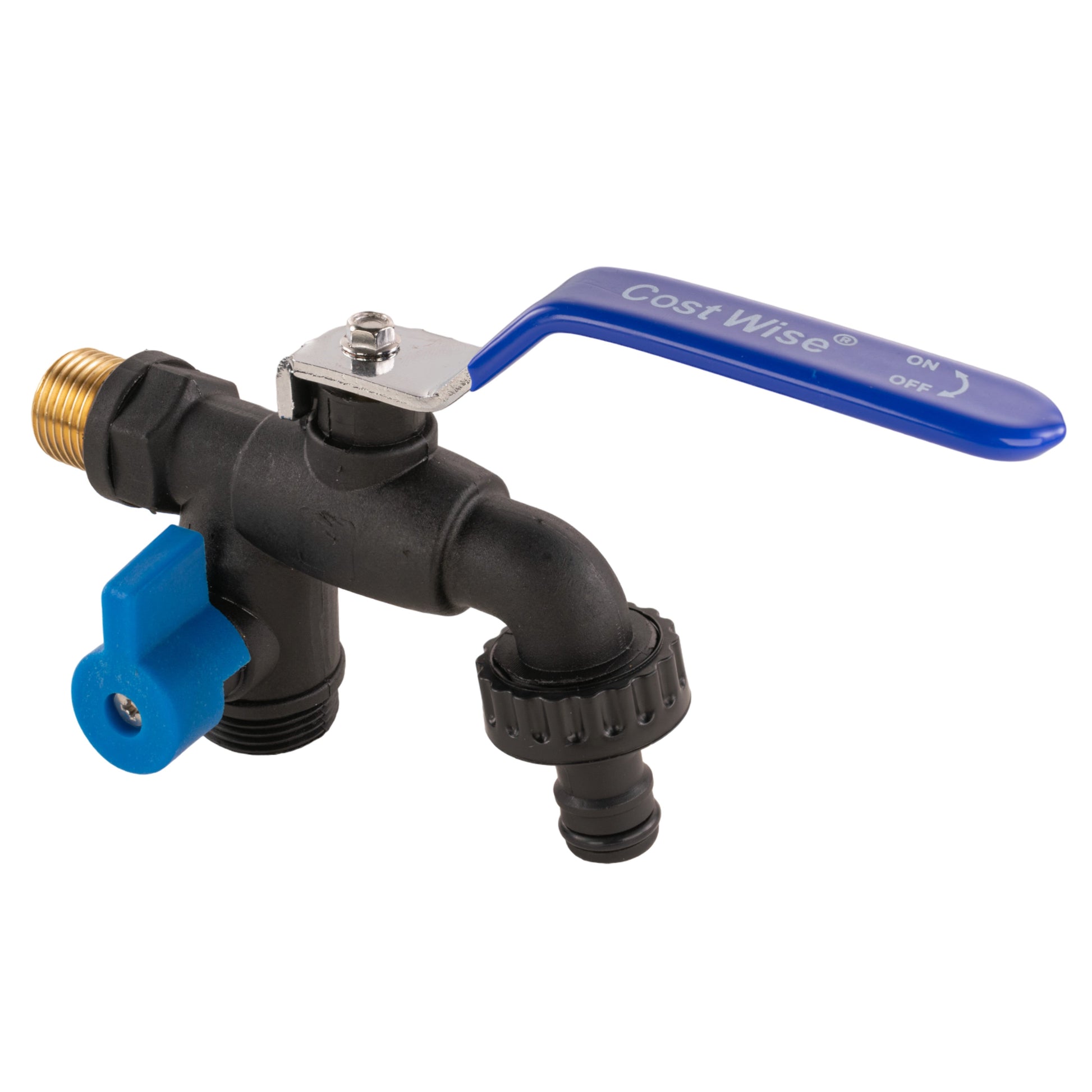

Keep a hose connection at the curved spout and a second connection on the lower branch. This nylon dual-outlet lever tap combines a male garden quick-connect plug with a ¾-inch BSP male threaded outlet.

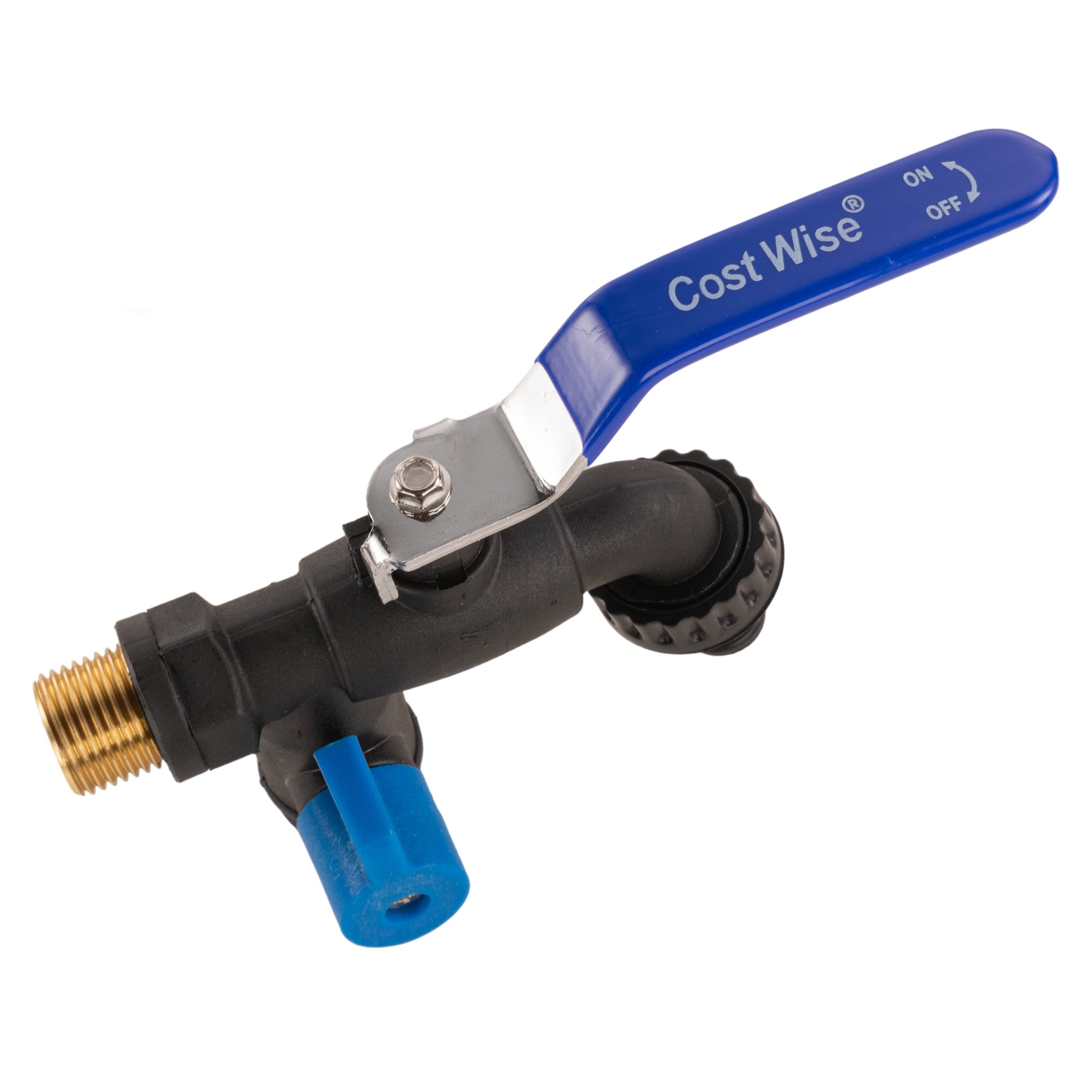

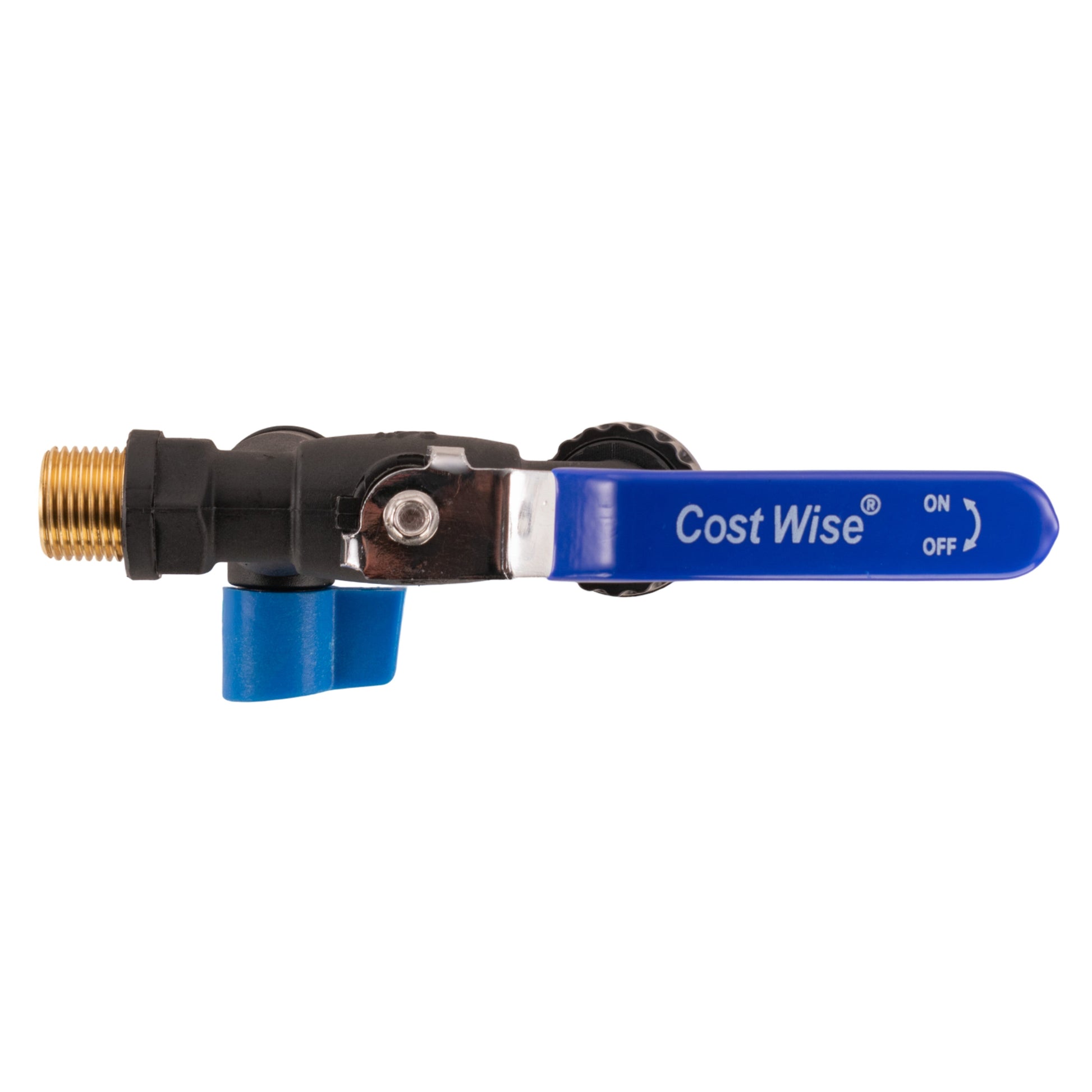

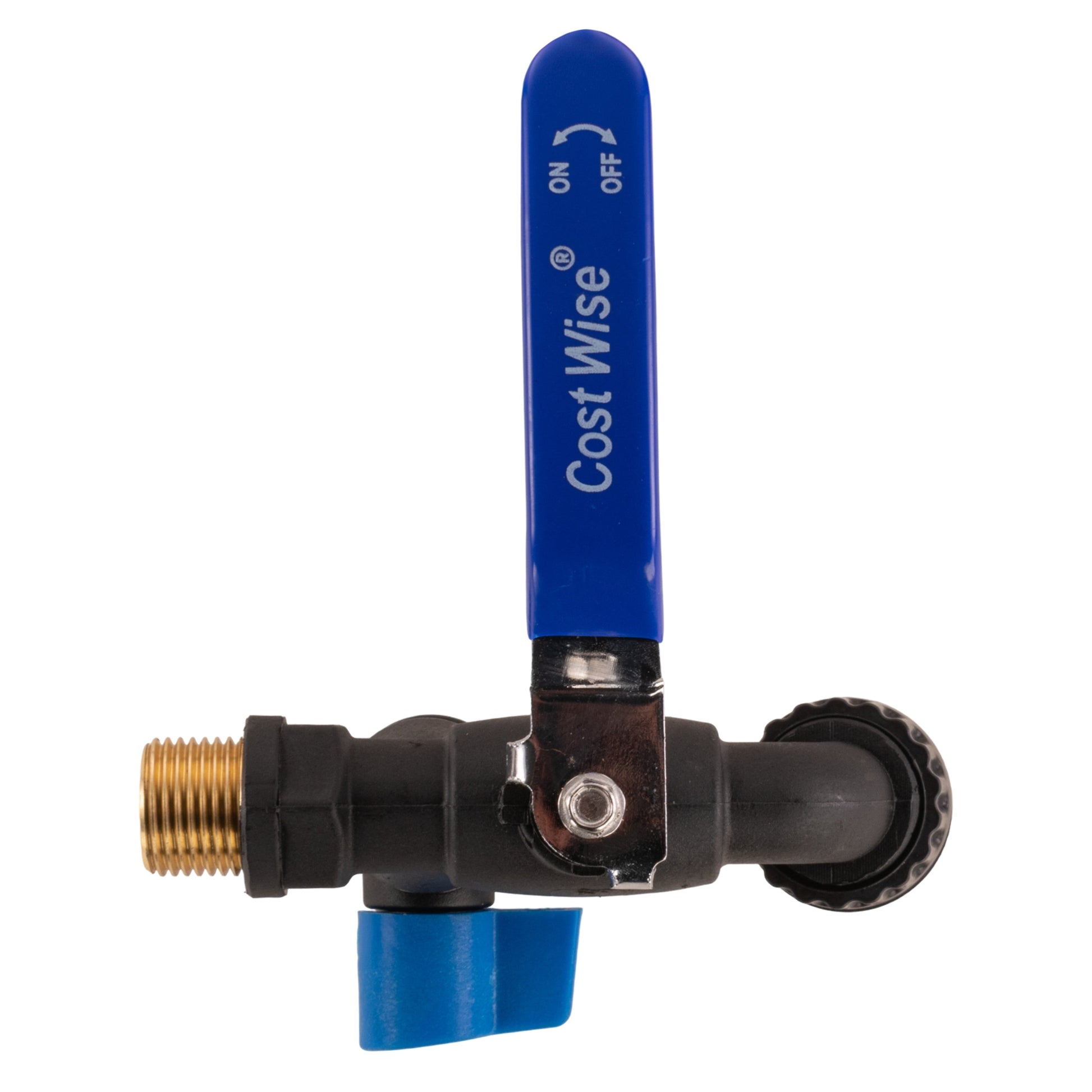

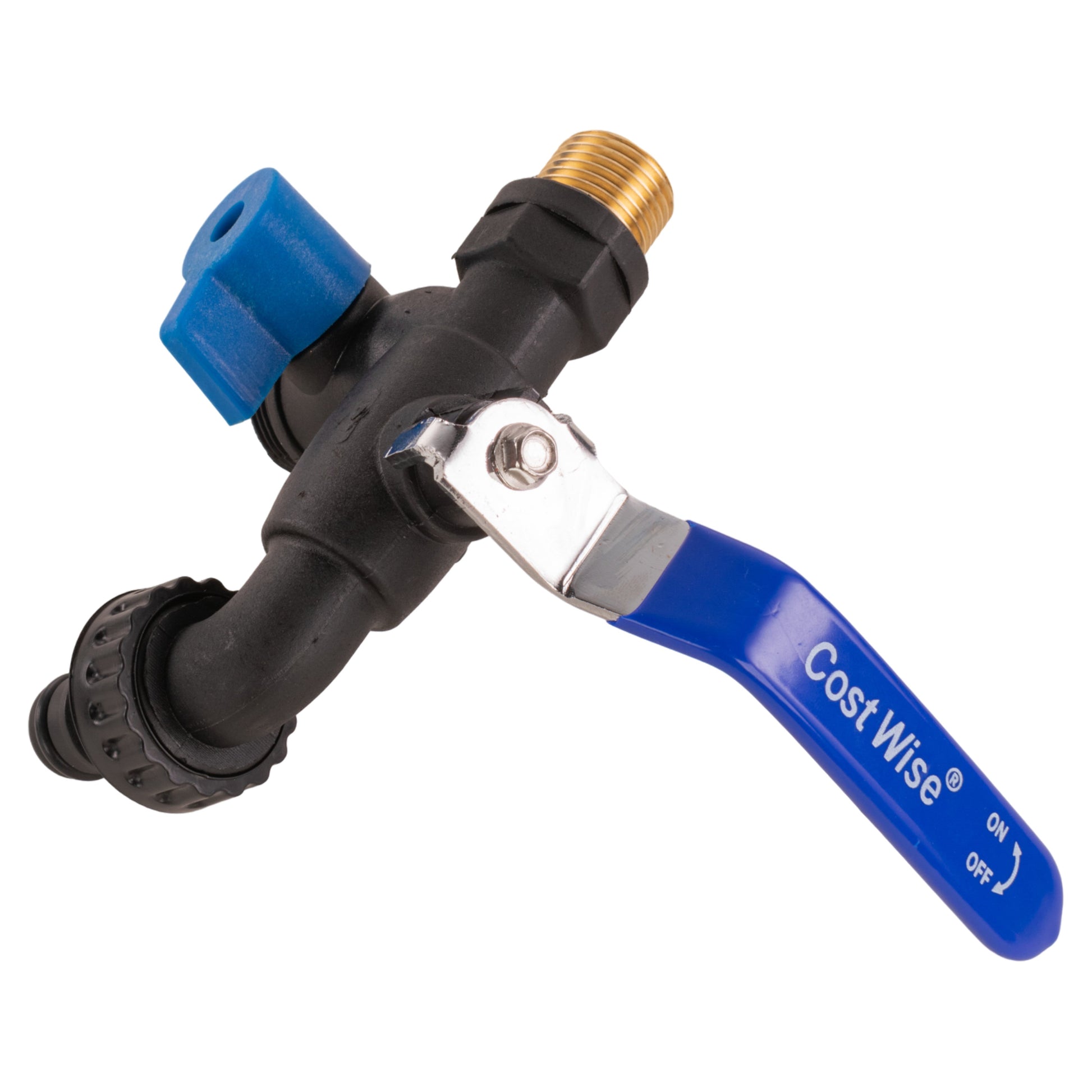

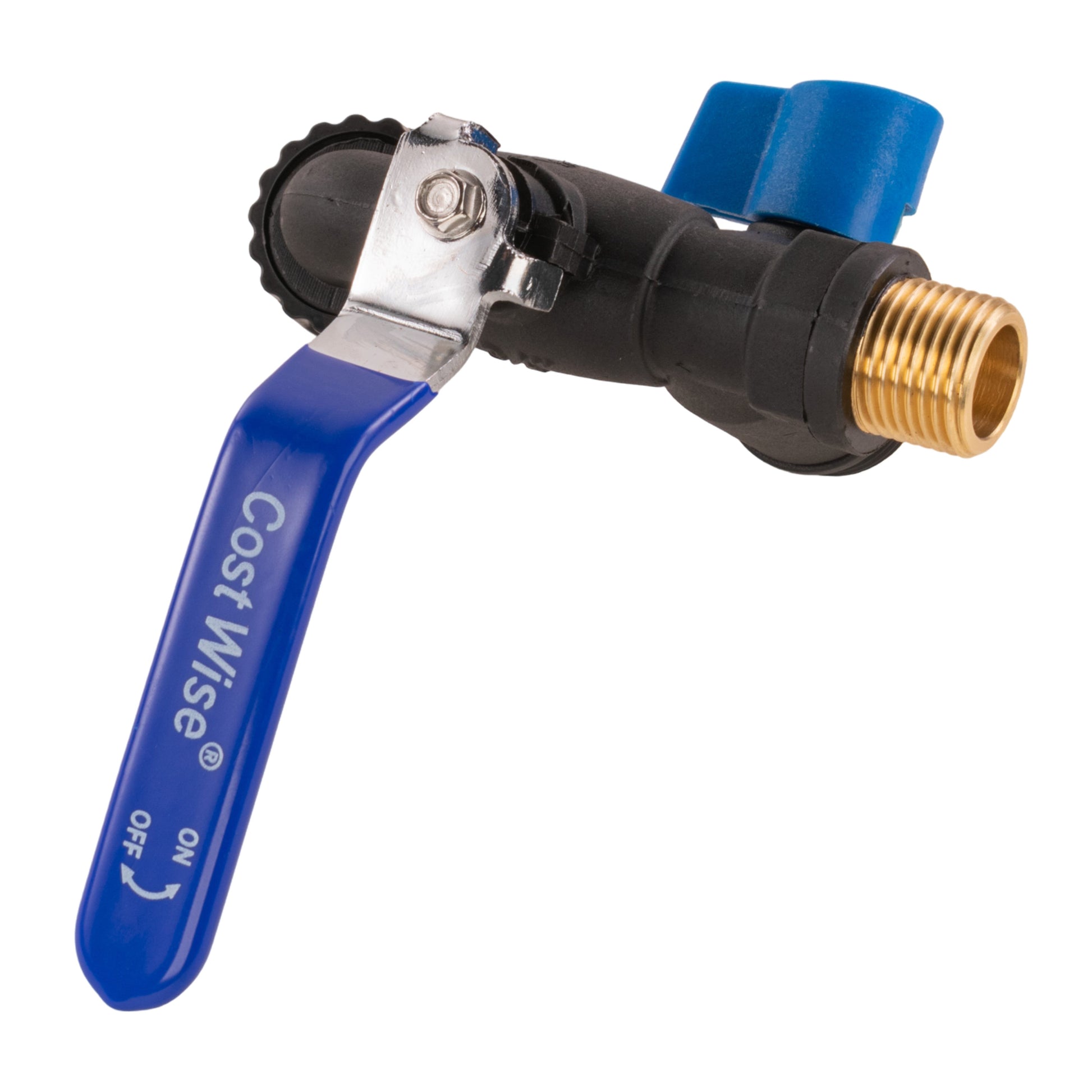

The long blue top lever controls the main spout. The smaller blue side control operates the branch separately, so you can close a connected line without disconnecting its fitting.
One tap with main-spout male quick-connect plug supplied. Hose, female connectors, lower-branch fittings and mounting accessories are sold separately.
A hose connection you can release

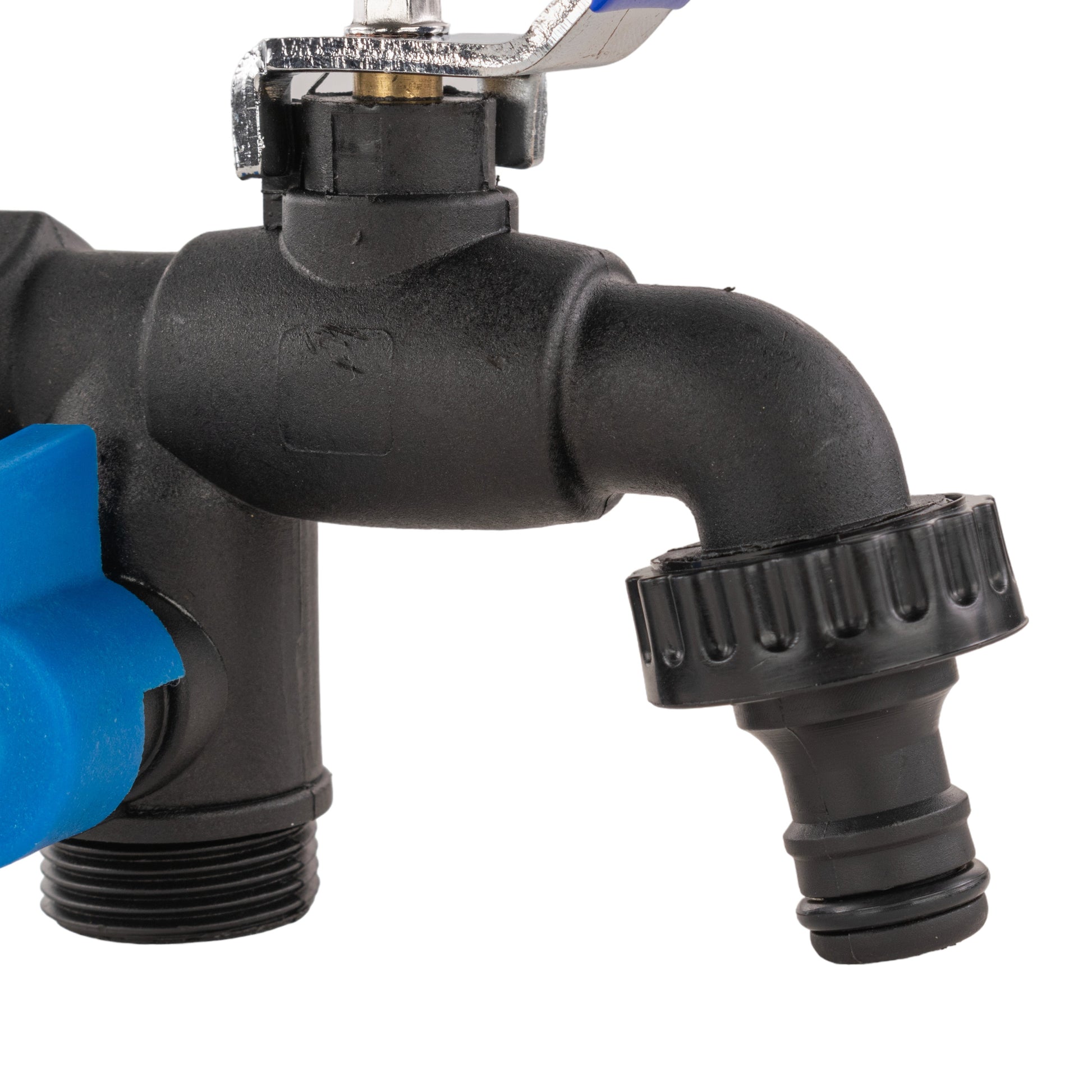

The main spout carries a male garden quick-connect plug. Fit a compatible female garden connector to your hose, then clip that connector onto the plug. Select the connector's hose end for your hose's actual bore.
The top lever operates this spout. Before mounting the tap, check that the lever can move freely and that you can reach the hose connector's release collar.
There is no need to select a ½-inch hose simply because the supply inlet is ½-inch BSP: the inlet thread and the connector's hose-gripping size are different measurements.
Choose the fitting for your second line

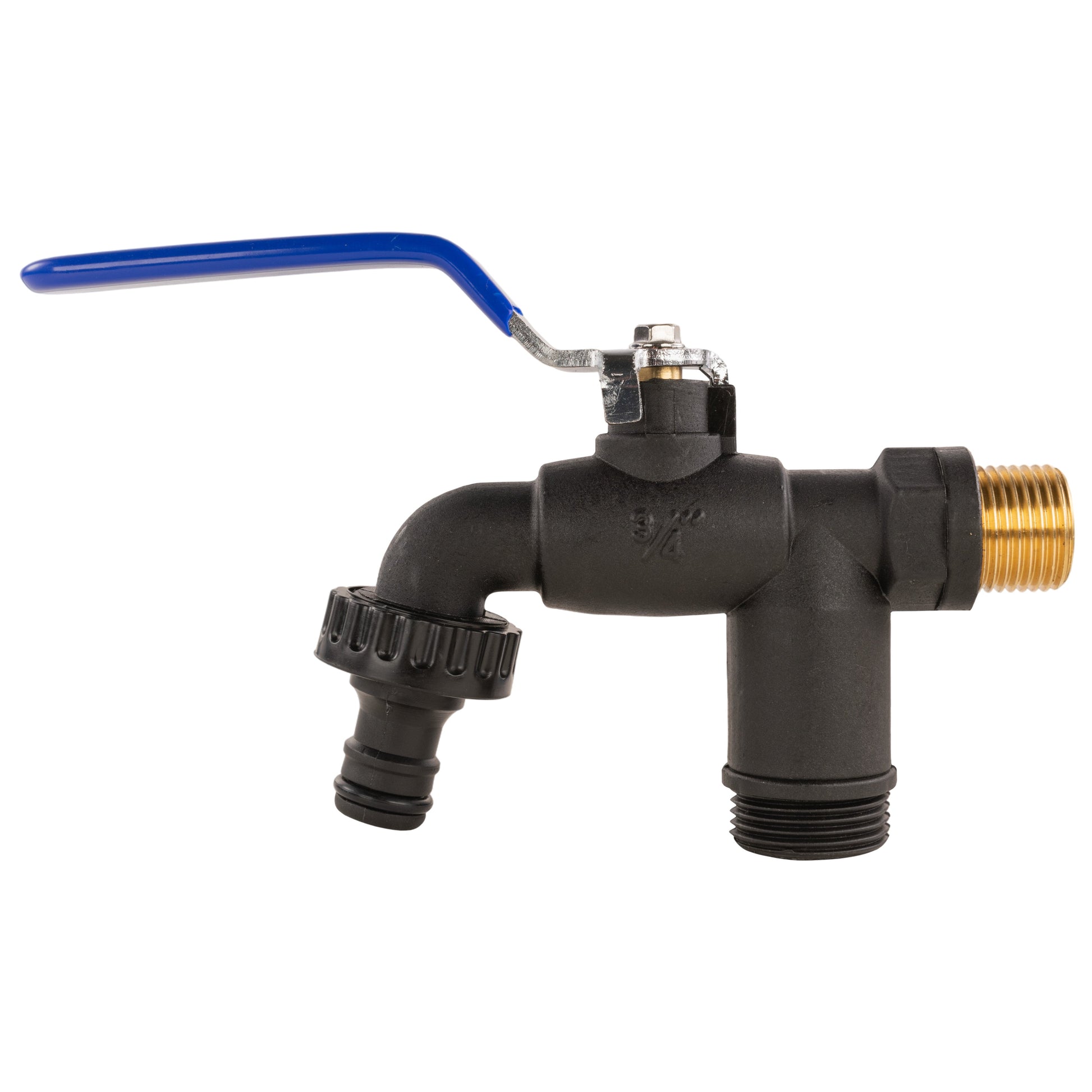

The lower outlet is a ¾-inch BSP male thread. Use a suitable matching female-threaded fitting for the hose or accessory you want to connect. This tap does not include a second quick-connect adapter or a GEKA coupling.

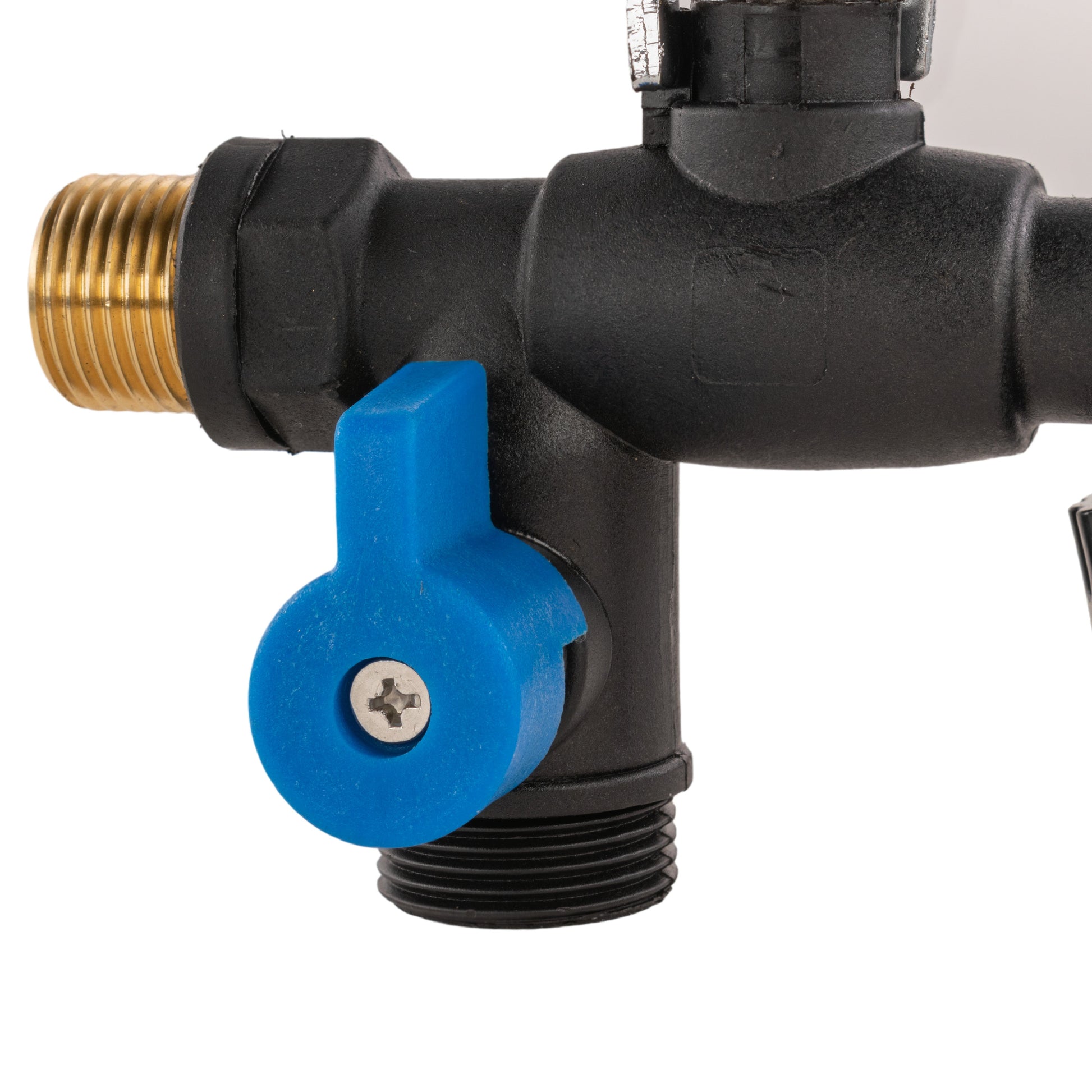

The smaller blue side control opens and closes this branch independently of the main-spout control. The two outlets still share one supply, so opening both can change the flow available at each.
The branch control is a manual valve. It should not be treated as a non-return valve or as confirmation of backflow protection.

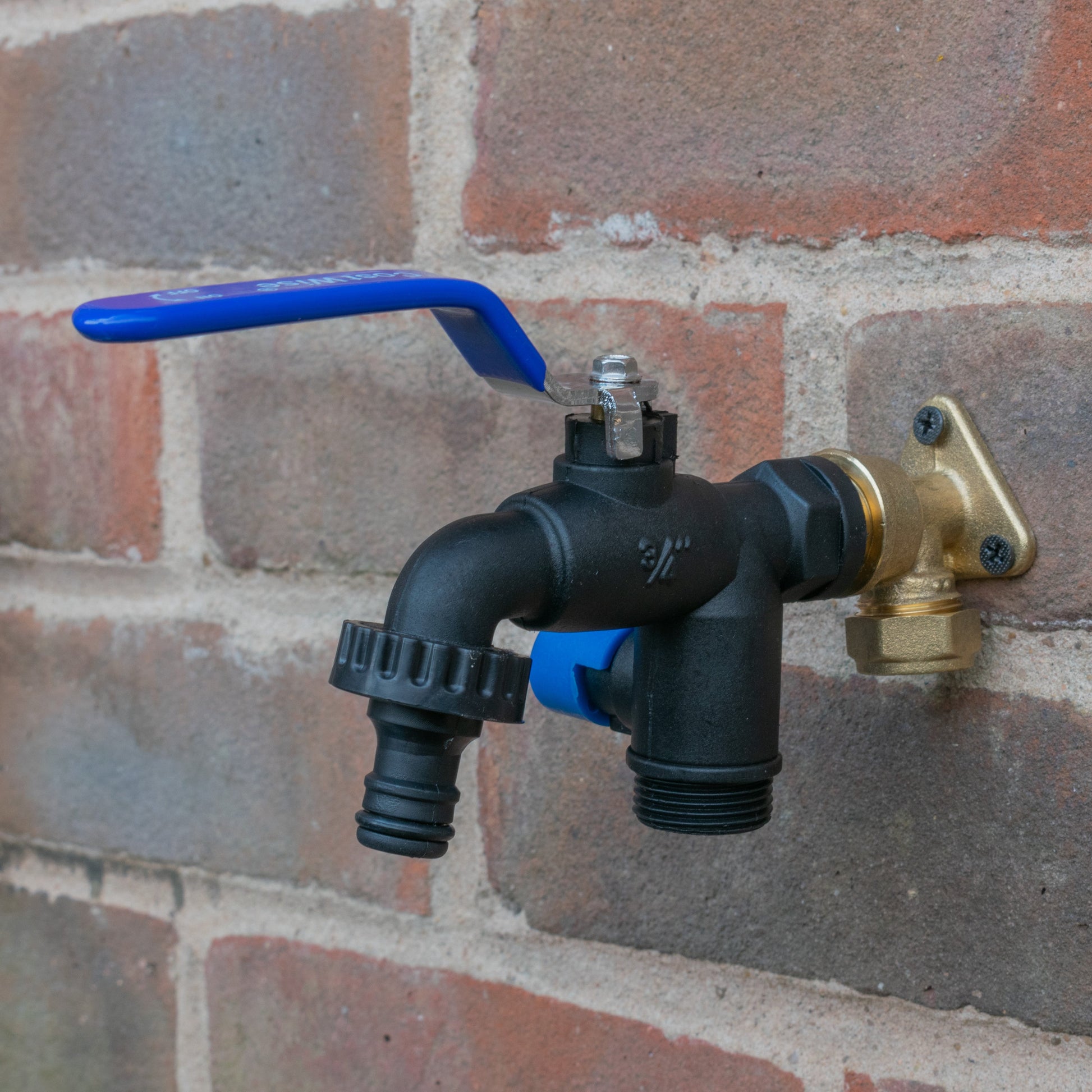

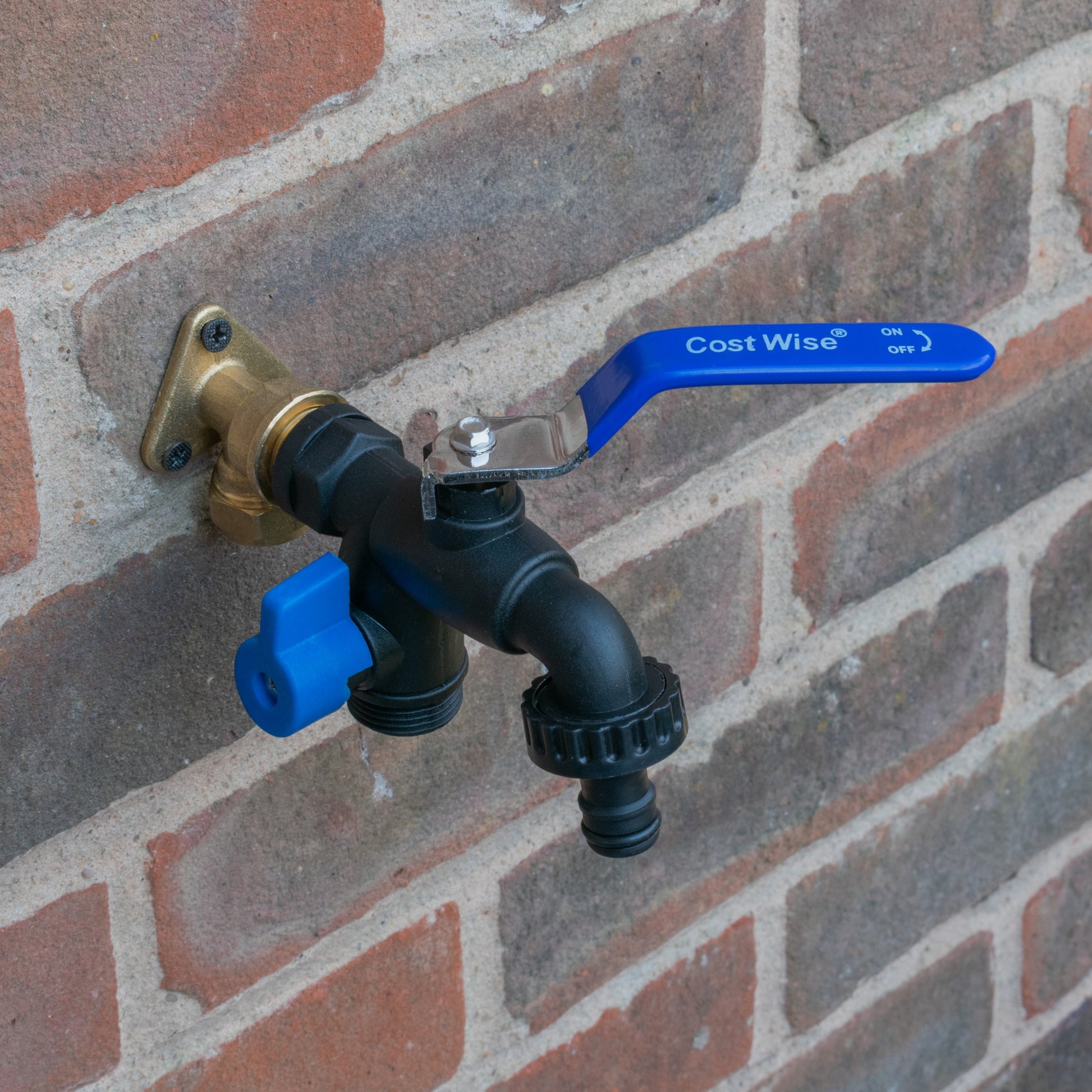

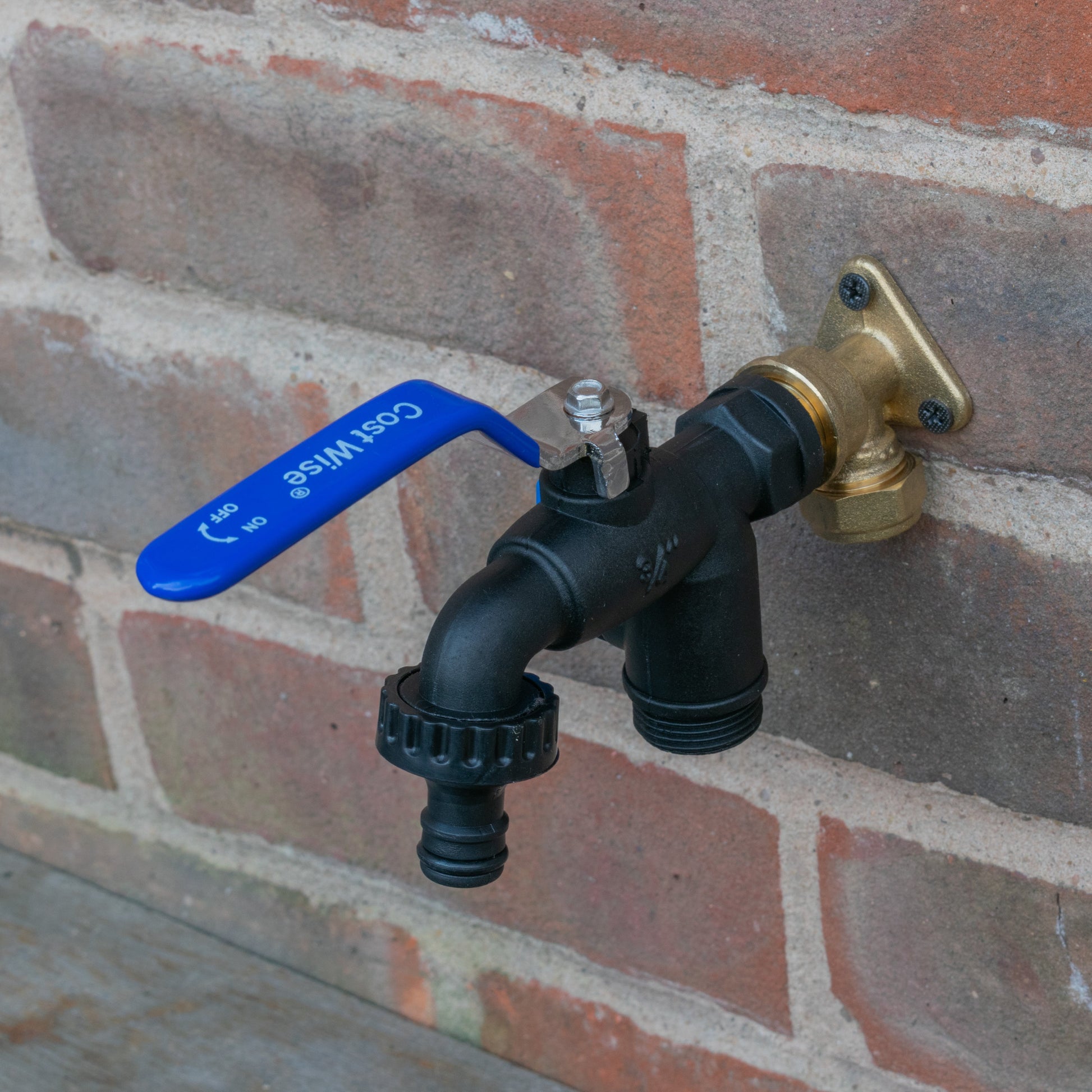

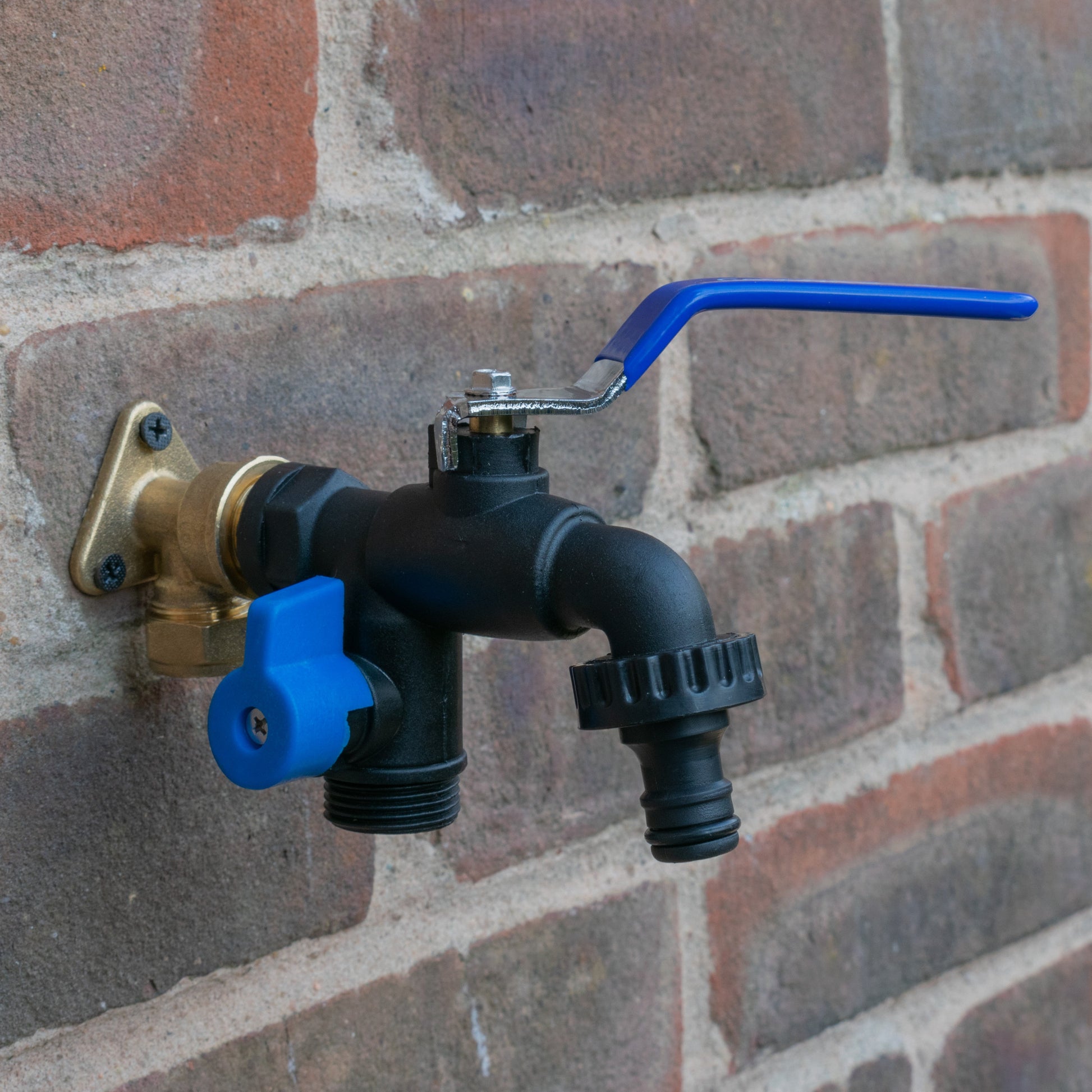

Plan the inlet, mounting and hose runs
Check these three points before fitting the tap to your watering setup.
Match the supply

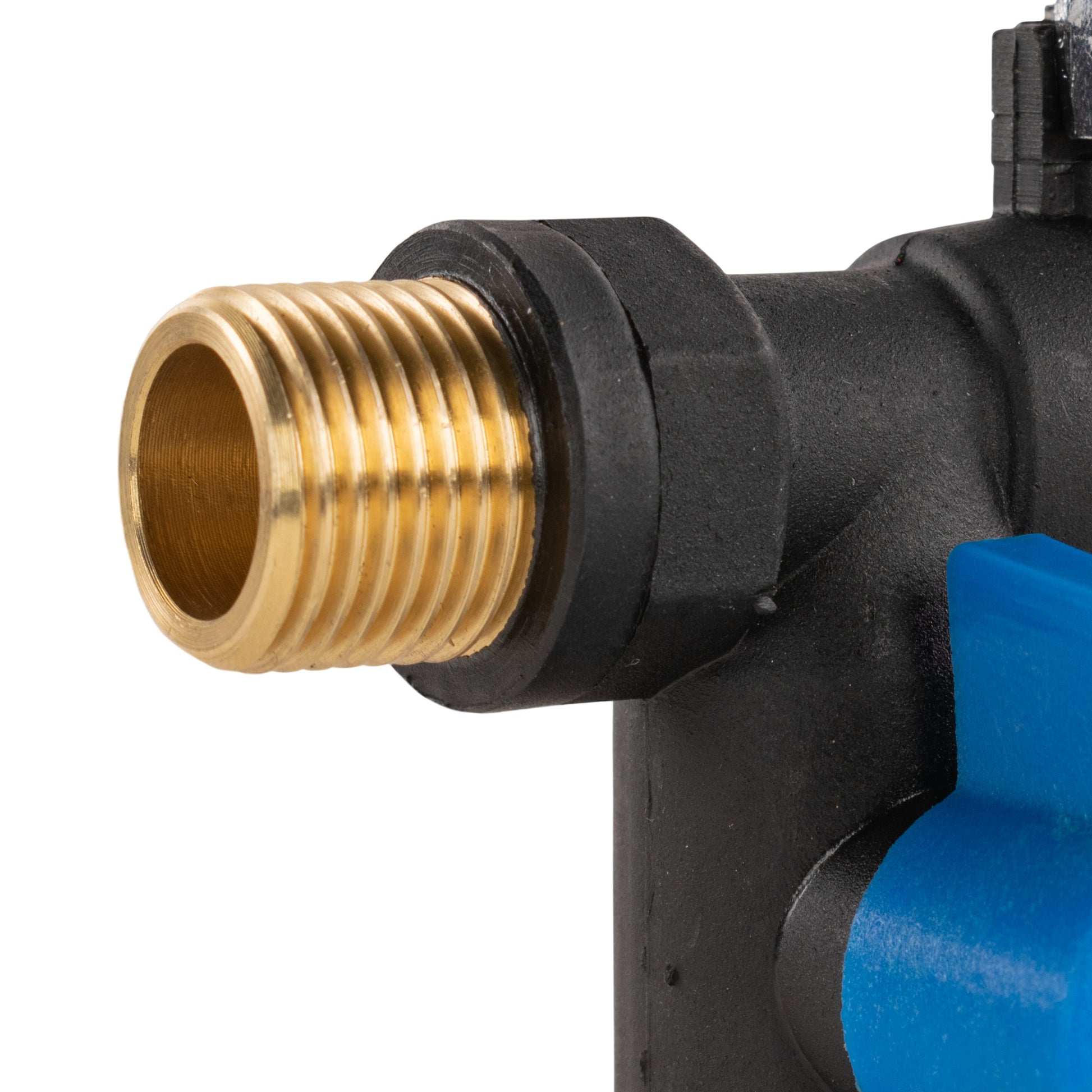

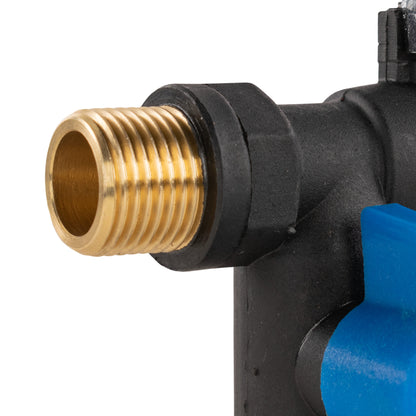

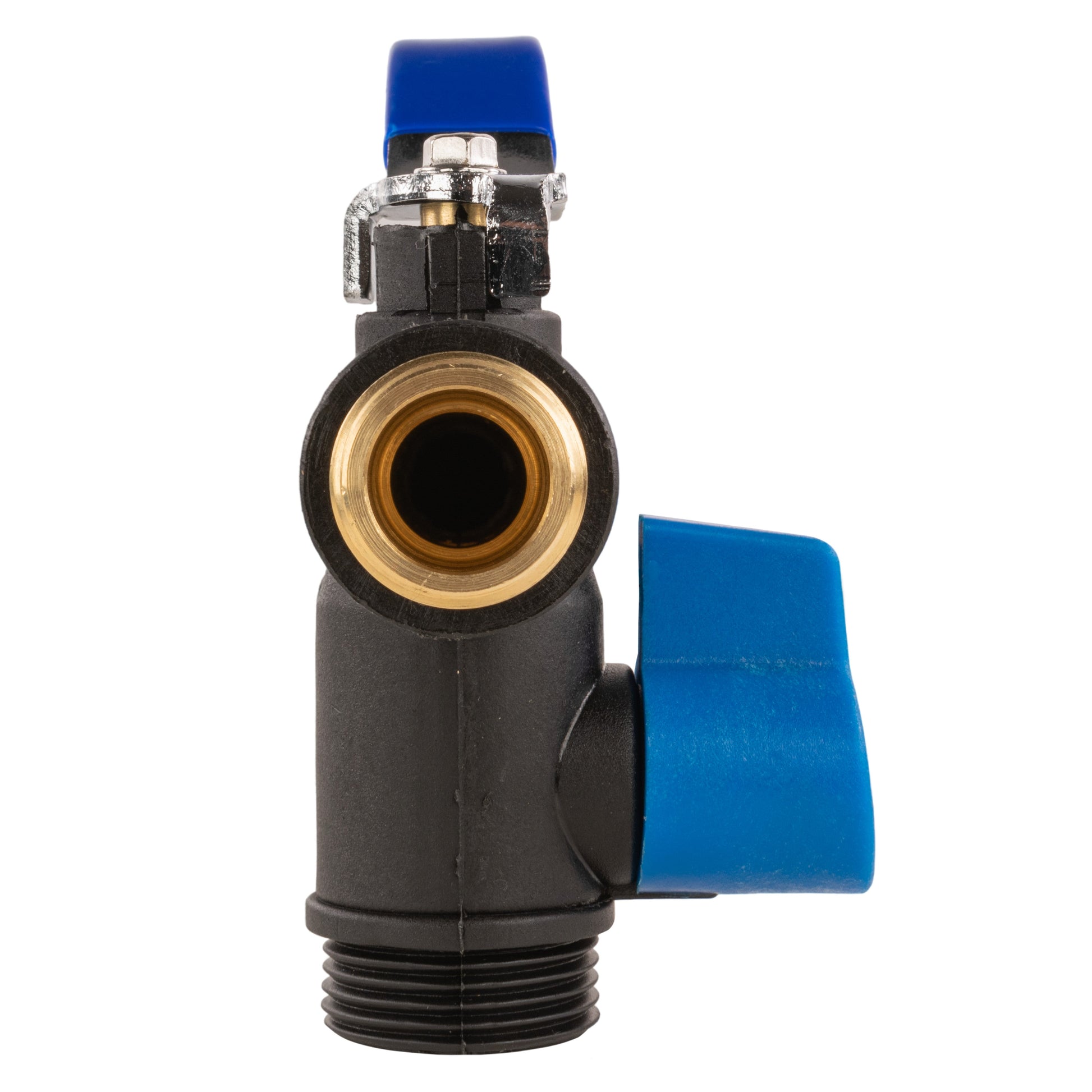

The inlet is ½-inch BSP male with a brass threaded insert. Check the receiving female thread and the installation's mounting arrangement. A tank outlet, water butt or wall connection may need a separate adapter or support.
Leave working space
Allow room for the long top lever and the small side control. Route hoses so their weight and bends do not pull sideways on the outlets. Use the sealing method required by the particular joint and avoid overtightening.
Connect and check
Isolate the supply before fitting or changing adapters. Restore water gradually and check the inlet, both outlets and both controls. Drain exposed fittings before freezing weather; no frostproof specification is confirmed for this tap.
Choosing and using this lever tap
What comes with the tap?
One nylon dual-outlet lever tap with its main-spout male garden quick-connect plug. Hose, female hose connectors, a lower-branch adapter, wall plates and other mounting or sealing materials are separate.
Can I leave both lines connected?
Yes, with suitable fittings. The long top lever operates the main spout and the smaller blue side control operates the lower branch. Both use the same supply, so the resulting flow depends on your installation.
Does the inlet fit every water butt or IBC?
No. The tap has a ½-inch BSP male inlet. Check the tank's outlet thread and mounting arrangement; a different thread or larger opening needs an appropriate separate adapter.
Is the lower valve a backflow preventer?
No backflow-prevention or non-return specification is confirmed. The lower branch has a manual control valve. Where your installation requires backflow protection, use appropriately specified separate components.
Product information & technical details
| SKU | GT-D-PA-LEVER12Q001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Black |
| Material | Nylon |
| Supply inlet insert | Brass male threaded insert |
| Main outlet | Male garden quick-connect plug |
|---|---|
| Secondary outlet | ¾-inch BSP male thread |
| Main control | Long blue lever |
| Secondary control | Blue side valve control |
| Quantity supplied | One dual-outlet lever tap with male quick-connect outlet |
| Hose and installation fittings | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
