Description
A quick-connect outlet for your prepared hose

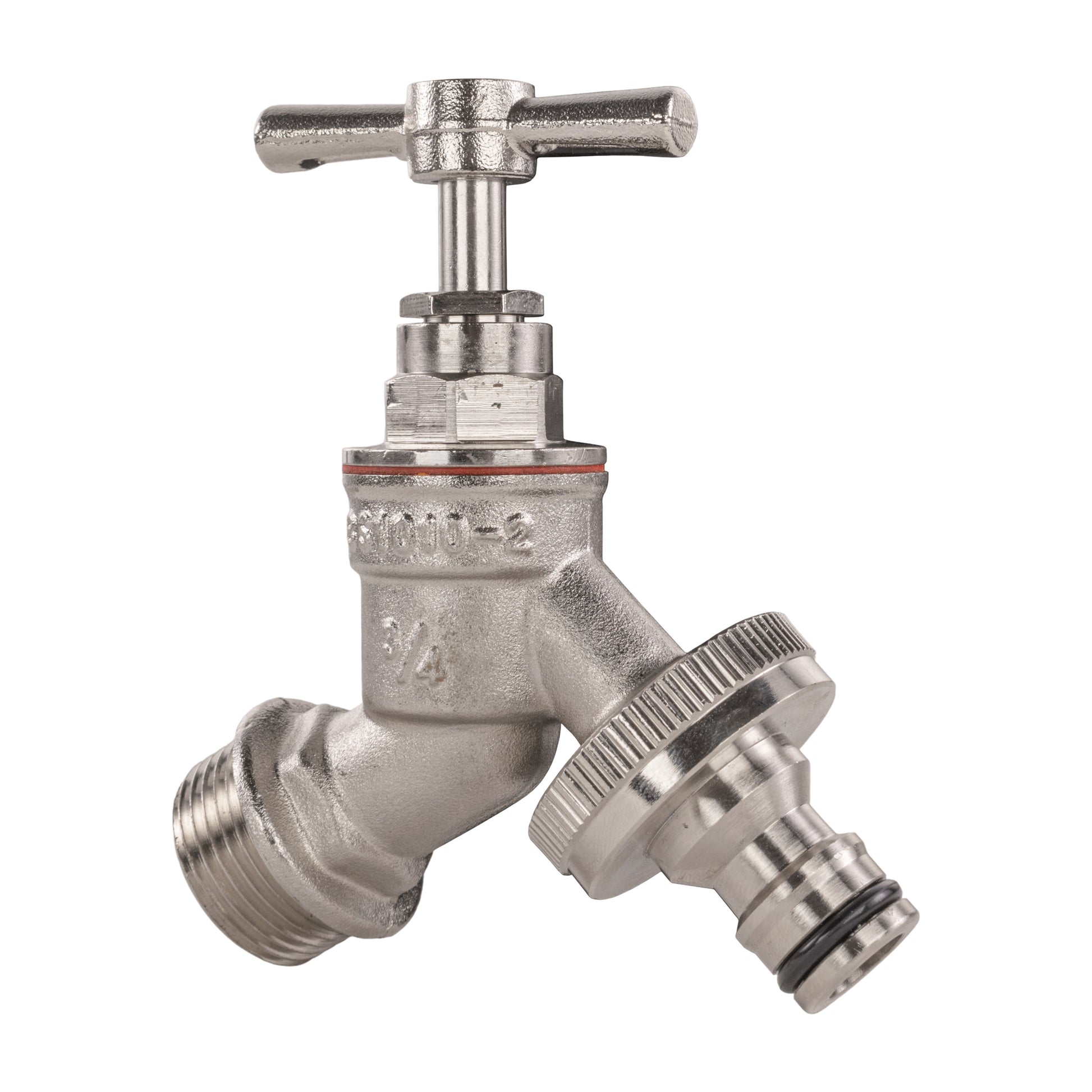

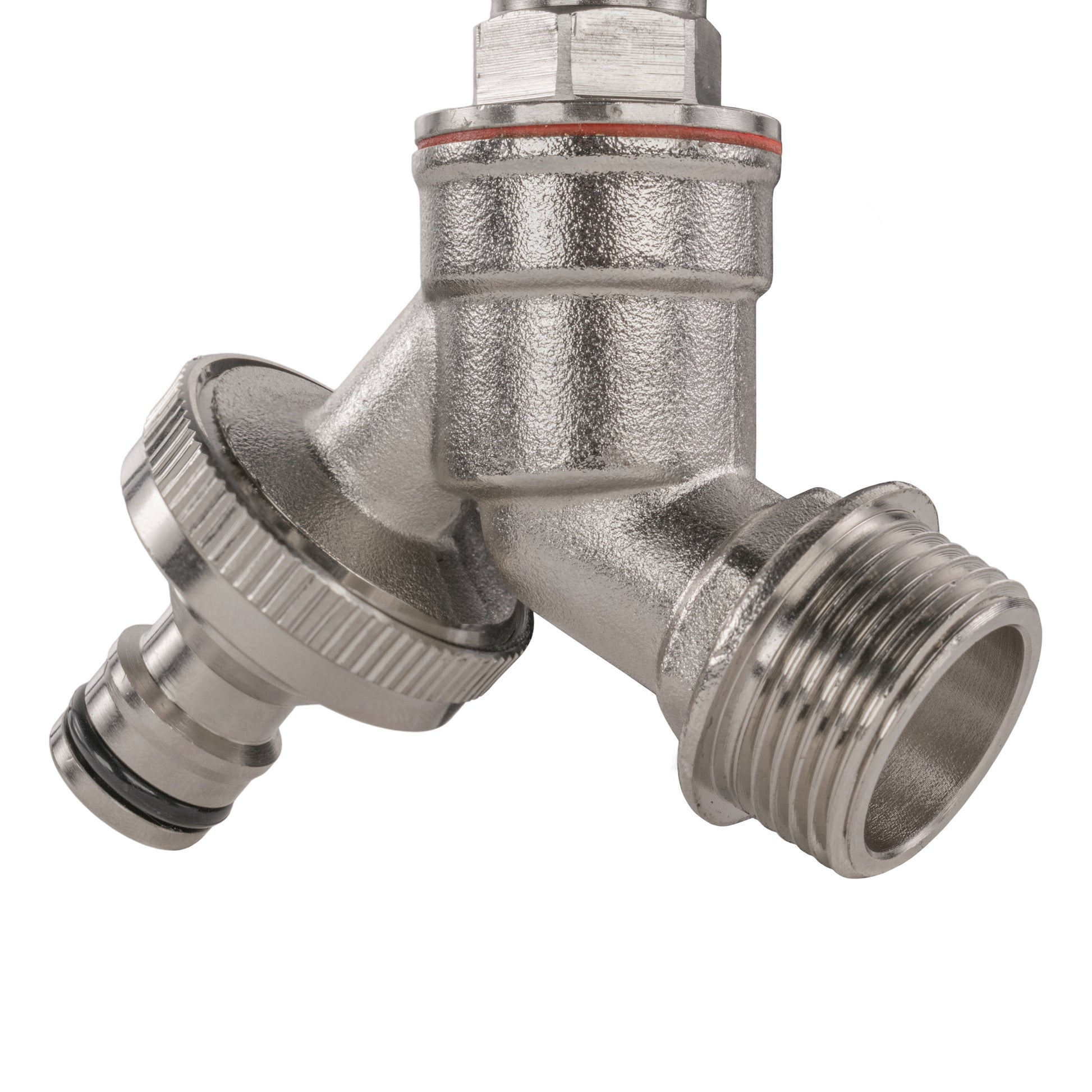

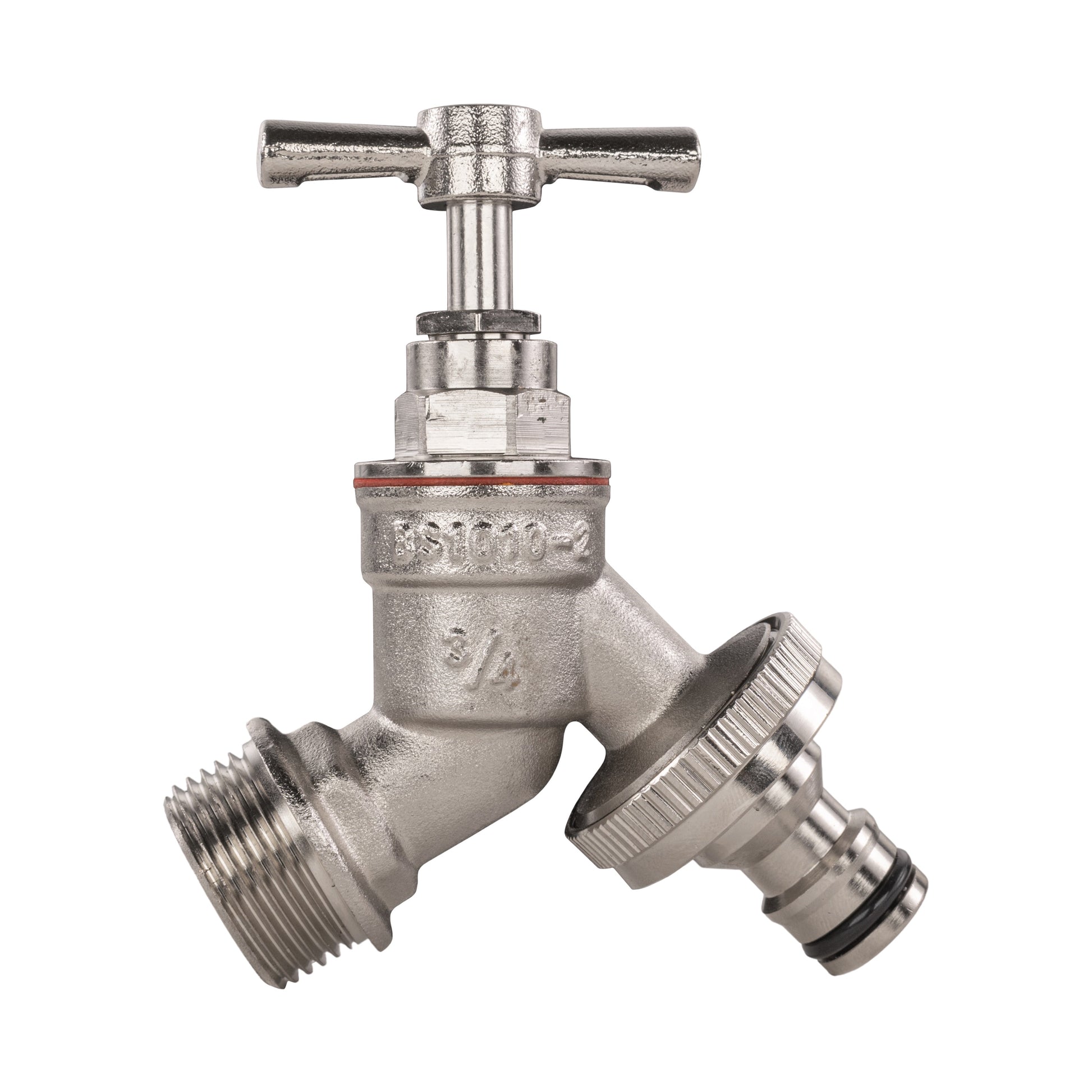

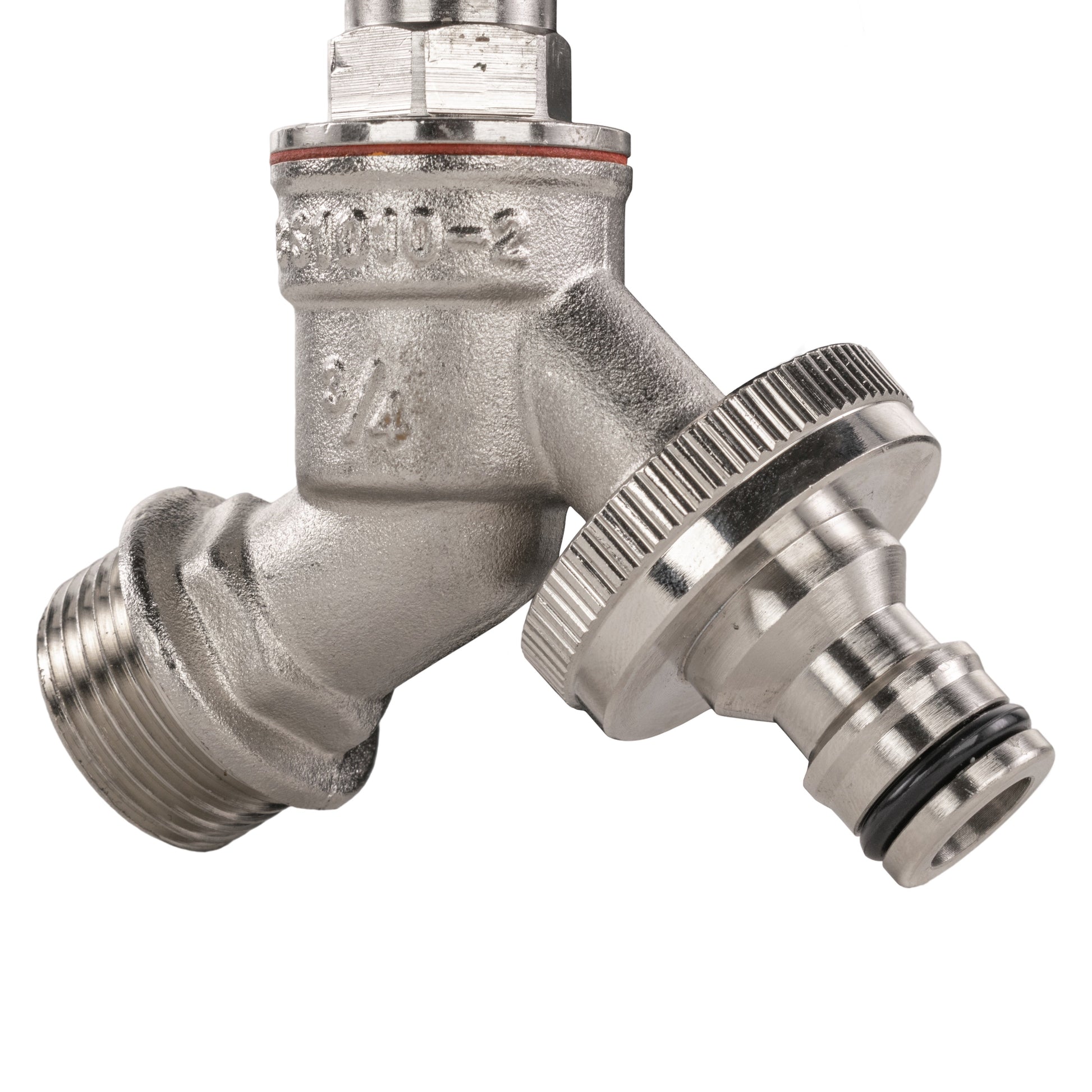

Clip a compatible female hose connector onto the male garden plug supplied with this nickel-plated brass bib tap. You can detach the prepared hose without unscrewing the tap from its supply fitting.
The inlet is ¾-inch BSP male. Match that thread to the water supply, then choose the separate female connector to suit your hose.
One tap with male outlet plug supplied. Hose, female connector and installation fittings are separate.
Choose the connector at the hose end
The tap supplies the male quick-connect plug. Your hose needs a compatible female garden connector that clips onto it. The female connector is not included.
Choose its hose-gripping end for your hose's actual internal diameter. The tap's ¾-inch BSP inlet is a supply-thread size; it does not mean every connected hose must have a ¾-inch bore.
A bare hose does not fit directly over this plug as it would over a hose tail. Prepare the hose with the correct female connector before attaching it to the tap, and make sure the connection is fully engaged.
Connect, water and disconnect
Check the threaded supply first, then the hose connection.
Fit the tap to the supply
Isolate the water and match the ¾-inch BSP male inlet to a suitable female fitting. Use the joint's required sealing method and avoid overtightening. Wall plates, tank adapters and mounting fittings are separate.
Attach the prepared hose
Fit a compatible female connector sized for your hose, then clip it onto the male outlet plug. Leave space to operate its release mechanism and keep the hose from pulling sideways against the tap.
Check before disconnecting
Restore water gradually and inspect the joints. Turn the tap off and release pressure before detaching the hose. Drain exposed taps, connectors and hoses before freezing weather.
Hose connection questions
Is a female hose connector included?
No. The tap includes the male garden quick-connect plug. A compatible female connector for your hose is supplied separately.
Do I need ¾-inch hose?
Not because of the inlet size. The¾-inch BSP measurement describes the tap's threaded supply inlet. Choose the separate female quick connector to suit the hose you intend to use.
Will this screw directly into my existing outlet?
Check that the receiving fitting has the matching ¾-inch BSP female thread and an appropriate mounting and sealing arrangement. A water butt or other supply may need a separate adapter.
Can I disconnect the hose with the water running?
Turn off the tap and release pressure before disconnecting. Do not assume a separate female connector has an automatic shut-off unless its own specification confirms it.
Product information & technical details
| SKU | GTBIB34BRASS001NQ |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Silver |
| Material | Brass |
| Finish | Nickel-plated |
| Outlet connection | Male garden quick-connect plug |
|---|---|
| Required hose connector | Compatible female garden quick connector; sold separately |
| Hose size | Determined by the separate female hose connector |

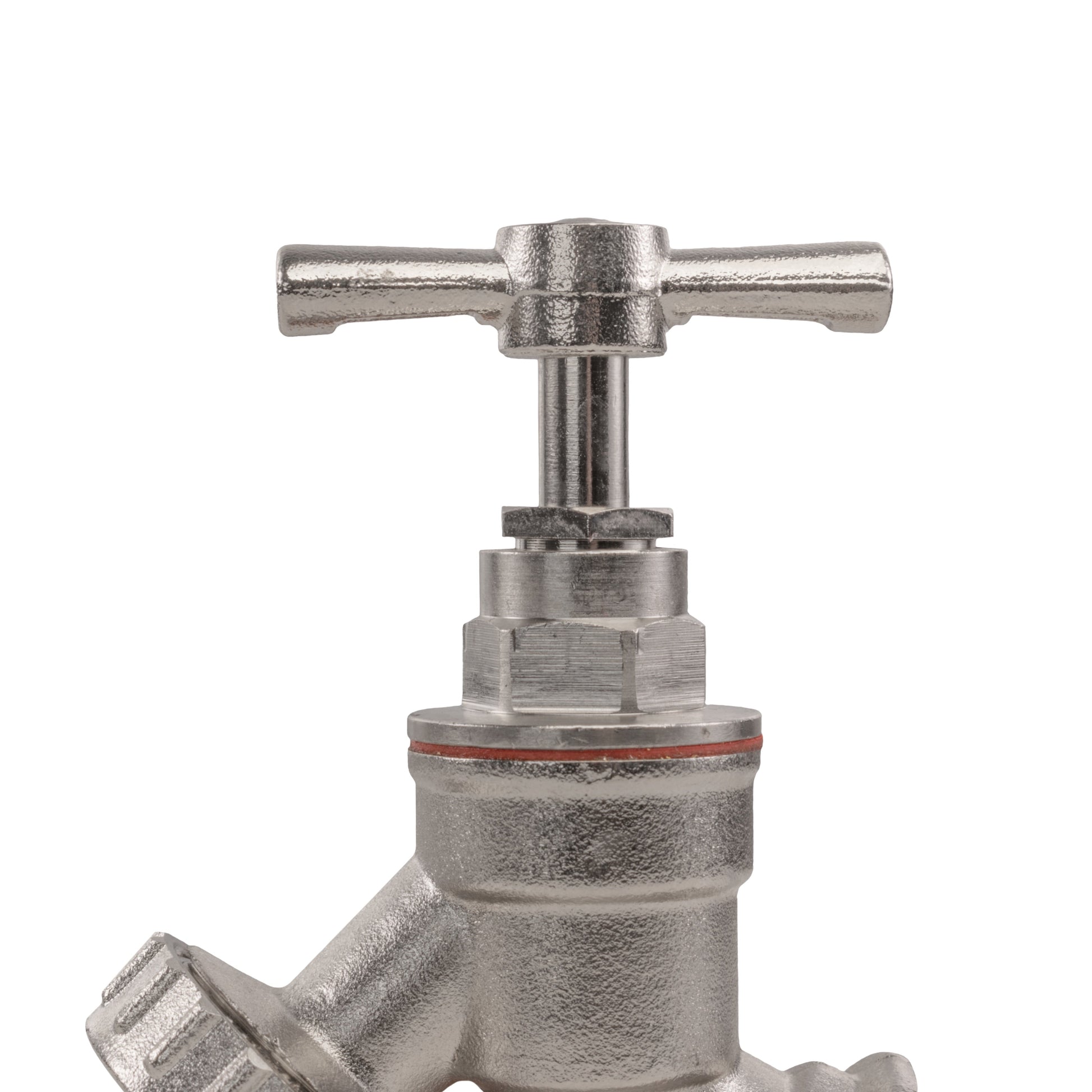

| Control | T-bar turn handle |
| Quantity supplied | One tap with male quick-connect outlet |
| Hose and installation fittings | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
