Description
A hose-tail tap for your ¾-inch watering line

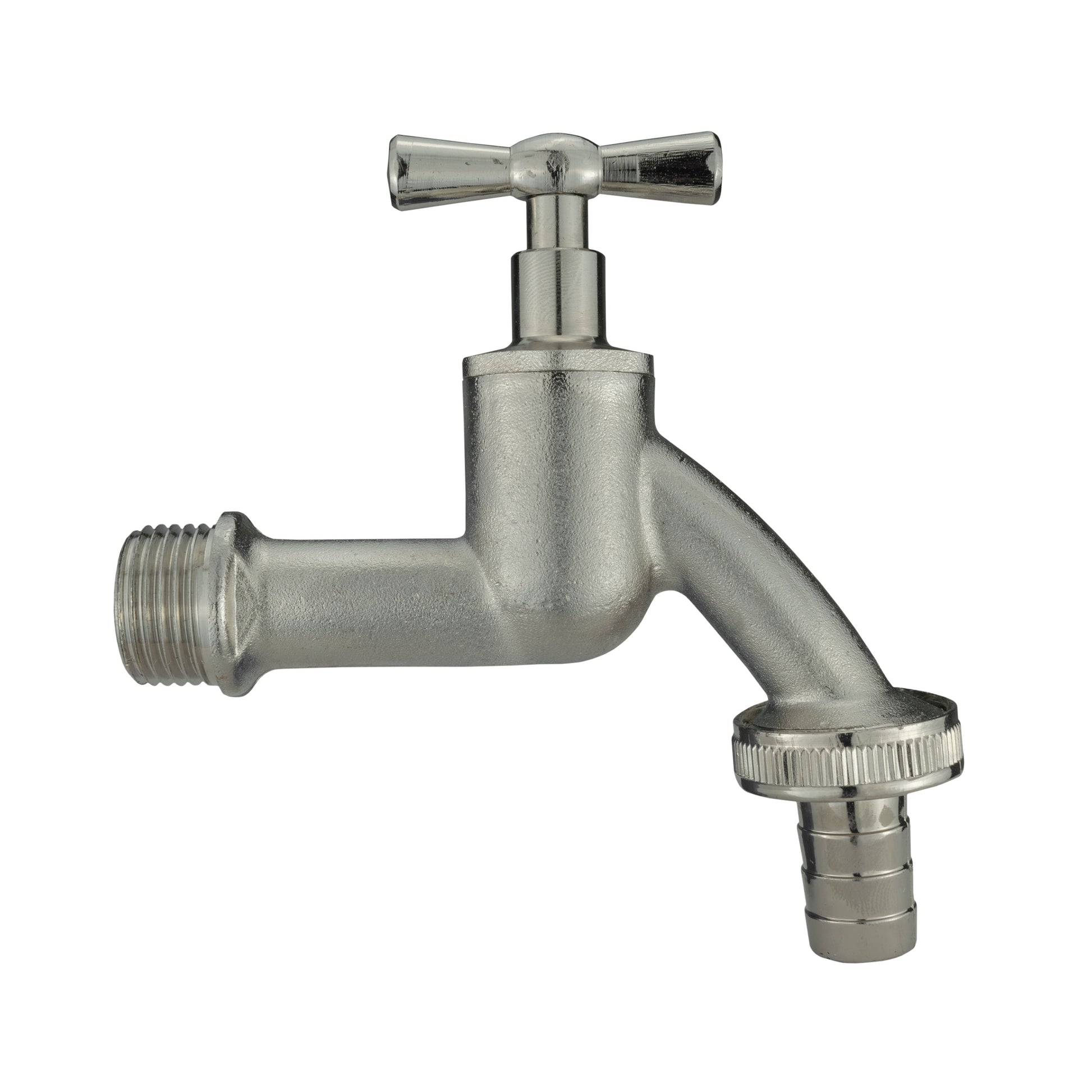

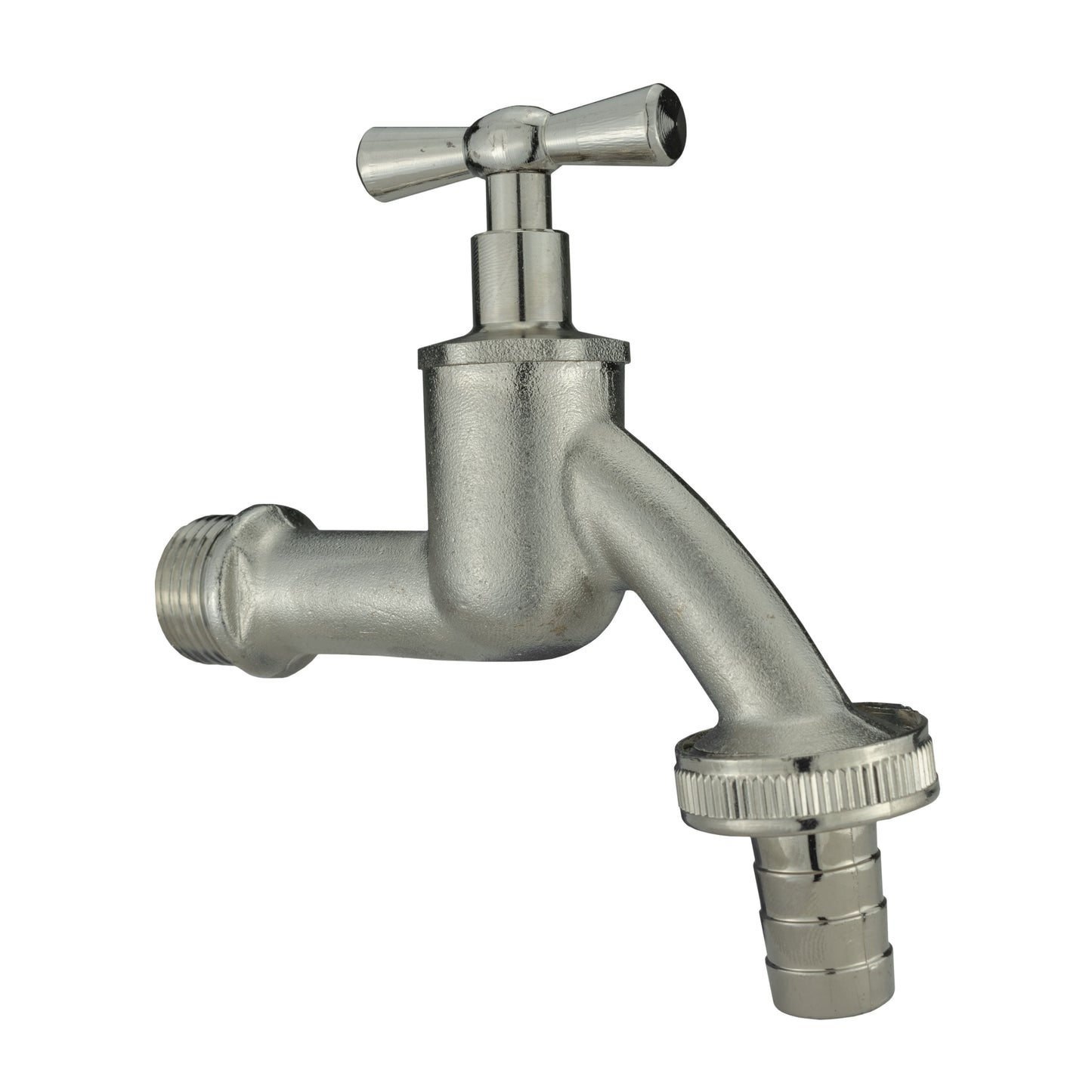

Use this nickel-plated brass bib tap where the supply fitting takes a ¾-inch BSP male thread and your hose has a ¾-inch internal bore. The hose attaches directly over the ridged outlet tail.

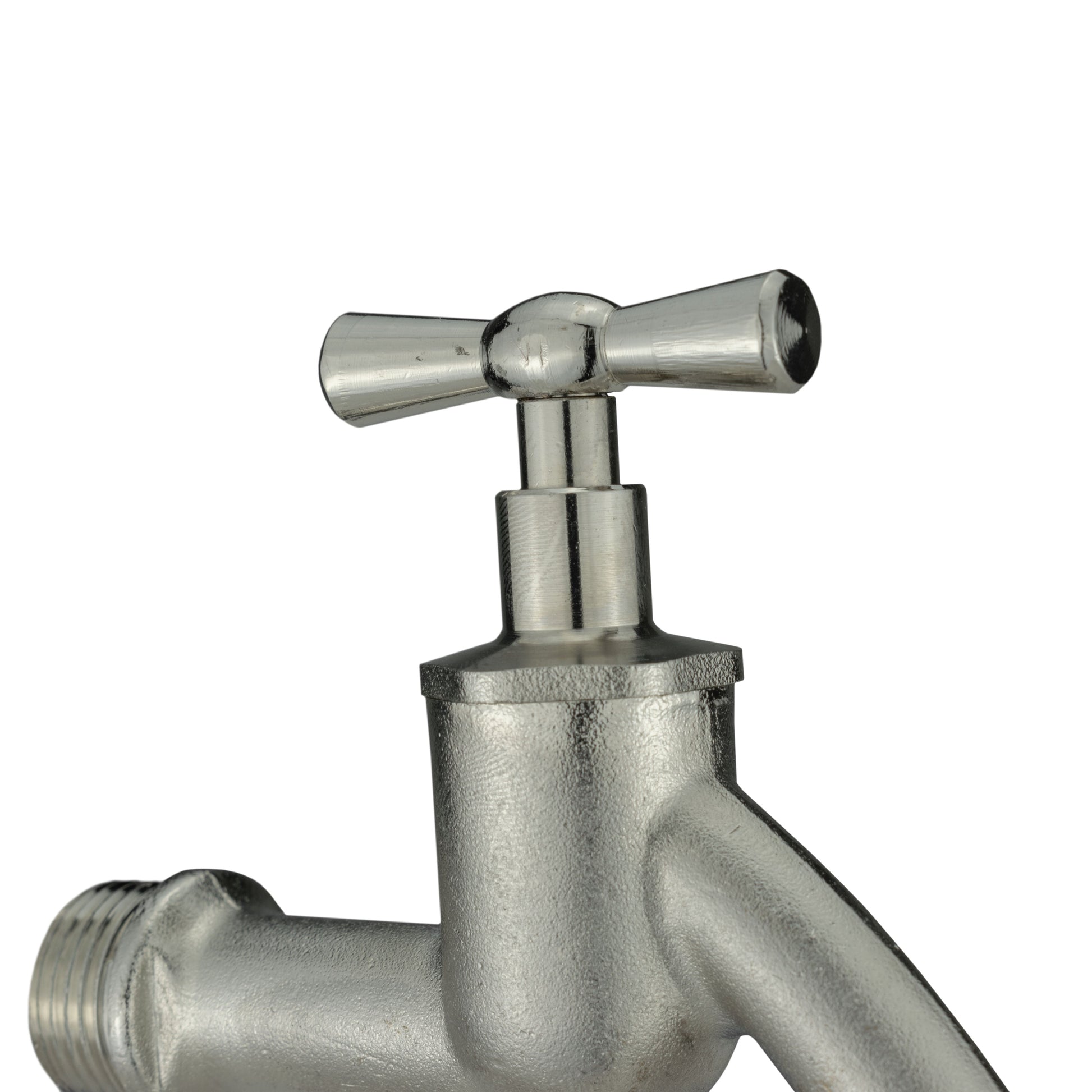

A T-bar handle controls the water. The angled spout brings the hose connection below the tap body, so check the space beneath the outlet as well as the thread size.
One tap with hose tail supplied. Hose, retaining clip and mounting fittings are separate.
Two connections to check
The ¾-inch BSP male inlet screws into a suitable female supply fitting. BSP is a nominal thread designation: measuring the thread outside diameter will not give ¾ of an inch.

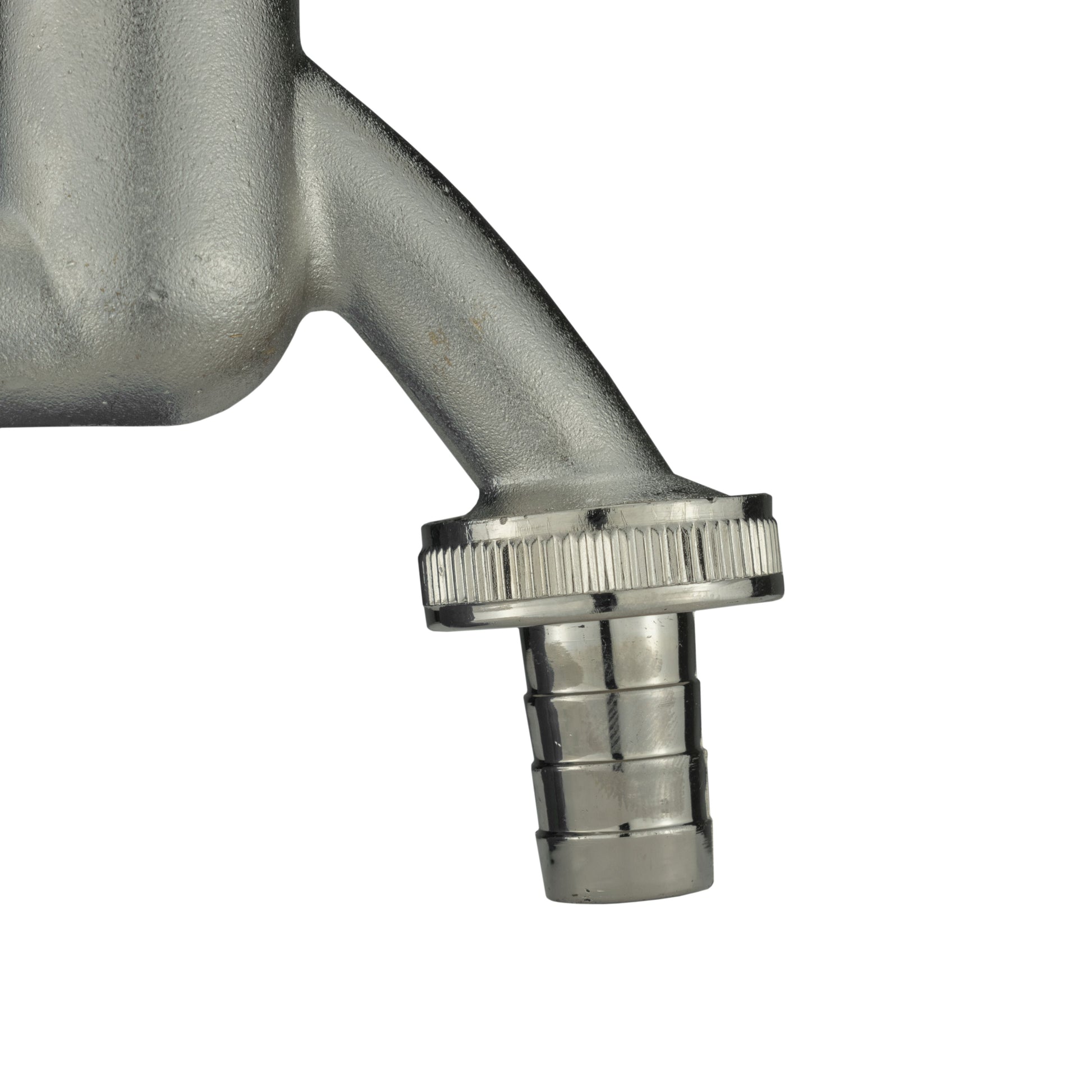

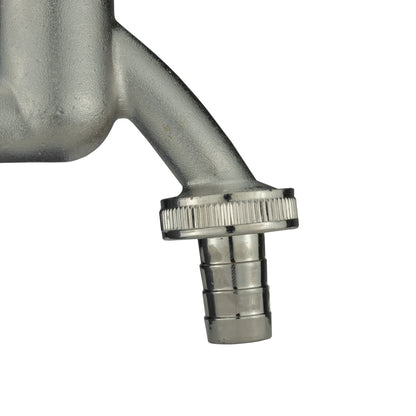

The outlet takes ¾-inch garden hose, nominally 19mm internal diameter. Push the hose over the ridged tail and secure it with a suitable clip. The hose’s outside diameter is not the fit measurement to use here.
This is a direct hose-tail connection. A female garden click-fit connector does not clip onto it, and smaller ½-inch hose or micro-irrigation tube needs a different matching fitting. Hose and retaining clip are separate.
Make room for the tap and hose
Check the mounting, handle clearance and hose route before fitting.
Confirm the supply fitting
Match the ¾-inch BSP male inlet to the receiving female thread. A tank or water butt may need a separate adapter or nut-and-washer arrangement; thread size alone does not confirm a complete installation.
Support the hose
Allow a gentle bend beneath the tail and keep the hose from pulling sideways on the tap. Leave room for the T-bar to turn. Wall plates and other mounting supports are not supplied.
Seal and test
Isolate the supply before installation and use the sealing method required by the joint. Avoid overtightening. Restore the water gradually, check for leaks and drain exposed fittings before freezing weather.
Choosing the right connection
Is this the version for ½-inch hose?
No. This version has a tail for ¾-inch hose, nominally 19mm internal bore. Choose a tap or fitting specified for your actual hose size rather than forcing smaller hose over this tail.
Can I clip a quick connector onto the outlet?
No. The supplied outlet is a ridged hose tail for direct hose attachment. A female garden quick connector needs a matching male quick-connect plug instead.
Does the ¾-inch BSP thread fit every garden supply?
No. Check that the receiving fitting is the matching female BSP size, then check the mounting and sealing arrangement. Water butts, wall supplies and other outlets can use different threads or adapters.
What comes with the tap?
One nickel-plated brass bib tap with its hose tail and T-bar handle. Hose, retaining clip, wall plate, adapters, mounting fittings and sealing materials are not included.
Product information & technical details
| SKU | GTBIB34B001CH |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Silver |
| Material | Brass |
| Finish | Nickel-plated |
| Outlet type | Ridged hose tail |
|---|---|
| Hose size | ¾-inch hose; nominal 19mm internal bore |
| Hose retention | Suitable retaining clip required; sold separately |
| Control | T-bar turn handle |
| Quantity supplied | One bib tap with hose tail |
| Hose and installation fittings | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
