Description
A garden tap for direct hose attachment

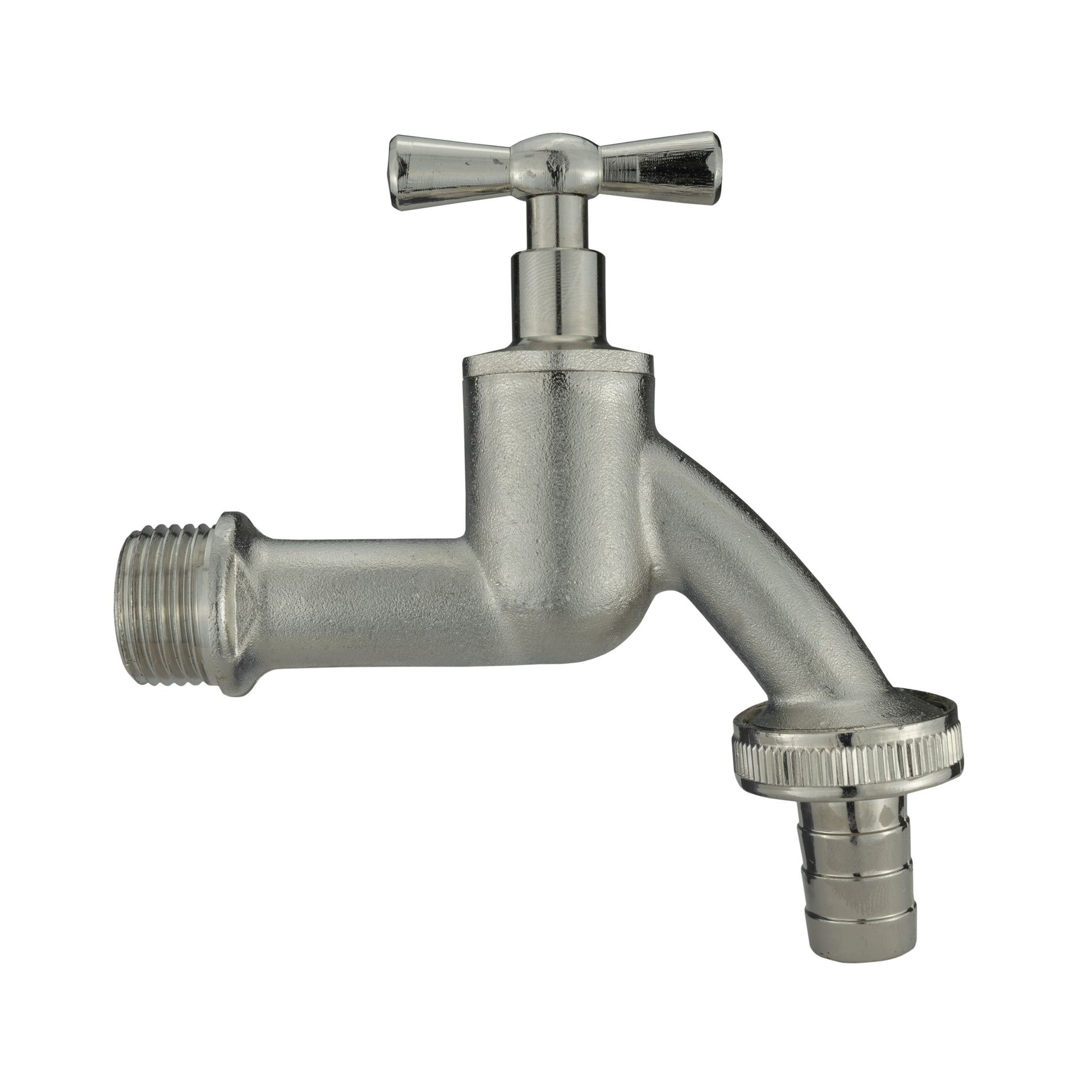

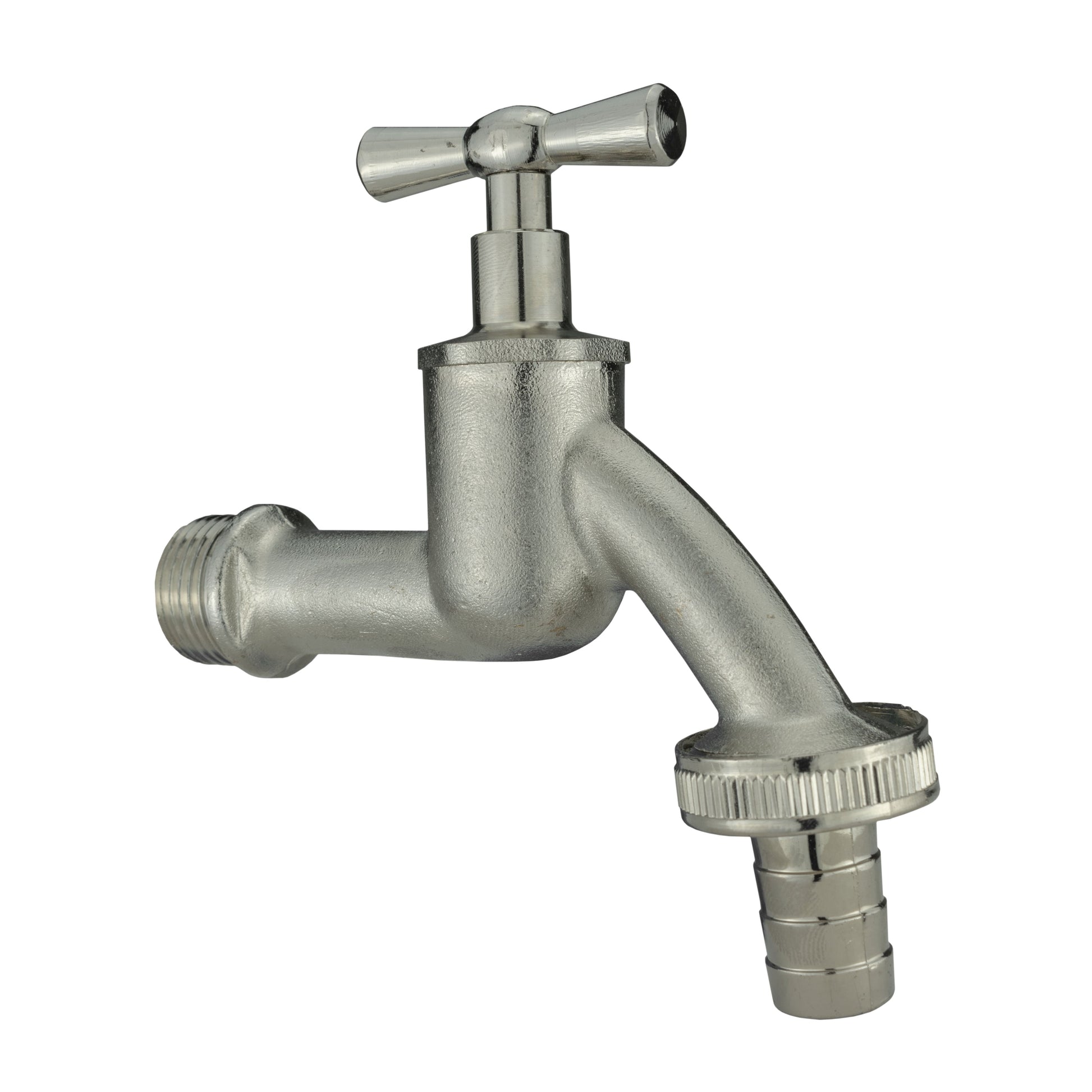

Connect a ½-inch garden hose straight to the ridged tail of this nickel-plated brass bib tap. The T-bar handle controls the water, while the downward-facing spout gives the hose a connection below the tap body.
The supply end has a ½-inch BSP male thread. Match it to a suitable female fitting and check the room needed for the handle and hose.
One tap with hose tail supplied. Hose, retaining clip and mounting fittings are separate.
Match the hose bore to the tail

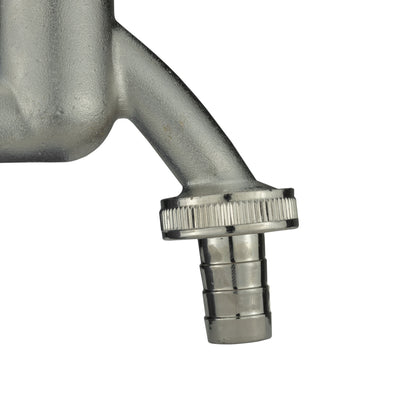

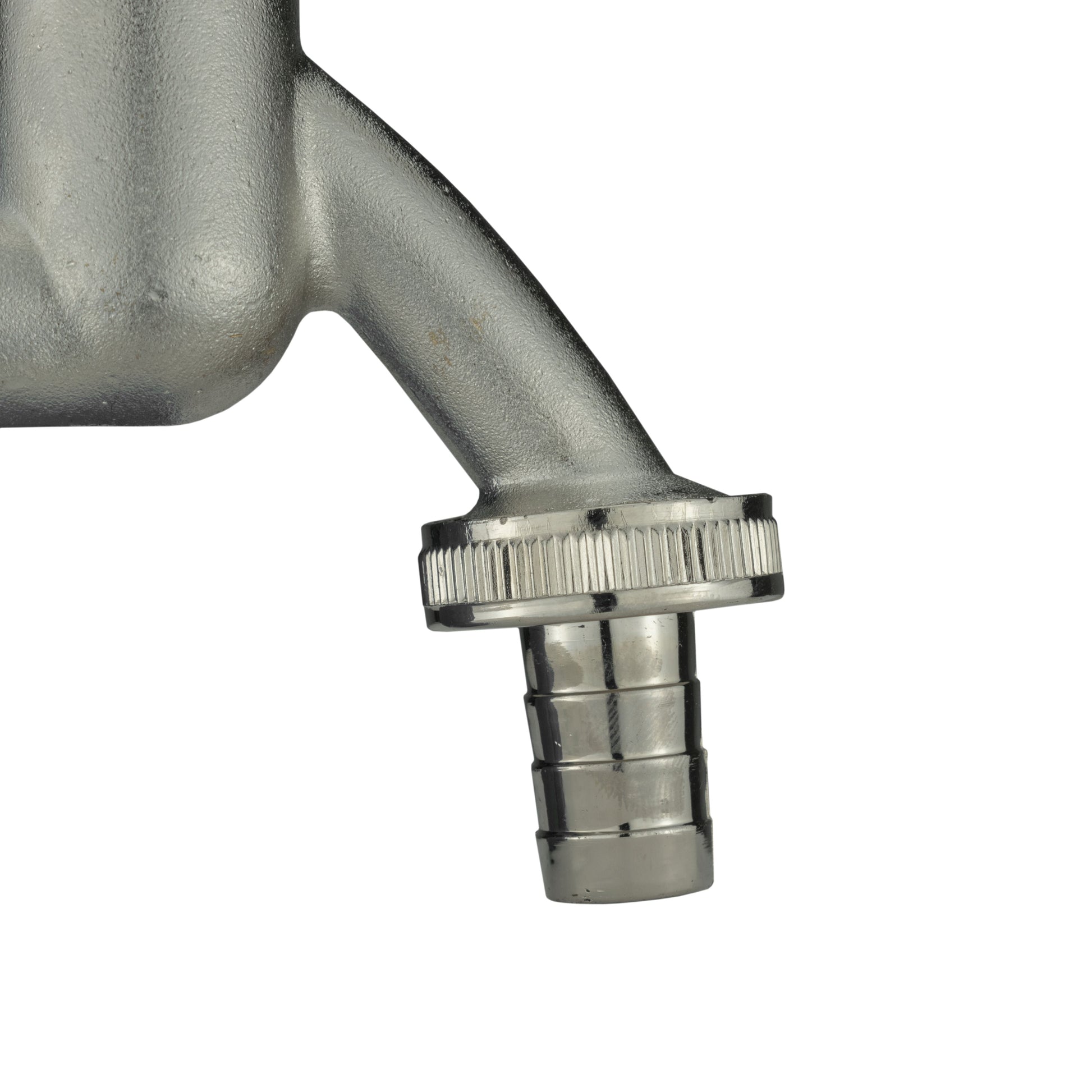

The outlet is for ½-inch garden hose, nominally 13mm internal diameter. The hose goes over the ridged tail; use a suitable retaining clip to secure it. Hose and clip are sold separately.
This outlet differs from a garden quick-connect plug. A female click-fit hose connector does not clip directly onto the tail, and the inlet's BSP size is not a measurement of the hose's outside diameter.
Keep the hose supported and allow a gentle bend beneath the tap. Pulling a tight hose sideways against the outlet can strain the connection. Shut off the water and release pressure before removing the hose.
Plan the connection before fitting
Check the supply thread, mounting arrangement and hose clearance together.
Check the female fitting
The tap has a ½-inch BSP male inlet. BSP is a nominal thread size, not the measured outside diameter. A water butt or tank may need a separate mounting adapter, nut or sealing arrangement.
Leave room to use it

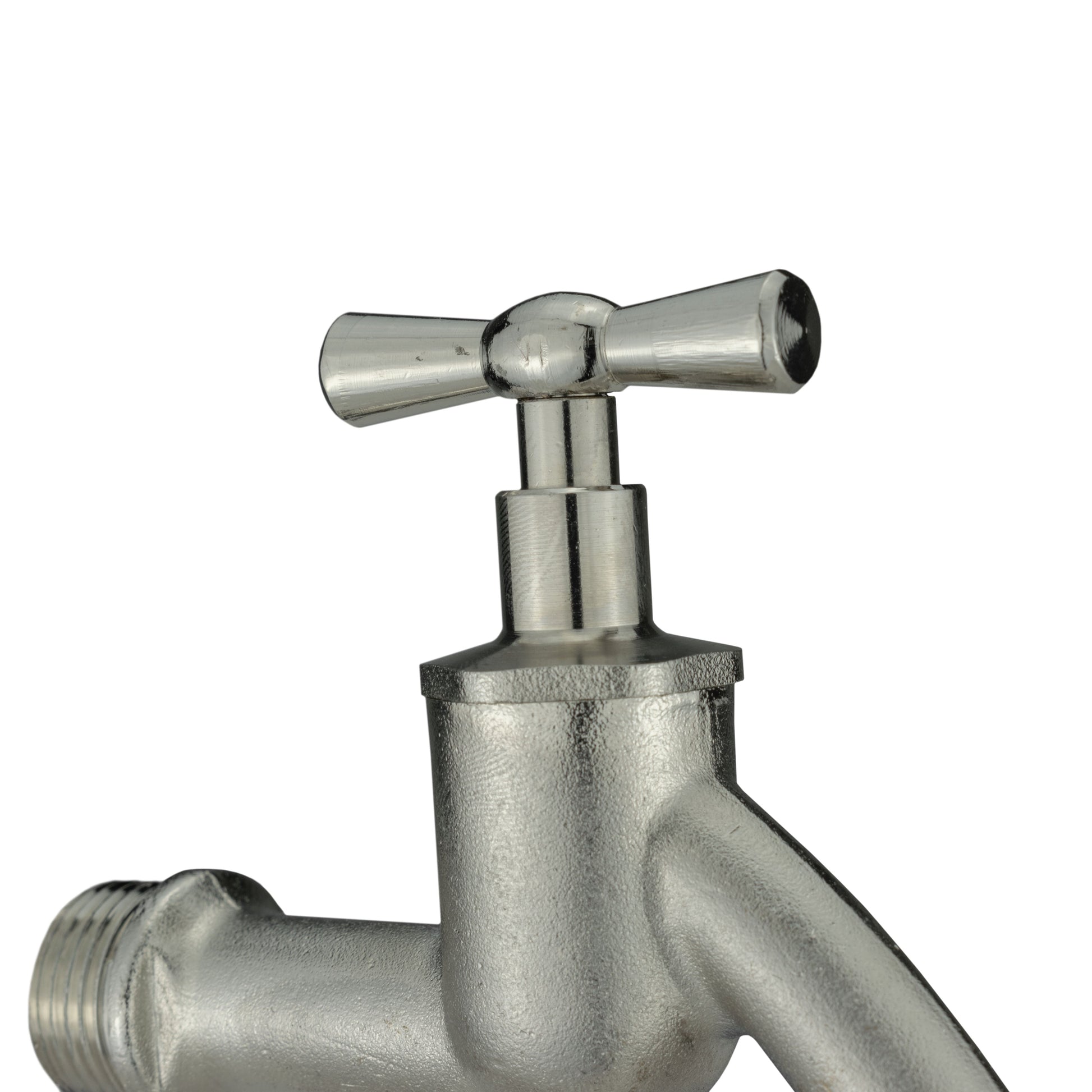

Allow room to turn the T-bar and attach the hose underneath the spout. A wall plate or other support may be needed for your installation; none is included.
Fit, test and drain
Isolate the supply before fitting and use the sealing method required by the joint. Avoid overtightening, restore water gradually and check for leaks. Drain exposed taps and hoses before freezing weather.
Before you order
Does this connect to a standard female hose connector?
It has a ridged hose tail for direct attachment of ½-inch hose, not a male quick-connect plug. A female garden click-fit connector does not clip directly onto this tail.
What hose size does the outlet take?
½-inch garden hose, nominally 13mm internal bore. Check the hose's actual bore and secure it with a suitable separate retaining clip.
Will it fit my water butt?
The inlet is ½-inch BSP male. Check your water butt's outlet and mounting arrangement; some need a separate adapter, nut and washer or another sealing method. The thread size alone does not confirm the complete fit.
What is included?
One nickel-plated brass bib tap with its hose-tail outlet. Hose, retaining clips, wall plates, supply adapters, mounting fittings and sealing materials are not included.
Product information & technical details
| SKU | GTBIB12B001CH |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Silver |
| Material | Brass |
| Finish | Nickel-plated |
| Outlet type | Ridged hose tail |
|---|---|
| Hose size | ½-inch hose; nominal 13mm internal bore |
| Hose retention | Suitable retaining clip required; sold separately |
| Control | T-bar turn handle |
| Quantity supplied | One bib tap with hose tail |
| Hose and installation fittings | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
