Description
Bring a garden hose to your micro-irrigation line

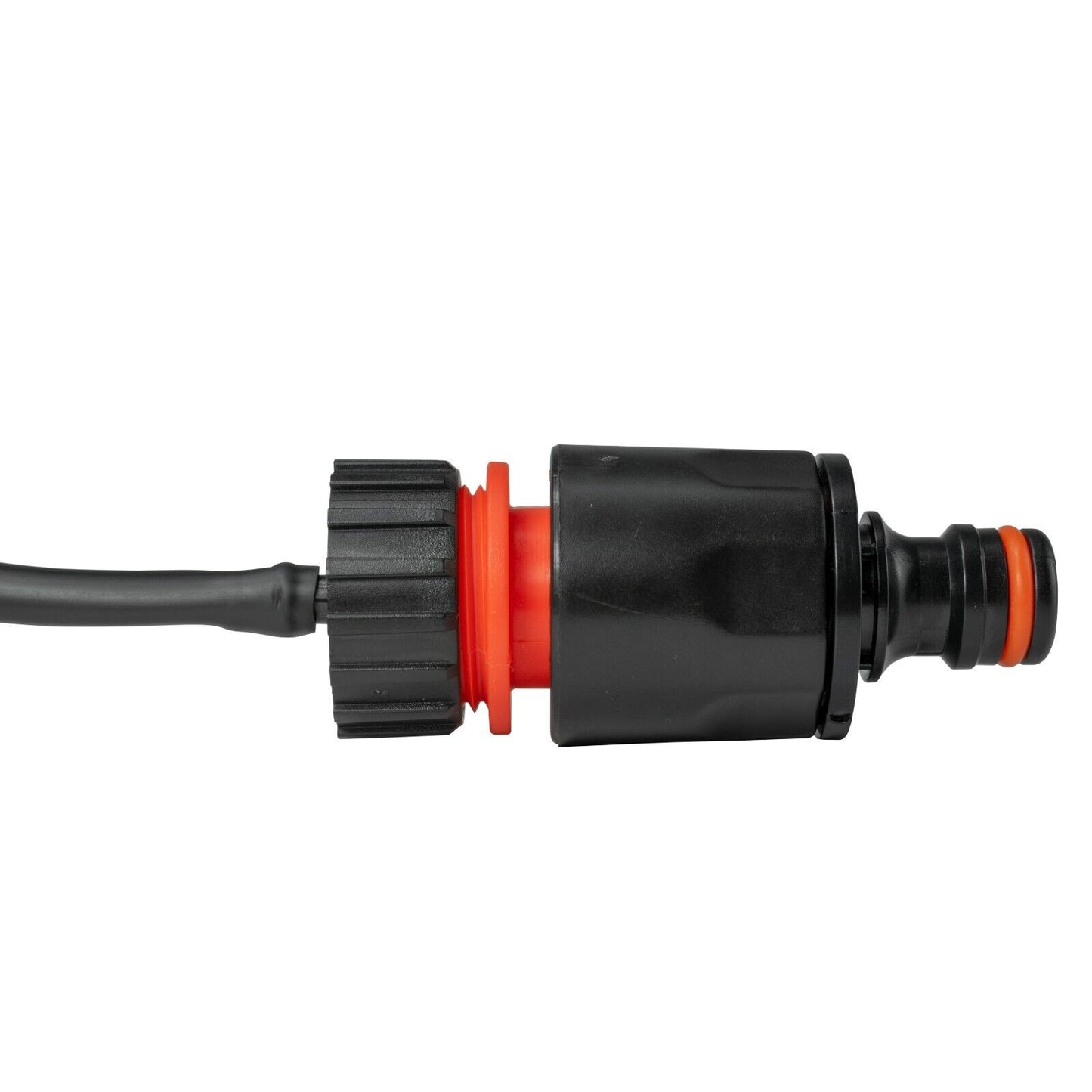

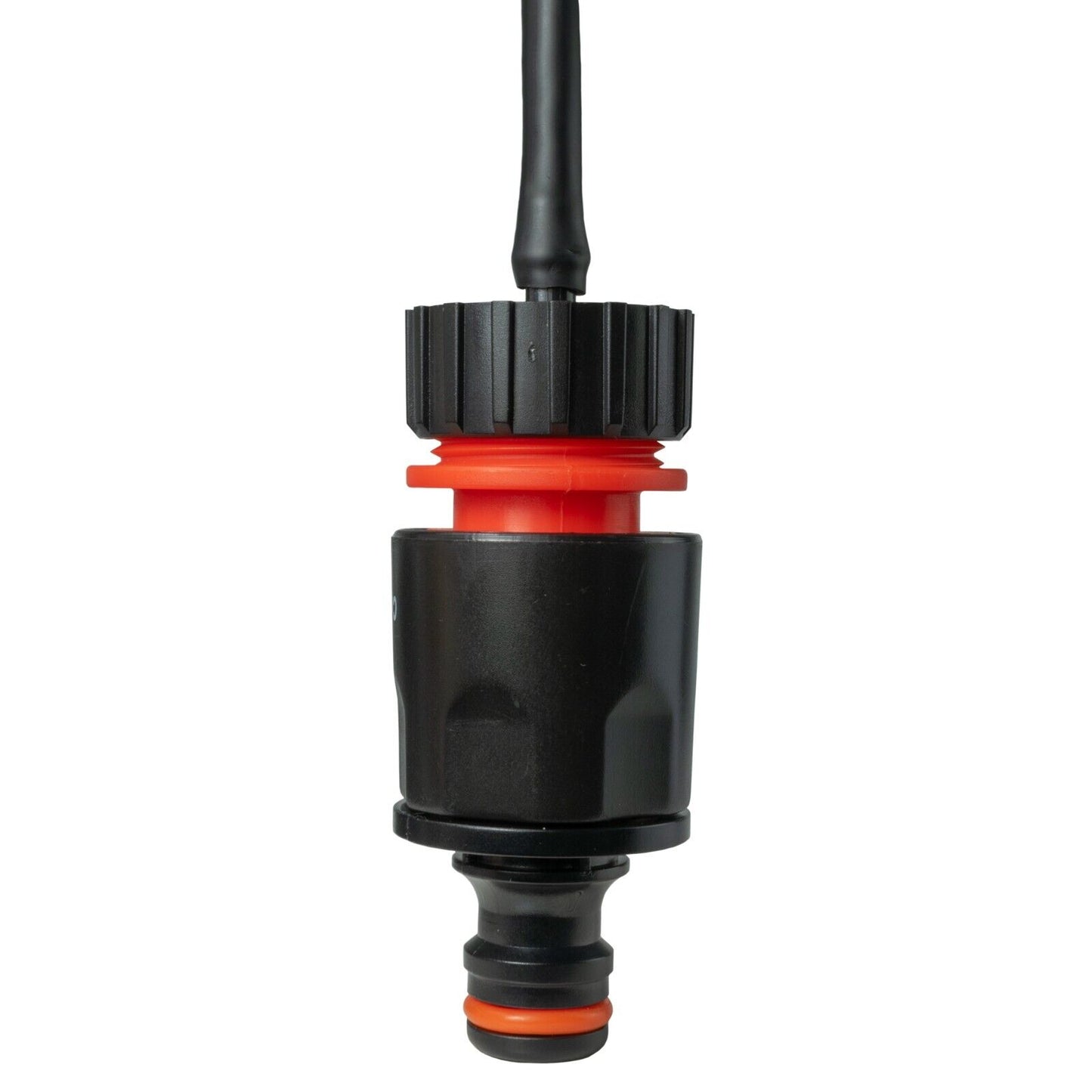

This 4mm micro-irrigation connector kit provides a detachable connection between suitable small-bore tube and a garden hose fitted with a compatible female quick socket.
The kit has two separate fittings: a female quick connector with a 4mm micro-tube barb, plus a double-male joiner. Click them together to leave a male plug ready for your supply hose.
One two-piece kit supplied. Tube, hose and watering equipment are separate.
What each part does
Micro-tube adapter
The small barb fits inside suitable 4mm micro-irrigation tubing. At the other end, the black and orange body has a female garden quick socket. It can connect directly to a compatible male plug.
Double-male joiner
The separate joiner has a male garden quick plug at each end. One plugs into the micro-tube adapter’s socket, leaving the other exposed for your supply hose.
Your hose connection
A compatible female socket on your garden hose clicks onto that exposed plug. This supply-hose socket is not part of the kit. You can detach there without repeatedly removing the tube from its barb.
Choose the tube by its bore
The 4mm nominal size refers to the inside of the micro tube. Tubing with a 4mm outside diameter is not the same thing. Check the tubing specification and its compatibility with a 4mm micro-irrigation barb before fitting.
The larger quick-connect end is a garden hose coupling, not a bare-hose grip. The supply hose needs its own compatible female socket; the diameter of that supply hose does not change the kit’s 4mm micro-tube connection.
This is a connection kit, not a pressure reducer or watering controller. Follow the micro tube and emitters’ working-pressure guidance and use suitable separate pressure-control equipment where your system requires it.
Connect and check before watering
Turn off the supply and release pressure before assembly. Fit a clean, sound tube end to the small barb using the tubing’s recommended method. Engage the joiner and supply-hose socket, then open the water gradually and inspect the tube joint and both quick connections.
Turn off the water and release pressure before operating a release sleeve. Keep the connections accessible for inspection. Hose, micro tube, drippers, filters and pressure-control equipment are sold separately.
Questions about this connector kit
Why are there two fittings in the kit?
The micro-barb adapter has a female quick socket. The double-male joiner connects that socket to the female socket on a typical garden hose end, giving you the required male connection between them.
Can I use the micro-tube adapter without the joiner?
Yes, if the connection you are attaching to already has a compatible male garden quick plug. Keep the joiner for connections between two female sockets.
Will this reduce mains pressure for my drippers?
No. The kit provides a connection, not pressure regulation. Use separate suitable pressure control when required by your micro-irrigation system.
Does the kit include the tube or hose socket?
No. It includes one female quick connector with a 4mm micro-tube barb and one double-male joiner. Micro tube, garden hose, the supply-hose female socket and watering equipment are separate.
Product information & technical details
| SKU | HOCON12F-4MM-001+TWOWAY001B |
|---|---|
| Product type | |
| Barb size | 4mm |
| Colour | Black, Orange |
| Material | Plastic |
| Micro-tube connection | 4mm nominal barb; check compatible internal tube size |
| Adapter socket | Female garden hose quick connector |
|---|---|
| Included joiner | One double-male garden hose joiner |
| Assembled supply end | Male plug for a compatible female garden hose socket |
| Pack contents | One micro-barb connector and one double-male joiner |
| Pressure reducer included | No |
