Description
A hose connection where your MDPE supply ends.
Make a fixed watering point on a garden wall or panel with this 25mm MDPE backplate and white PVC tap.
The backplate holds the tap at the mounting surface, while the blue lever puts on/off control within reach. The angled hose tail connects directly to ½-inch-bore hose.
Follow the connection from pipe to hose
Two parts bring the supply and hose together.
- 25mm MDPE pipe enters below. The grey compression nut is the supply connection. Check the outside diameter of your pipe before ordering.
- The tap screws into the backplate. Its ¾-inch BSP male inlet matches the backplate’s female threaded outlet.
- ½-inch hose fits over the tap’s tail. This measurement is the hose’s internal bore. Push the hose fully over the barbs and secure it with a suitable clip.

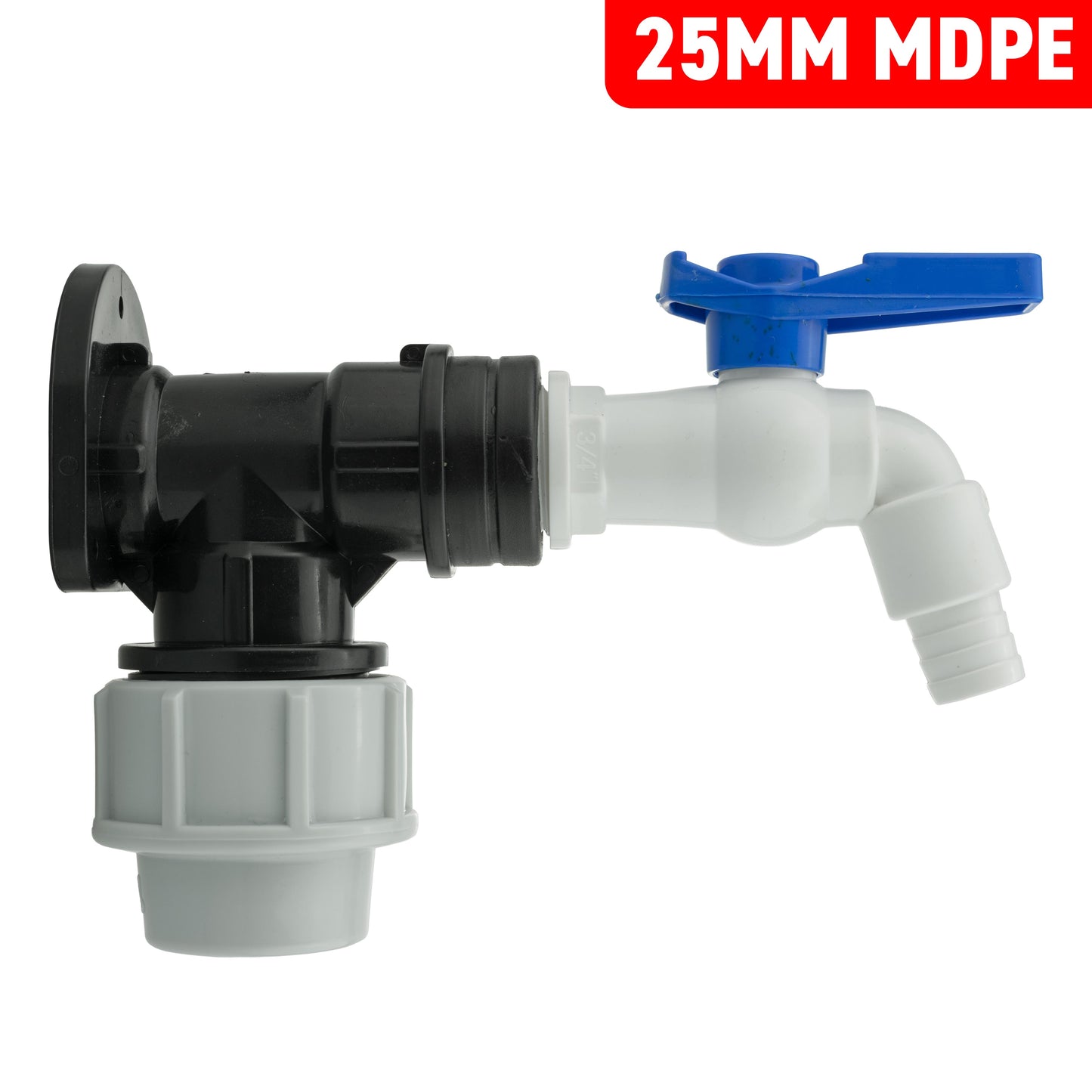

The product photo shows the supplied backplate and tap. The installed example above shows how the separate pipe, hose and clip complete the connection.
Give the tap a secure mounting
Plan room for the lever and a gentle hose run.
Choose fixings suited to the wall or panel and support the MDPE pipe independently. Follow the compression-fitting instructions, including compatible pipe liners where required. Use an appropriate seal on the BSP joint without overtightening the plastic parts.
Check the completed connections before use. Avoid pulling on the hose or using it to support the pipework. Isolate and depressurise the supply before dismantling; drain exposed pipework and the tap when protecting the installation from frost.
Before you connect your hose
Will a standard click-on hose connector attach directly?
No. This tap has a ribbed hose tail for a direct connection to ½-inch internal-bore hose, secured with a suitable hose clip. It does not have a male click-connector outlet.
Are the 25mm inlet and ½-inch outlet measured the same way?
No. The 25mm MDPE size is the supply pipe’s outside diameter. The ½-inch hose size is its internal bore, approximately 12.7mm. The ¾-inch BSP measurement identifies the threaded joint between the two supplied parts.
Product information & technical details
| SKU | WF25KIT025[#ML] |
|---|---|
| Product type | |
| Barb size | 12.7mm (1/2") |
| MDPE size | 25mm |
| Kit parts | 1 × 25mm MDPE Wall Backplate, 1 × White PVC Tap with Blue Lever and ½-inch Hose Tail |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Matched threaded joint | ¾-inch BSP male tap inlet into the backplate’s ¾-inch BSP female outlet. |
| Tap construction | White PVC tap body with blue plastic lever handle. |
| Hose connection | Direct hose-on-barb connection, secured with a suitable separate hose clip; not a click-connector outlet. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
