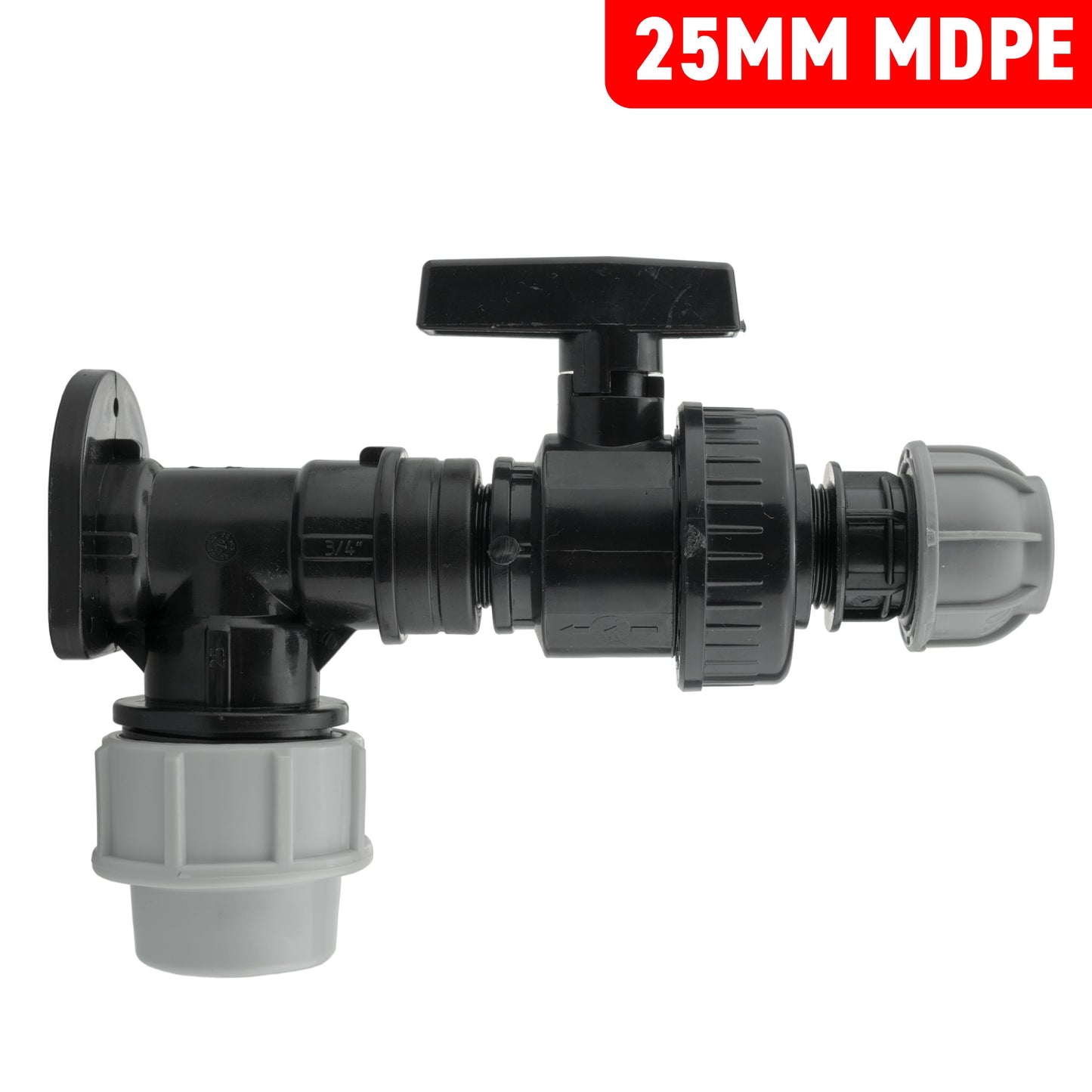

20mm outlet option
Connect a 25mm incoming MDPE pipe to a 20mm outgoing pipe.
Inlet: 25mm OD · Outlet: 20mm OD
Description
A fixed shut-off point between two pipe runs.
Bring a 25mm MDPE supply to a wall-mounted valve, then continue into the outgoing pipe size your layout needs.

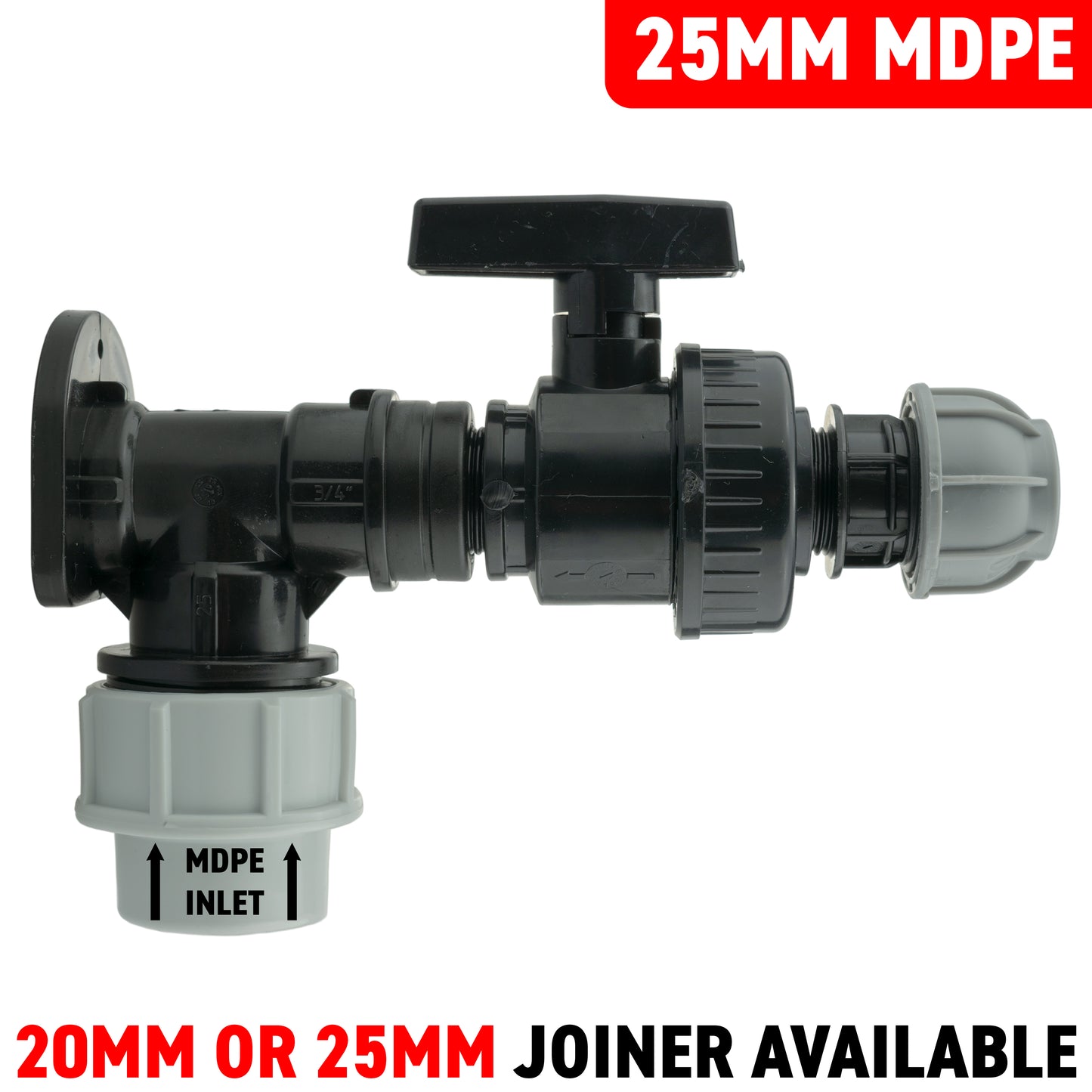

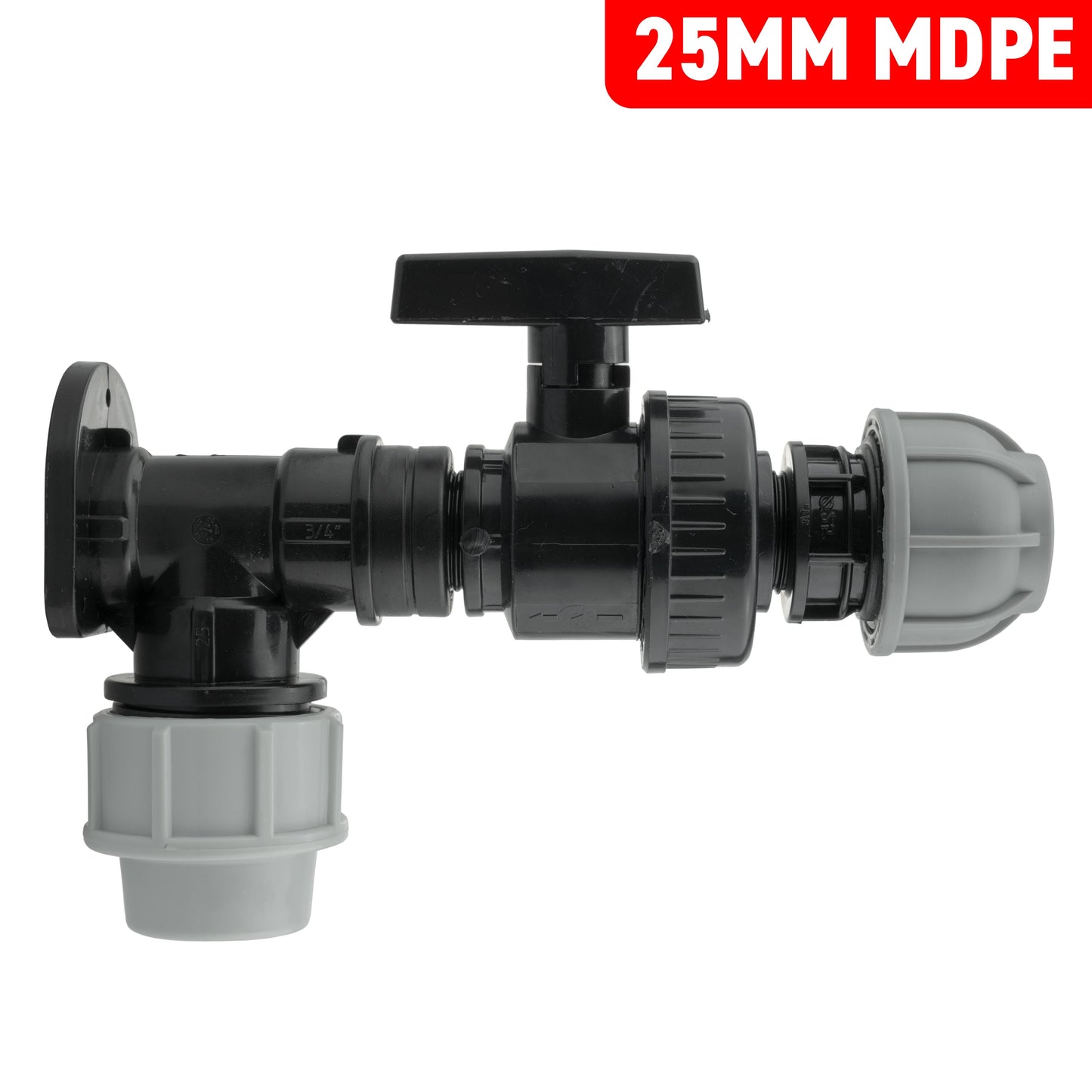

The kit combines a black wall flange, a large plastic valve with a broad lever handle and a straight compression joiner. Choose a 20mm or 25mm outlet while keeping the same 25mm supply connection.
Same inlet. Two outlet sizes.
Choose by the outside diameter of the pipe leaving the valve.
You receive one selected arrangement. The ¾-inch BSP size refers to the threaded joints between the supplied fittings, not the MDPE pipe’s outside diameter.
Mount securely and support both pipes
Leave room to operate the handle and reach the connections.
Fix the flange to a sound wall or panel with suitable fixings. Support the incoming and outgoing MDPE pipes independently so the valve assembly is not carrying their movement or weight.
Follow the compression-fitting instructions, using compatible pipe liners where required. Seal the BSP joints appropriately without overtightening plastic threads. Check the assembly before use. Isolate the upstream supply and release trapped pressure before loosening any joint or the valve’s union collar; drain exposed fittings when protecting the system from frost.
Understand the connections
Does the 20mm option have a 20mm supply inlet?
No. Both options have a 25mm OD MDPE inlet at the wall backplate. Selecting 20mm gives you a 20mm OD compression outlet after the valve; selecting 25mm gives you a 25mm OD outlet.
Is the large ribbed valve collar where the pipe fits?
No. That collar is part of the valve’s union connection. The MDPE pipes enter the separate compression nuts on the lower wall-flange inlet and the straight outlet joiner. Do not loosen the union while the system is pressurised.
Product information & technical details
| SKU | WF25KIT001[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Kit parts | 1 × 25mm MDPE Wall Flange, 1 × ¾-inch BSP Large Plastic Lever Valve, 1 × Selected 20mm or 25mm Straight MDPE Outlet Joiner |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Supply inlet | 25mm OD MDPE compression inlet on both options. |
| Outlet selection | Straight MDPE compression joiner: 20mm or 25mm pipe outside diameter, as selected. |
| Matched BSP joints | ¾-inch BSP female wall-flange outlet, male/female valve and male-threaded straight outlet joiner. |
| Valve | Large plastic ball valve with broad black lever and single-union connection. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
