GEKA Only
Choose this if your hose already has a compatible GEKA-type claw coupling. The supplied valve-side fitting has a rubber sealing face and two claws; there is no hose tail in this option.
Description
Keep the supply fixed. Take the hose with you.

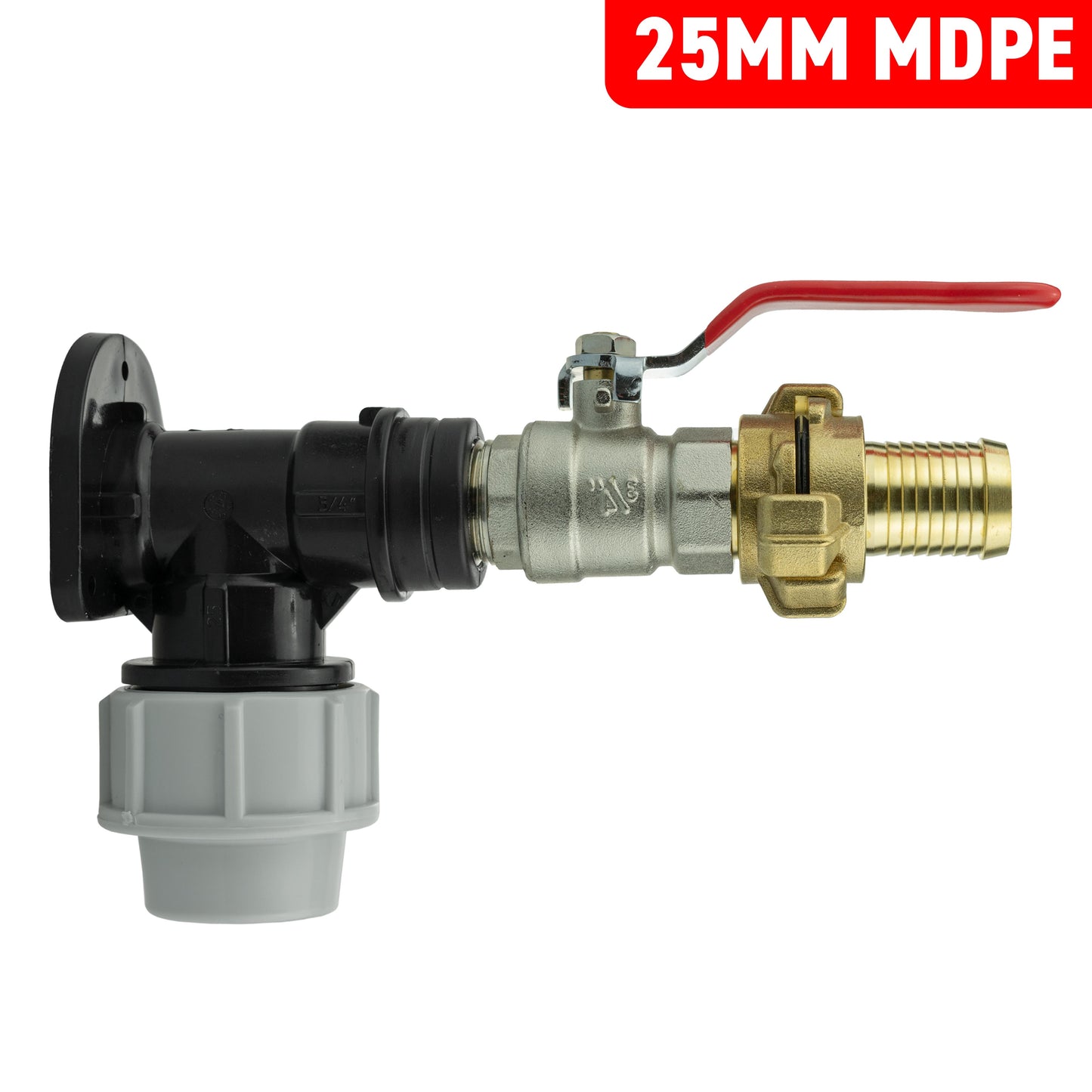

Create a wall-mounted MDPE water outlet with lever control and a GEKA-type claw connection. The backplate stays in place while a compatible hose-side coupling can be removed.
Choose the pipe inlet first, then select GEKA Only or a barbed set to suit your hose.
What changes with the outlet option?
Every kit has the valve-side claw. A barbed set adds the mating hose-side coupling.
Two sizes to check before ordering
The supply pipe and the flexible hose are measured differently.
MDPE inlet: measure the pipe’s outside diameter and select 20mm or 25mm. The 20mm kit uses a ½-inch BSP valve connection; the 25mm kit uses a ¾-inch BSP valve connection. These are matched components within the kit.
Hose tail: choose by the hose’s inside diameter: 13mm (½-inch), 19mm (¾-inch) or 25mm (1-inch). A 25mm MDPE inlet does not require a 25mm hose tail; you can choose any of the listed outlet options for either inlet.
Coupling type: these are GEKA-type claw couplings, joined by bringing the sealing faces together and twisting the claws into engagement. They do not connect directly to ordinary garden-hose click connectors or camlock fittings.
Set up a supported connection
Fix the backplate to a sound wall or panel with suitable fixings and support the incoming pipe separately. Follow the compression-fitting instructions, including a compatible pipe liner where required, and seal BSP joints appropriately. Avoid overtightening metal parts into the plastic backplate.
For a barbed set, seat the hose over the tail and secure it with a suitable clip. Leave room to operate the lever and turn the coupling, without pulling sideways on the wall fitting. Check the seals and completed joints before use. Turn off the supply and release pressure before uncoupling; drain exposed water fittings when protecting the installation from frost.
Before you choose
Does GEKA Only include a hose connector?
It includes the valve-side brass claw fitting, but not the mating hose-tail coupling. Choose a Barbed GEKA Set if you need both halves and a tail for your hose.
Can I use a smaller hose on the 25mm inlet kit?
Yes. The 25mm inlet can be selected with the 13mm, 19mm or 25mm barbed outlet set. Match the inlet to the MDPE pipe’s outside diameter and the tail to the hose bore. A smaller hose or fitting can restrict the flow; this kit does not increase water pressure.
Are pipe, hose and installation accessories supplied?
No. You receive one chosen-size wall flange, matching lever ball valve and valve-side claw fitting. A Barbed GEKA Set also includes one selected-size hose-tail claw coupling. Pipe, hose, clips, wall fixings, supports, any required pipe liner and thread-sealing tape are separate.
Product information & technical details
| SKU | WF20KIT017[#ML] |
|---|---|
| Product type | |
| Barb size | 12.7mm (1/2"), 19mm (3/4"), 25mm (1") |
| MDPE size | 20mm, 25mm |
| Kit parts | 1 × Selected-size MDPE Wall Flange, 1 × Matched BSP Lever Ball Valve, 1 × Valve-side GEKA-type Claw Fitting, Barbed Set only: 1 × Selected-size Hose-tail Claw Coupling |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| 20mm inlet kit | 20mm OD MDPE compression inlet; matched ½-inch BSP male/female lever valve and ½-inch BSP male valve-side claw fitting. |
| 25mm inlet kit | 25mm OD MDPE compression inlet; matched ¾-inch BSP male/female lever valve and ¾-inch BSP male valve-side claw fitting. |
| Outlet selection | GEKA Only: valve-side claw fitting. Barbed GEKA Set: also one mating hose-tail claw coupling in the selected 13mm, 19mm or 25mm hose-bore size. |
| Valve & coupling construction | Plated brass lever ball valve with red handle; brass GEKA-type claw fittings with rubber sealing faces. |
| Installation extras | Pipe, hose, clips, fixings, supports, any required pipe liner and thread-sealing tape are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
