Description
A hose connection with its own water control.

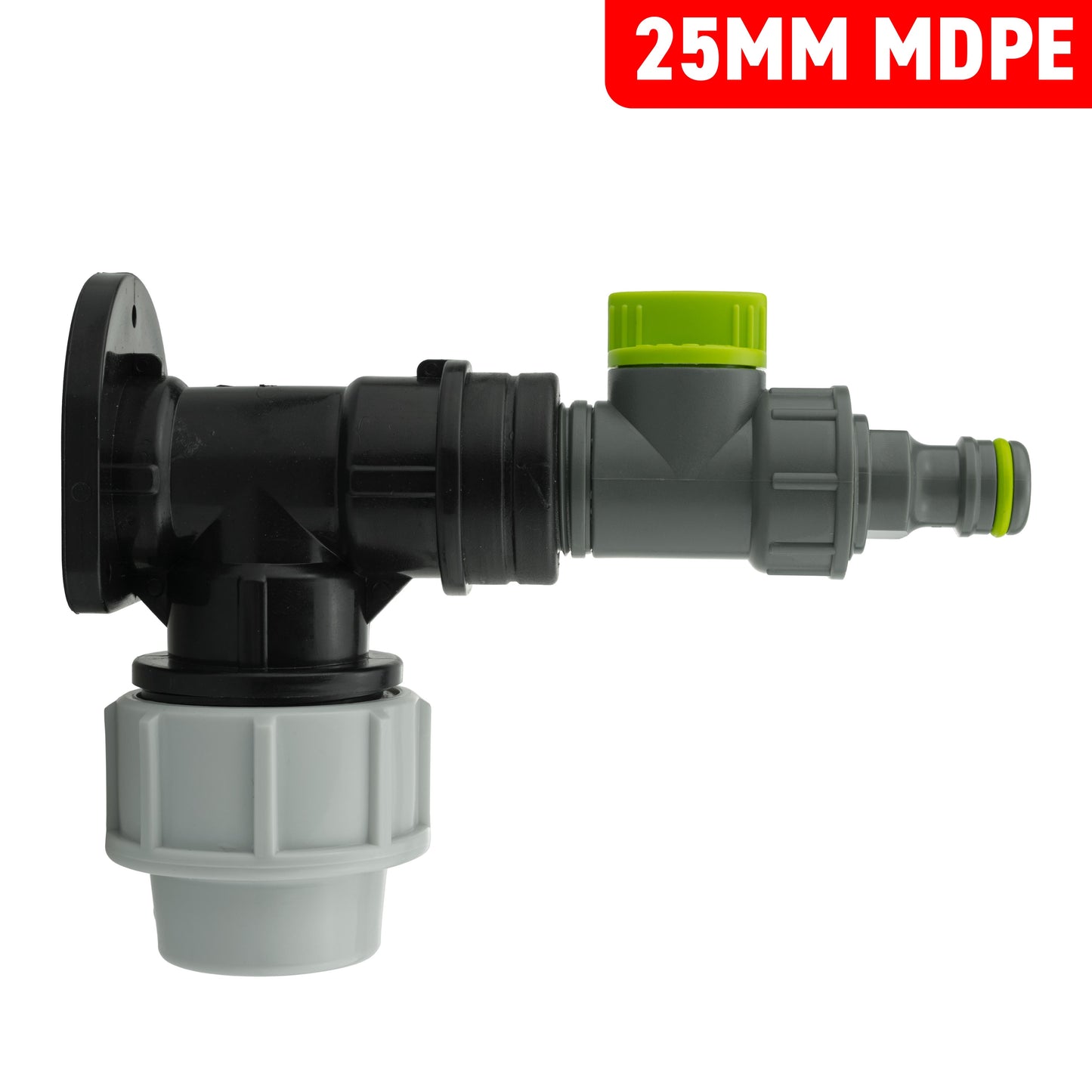

Make your 25mm MDPE supply a useful garden watering point. The wall backplate holds the outlet in place, while the compact grey valve puts manual water control beside the hose connection.
Attach your hose through a compatible female quick connector, water the garden, then close the valve before releasing the hose. The fixed pipework stays in place.
Match the pipe. Complete the hose end.
The supply connection and hose connection use different sizing systems.
At the supply: the lower compression inlet fits 25mm outside-diameter MDPE pipe. Between the flange, valve and adapter, the threaded joints are nominal ¾-inch BSP.
At the hose: click a compatible female hose-end connector onto the male outlet. Select that female connector for the hose’s internal diameter, rather than the MDPE pipe size. The female connector is not part of this kit.
You receive one wall flange, one valve and one male click adapter, as shown.
Give the water point a secure mounting
Keep the control accessible and support the incoming pipe.
Mount the flange on a sound wall or panel using suitable fixings. Support the MDPE pipe independently so the assembly is not carrying pipe movement or hose pulls. Follow the compression-fitting instructions and use a compatible pipe liner where required.
Seal the BSP joints appropriately without overtightening the plastic threads, then check the connections before use. Close the valve and release hose pressure before disconnecting. Isolate the upstream supply before dismantling fixed parts, and drain exposed fittings when protecting the system from frost.
Check before you connect
Is this for ¾-inch MDPE pipe?
No. The MDPE inlet is for pipe with a 25mm outside diameter. The ¾-inch BSP specification describes the threaded joints between the flange, valve and click adapter; it is not the pipe’s measured diameter.
Can I attach bare hose to the outlet?
No. The outlet is a male garden click spigot. Fit a compatible female quick connector to your hose, then seat it fully onto that spigot. Hose and female connector are sold separately.
Product information & technical details
| SKU | WF25KIT021[#ML] |
|---|---|
| Product type | |
| MDPE size | 25mm |
| Kit parts | 1 × 25mm MDPE Wall Flange, 1 × ¾-inch BSP Male/Female Plastic Valve, 1 × ¾-inch BSP Male Garden Click Adapter |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Supply connection | 25mm outside-diameter MDPE pipe; compression inlet. |
| Threaded joints | ¾-inch BSP female wall-flange outlet; matching male/female valve and male click adapter. |
| Water control | Grey plastic valve with lime rotary control for manual on/off operation. |
| Hose connection | Male garden click spigot. Compatible female hose-end connector and hose sold separately. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
