Description
Water control at the hose connection.

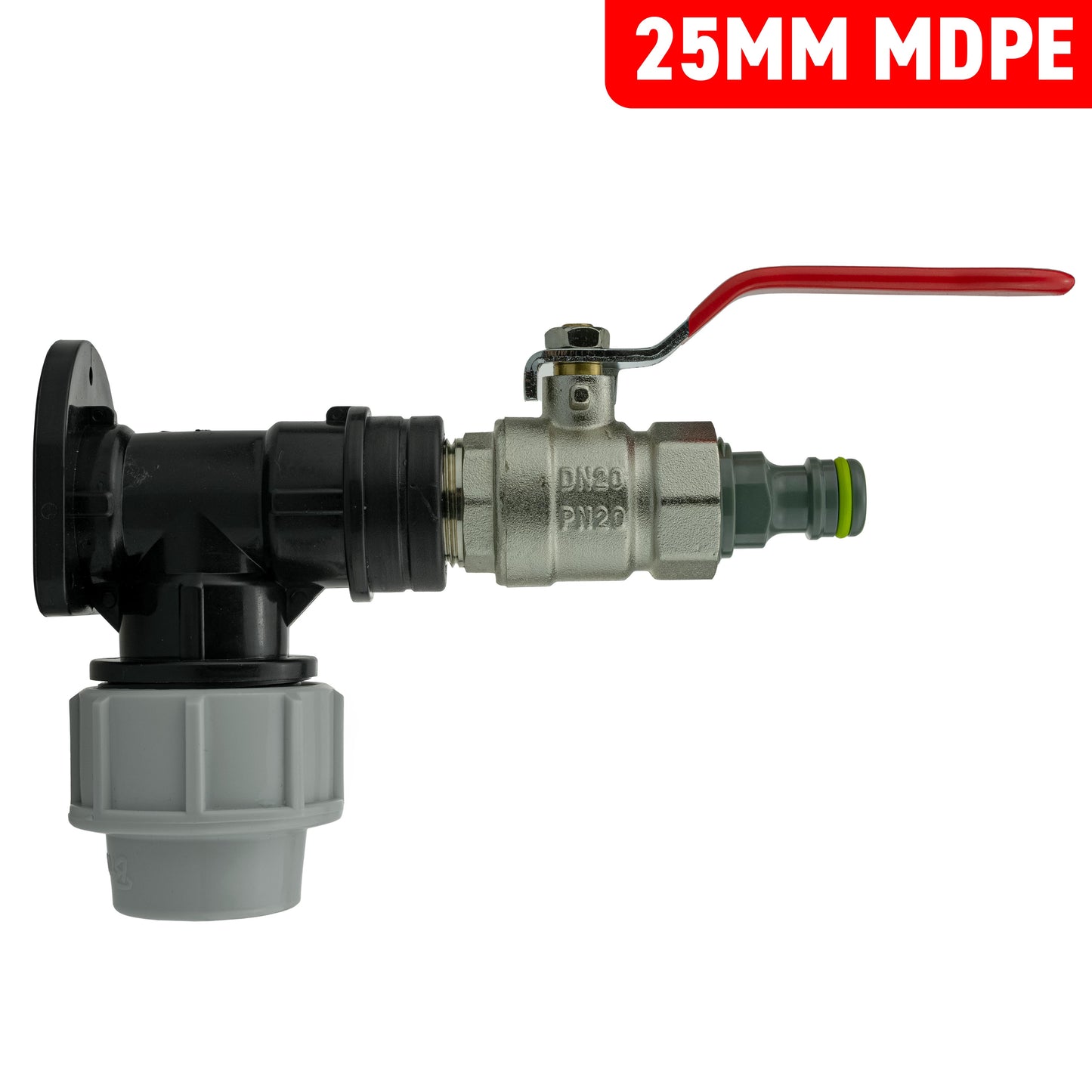

Give your MDPE supply a fixed garden water point with a plated-brass lever valve and a detachable click-connected hose.
The backplate supports the outlet at the wall. The red lever controls the water, so you can close the valve before releasing the hose connector.
Match the kit to your MDPE pipe
Measure the pipe’s outside diameter before choosing.
| Option | Pipe OD | BSP joints |
|---|---|---|
| 20mm | 20mm | ½-inch |
| 25mm | 25mm | ¾-inch |
Each kit has a compression inlet for its stated pipe size, a female BSP backplate outlet, a matched male/female lever valve and a male-threaded click adapter. BSP is a nominal thread size, not the measured pipe diameter.
Both options end in a garden click spigot. Choose your separate female hose-end connector to suit the hose bore, independently of the MDPE inlet size.
Connect the hose. Keep control at the wall.
Leave room for the lever and the quick connector.
To connect: fit a compatible female quick connector to your hose, click it fully onto the supplied male spigot and then open the lever valve. A handle parallel to the valve’s flow path indicates open; across the flow path indicates closed.
To disconnect: close the lever valve and release trapped hose pressure before operating the quick connector. The fixed MDPE connection can stay in place. Isolate the upstream supply before dismantling the valve or backplate.
Mount it securely
Fix the flange to a sound wall or panel with suitable fixings, support the incoming pipe separately and follow the compression-fitting instructions. Use a compatible pipe liner where required, seal the BSP joints appropriately and avoid overtightening the plastic backplate threads.
Allow clearance for the lever’s full movement and keep hose weight or sideways pulls off the assembly. Check the completed joints before use and drain exposed water fittings when protecting the installation from frost. You receive one backplate, one matched lever valve and one male click adapter in the selected size.
Before you order
Is a hose-end quick connector included?
No. The kit includes the male click adapter on the valve. Add a compatible female hose-end connector sized for your hose bore; the hose is also separate.
Is the 20mm option for ½-inch pipe?
No. It takes MDPE pipe measuring 20mm across the outside. The ½-inch BSP specification describes the threaded backplate, valve and adapter joints. The 25mm option takes 25mm OD pipe and uses ¾-inch BSP joints.
Product information & technical details
| SKU | WF20KIT042[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Kit parts | 1 × Selected-size MDPE Wall Flange, 1 × Matched Plated-brass Lever Valve, 1 × Matched Male Garden Click Adapter |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| Supply connection | 20mm option: 20mm OD MDPE compression inlet. 25mm option: 25mm OD MDPE compression inlet. |
| Threaded components | 20mm: ½-inch BSP female backplate, male/female valve and male click adapter. 25mm: matching ¾-inch BSP components. |
| Water control | Red-lever plated-brass ball valve. Handle parallel to flow path: open; across flow path: closed. |
| Hose connection | Male garden click-connect outlet. Compatible female hose-end connector and hose sold separately. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
