20mm MDPE inlet
For 20mm outside-diameter pipe. The backplate’s ½-inch BSP female outlet is matched to a ½-inch BSP male click adapter.
Description
A fixed connection for your garden hose.

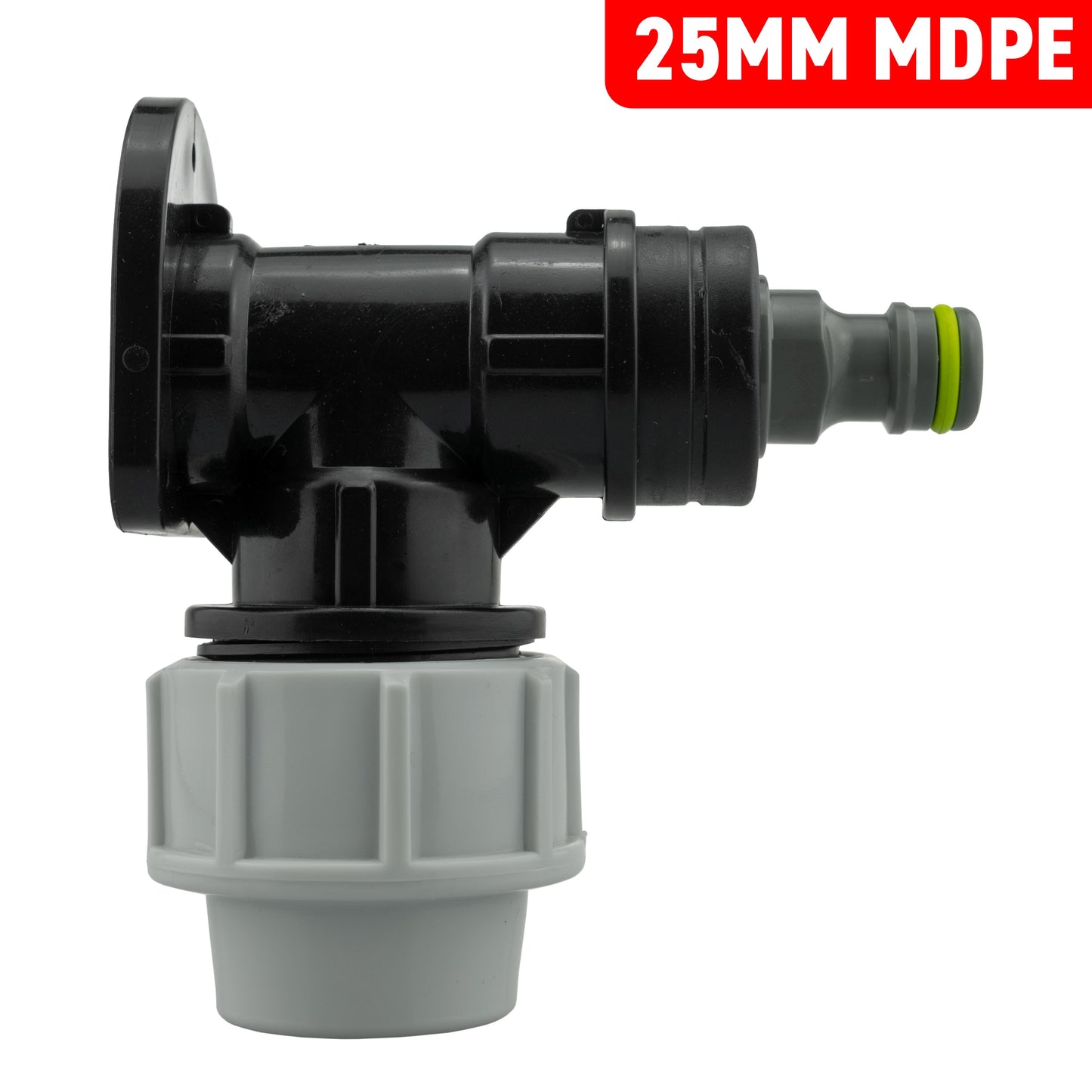

Bring your MDPE supply to a wall-mounted hose connection, with a compression inlet below and a male garden click adapter at the front.
Choose 20mm or 25mm to match the pipe’s outside diameter. Add your own compatible female hose-end connector to attach a hose while leaving the fixed pipework in place.
Two inlet sizes. The same way to connect a hose.
Select the backplate by your MDPE pipe’s outside diameter.
The MDPE measurement describes the supply pipe, while BSP describes the threaded joint between the backplate and adapter. Neither tells you which hose bore to buy: choose a compatible female hose-end connector separately to suit your hose.
Plan where the water will be turned off
This is a fixed connection, with no tap or control valve.
The click adapter lets you attach and remove a suitably fitted hose; it does not shut off the supply when that hose is removed. Provide a separate upstream shut-off in an accessible position. Turn off the supply and release pressure before disconnecting, and isolate it before working on the fixed fittings.
If you need to control the water at the backplate itself, choose a kit with a tap instead.
Keep the fixed pipework supported
Fix the backplate to a sound wall or panel with appropriate fixings, and support the incoming MDPE pipe separately. Follow the compression-fitting instructions, using a compatible pipe liner where required. Seal the BSP joint appropriately without overtightening the plastic threads.
Leave enough room to operate the hose connector and avoid pulling sideways on the assembly. Check the completed joints before use and drain exposed water fittings when protecting the installation from frost. The kit contains one selected-size wall flange and one matched male click adapter; pipe, hose and installation accessories are separate.
Before you order
Does this include a tap?
No. It is a wall backplate with a male click adapter. You need a separate upstream valve to stop or regulate the water; disconnecting the hose does not close this outlet.
Does the hose connect straight to the adapter?
A compatible female quick connector must be fitted to the hose first. It then clicks onto the supplied male adapter. Choose the female connector to suit your hose bore; hose and hose-end connector are sold separately.
Do I receive both inlet sizes?
No. Select 20mm or 25mm for your MDPE pipe’s outside diameter. You receive one wall flange in that size with its matched male click adapter.
Product information & technical details
| SKU | WF20KIT008[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Kit parts | 1 × Selected-size MDPE Wall Flange, 1 × Matched Male Garden Click Adapter |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Supply connection | 20mm option: 20mm OD MDPE compression inlet. 25mm option: 25mm OD MDPE compression inlet. |
| Adapter joint | 20mm option: ½-inch BSP female flange outlet and male adapter. 25mm option: ¾-inch BSP female flange outlet and male adapter. |
| Hose connection | Male garden click-connect spigot. Compatible female hose-end connector sold separately. |
| Water control | No tap or valve supplied. A separate upstream shut-off is required; removing the hose does not stop the water. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
