Description
A fixed supply point. A detachable hose connection.

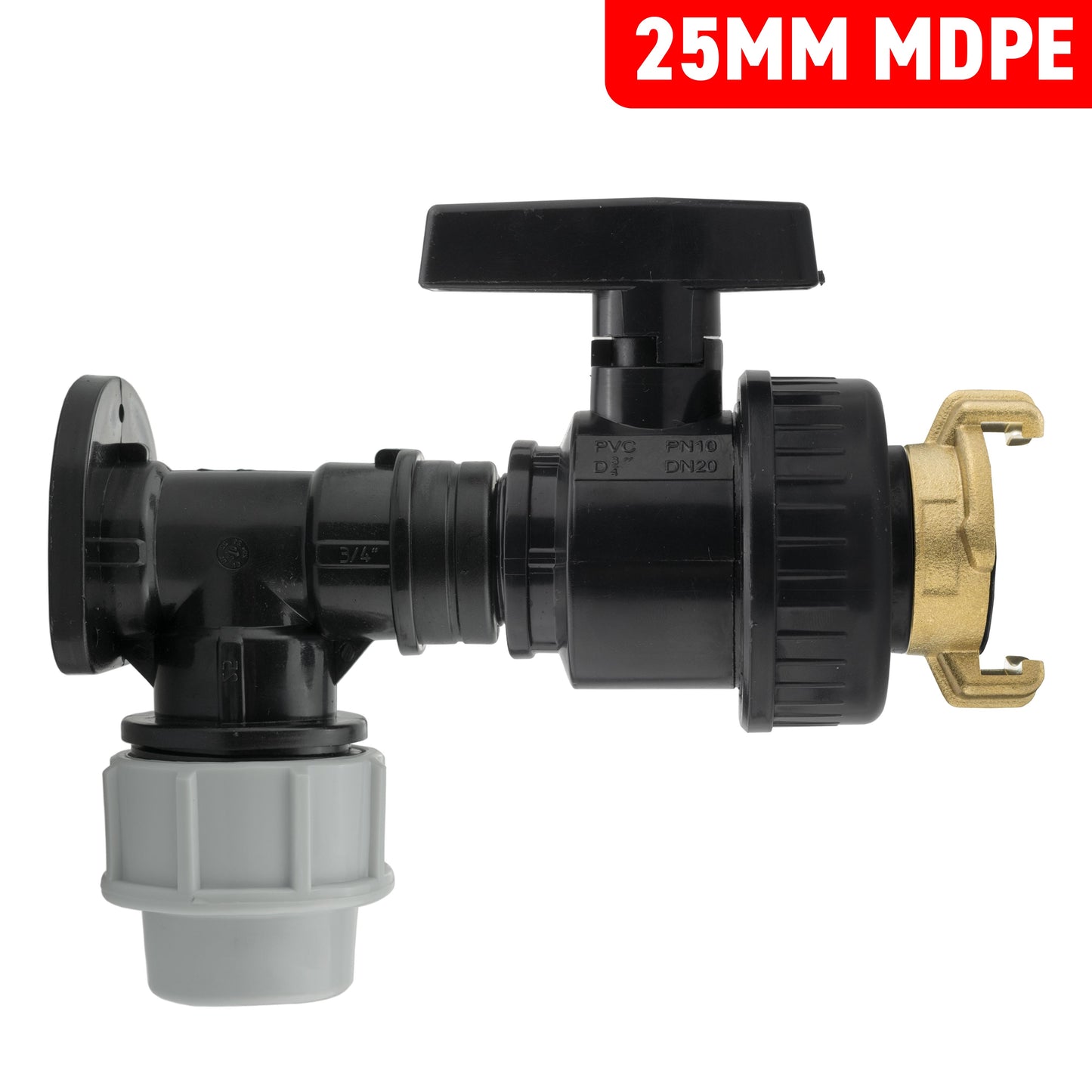

Bring your 25mm MDPE water pipe to a wall-mounted outlet with a large lever valve and a brass GEKA-type claw fitting.
The backplate supports the connection, the valve controls the water, and the claw outlet lets you connect a hose fitted with a compatible mating coupling.
Three matched parts, one useful outlet
The kit supplies the fixed side of your hose connection.
- 25mm MDPE wall flange: grey compression inlet below, mounting plate behind and a ¾-inch BSP female outlet.
- Large lever ball valve: black plastic body with ¾-inch BSP male/female connections and a single-union collar.
- Brass claw fitting: ¾-inch BSP male thread screws into the valve; the exposed GEKA-type face accepts a compatible hose-side coupling.
There is no hose tail in this kit. Choose a separate mating claw coupling with the right tail for your hose’s internal diameter.
Check the pipe. Match the coupling.
Match the inlet to your pipe and the outlet to your hose coupling.
Supply pipe: this kit takes 25mm outside-diameter MDPE pipe. Follow the fitting instructions and use a compatible pipe liner where required.
Hose connection: the outlet is a GEKA-type claw, not a garden-hose click connector or a camlock. If you already have a claw-coupled hose, check that its coupling and seal are compatible. Otherwise, select a mating hose-tail claw coupling by your hose’s bore and secure the hose with a suitable clip.
Mount it securely, leave room to operate it
Fix the backplate to a sound wall or panel with suitable fixings. Support the incoming pipe separately and leave clearance around the lever, union collar and claw outlet. Seal the BSP joints appropriately, avoiding overtightening metal threads into plastic.
Check the completed joints before use. Turn off the supply and release trapped pressure before disconnecting a hose or loosening the union collar; closing this valve alone does not isolate the upstream connection. Drain exposed fittings when protecting the installation from frost.
Before you order
Does this include both halves of the claw coupling?
No. It includes the valve-side brass claw fitting only. A compatible mating coupling for the hose is separate.
Is ¾-inch the size of the MDPE pipe?
No. Choose the supply pipe by its 25mm outside diameter. The ¾-inch BSP size refers to the matched threaded connections between the flange, valve and brass fitting.
What else is needed to install it?
Suitable 25mm MDPE pipe, mounting fixings, pipe supports, any required pipe liner and thread-sealing material. To connect a hose, add a compatible hose-side claw coupling, hose and a suitable clip. These items are not supplied in this three-part kit.
Product information & technical details
| SKU | WF25KIT009[#ML] |
|---|---|
| Product type | |
| MDPE size | 25mm |
| Kit parts | 1 × 25mm MDPE Wall Flange, 1 × ¾-inch BSP Male/Female Single-union Ball Valve, 1 × Valve-side Brass GEKA-type Claw Fitting |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| Supply connection | 25mm outside-diameter MDPE compression inlet. |
| Valve connection | ¾-inch BSP male/female plastic ball valve; large black lever and single-union collar. |
| Hose outlet | Brass GEKA-type claw fitting with ¾-inch BSP male thread. Mating hose-side coupling sold separately. |
| Installation extras | Pipe, hose, mating coupling, clips, fixings, supports, any required pipe liner and thread-sealing tape are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
