No, use your existing hose connectors
The splitter ends in two male click-connect outlets. Use this option if both hoses already carry compatible female hose-end connectors, or if you want to choose your own.
Description
One supply. Two hoses. Separate controls.

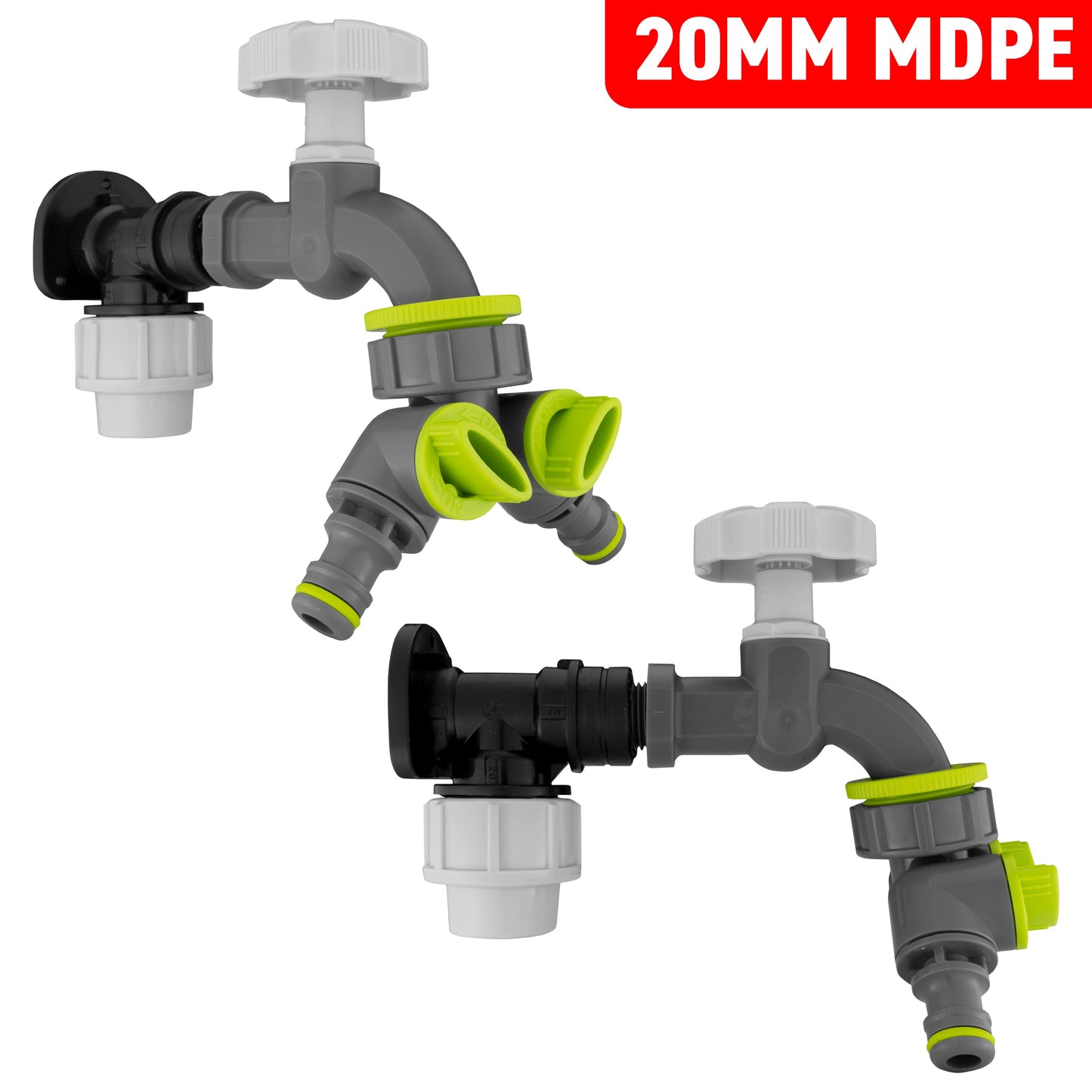

Set up a wall-mounted garden water point from your 20mm MDPE pipe, with a grey dial tap and a lime-accented two-way hose splitter.
Keep two hoses connected and control each branch separately, with the tap’s white dial controlling the supply to both.
Choose the connectors your hoses need
Both options include the tap, backplate and two-way splitter.
Set each branch for the job
Keep one hose available while using the other, or supply both together.
The two lime outlet valves let you shut off either branch independently. The tap’s white dial opens or closes the common supply. Close the appropriate valve and release trapped pressure before disconnecting a hose.
Both outlets share the available water supply. Running two hoses at once can reduce the flow available to each; the splitter does not boost pressure or provide automatic watering.
Make a supported connection
Choose by the MDPE pipe’s 20mm outside diameter. Fix the wall flange to a sound wall or panel with suitable fixings, and support the incoming pipe separately. Follow the compression-fitting instructions, including a compatible pipe liner where required, and seal the threaded tap connection appropriately.
The splitter fits to the tap’s threaded outlet; remove a fitted single click adapter before attaching it. Leave clearance for the white dial, both splitter valves and hose connectors. Keep hose weight and sideways pulls off the plastic assembly, check the joints before use and drain exposed fittings when protecting the installation from frost.
Before you choose
Does No mean there are no hose outlets?

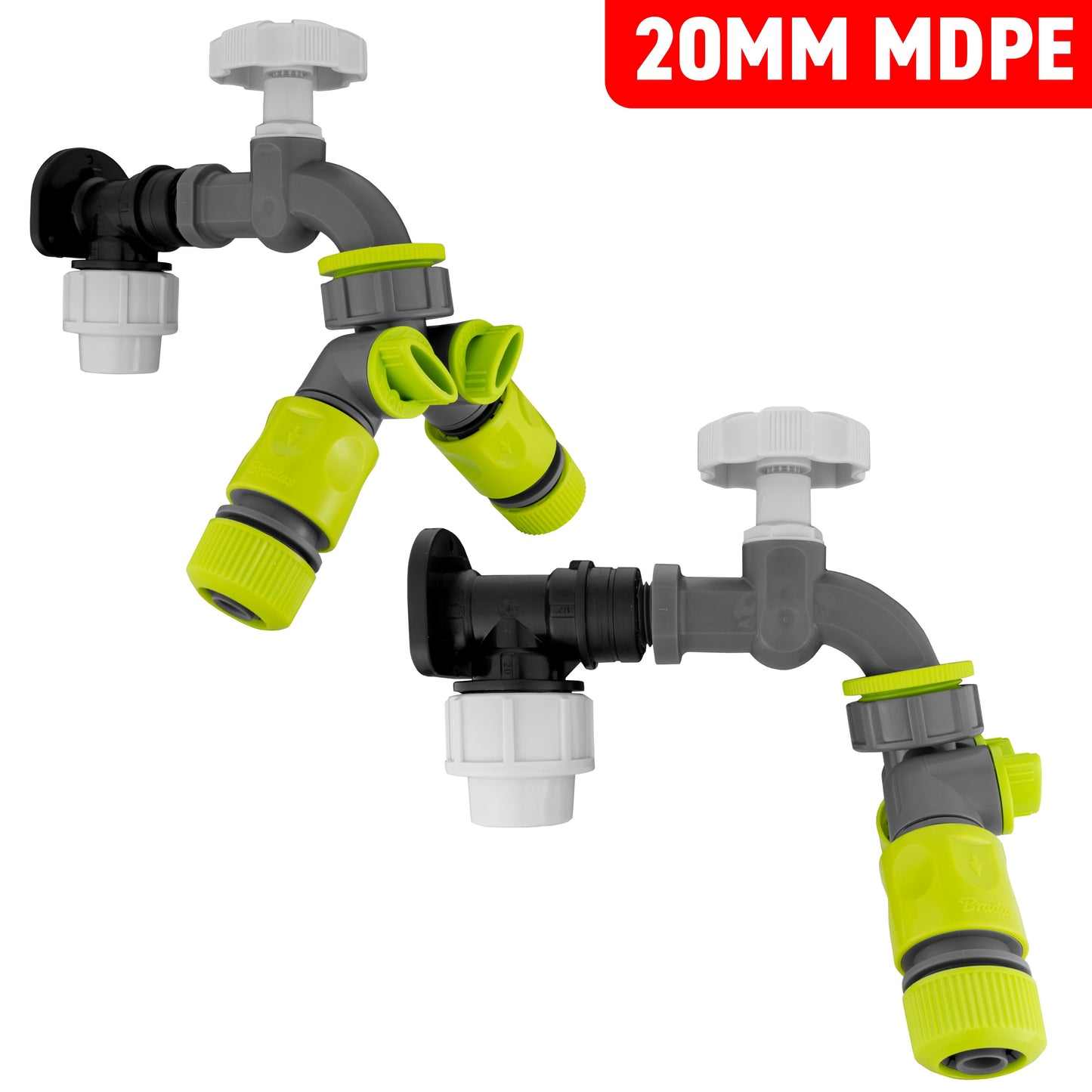

No. Both options have the same two-way splitter with two male click-connect outlets. No omits the two female hose-end connectors; Yes adds them for ½-inch hose.
Can I turn one hose off without stopping the other?
Yes. Each splitter branch has its own valve. The white dial on the tap controls the common supply, so closing that tap stops both branches.
Is pipe or hose included?
No. You receive the wall flange, dial tap and splitter, with two hose-end connectors if you select Yes. MDPE pipe, garden hoses, fixings, supports, any required pipe liner and thread-sealing tape are separate.
Product information & technical details
| SKU | WF20KIT030[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm |
| Kit parts | 1 × 20mm MDPE Wall Flange, 1 × Grey Plastic Dial Tap, 1 × Two-way Hose Splitter, Yes option only: 2 × ½-inch Hose-end Quick Connectors |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Supply connection | 20mm outside-diameter MDPE compression inlet; matched ½-inch BSP female flange connection and male tap inlet. |
| Water control | White dial tap controls the common supply; two splitter valves control the two branches separately. |
| Connector option | No: two male click-connect splitter outlets. Yes: also two lime female hose-end quick connectors for ½-inch garden hose. |
| Installation extras | Pipe, hoses, fixings, supports, any required pipe liner and thread-sealing tape are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
