Straight joiner
Continue into one outgoing MDPE pipe, in line with the valve. Choose the outlet size independently of the backplate inlet.
Description
Control the water. Plan the pipe run.
Build a fixed control point into your MDPE garden or irrigation pipework. The wall backplate supports the connection, the red lever operates the nickel-plated brass valve, and the outlet fitting takes the pipe in the direction you need.

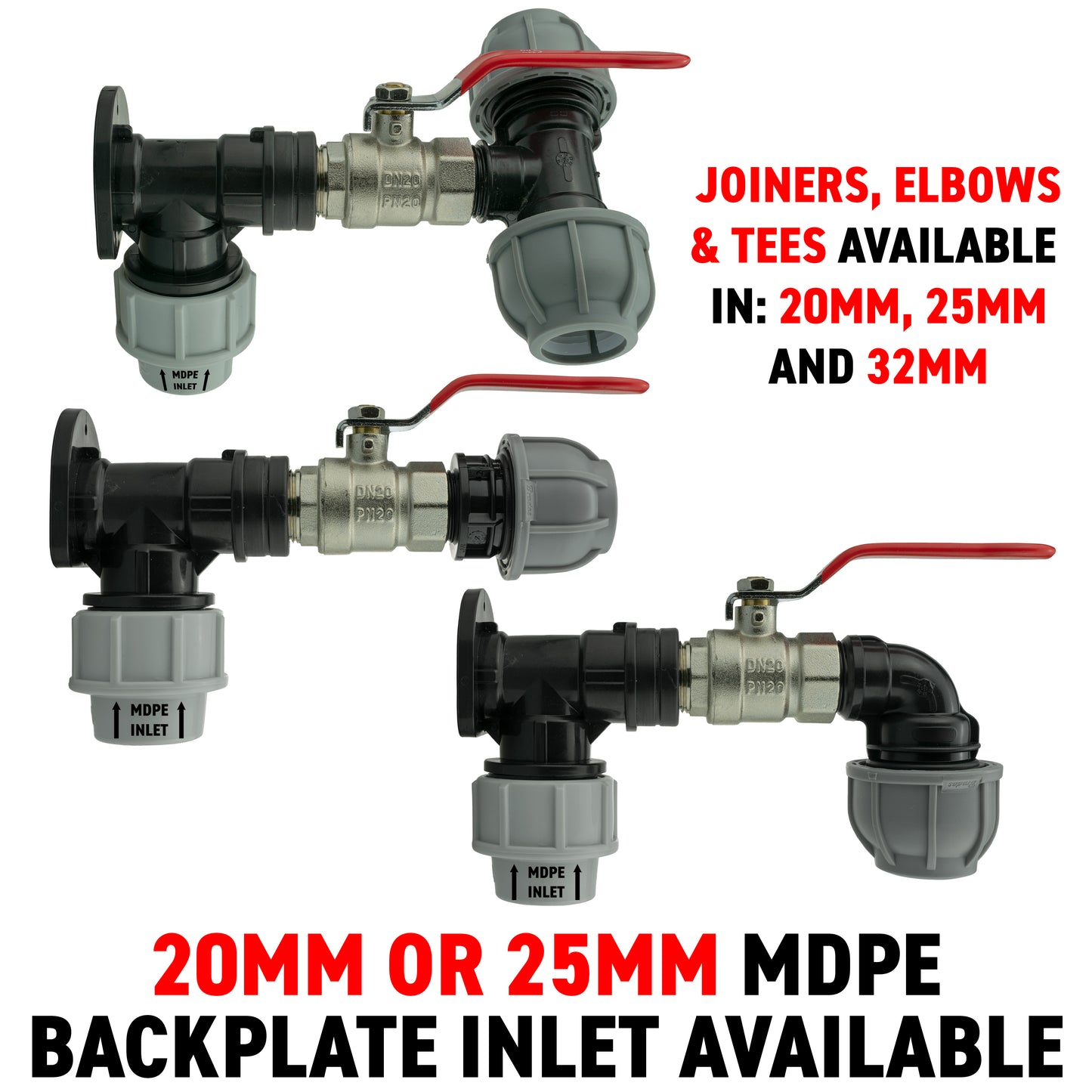

Choose a straight outlet, a 90° elbow or a tee for two branches. Each option combines one backplate, one valve and one selected outlet fitting.
Choose the route after the valve
20mm inlet / 20mm outlet examples shown. You receive one selected arrangement.
Match the inlet and outlet separately
Measure the outside diameter of each MDPE pipe.
The MDPE Backplate Size selection is the incoming pipe size: 20mm or 25mm. The size in Outlet Type is the outgoing pipe size, followed by the fitting shape. For a tee, both outgoing compression sockets take that selected outlet size.
A 20mm backplate uses matched ½-inch BSP threaded components; a 25mm backplate uses matched ¾-inch BSP components. BSP describes the internal joints between the supplied parts, not the measured MDPE pipe diameter. The 32mm outlet options are offered with the 25mm backplate.
Support the pipes and leave room for the lever
Plan the mounting position before making the final connections.
Fix the flange to a sound wall or panel using suitable fixings and support the inlet and outlet pipes independently. Leave clearance for the lever’s full movement and for access to each compression nut, especially around tee and elbow fittings.
Follow the compression-fitting instructions and use compatible pipe liners where required. Seal the BSP joints appropriately without overtightening plastic threads. Check the assembly before use; isolate the upstream supply before dismantling it. Drain exposed fittings when protecting the system from frost.
Before you choose
Can I control each tee outlet separately?
No. The tee sits after one lever valve, so that valve controls the supply to both branches together. Independent branch control needs separate valves that are not included.
Is this a garden hose quick-connect outlet?
No. These options end in MDPE compression sockets for the selected pipe outside diameter. They do not include a male garden click spigot or a hose-end connector.
Product information & technical details
| SKU | WF20KIT033[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm, 32mm |
| Kit parts | 1 × Selected-size MDPE Wall Flange, 1 × Matched Nickel-plated Brass Lever Valve, 1 × Selected Straight, Elbow or Tee MDPE Outlet Fitting |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| Backplate inlet | 20mm or 25mm OD MDPE compression connection, as selected. |
| Outlet arrangement | One straight outlet, one 90° elbow outlet or a tee with two compression outlets. Each outlet takes the pipe OD stated in the selected option. |
| Matched BSP joints | 20mm backplate: ½-inch BSP; 25mm backplate: ¾-inch BSP. Male/female valve between female wall-flange outlet and male-threaded outlet fitting. |
| Valve | Nickel-plated brass lever valve. One valve controls the selected downstream outlet arrangement. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
