20mm MDPE → ½-inch BSP outlet
For 20mm outside-diameter MDPE pipe. The valve’s ½-inch BSP male end joins the backplate; its exposed ½-inch BSP female end accepts your compatible male-threaded outlet fitting.
Description
Keep the control at the wall
Create a fixed, accessible control point for your MDPE water supply. This kit pairs a wall backplate with a red-lever brass ball valve, leaving a female BSP outlet for the fitting you choose.
Match the kit to your pipe size, then add a male-threaded hose tail, quick connector or other compatible outlet fitting.
Match the pipe and the outlet thread
The size selector changes both the compression inlet and the valve’s BSP connections.
Plan the complete connection
Start with the pipe: check its outside diameter before choosing 20mm or 25mm. BSP sizes are nominal thread sizes, not measurements of the MDPE pipe or hose bore.
Choose the onward fitting: match its male BSP thread to the valve’s female outlet, then match its other end to your hose or equipment. Bare hose cannot connect straight into the threaded socket.
Mount and support: fix the three-hole plate to a sound wall or panel and support the pipe separately. Follow the compression-fitting instructions, including a compatible pipe liner where required, and use suitable sealing at the BSP joints. Avoid overtightening metal fittings into the plastic backplate.
Check before use: test the finished connections for leaks. Isolate the upstream supply and release pressure before removing fittings, and drain exposed water fittings when protecting the installation from frost.
Before you order
Are both backplate sizes included?
No. You receive one kit in the selected size: one wall flange and one matching lever ball valve. The 20mm and 25mm versions are alternatives.
Is this supplied ready to click a hose onto?
No. The exposed outlet is a female BSP thread. Add the appropriate male-threaded quick-connect adapter or hose tail for your hose, matching the ½-inch outlet on the 20mm kit or the ¾-inch outlet on the 25mm kit.
Product information & technical details
| SKU | WF20KIT039[#ML] |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4" |
| Thread gender | Female |
| MDPE size | 20mm, 25mm |
| Kit parts | 1 × Selected-size MDPE Wall Flange, 1 × Matched BSP Male/Female Lever Ball Valve |
| Colour | Black, Grey |
|---|---|
| Material | Plastic, Brass |
| 20mm kit connections | 20mm OD MDPE compression inlet; ½-inch BSP male valve inlet into the flange and exposed ½-inch BSP female outlet. |

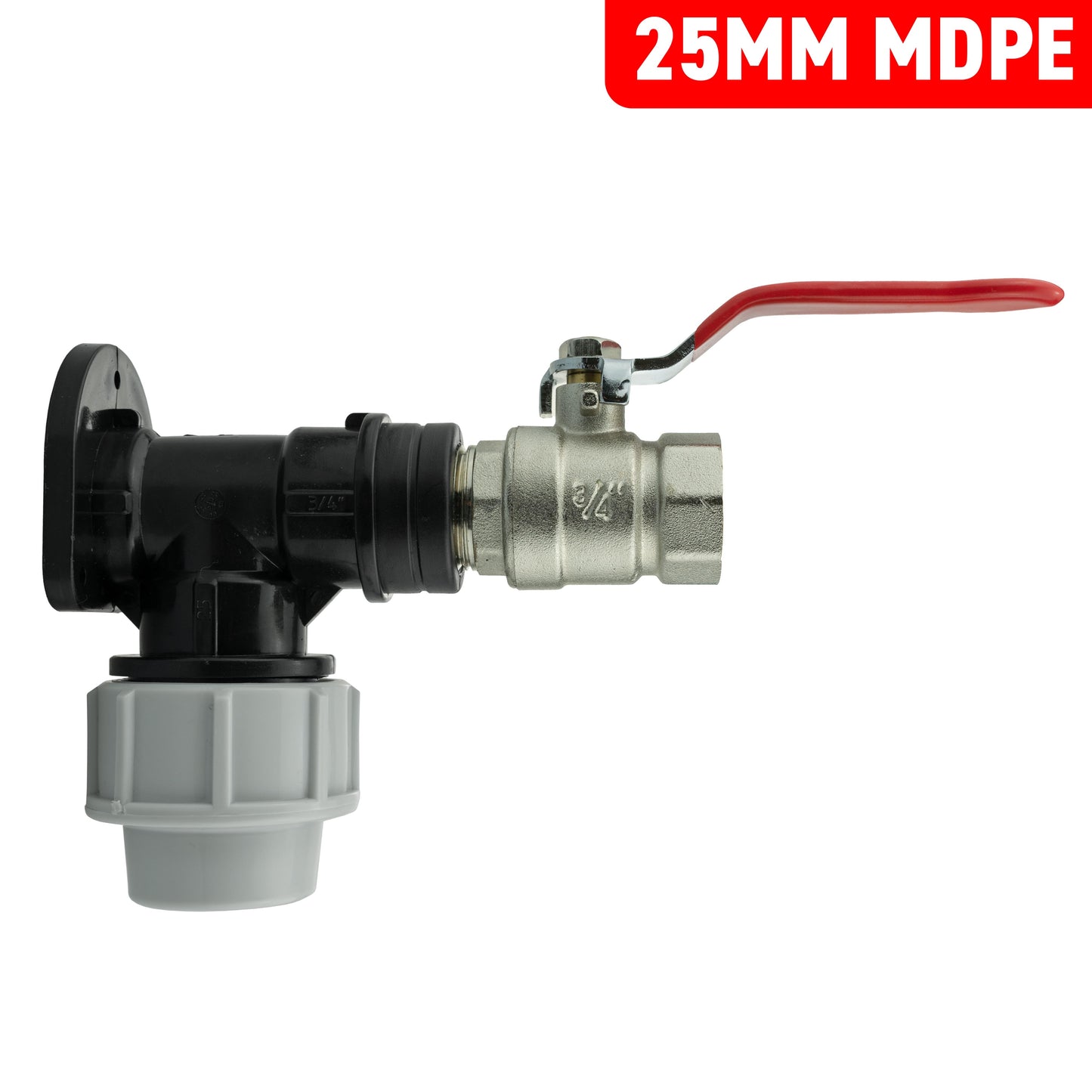

| 25mm kit connections | 25mm OD MDPE compression inlet; ¾-inch BSP male valve inlet into the flange and exposed ¾-inch BSP female outlet. |
| Valve construction | Plated brass ball valve with red lever handle; one valve matched to the selected backplate size. |
| Installation extras | Pipe, outlet fitting, hose, wall fixings, supports, any required pipe liner and thread-sealing tape are separate. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
