No, use your own connectors
The splitter ends in two male quick-connect plugs. Add your own compatible female hose-end connectors; bare hose does not attach directly to these plugs.
Description
Two hose connections. One fixed watering point.

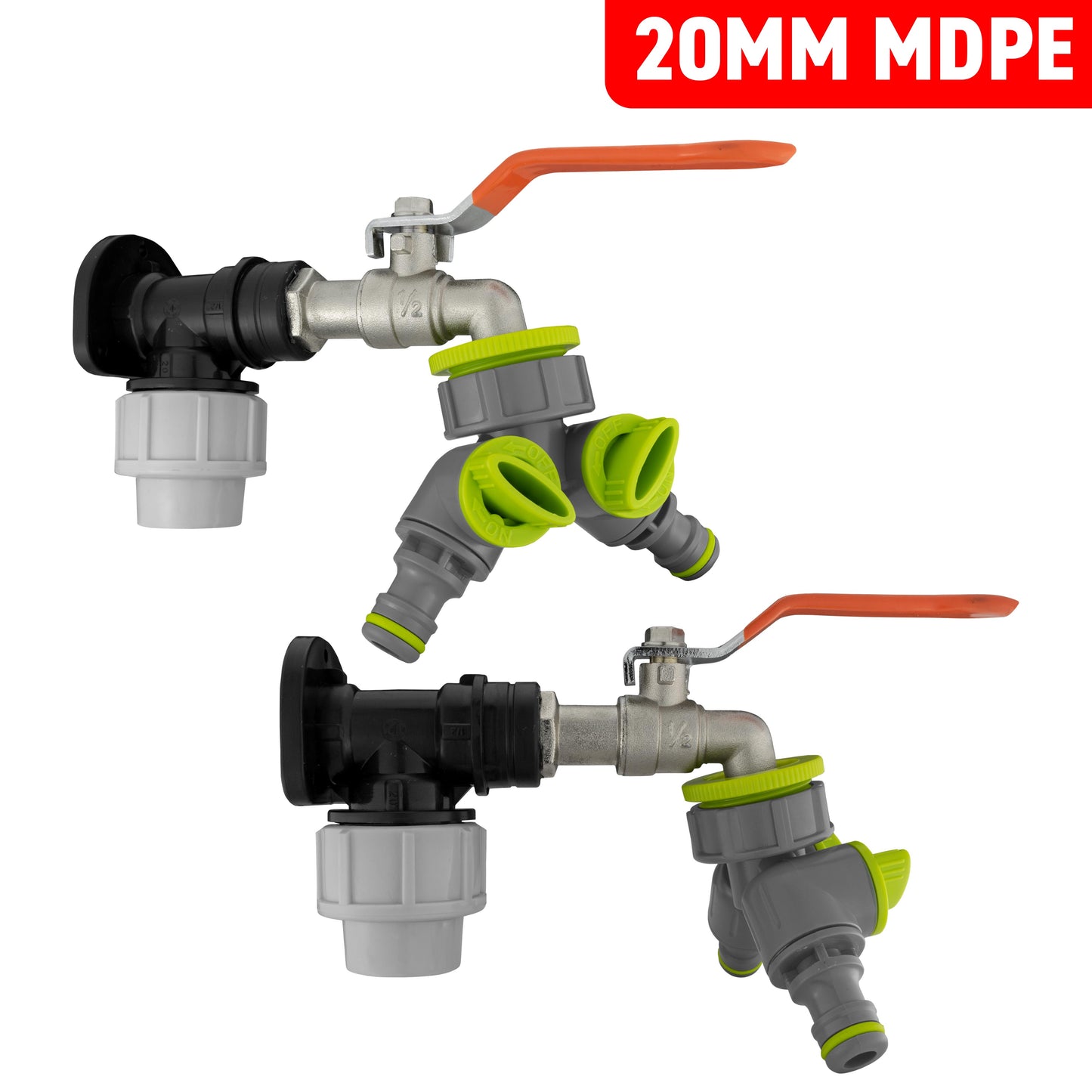

Keep a hand-watering hose connected alongside a sprinkler line, or feed two parts of the garden from the same 20mm MDPE supply. This wall backplate kit combines an orange-lever tap with a two-way splitter, giving each outlet its own control.
Open the lever tap to supply the splitter, then use the lime branch valves to choose either outlet or both. You can change which hose is running without swapping the connections at the tap.
Choose what you need at the hose ends
Both options include the same 20mm backplate, nickel-plated zinc tap and two-way splitter.
Set it up for everyday watering
A supported supply pipe and room around the controls make the connection easier to use.
Fix the supply point
Mount the three-hole backplate to a sound wall or panel with suitable fixings. Support the MDPE pipe separately and keep the lever and both splitter controls accessible. Avoid pulling on the assembly with the hoses.
Connect the pipe and hoses
Use 20mm OD MDPE at the compression inlet and follow the fitting instructions, including a compatible liner where required. Use suitable sealing at the threaded joints. Fit each hose-end connector to its hose before clicking it onto the splitter.
Control and check
Check the completed joints for leaks. Close the supply and release pressure before disconnecting hoses or dismantling fittings. Drain exposed fittings when protecting the watering point from frost.
Choosing and using your kit
Does “No” mean the kit has no hose outlets?
No. Both kits have the splitter’s two quick-connect plugs. The choice is whether you also receive the two female connectors that fit onto the hose ends. Choose “No” if you already have compatible connectors.
Will running both hoses increase the water pressure?
No. Both branches share the same incoming supply. Flow available to each hose depends on your supply and the connected equipment, so check that it can support both tasks together. Each branch can also be used on its own.
Product information & technical details
| SKU | WF20KIT026[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm |
| Kit parts | 20mm MDPE Wall Flange, Nickel-plated Zinc Lever Tap, Two-way Splitter, 2 Hose Connectors (Yes option only) |
| Colour | Black, Grey |
| Material | Plastic, Metal |
| Tap construction | Nickel-plated zinc tap with orange lever; ½-inch BSP male inlet into the wall backplate. |
|---|---|
| Outlet controls | Two quick-connect outlets, each with its own valve. Lever tap controls the supply to the splitter. |
| Hose connector option | Yes: adds 2 × HOCON12F001LIME female hose-end connectors for ½-inch hose. No: use your own compatible hose-end connectors. |
| Installation extras | Pipe, hoses, wall fixings, supports, any required pipe liner and thread-sealing tape are not included. |
| Component colours | Black/grey backplate; silver-coloured tap with orange lever; grey/lime-green splitter. Yes option adds two lime-green hose connectors. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
