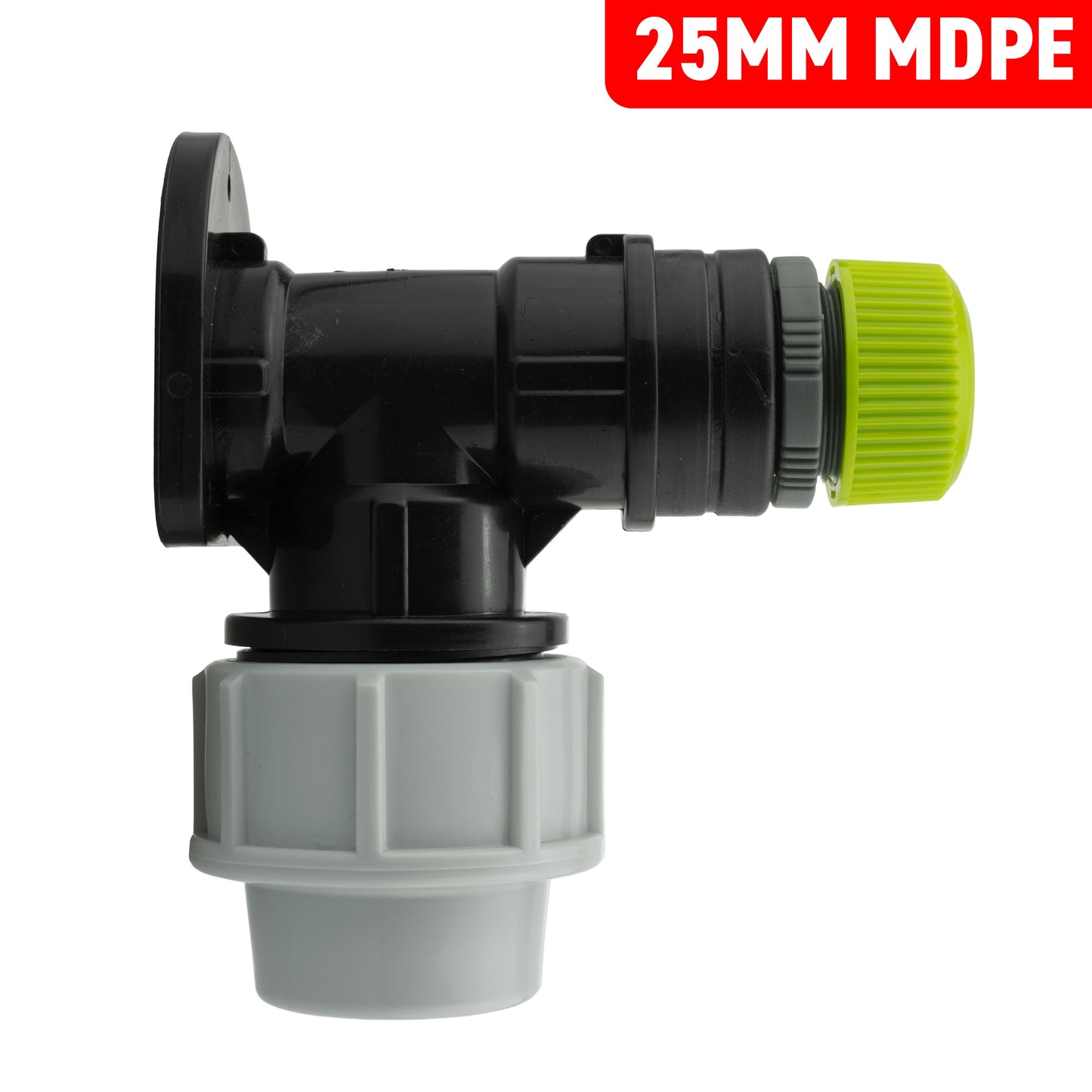

Direct Hose Connector
For a direct connection to ½-inch hose. The grey threaded fitting screws into the backplate; its lime grip nut holds the hose. This is not a click-release socket.
Description
From MDPE pipe to garden hose.
Give your hose a fixed connection point with a 25mm MDPE wall backplate and your choice of hose fitting.
Keep a hose held directly in a screw-down grip connector, or choose the quick-connect arrangement that matches your existing hose end. Each option supplies one backplate and its selected fittings. There is no tap in these kits; control the water elsewhere in the supply.

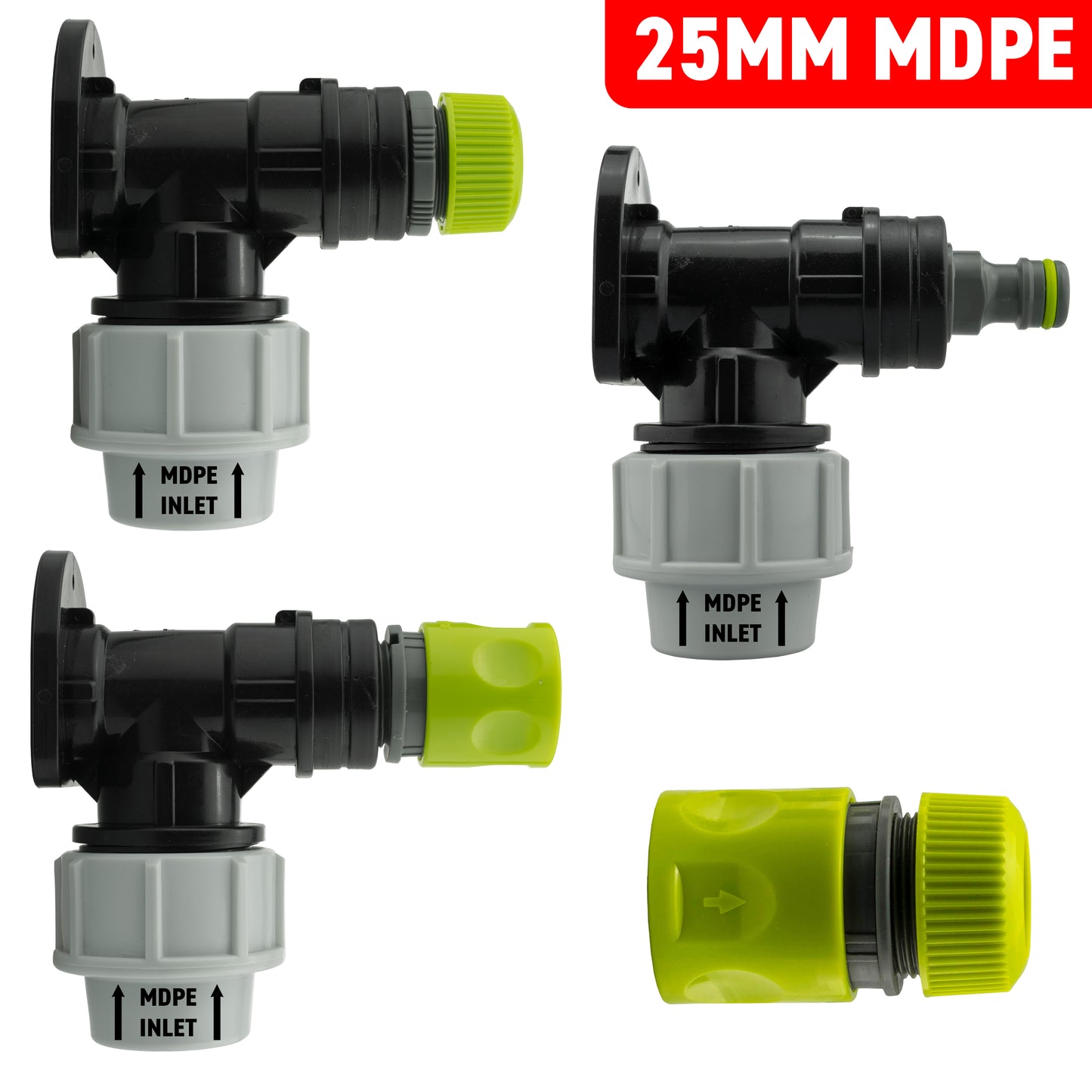

Which connection matches your hose?
Select one kit. These are alternative outlets, not four connectors supplied together.

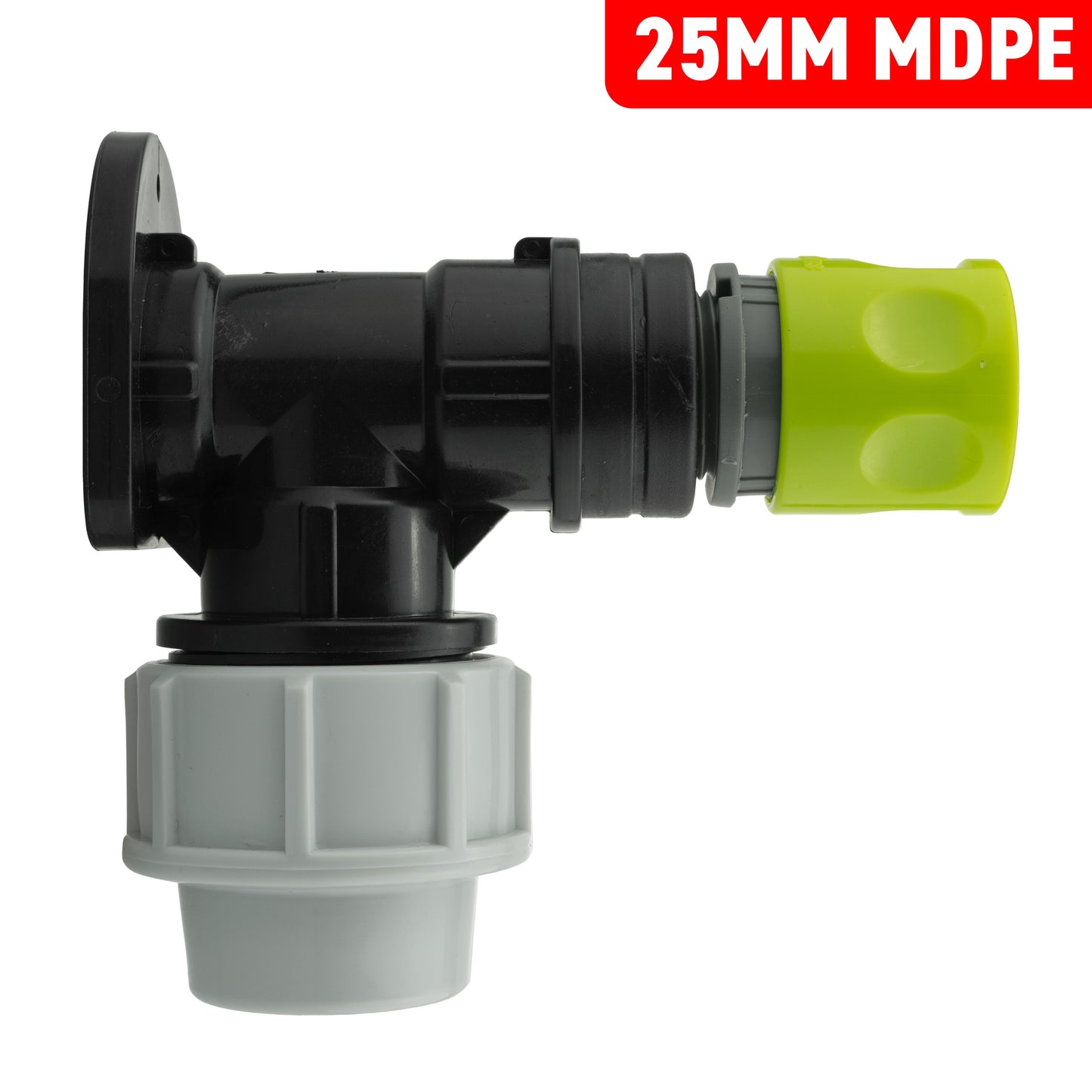

Female Quick Connector
A female quick-connect socket fixed to the backplate. It accepts a compatible male quick plug already on your hose or accessory; it does not grip a bare hose end.

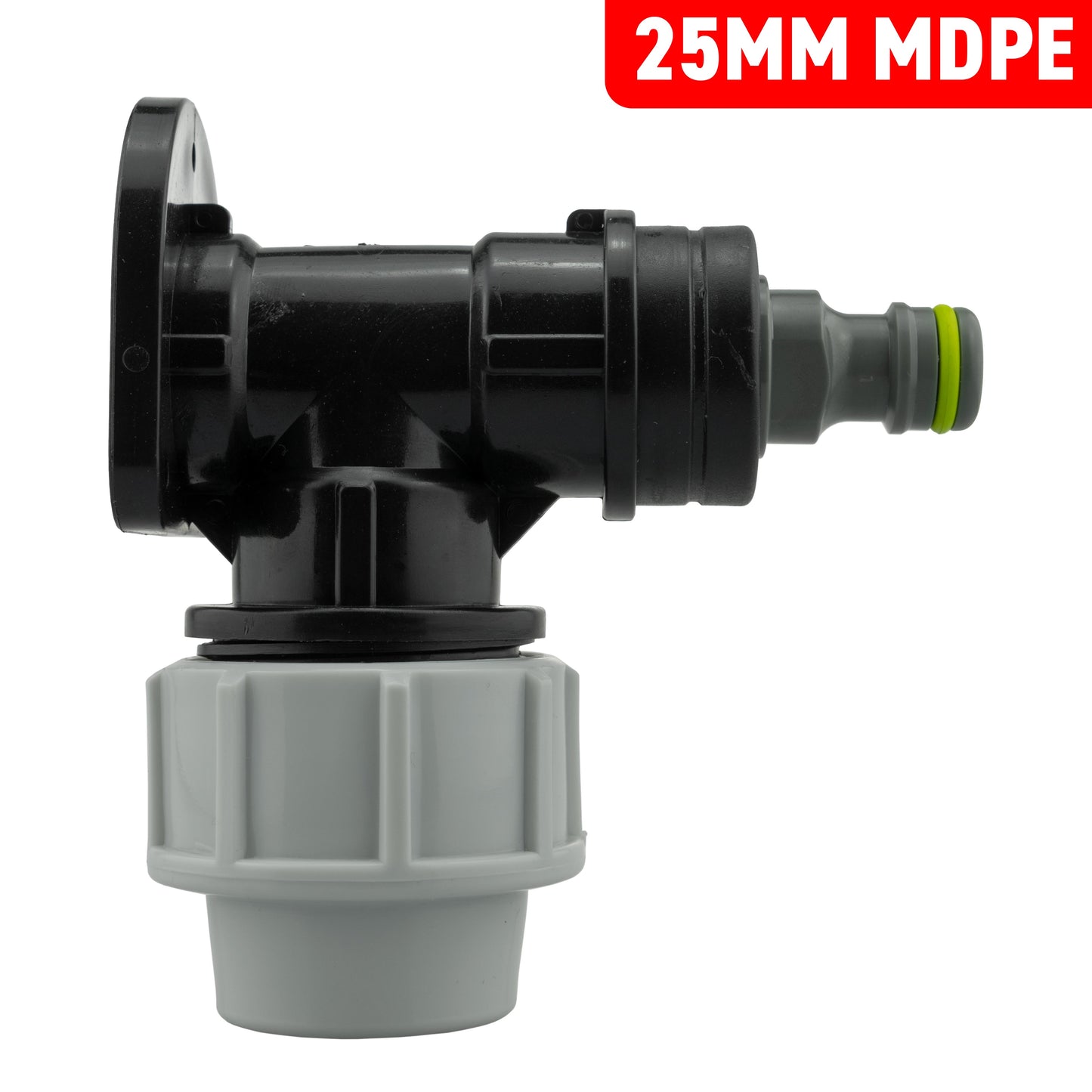

Male Quick Connector
A male quick-connect plug fixed to the backplate. Choose this if your hose already has a compatible female click-lock connector. The hose-end connector is not included.

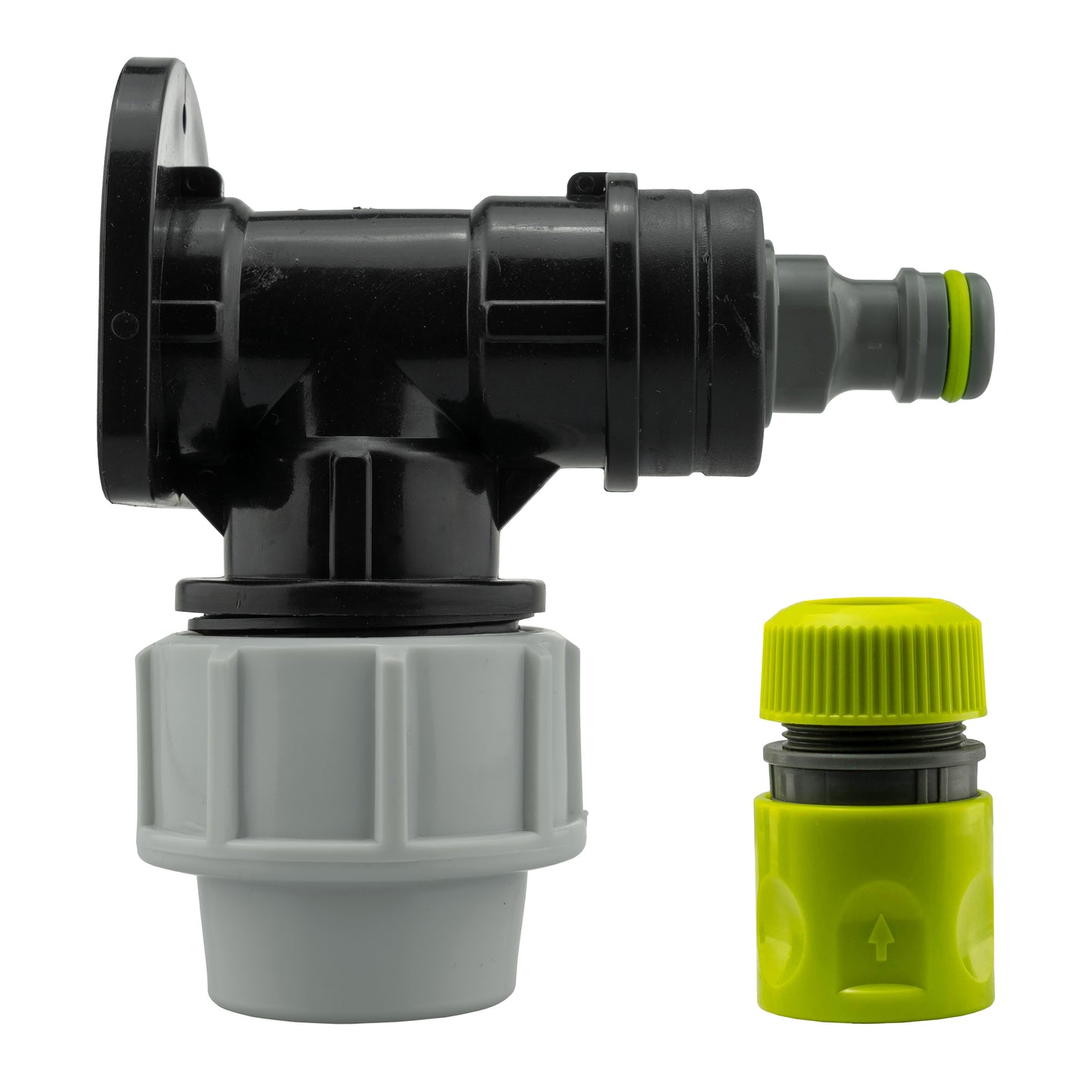

Male + Hose Connector
The wall-side male quick plug plus a separate female hose-end connector for ½-inch or ⅝-inch hose. Fit the hose-end connector to your hose, then click it onto the wall-side plug.
Mount the supply. Support the hose.
The backplate anchors the connection; separate supports keep pipe and hose strain away from the joints.
Prepare the MDPE pipe
Use 25mm outside-diameter MDPE pipe. Fix the three-hole plate to a sound wall or panel, then follow the fitting instructions for pipe preparation, any required liner, insertion depth and tightening.
Fit the chosen outlet
The adapter uses the backplate’s ¾-inch BSP female socket. Use suitable thread-sealing material where required. Fit the direct-grip or hose-end connector to the correct hose size; do not push bare hose over a male quick plug.
Isolate before removal
There is no on/off handle on these kits. Shut off the supply upstream and release pressure before separating a quick connector or loosening the direct hose grip. Check connections before turning the water back on.
Choosing the right end
Does 25mm mean I need a 25mm garden hose?
No. It is the outside diameter of the MDPE supply pipe. The Direct Hose Connector takes ½-inch hose, while the combined Male + Hose Connector includes a hose-end fitting for ½-inch or ⅝-inch hose. With the male-only or female-only quick options, match the mating connector separately.
Will unplugging the hose shut off the water?
Do not rely on it to do so. These kits do not include a tap or shut-off valve. Isolate the supply upstream and release pressure before disconnecting.
Product information & technical details
| SKU | WF25KIT050[#ML] |
|---|---|
| Product type | |
| MDPE size | 25mm |
| Kit parts | 25mm MDPE Wall Flange, Selected Outlet Adapter, Female Hose-end Connector (Male + Hose Connector Option Only) |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Pipe and adapter joint | 25mm outside-diameter MDPE compression inlet. Backplate has a ¾-inch BSP female socket for the selected male-threaded outlet adapter. |
| Outlet options | Direct: screw-grip fitting for ½-inch hose. Female quick: socket accepting a compatible male plug. Male quick: plug accepting a compatible female hose connector. Male + Hose: plug plus hose-end connector for ½-inch or ⅝-inch hose. |
| Water control | No tap or shut-off valve supplied. Isolate upstream and release pressure before disconnecting or loosening a hose grip. |
| Installation extras | MDPE pipe, garden hose, wall fixings, pipe/hose supports, any required pipe liner and PTFE tape are not included. Mating quick connector included only where stated for the selected option. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
