20mm MDPE inlet
For 20mm outside-diameter pipe. The flange’s ½-inch BSP female socket accepts the valve’s ½-inch male inlet. The brass claw fitting screws into the valve’s ½-inch female outlet.
Description
Connect the hose. Control the water.
Make a fixed connection point for your garden water supply with an MDPE wall backplate, compact ball valve and brass GEKA-type outlet.
The butterfly handle puts the on/off control at the wall. When the hose is no longer needed, close the valve, release the pressure and twist off the matching hose-side coupling. The valve and backplate stay in place.
Two pipe sizes. The same useful control.
Choose by the outside diameter of the MDPE pipe feeding the backplate.

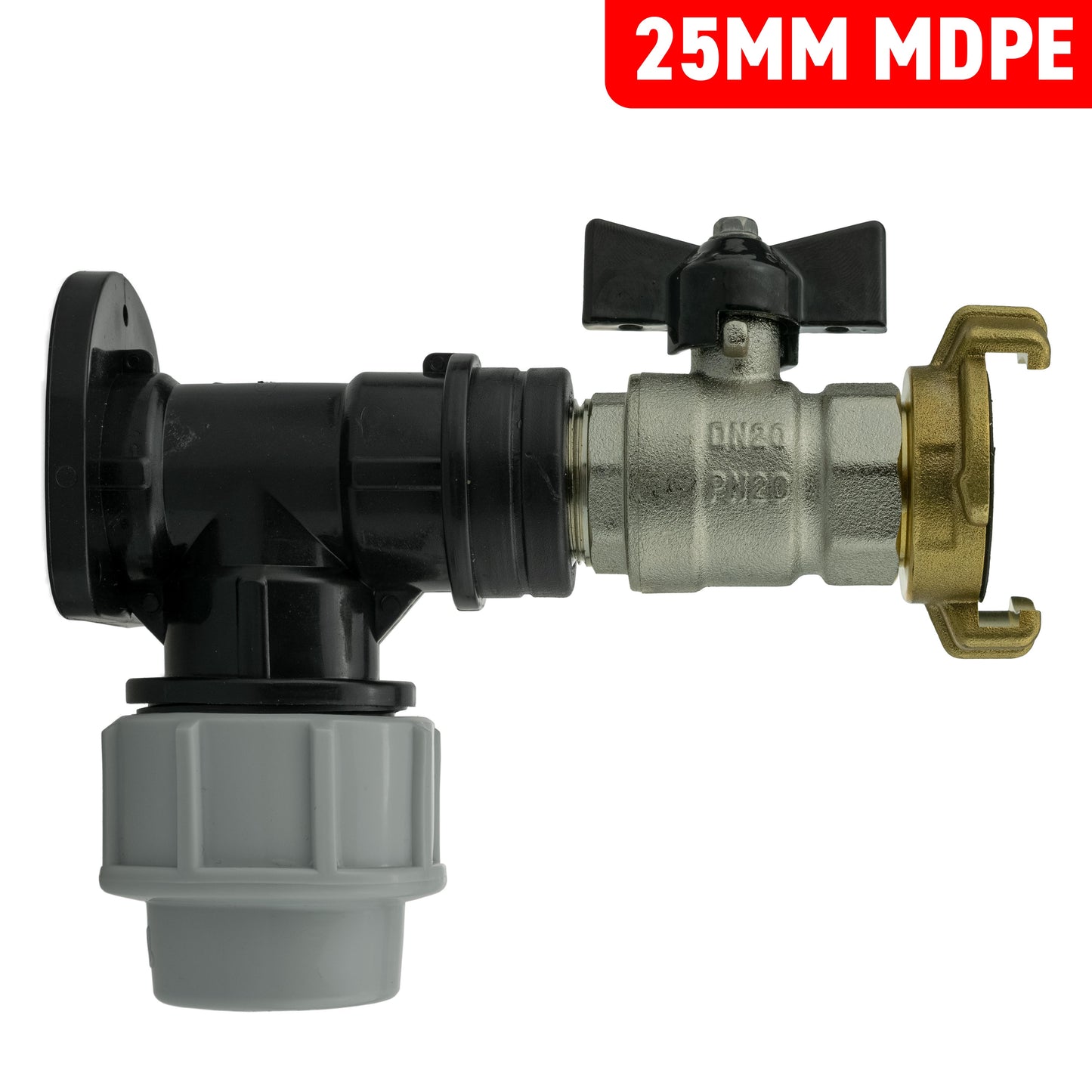

25mm MDPE inlet
For 25mm outside-diameter pipe. The flange’s ¾-inch BSP female socket accepts the valve’s ¾-inch male inlet. The brass claw fitting screws into the valve’s ¾-inch female outlet.
A secure supply, without the hose pulling on it
Support the pipe and hose separately, and keep the valve accessible.
Mount and connect
Fix the three-hole backplate to a sound wall or panel. Prepare the MDPE pipe and follow the fitting instructions for any pipe liner, insertion depth and tightening. Use suitable sealing material on the BSP joints; PTFE tape is not supplied.
Complete the hose connection
Fit a compatible hose-side claw coupling with a tail matched to your hose’s internal bore. Seat the hose fully on the tail and retain it with a suitable clip. Align the clean sealing faces, then twist the claw halves together and check they are secure.
Close before disconnecting
Use the butterfly handle to stop the water at the valve, then release pressure from the hose before separating the coupling. Do not twist the hose to unscrew the valve or use the hose as a handle.
Before you choose
Does “butterfly” describe the valve inside?
It describes the compact two-wing handle. The water is controlled by a ball valve; this is not a large butterfly-disc valve for industrial pipework.
Is a hose-side coupling included?
No. Each kit contains one selected-size MDPE wall flange, one valve and one threaded brass GEKA-type claw fitting. Buy the mating hose coupling separately, matching its hosetail to your hose bore. The 20mm or 25mm option describes the MDPE inlet, not a required hose size.
Product information & technical details
| SKU | WF20KIT057[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Kit parts | Selected-size MDPE Wall Flange, Nickel-plated Brass Ball Valve with Butterfly Handle, Brass BSP Male GEKA-type Claw Fitting |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| Matched BSP connections | 20mm option: ½-inch female flange, ½-inch male/female valve and ½-inch male claw fitting. 25mm option: ¾-inch female flange, ¾-inch male/female valve and ¾-inch male claw fitting. |
| Valve and handle | Nickel-plated brass ball valve with compact butterfly-style handle. Close valve and release downstream pressure before uncoupling. |
| Hose-side connection | Brass GEKA-type claw outlet. Compatible mating hose-side coupling is separate; select its tail for hose internal diameter, independently of MDPE pipe size. |
| Installation extras | Pipe, hose, mating claw coupling, hose clips, pipe/hose supports, wall fixings, any required pipe liner and thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
