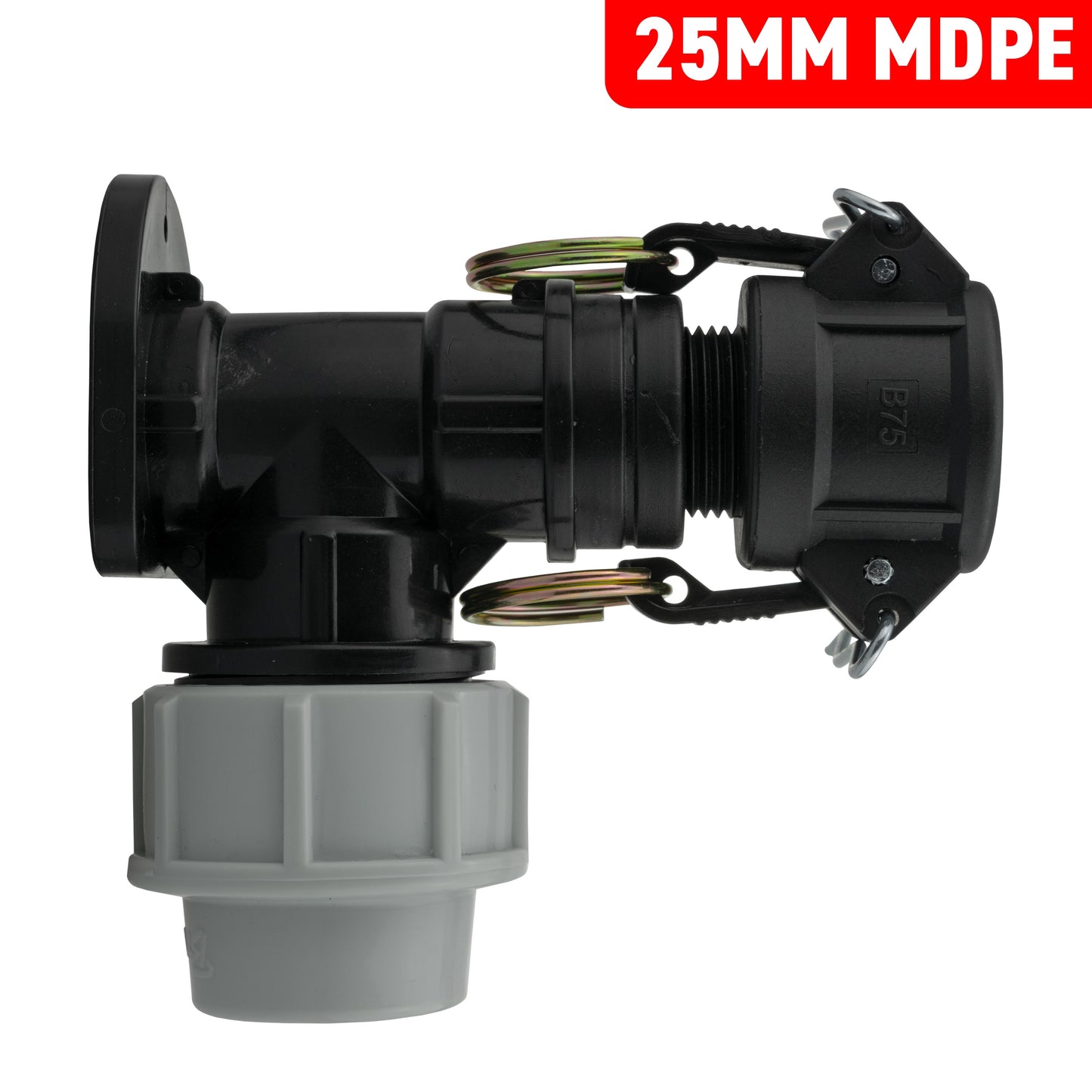

Type B
Female coupler with two cam arms at the wall. Choose this to accept an existing matching ¾-inch male camlock. A hose-tail half is not included.
Description
Keep the supply fixed. Release the hose.
A 25mm MDPE wall backplate and ¾-inch camlock gives your pipe supply a fixed connection point, with a coupling you can separate when the hose needs to move.
Choose a single camlock half to match an existing connection, or a paired kit with a 19mm hose tail. The cam arms secure the coupling; they do not switch the water off.

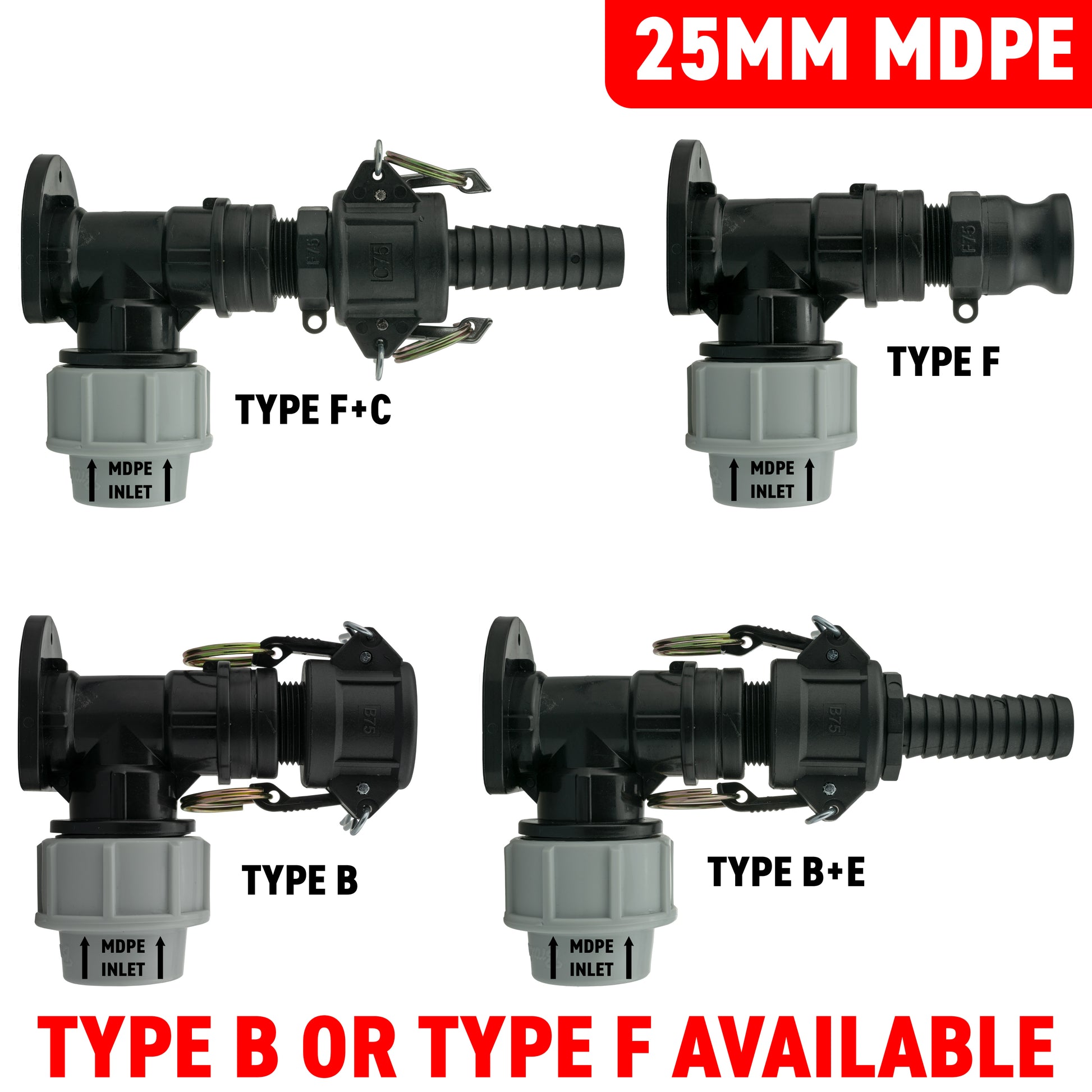

Which side stays at the wall?
All four choices use the same 25mm MDPE backplate. The camlock arrangement changes.

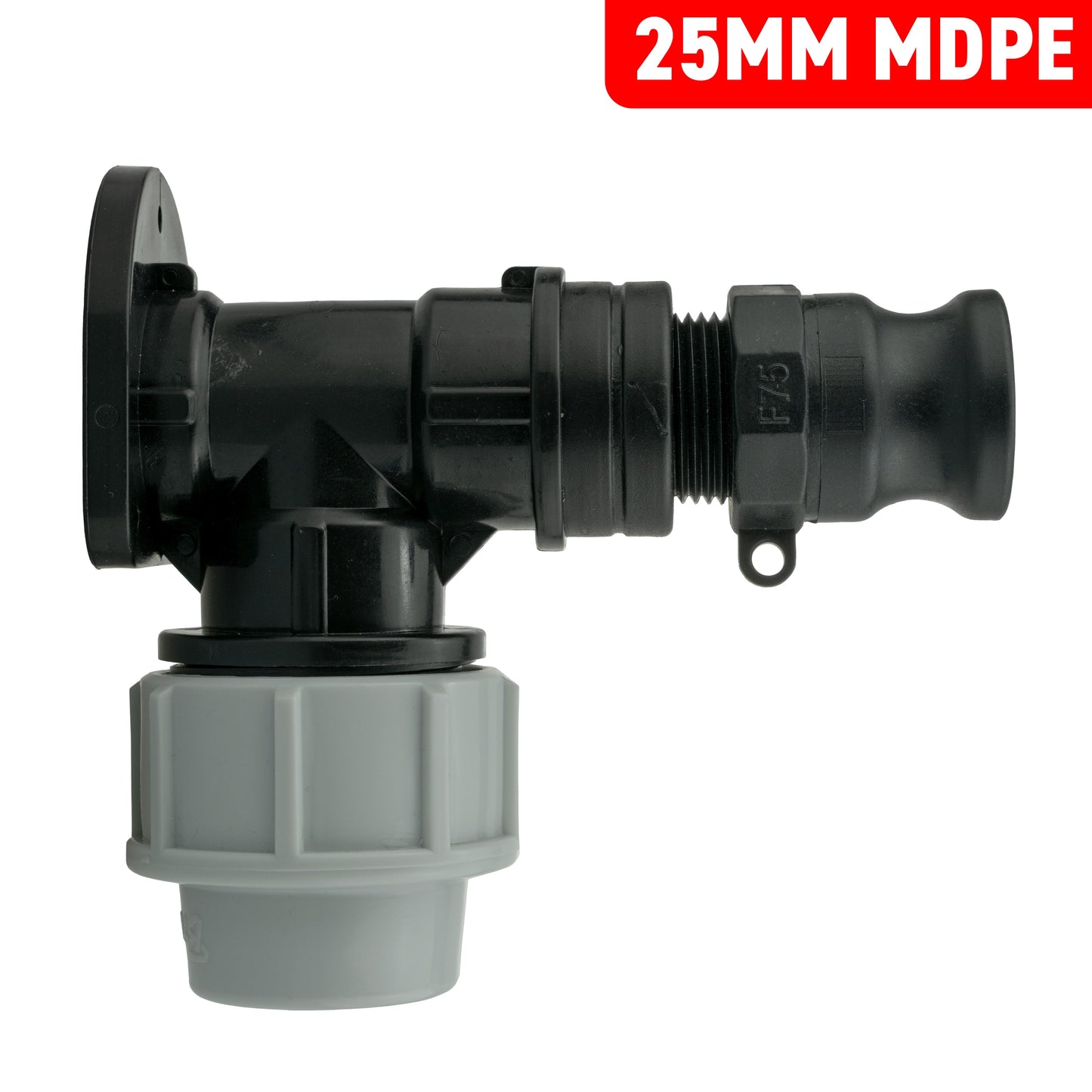

Type F
Male adapter at the wall, with no cam arms of its own. Choose this to accept an existing matching ¾-inch female camlock coupler. A hose-tail half is not included.

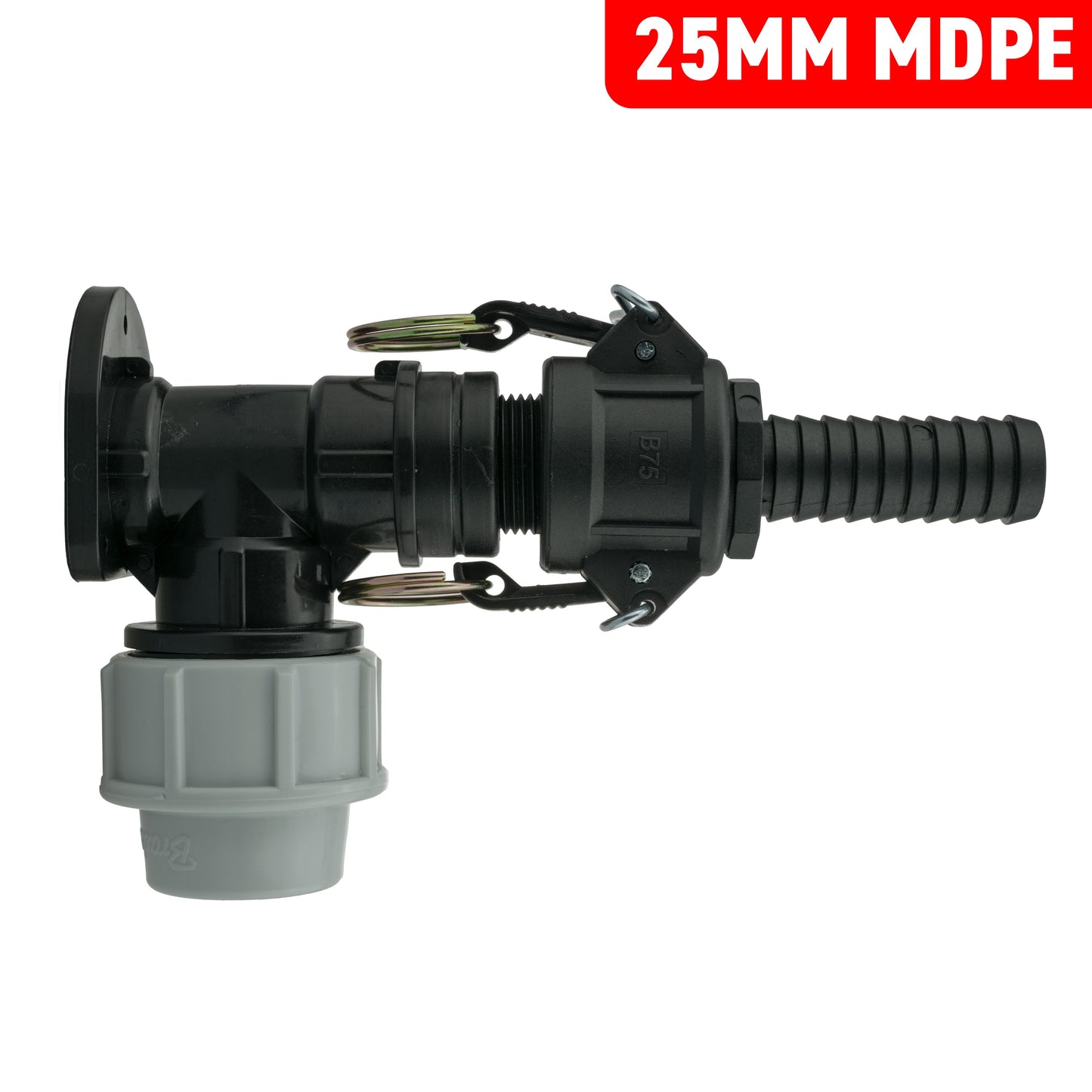

Type B+E
Type B female coupler stays at the wall. The supplied Type E male adapter separates with the hose and has a ¾-inch hosetail for nominal 19mm internal-bore hose.

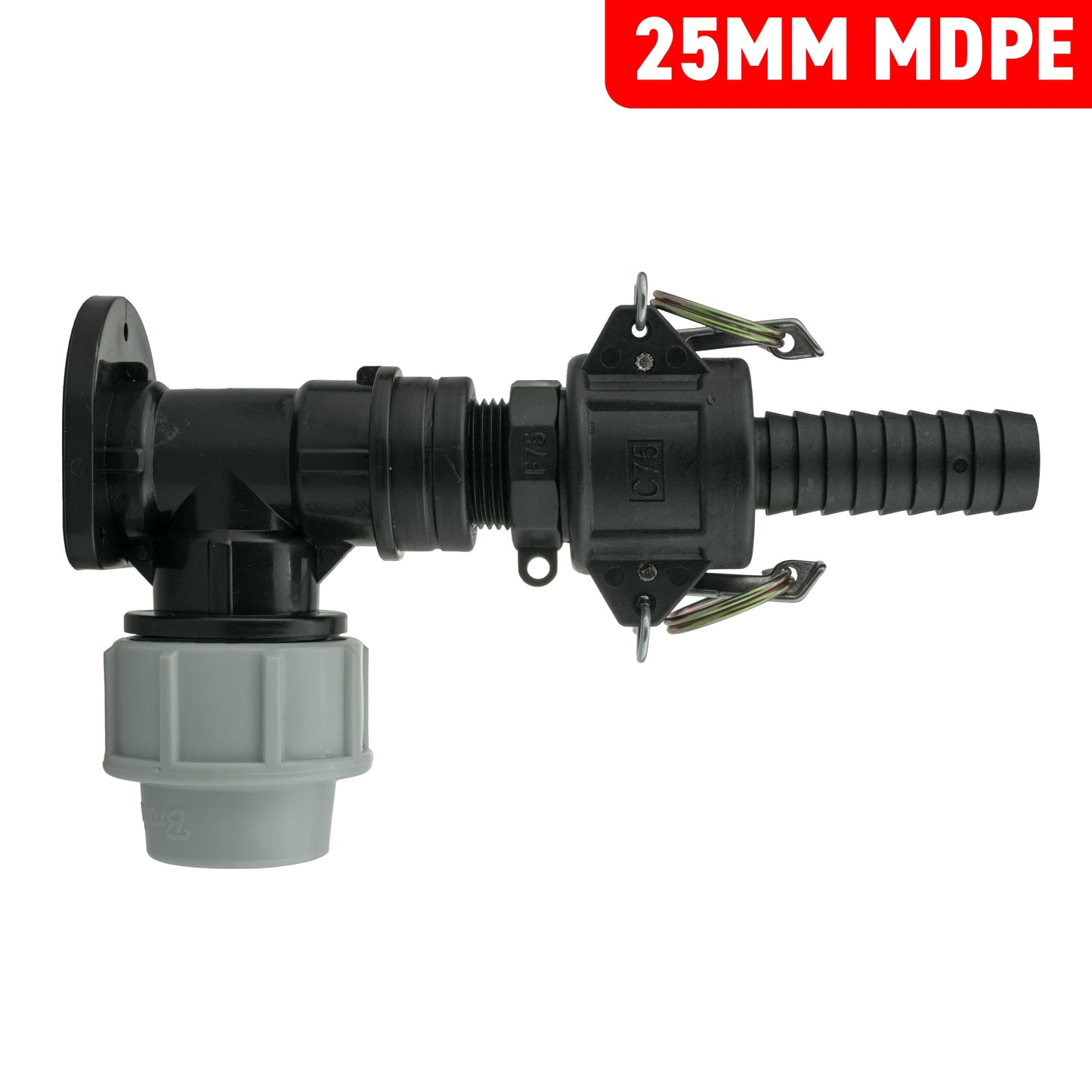

Type F+C
Type F male adapter stays at the wall. The supplied Type C female coupler carries the cam arms and a ¾-inch hosetail for nominal 19mm internal-bore hose.
Fit once. Disconnect with care.
Support the pipe and hose, and provide an upstream way to isolate the water.
Mount and connect
Fix the three-hole backplate to a sound surface. Prepare the 25mm OD MDPE pipe and follow the fitting instructions for liners, insertion depth and nut tightening. Seal the BSP joint appropriately; PTFE tape is not supplied.
Seat the hose fully
For B+E or F+C, fit nominal 19mm internal-bore hose over the complete hosetail and secure it with suitable retaining clips. Support the hose separately so its weight does not pull on the wall fitting.
Isolate before releasing
Shut off the supply upstream and release pressure before opening either cam arm. Open both arms to separate the coupling. Before reconnecting, check the sealing faces and gasket are clean, seat the male half fully and close both arms.
Check before ordering
Are 25mm pipe and ¾-inch hose the same size?
No. The MDPE fitting takes pipe measured at 25mm outside diameter. The hose-tail options take nominal ¾-inch, or 19mm, internal-bore hose. The ¾-inch camlock size and BSP thread are nominal connection designations; match each connection rather than treating these measurements as interchangeable.
Will the water stop when I disconnect the camlock?
No. This is a detachable coupling, not a self-closing connector or valve. Isolate and depressurise the supply before separating it. Check that the polypropylene camlock, gasket, pipe and hose are suitable for your intended fluid and working conditions.
Product information & technical details
| SKU | WF25KIT027[#ML] |
|---|---|
| Product type | |
| Barb size | 19mm (3/4") |
| Camlock type | Type B, Type C, Type E, Type F |
| Camlock size | 3/4" |
| Camlock gender | Male, Female |
| MDPE size | 25mm |
| Kit parts | 25mm MDPE Flange, Camlock Fittings |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Pipe and threaded joint | 25mm OD MDPE compression inlet. Wall flange has a ¾-inch BSP female socket; Type B or Type F camlock has the matching male thread. |
| Camlock arrangement | B: female at wall. F: male at wall. B+E: female at wall and removable male hosetail. F+C: male at wall and removable female hosetail. |
| Hose-tail options | B+E and F+C include a ¾-inch hosetail for nominal 19mm internal-bore hose. Type B and Type F alone do not include a hosetail. |
| Camlock material and isolation | Polypropylene camlock fittings. No shut-off valve or self-closing function; isolate and depressurise upstream before disconnecting. |
| Installation extras | MDPE pipe, hose, retaining clips, supports, wall fixings, any required pipe liners and thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
