19mm barb · ¾-inch hose
Choose for nominal 19mm internal-bore hose. The other end of the kit accepts 25mm outside-diameter MDPE pipe; 19mm does not describe the MDPE inlet.
Description
From fixed pipe to flexible hose.

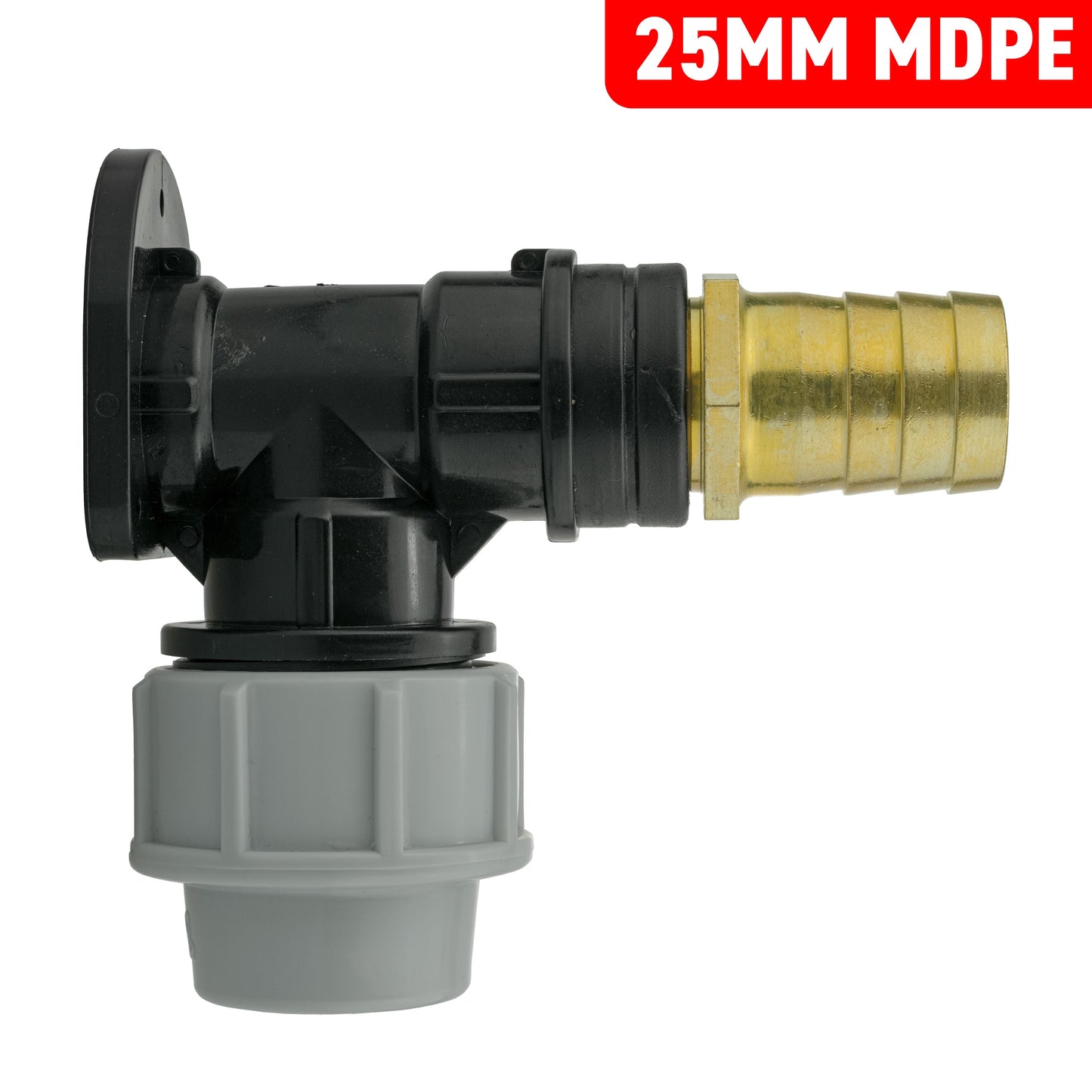

Finish a 25mm MDPE pipe run with a wall-mounted brass hosetail, ready to connect your hose for a garden water supply or irrigation installation.
The three-hole flange provides a fixing point, while the straight brass barb takes the hose. Choose the 19mm or 25mm outlet to match the hose’s internal bore. The MDPE inlet stays the same on both options.
Two measurements. One matching connection.
Measure the MDPE pipe on the outside and the hose on the inside.
25mm barb · 1-inch hose
Choose for nominal 25mm internal-bore hose. This also uses 25mm outside-diameter MDPE pipe, but the matching numbers describe different measurements: hose inside, pipe outside.
Make the join without straining the pipe
A sound fixing and separate hose support keep the connection doing its job.
Fix and connect the inlet
Secure the backplate to a suitable wall or panel. Prepare the 25mm OD MDPE pipe and follow the fitting instructions for insertion, pipe liners and compression-nut tightening. Use an appropriate seal on the BSP joint.
Seat and retain the hose
Use hose with the selected nominal internal bore. Push it fully over the complete barbed section, then secure it with a suitable retaining clip. Avoid sharp bends at the outlet and support the hose so its weight is not carried by the flange.
Check before use
Check the assembled joints under your intended operating conditions before leaving the supply on. This fitting has no shut-off valve. Isolate and depressurise the water supply before removing the hose or loosening a connection.
Before you choose
Is the 25mm barb the same size as the 25mm MDPE inlet?
No. The inlet takes MDPE pipe with a 25mm outside diameter. The 25mm barb option is for hose with a nominal 25mm internal bore. Check how your pipe and hose are measured before ordering.
Can I disconnect the hose like a quick connector?
This is a fixed barbed hose connection, not a quick-release coupling. The hose is fitted over the barb and retained with a clip. If you need to remove it, isolate and depressurise upstream first; no tap or automatic shut-off is included.
Product information & technical details
| SKU | WF25KIT053[#ML] |
|---|---|
| Product type | |
| Barb size | 19mm (3/4"), 25mm (1") |
| MDPE size | 25mm |
| Kit parts | 25mm MDPE Flange, Brass Hosetail |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| Threaded joint | ¾-inch BSP female wall flange socket with matching ¾-inch BSP male brass hosetail on both options. |
| Pipe and hose measurements | MDPE inlet: 25mm outside diameter. Hose outlet: 19mm or 25mm nominal internal bore, according to the selected barb. |
| Mounting and isolation | Three-hole wall backplate. No tap, valve, quick-release or self-closing function; isolate and depressurise upstream before disassembly. |
| Installation extras | Pipe, hose, retaining clips, supports, wall fixings, any required pipe liners and thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
