With Connectors? Yes
Includes two female click-lock hose-end connectors for nominal ½-inch hose. Fit one to each hose, then click them onto the splitter’s male outlets. Hoses are not included.
Description
Two hoses. Less swapping at the tap.
Keep a watering hose and a second garden line connected to one wall-mounted brass bibtap. The two-way splitter lets you control each outlet independently, without repeatedly disconnecting one hose to attach the other.

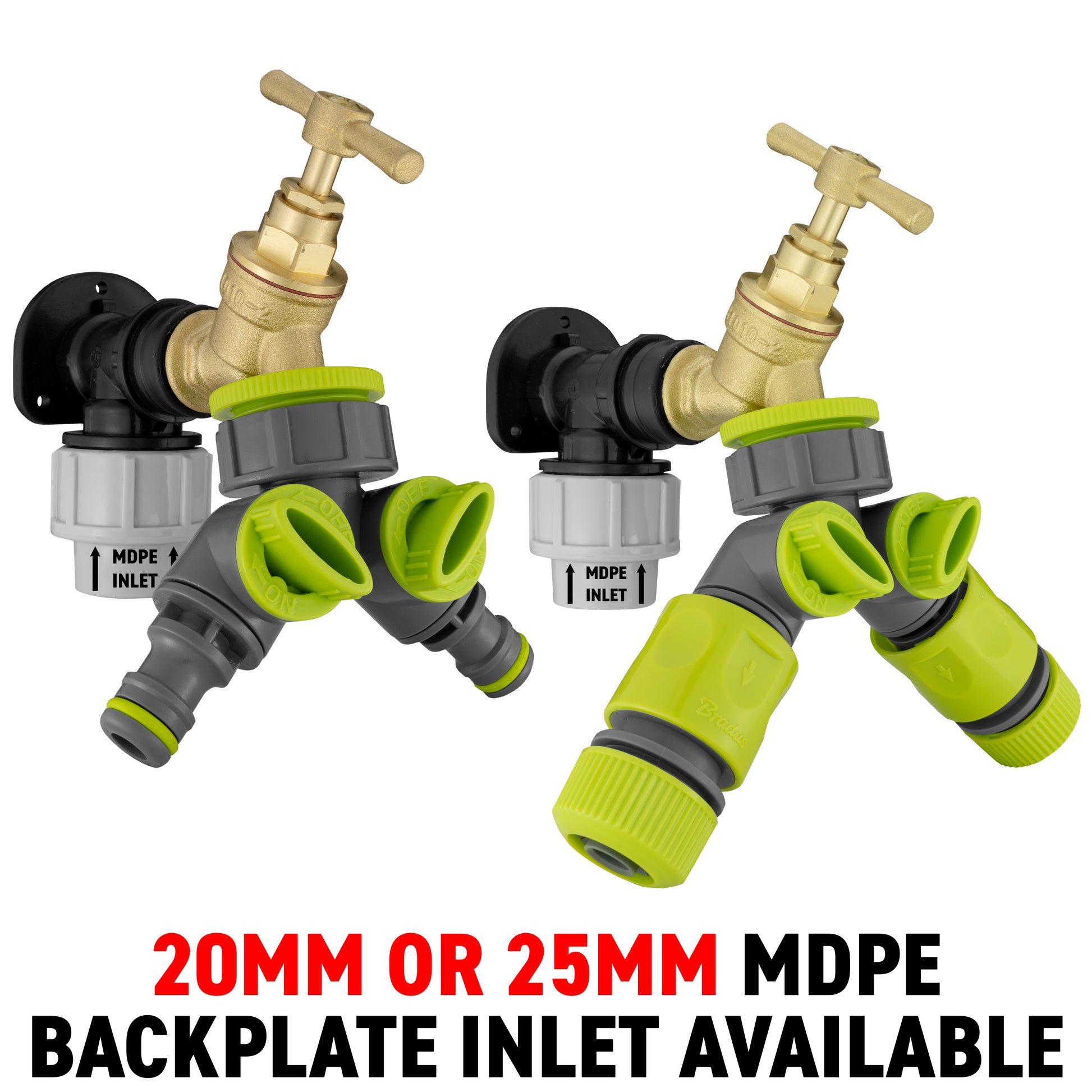

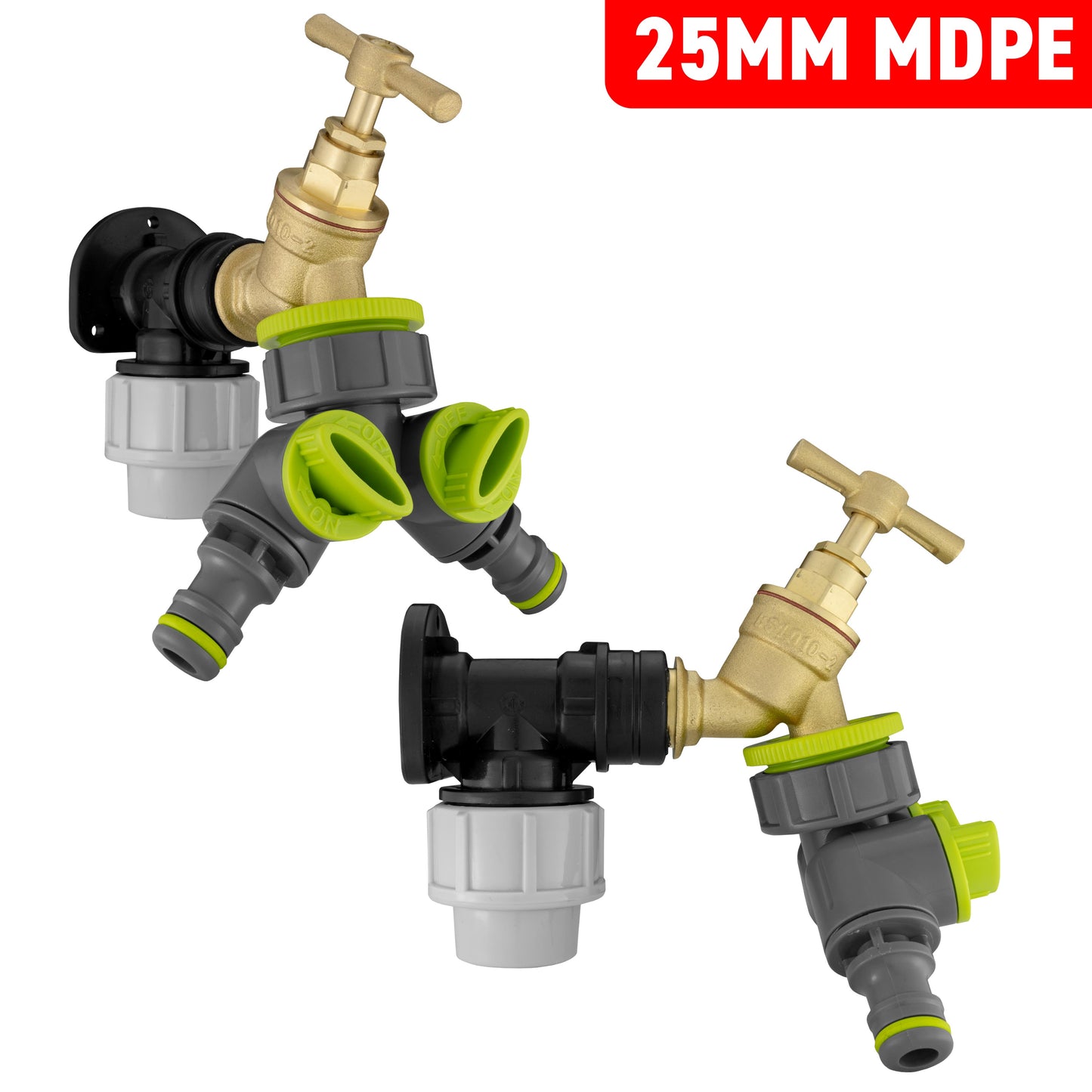

Choose the flange to match your 20mm or 25mm MDPE pipe, then decide whether you need the two hose-end connectors. Every version includes the splitter and its two outlet valves.
Already have hose-end fittings?
The connector choice is available with either MDPE inlet size.
With Connectors? No
Includes the splitter with two male click-lock outlets, ready for your existing compatible female hose connectors. The two hose-end connectors are not supplied.
Set up for everyday watering
Fix the supply securely and give both hoses room to hang without pulling on the splitter.
Match and mount
Select the flange by the MDPE pipe’s outside diameter. Fix its three-hole backplate to a sound wall or panel and support the pipe. Follow the fitting instructions for pipe preparation, liners and compression-nut tightening. Seal the BSP tap joint appropriately.
Connect the hoses
Fit compatible female hose-end connectors to your hoses and seat them fully on the splitter’s male outlets. Check that they latch securely. Use separate hose supports and avoid tight bends or tension at the fittings.
Choose the outlet
Use the brass tap for the supply and the two splitter valves to select each hose. Close the tap and release pressure before disconnecting. Turn off the supply and drain exposed fittings when protecting the installation from frost.
Useful to know
Can I use both hoses at once?
Yes, both outlet valves can be opened together. They share one supply, so the flow available to each depends on your incoming supply, hoses and watering equipment. The splitter divides the flow; it does not boost pressure.
Does “No” mean the kit has no quick-connect outlets?
No. All four options have the two male click-lock outlets and individual valves. “No” means the two female hose-end fittings are omitted. Choose it if you already have compatible fittings on your hoses; choose “Yes” if you need the supplied pair for nominal ½-inch hose.
Product information & technical details
| SKU | WF20KIT027[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Kit parts | Selected-size MDPE Wall Flange, Brass Bib Tap, 2-way Splitter, Two Hose-end Connectors (Yes option only) |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| Pipe and tap inlet | 20mm option: 20mm OD MDPE pipe and ½-inch BSP male tap inlet. 25mm option: 25mm OD MDPE pipe and ¾-inch BSP male tap inlet. Each flange has the matching female socket. |
| Splitter outlets and control | Two male click-lock outlets with independent manual valves. Brass crossbar tap controls the supply. Both outlets share the available incoming flow. |
| Optional hose-end fittings | Yes: two HOCON12F001LIME female click-lock hose connectors for nominal ½-inch hose. No: these two connectors omitted; splitter and both male outlets still included. |
| Installation extras | MDPE pipe, hoses, supports, wall fixings, any required pipe liners and thread-sealing tape are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
