Description
A fixed outlet. A connection you choose.

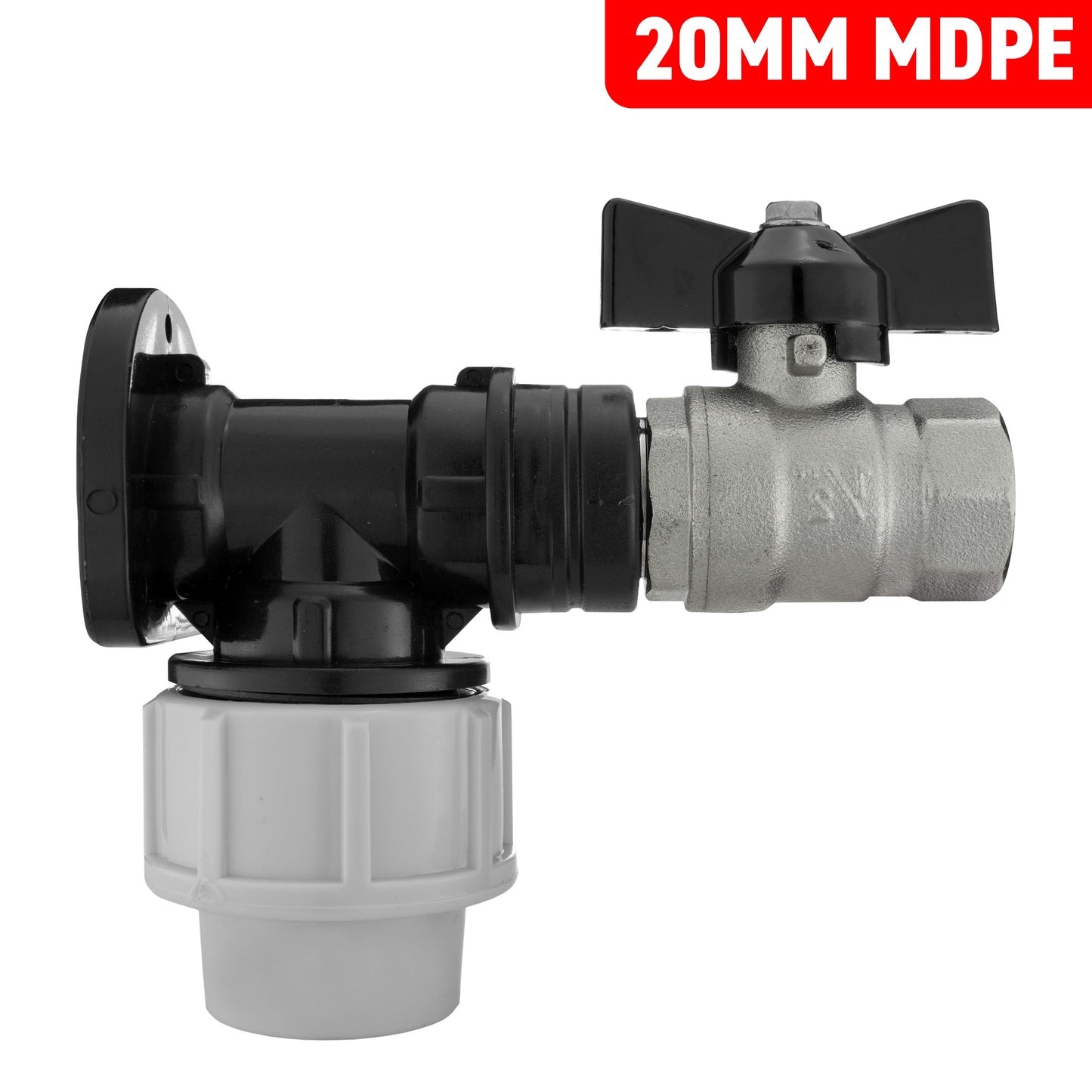

Bring a 20mm MDPE water supply to a wall-mounted control point, then add the fitting your installation needs. This kit combines a compression wall backplate with a nickel-plated brass ball valve and its compact black butterfly handle.
The exposed ½-inch BSP female socket leaves the onward connection to you. Fit a compatible male-threaded adapter for your watering line or other suitable water connection; no hose connector is built in.
Two thread ends. Different jobs.
The valve’s male end joins the wall flange; its female end accepts your outlet fitting.
At the backplate: the valve’s ½-inch BSP male thread screws into the flange’s matching female connection.
At the exposed outlet: choose a fitting with a ½-inch BSP male thread. Its other end must match your hose, pipe or equipment.
At the pipe inlet: 20mm means the MDPE pipe’s outside diameter. It does not mean a 20mm BSP thread or a 20mm hose bore.
Build a secure supply point
Plan the pipe route and onward connection before mounting the kit.
Fix and support
Use the three-hole plate on a sound wall or panel with suitable fixings. Clip the MDPE pipe separately so it does not pull on the flange. Keep the handle accessible and leave room to fit the outlet adapter.
Make the joints
Prepare the pipe and assemble the compression connection according to the fitting instructions, using a compatible liner where required. Use suitable thread sealing at the BSP joints and avoid overtightening metal fittings into the plastic flange.
Check before use
Test the completed connections for leaks before leaving the supply on. Isolate the upstream supply and release pressure before removing fittings. Drain exposed water fittings when protecting the installation from frost.
Before you order
Can I connect a garden hose straight to this kit?
No. The exposed outlet is a threaded ½-inch BSP female socket, not a hose tail or click-lock plug. Add a compatible male-threaded adapter with the right hose connection for your setup. That adapter and the hose are separate.
Is this a ball valve or a butterfly valve?
It is a ball valve operated by a butterfly-shaped two-wing handle. “Butterfly” here describes the handle, not a large disc-type valve. The kit contains one valve and one 20mm MDPE wall flange.
Product information & technical details
| SKU | WF20KIT023[#ML] |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Female |
| MDPE size | 20mm |
| Kit parts | 20mm MDPE Wall Flange, ½-inch BSP Male/Female Butterfly-handle Ball Valve |
| Colour | Black, Grey |
|---|---|
| Material | Plastic, Brass |
| Valve connections | ½-inch BSP male inlet into the wall flange; exposed ½-inch BSP female outlet for a compatible male-threaded fitting. |
| Valve body and handle | Nickel-plated brass ball valve with black two-wing butterfly handle; manual on/off operation. |
| Exact components | 1 × MDPEWF20-12BSPF001 wall flange and 1 × BRVALVEBIB12BSPM-F001 ball valve. |
| Installation extras | Pipe, outlet adapter, wall fixings, pipe supports, any required pipe liner and thread-sealing tape are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
