Description
Control the pipe at the wall

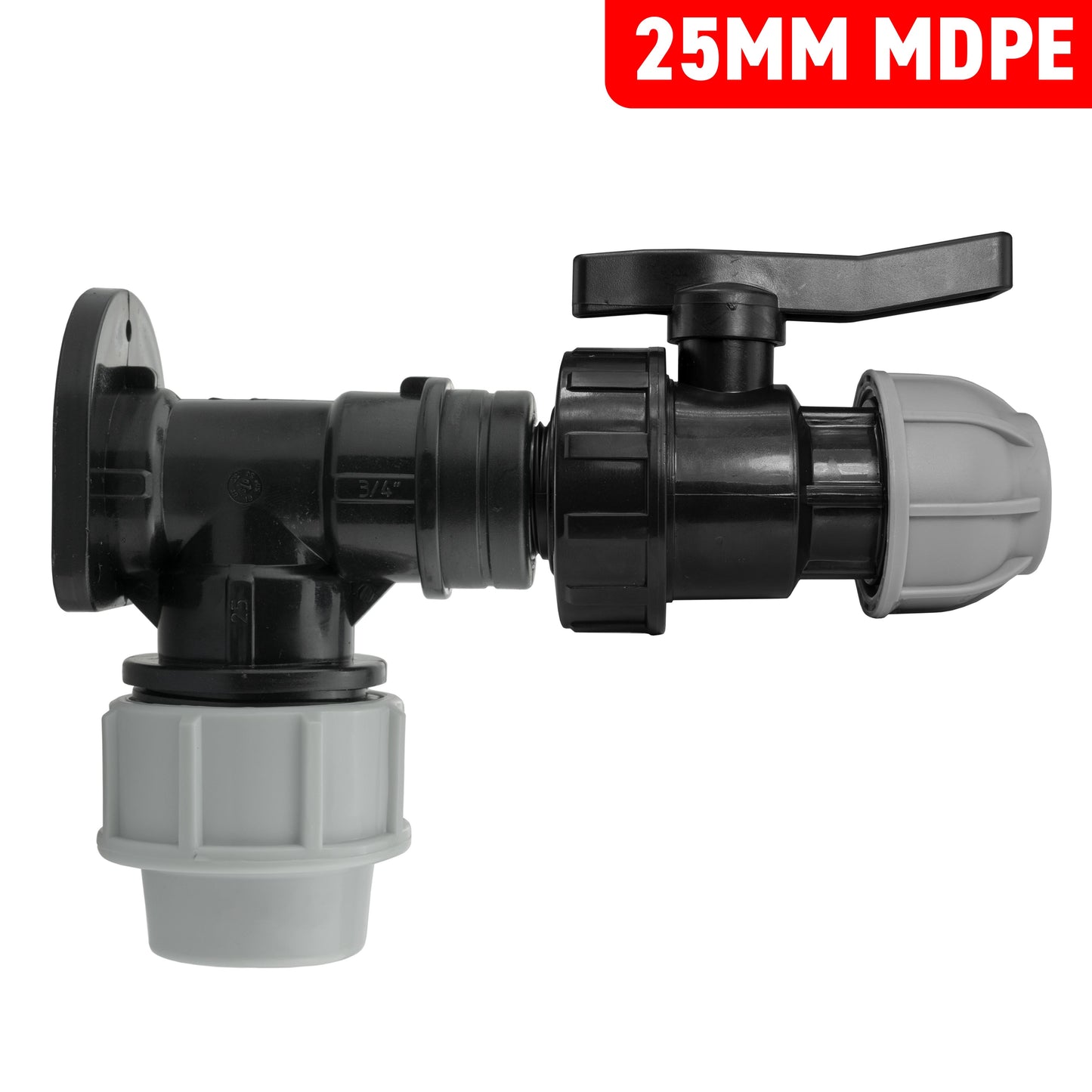

Give your MDPE pipe route an accessible shut-off point. This 25mm MDPE wall backplate and valve kit brings the supply up from below, then directs it through a valve to the onward pipe.
The round backplate provides a mounting point, while the black quarter-turn handle puts on/off control within reach. Both pipe connections take 25mm outside-diameter MDPE pipe.
One pipe size. Three connection points.
The 25mm pipe size and ¾-inch BSP thread describe different parts of the kit.
Supply beneath the backplate
The downward-facing compression fitting accepts 25mm OD MDPE pipe. The flange turns the route out from the wall.
Threaded joint in the middle
The flange has a ¾-inch BSP female socket; the valve has a matching male thread. BSP is a nominal thread size, not the pipe’s measured diameter.
Onward pipe at the valve
The grey compression outlet takes another length of 25mm OD MDPE pipe. Use the black handle to open or close this local connection.
Mount it securely. Leave room to operate it.
Plan both pipe routes before fixing the backplate.
Isolate and depressurise the supply before fitting. Fasten the three-hole plate to a sound surface and support both pipe runs independently so they do not pull on the assembly. Check that the valve handle can move freely.
Prepare the MDPE pipe ends and follow the pipe and fitting instructions for liners, insertion depth and compression-nut tightening. Use the appropriate sealing method for the BSP joint; sealing tape is not supplied. Restore the supply gradually and inspect every connection before putting it into service.
Before you connect
Can I attach a garden hose directly?
No. This valve has a 25mm MDPE compression outlet, not a hose barb or snap-on garden-hose connector. If your system needs a hose, choose a separate adapter suitable for that hose and the pipe connection.
Does 25mm refer to the inside of the pipe?
No. Measure the pipe’s outside diameter: both compression connections are for 25mm OD MDPE pipe. The ¾-inch BSP designation applies only to the threaded joint between the flange and valve.
Product information & technical details
| SKU | WF25KIT004[#ML] |
|---|---|
| Product type | |
| MDPE size | 25mm |
| Kit parts | 25mm MDPE Flange, Valve |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Pipe connections | 25mm outside-diameter MDPE compression inlet beneath the wall flange and 25mm MDPE compression outlet at the valve. |
| Internal kit joint | ¾-inch BSP female wall-flange socket to ¾-inch BSP male valve thread. |
| Valve control | Black quarter-turn handle for local on/off control of the connected pipe. |
| Installation extras | Pipe, pipe supports, wall fixings, any required pipe liners and thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
