Description
Turn the pipe. Add a take-off.
Bring two 25mm MDPE pipes around a corner and add a threaded connection above them. This 25mm corner tee with a ½-inch BSP female socket combines the pipe turn and threaded take-off in one fitting.
The green compression nuts connect the two pipes at right angles. The smaller black socket accepts a compatible male-threaded component. In the example, a separate brass hose-tail adapter connects the green hose; the pipes and hose are supported independently.
Three connections. A corner layout.

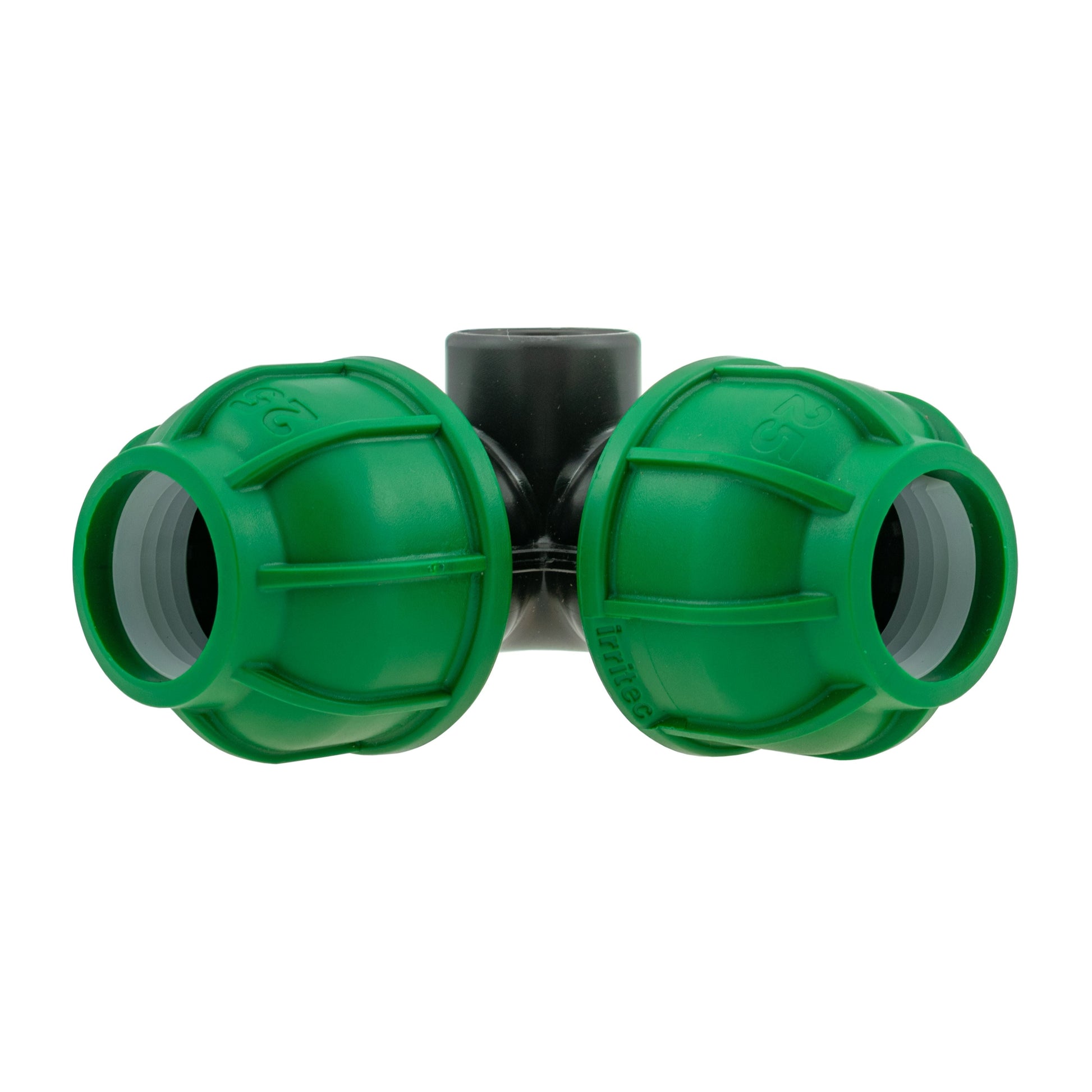

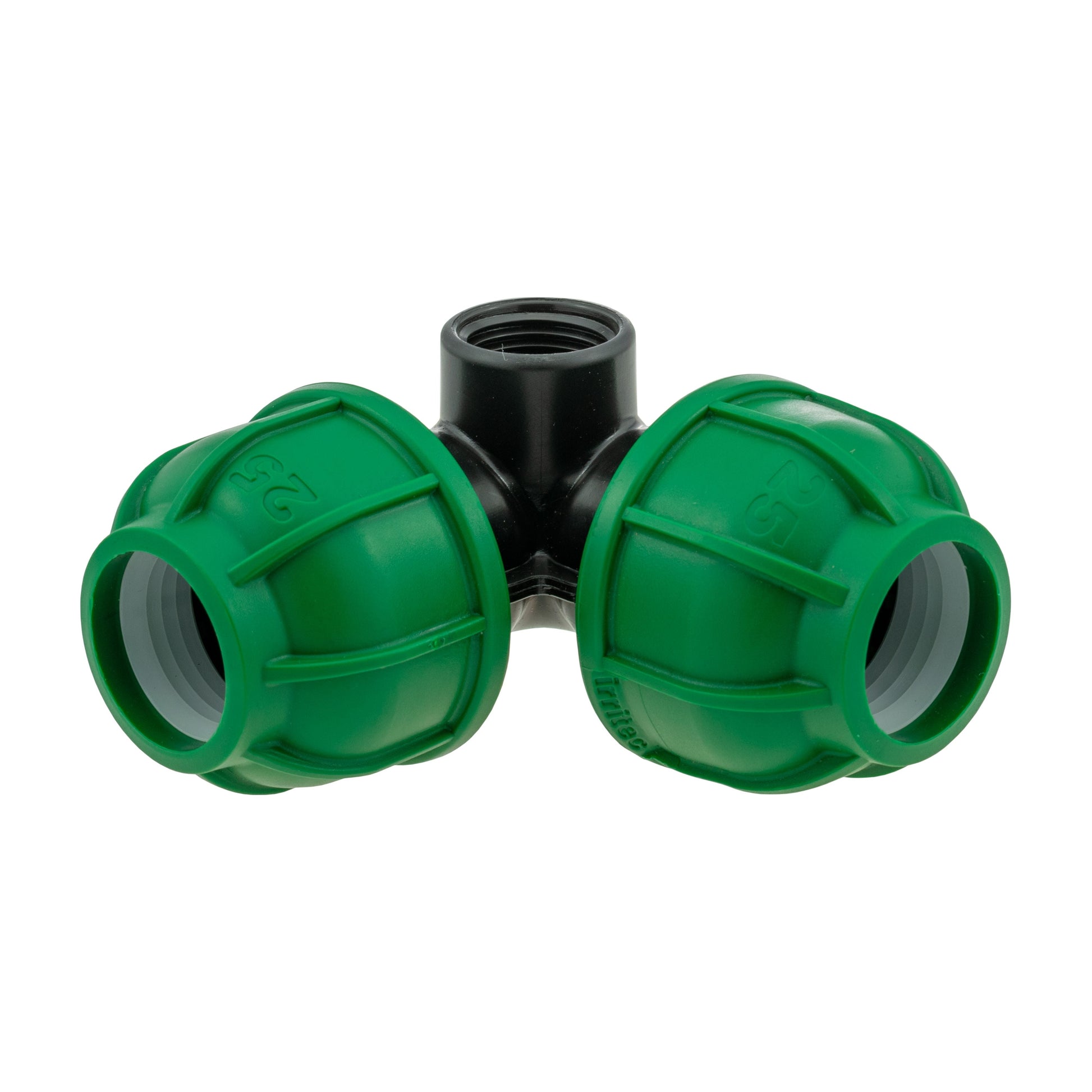

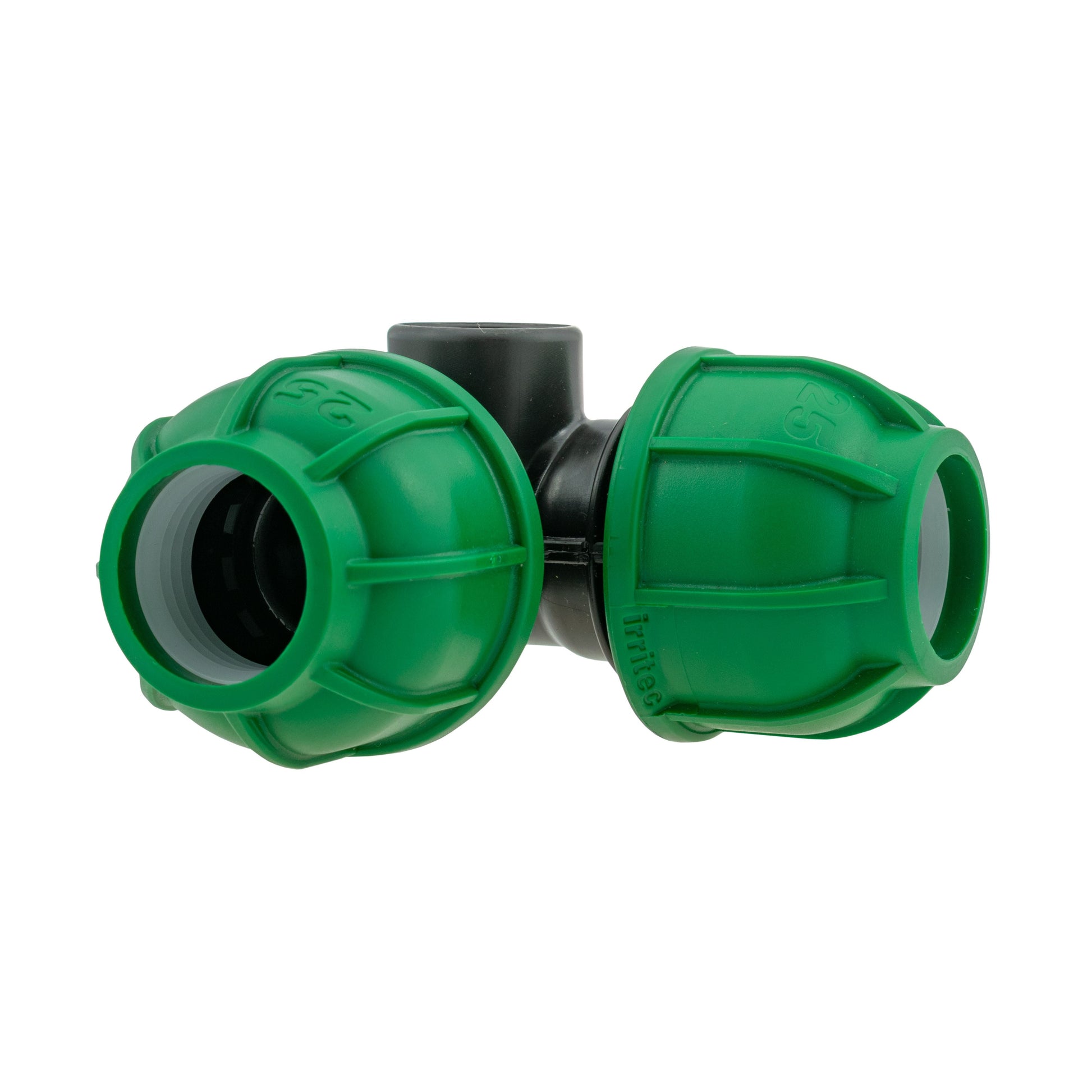

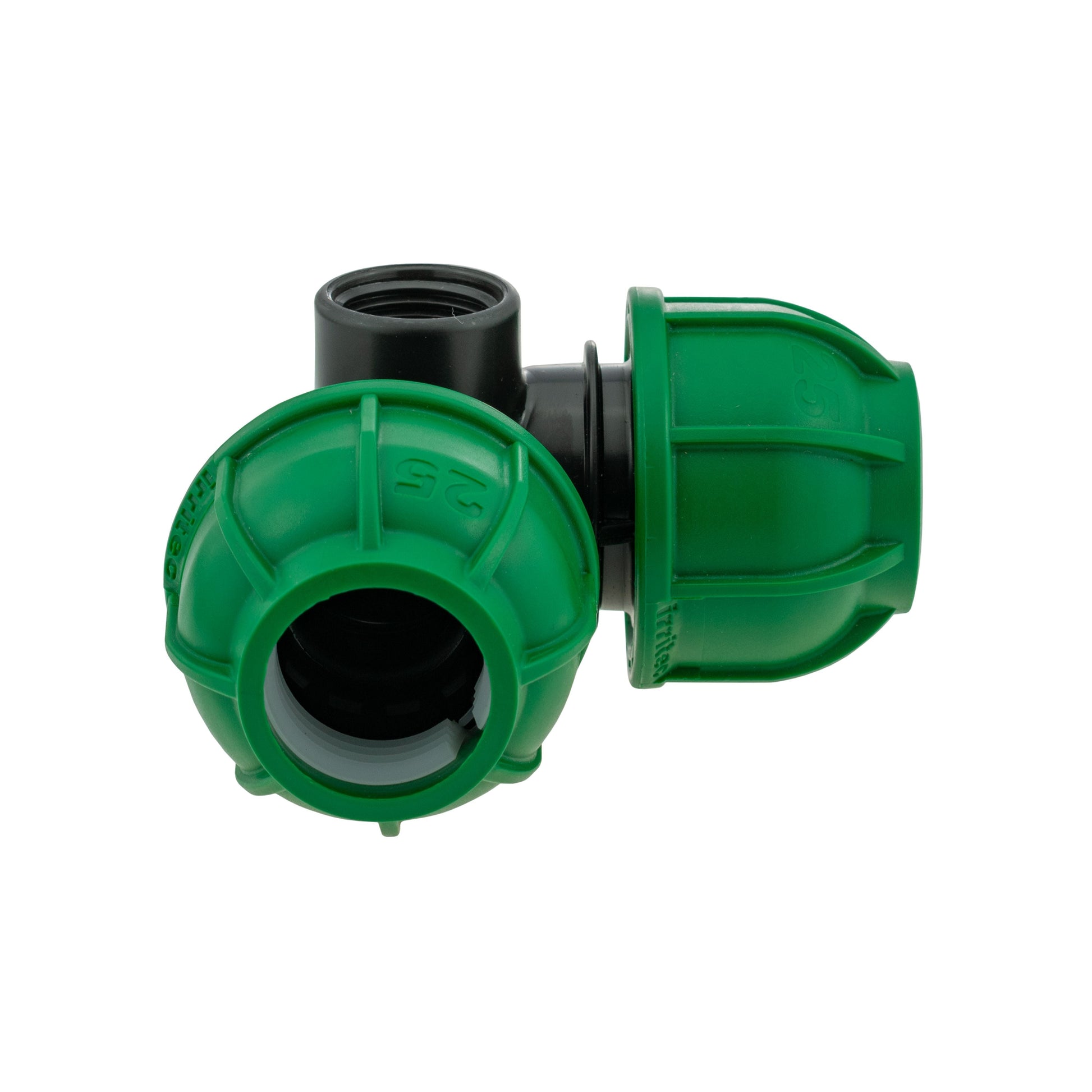

The two pipe sockets turn through 90°. The female threaded socket projects above that turn, rather than continuing the pipe in a straight line.
25mm pipe
The first green nut takes plain MDPE pipe with a 25mm outside diameter. Measure the pipe itself, not the nut or internal bore.
A 90° pipe turn
The second green nut takes another 25mm OD MDPE pipe, at right angles to the first. Allow room for both nuts and the adjoining pipe supports.
½-inch BSP female

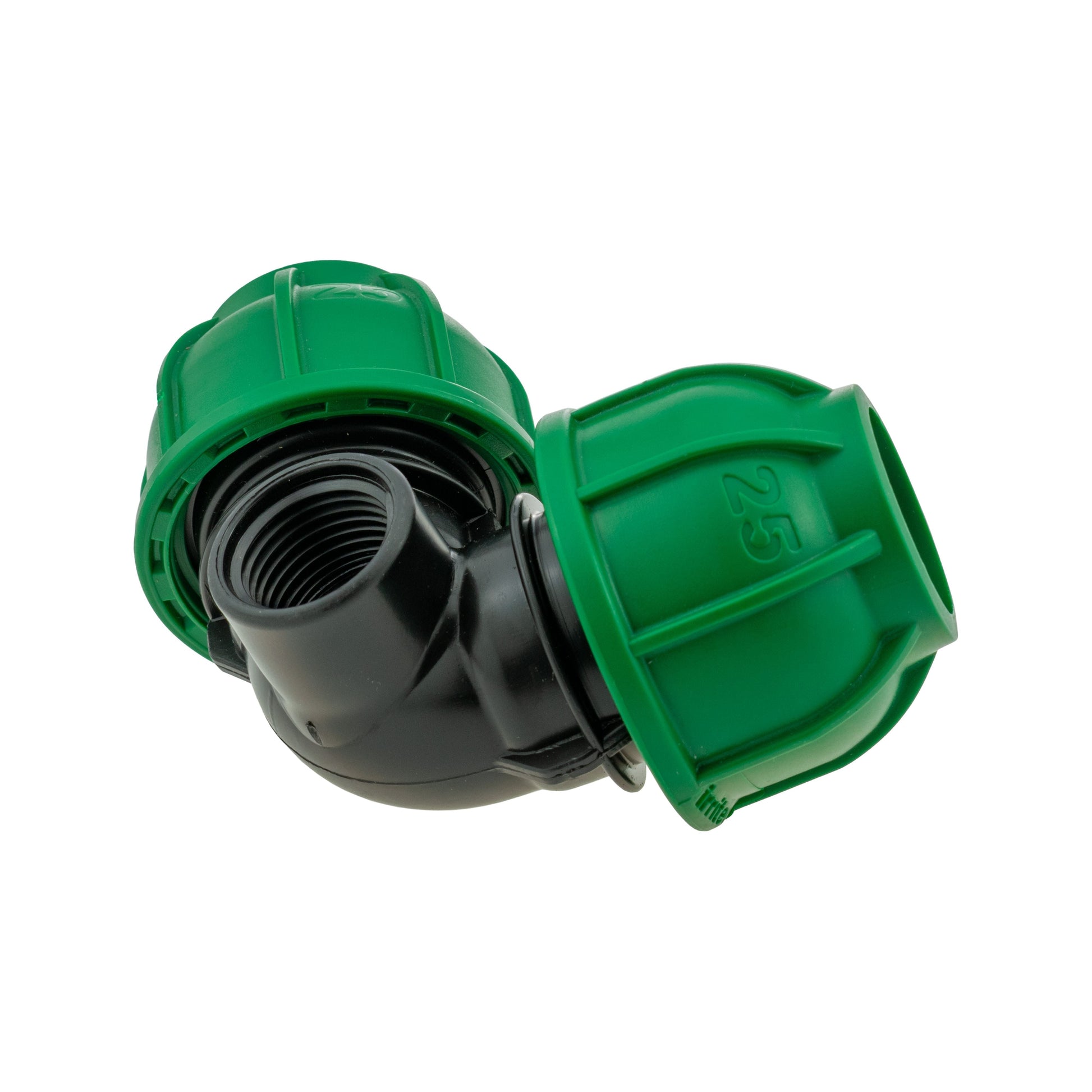

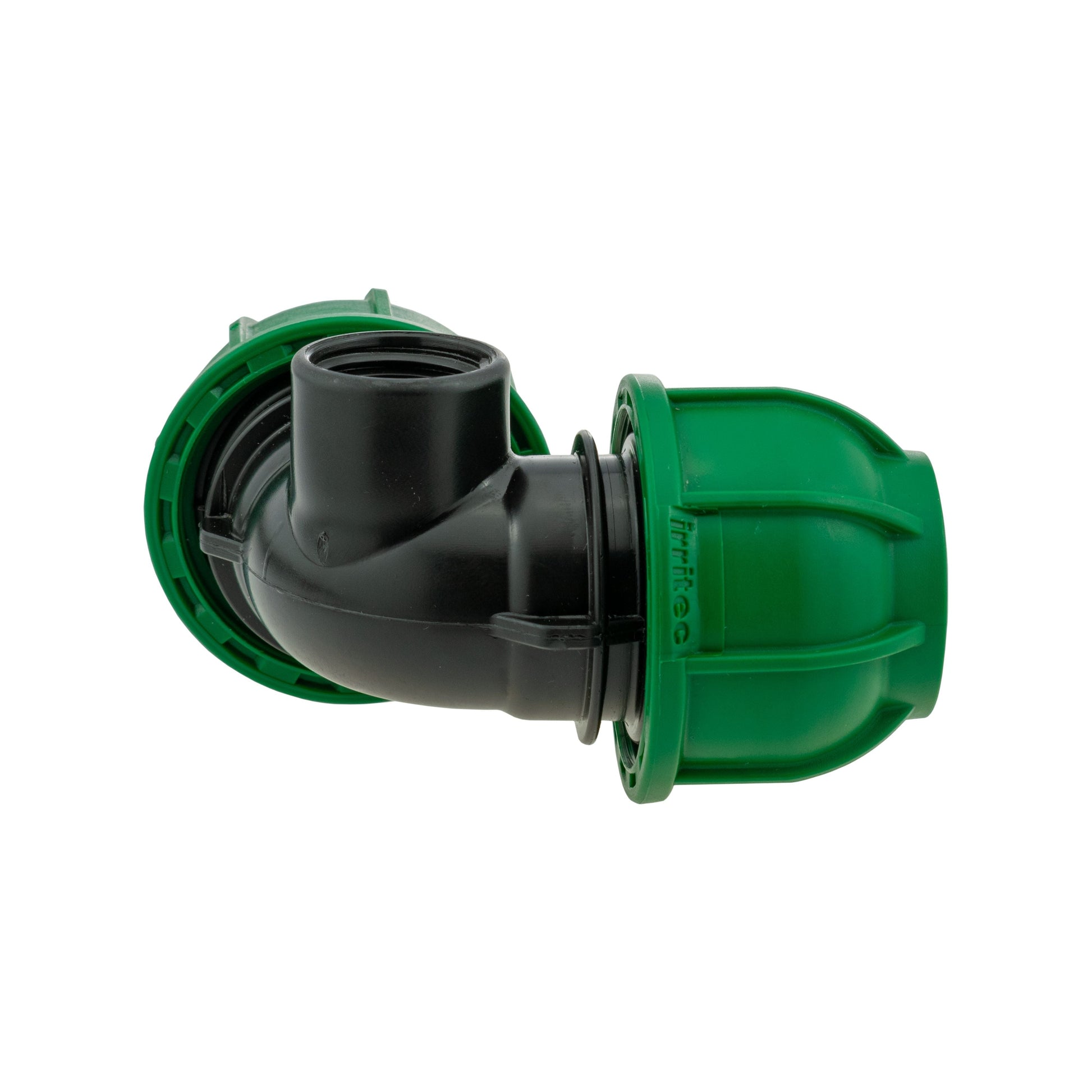

The black socket has an internal screw thread for a compatible male BSP component. BSP is a nominal thread size; it is not a 12.7mm pipe or hose measurement.
Plan the corner before connecting
Position the pipe turn and threaded take-off together, leaving access to tighten and inspect each joint.
Prepare both pipe ends
Isolate and depressurise the supply. Cut the 25mm OD pipe ends cleanly and squarely. Follow the pipe instructions for any separate support liners.
Choose the threaded part
Use a suitable ½-inch BSP male component and follow its sealing instructions. For hose, choose a separate BSP-to-hosetail adapter matched to the hose; the female socket does not grip hose directly.
Support the assembly
Follow the fitting instructions for pipe insertion and nut tightening. Support the pipework and attached component independently. Check the PN10 designation against the complete system and service conditions, then restore the supply gradually and inspect every joint.
Before you order
Is this the same shape as a normal tee?
No. A normal tee has two opposite pipe connections forming a straight run. This corner tee has two 25mm compression sockets at 90°, with the female threaded connection projecting out of their plane. Check the gallery views when planning the route.
Does it come with the hose connection shown?
One corner tee is supplied. The brass male-to-hosetail adapter, hose, pipes, clips and any separate pipe liners are not included. Choose the adapter for the female ½-inch BSP socket and your hose size.
Product information & technical details
| SKU | MDPEELBTEE25-12BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Female |
| MDPE size | 25mm |
| Material | Plastic |
|---|---|
| Port layout | Two 25mm OD MDPE compression sockets at 90°. A ½-inch BSP female socket projects out of that plane. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One corner tee. Pipe, hose, adapters, clips and any separate pipe liners are not included. |
| Colour | Black body, green compression nuts. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
