Description
Carry 40mm pipe through the junction.
Add a branch without changing pipe size. This 40mm equal MDPE tee joins three lengths of 40mm outside-diameter MDPE pipe: two along the straight run and a third at a right angle.
The same compression connection is used at each port, so every adjoining pipe must have a 40mm outside diameter. The installation example shows a downward branch from a horizontal run. Turn the fitting to suit your layout, while leaving room to support each pipe and reach all three nuts.

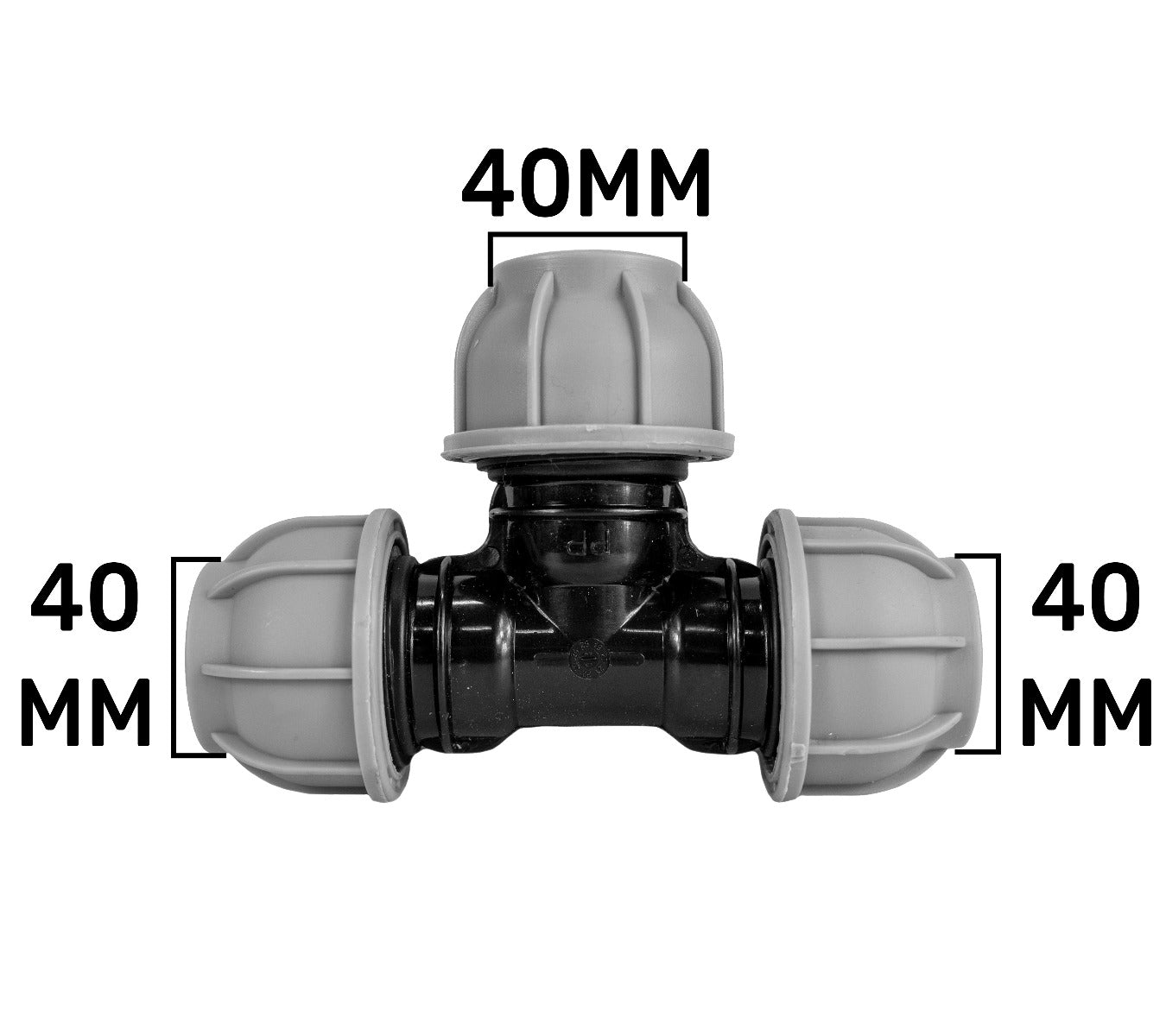

Pipe outside diameters. Schematic, not to scale.
Equal sockets, matching pipe
Check the outside diameter of the pipe. All three sockets take plain 40mm OD MDPE pipe. The size does not refer to the pipe's bore, the grey nut's width or a nominal BSP thread.
This is an equal tee, so the branch takes the same pipe size as the straight run. Each port is a compression socket; none is a screw-in tap connection or a garden-hose quick connector.
A tap, hose or smaller pipe needs a different connection. Compare the connection layouts in our MDPE tee range before ordering.
Plan room for all three pipes
Leave working space around the three compression nuts.
Prepare three pipe ends
Isolate and depressurise the supply. Check for suitable 40mm OD MDPE pipe and prepare clean, square ends. Follow the pipe specification for any separate support liners.
Position the branch
Align the tee and adjoining pipes without pulling them sideways into place. Follow the pipe and fitting instructions for insertion depth and tightening; do not treat the compression sockets as push-fit quick connectors.
Support and inspect
Support the pipes independently so their weight does not hang from the tee. Check the PN10 designation against the complete assembly and service conditions, then restore the supply gradually and inspect each joint.
Before you fit the tee
Can I use a smaller pipe in the branch?
Not directly. All three sockets on this equal tee are for 40mm OD MDPE pipe. For a different branch size, choose a fitting or adapter with the required connections rather than tightening this socket around a smaller pipe.
Does the tee control the water flow?
No. It forms an open junction between three pipes and has no shut-off mechanism. You receive one tee fitting; pipe, support clips and any separate pipe liners are not included.
Product information & technical details
| SKU | MDPETEE40001 |
|---|---|
| Product type | |
| MDPE size | 40mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Port layout | Three 40mm OD MDPE compression sockets. Two form the straight run; the branch is at 90°. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One equal tee. Pipe, support clips and any separate pipe liners are not included. |
