Description
A side connection for 25mm pipework

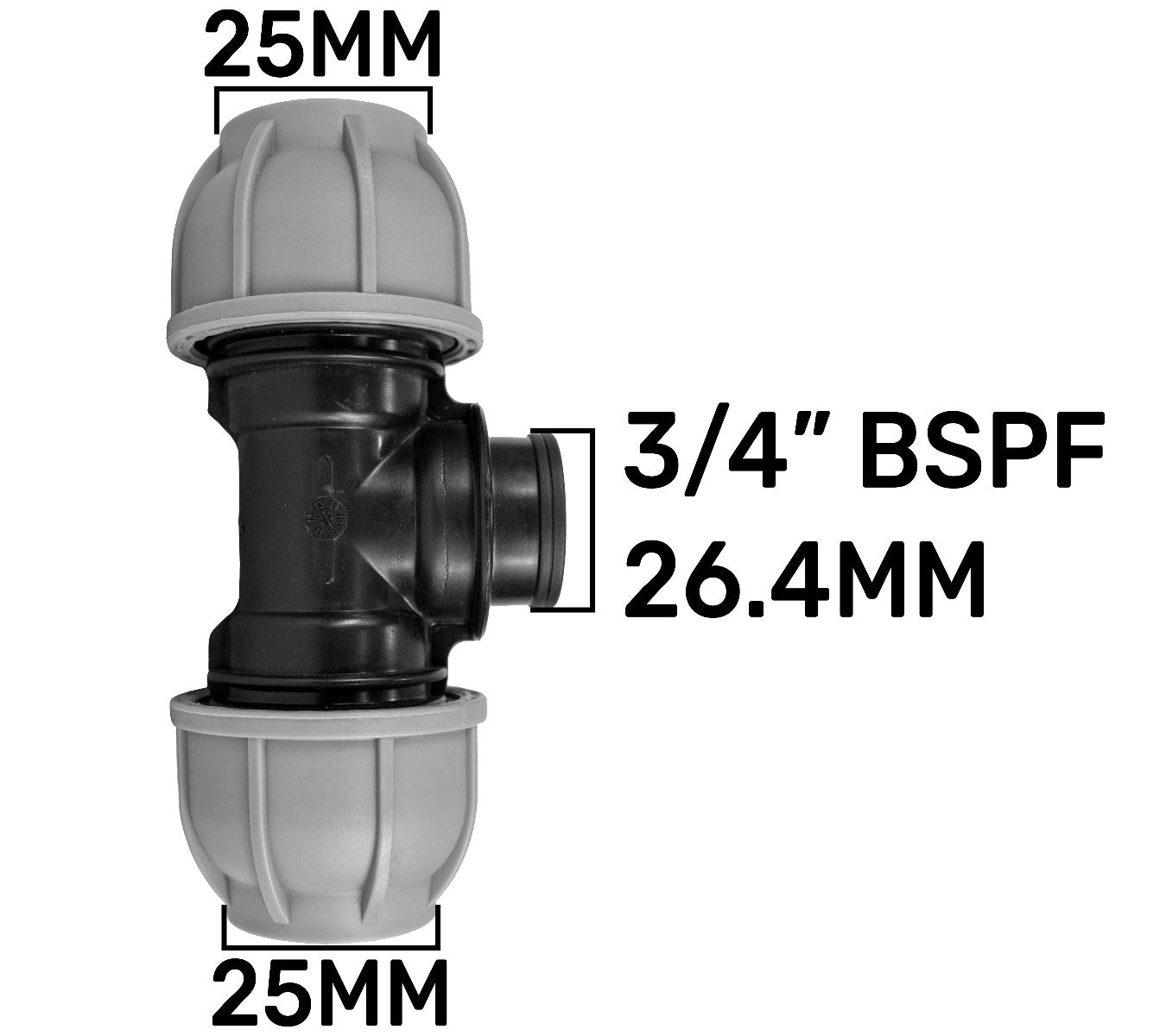

Connect a ¾-inch BSP male fitting to your 25mm MDPE run with this female-branch tee. The two opposite compression sockets join the pipe in line, while the internally threaded side socket provides a connection at 90°.
The example shows the tee on a vertical run: a separate brass male hose-tail adapter fits into the black branch to carry flexible hose. It is one way to use the threaded connection, rather than an extra part supplied with this tee.
25mm is pipe OD; BSP is a nominal thread size. Not to scale.
Match the pipe and the thread
25mm means the outside diameter of the MDPE pipe. Both grey nuts are on compression sockets for that same pipe size. Check the pipe markings or measure across its outside, rather than measuring the bore.
¾-inch BSP describes the nominal branch thread. The female thread is inside the black socket. Choose a compatible male-threaded component and check its sealing arrangement; a plain hose does not connect directly to the screw thread.
Have a female-threaded branch component instead? Choose the 25mm tee with a ¾-inch BSP male branch.
Allow space to fit and support it
Plan the pipe route and leave access to both nuts and the threaded component.
Prepare the MDPE pipe
Isolate and depressurise the supply. Prepare clean, square ends on suitable 25mm OD pipe. Use any separate support liners required by your pipe specification.
Connect the male fitting
Fit a compatible ¾-inch BSP male component using its specified sealing method. Avoid overtightening into the plastic socket, and do not use a hose or valve as a lever on the tee.
Support the branch
Follow the pipe and fitting instructions for insertion depth and tightening. Support adjoining pipes and the branch component independently. Confirm the PN10 designation is suitable for the complete assembly and service conditions, then restore the supply gradually and inspect the joints.
Choose the connections you need
Is the ¾-inch branch for ¾-inch hose?
Not directly. The branch is a female BSP screw thread, so a hose connection needs a separate compatible ¾-inch BSP male hose-tail adapter. Choose its hose end to match your hose's internal diameter.
Is a tap or hose connector included?
No. This listing supplies one tee with two 25mm compression connections and a ¾-inch BSP female branch. Pipe, tap, hose adapter, hose, clips and any separate pipe liners are additional items. If all three ends need to connect to MDPE pipe, use the 25mm equal compression tee.
Product information & technical details
| SKU | MDPETEE25-34BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| MDPE size | 25mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Port layout | Straight run: two 25mm OD MDPE compression sockets. Branch at 90°: ¾-inch BSP female thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One tee. Pipe, taps, adapters, hose, support clips and any separate pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
