Description
A ½-inch branch for 25mm pipe

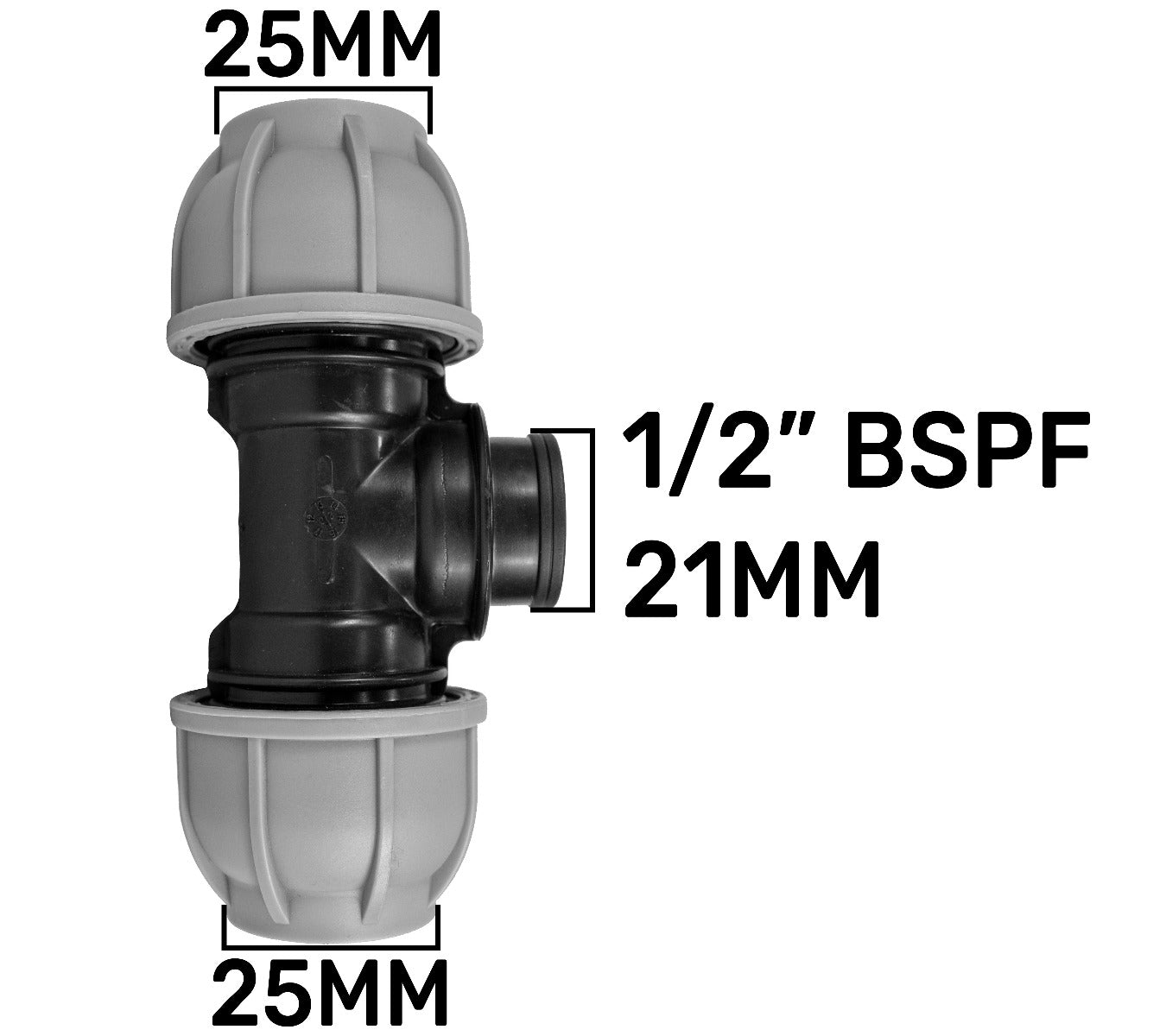

Bring a ½-inch BSP male component into your 25mm MDPE pipework without a separate reducing tee and threaded adapter. This fitting combines two opposite 25mm compression sockets with a smaller, internally threaded branch at 90°.
The installation example shows how a separate brass hose-tail adapter can connect flexible hose to that branch. The blue MDPE pipe joins through the grey nuts; the hose connects through the screw-in adapter, not directly to the tee.
25mm is pipe OD; BSP is a nominal thread size. Not to scale.
Match the pipe first, then the thread
Both compression ends take 25mm outside-diameter MDPE pipe. Measure across the outside of the pipe or check its markings. The nut diameter and the pipe's internal bore are different measurements.
The branch takes a compatible ½-inch BSP male thread. That is a nominal thread size, not a ½-inch hose bore. Check the mating component and its sealing method before you order; flexible hose needs a separate matching hose-tail adapter.
Need MDPE pipe on all three sides? The 25mm equal compression tee has three pipe sockets instead.
Make room for the connection
Plan access to the compression nuts and support the branch component.
Prepare the 25mm pipe
Isolate and depressurise the supply. Cut and prepare the MDPE ends to the pipe and fitting instructions. Use any separate pipe support liners required for your chosen pipe.
Choose the screw-in part
Use a compatible ½-inch BSP male component and the sealing arrangement specified for it. Avoid overtightening into the plastic socket, and leave clearance to fit or remove the component.
Support and check
Fit both compression ends to the specified insertion depth and tightening instructions. Support the adjoining pipes and branch separately. Confirm the PN10 designation is suitable for the complete assembly and operating conditions, then restore the supply gradually and inspect the joints.
Choosing the right tee
Is this the same as a 25mm equal tee?
No. Only the two opposite ends connect to 25mm MDPE pipe. The third connection is a smaller ½-inch BSP female screw thread. An equal tee has a compression socket for pipe on all three connections.
Does the brass hose adapter come with it?
No. One black and grey tee is supplied. The brass adapter, flexible hose, MDPE pipe, clips and any separate pipe liners are additional items. Select an adapter to match both the ½-inch female BSP branch and your hose bore.
Product information & technical details
| SKU | MDPETEE25-12BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Female |
| MDPE size | 25mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Port layout | Straight run: two 25mm OD MDPE compression sockets. Branch at 90°: ½-inch BSP female thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and operating conditions. |
| Pack contents | One tee. Pipe, adapters, hose, support clips and any separate pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
