Description
Join 25mm to 20mm

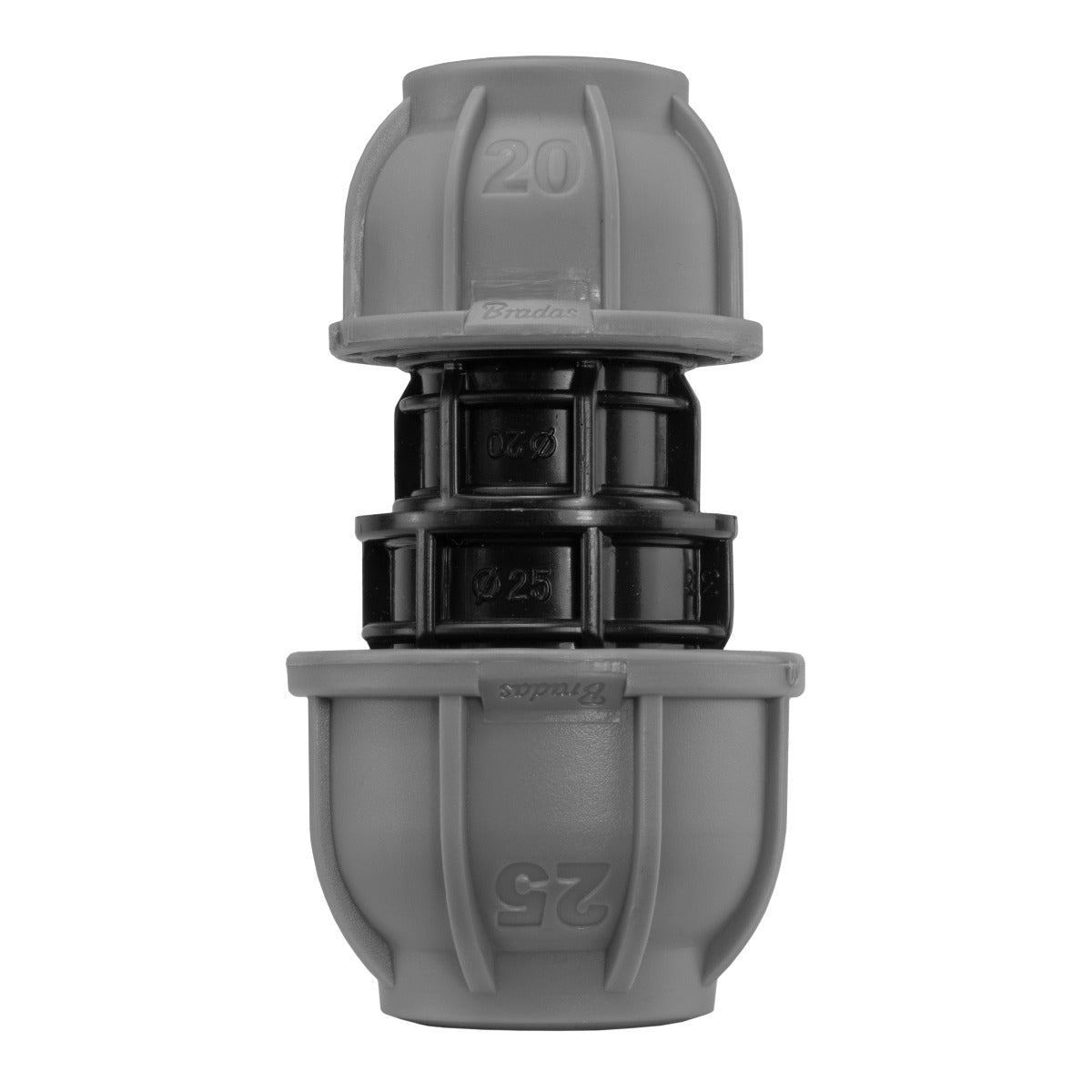

Connect two different MDPE pipe sizes in one straight run. This reducing coupling takes 25mm outside-diameter pipe at the larger end and 20mm outside-diameter pipe at the smaller end.
Each pipe enters its own grey compression nut. The stepped black body links the two ends, without a separate threaded adapter between them.
Check both pipe ends

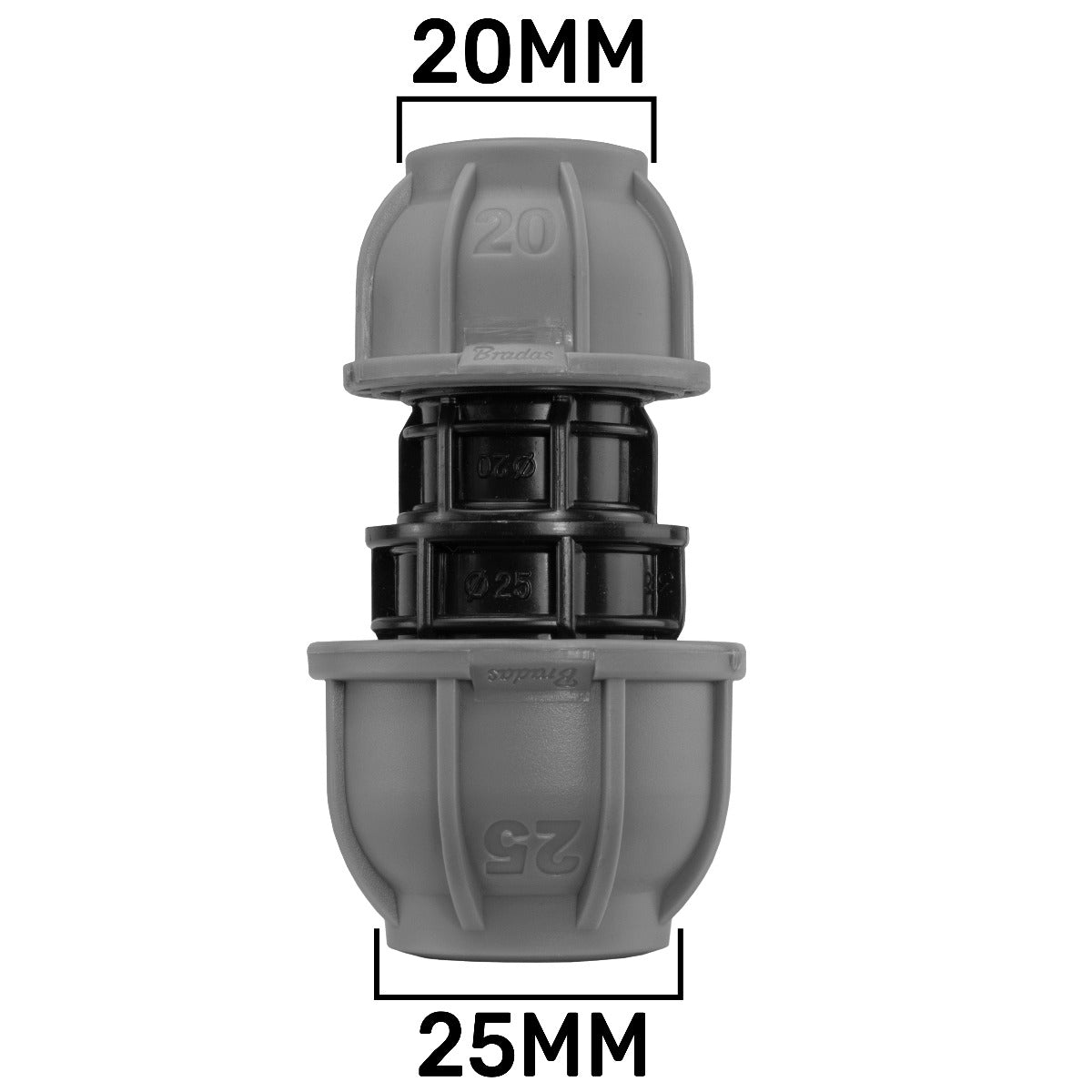

Measure across the outside of each pipe. The two sizes identify the pipe exteriors that fit the compression sockets, not the pipe bores or the outside width of the grey nuts.
Use the larger socket for the 25mm pipe and the smaller socket for the 20mm pipe. This fitting changes pipe size along a straight line; it does not provide a branch or a male or female BSP outlet.
For matching pipe sizes, choose an equal coupling. Compare the MDPE straight joiners and reducers for other size combinations.
Prepare both sides
Check the pipe sizes and leave room to reach both compression nuts.
Prepare clean ends
Isolate and depressurise the supply. Prepare clean, square ends on suitable 25mm and 20mm OD MDPE pipe, checking whether each pipe requires a separate liner.
Seat the correct sizes
Fit each pipe into its matching compression end. Follow the fitting and pipe instructions for insertion and tightening, keeping the pipes aligned through the reducer.
Support and check
Support the adjoining pipework so it does not pull on the joints. Confirm the PN10 designation suits the complete assembly and service conditions, then restore the supply gradually and inspect both connections.
Choose the right coupling
Can I use it for two 25mm pipes?
No. One end accepts 25mm OD pipe and the other accepts 20mm OD pipe. Use a 25mm equal compression coupling to join two matching 25mm pipe ends.
Will it screw onto a tap or valve?
This reducer has two pipe compression sockets, with no BSP outlet. A valve or tap with a threaded connection needs the appropriate threaded adapter, matched to the pipe size and the fitting’s thread.
Product information & technical details
| SKU | MDPESTR25-20001 |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Connection | 25mm outside-diameter MDPE compression socket × 20mm outside-diameter MDPE compression socket. |
| Pressure designation | PN10. Check suitability for the complete assembly and service conditions. |
| Pack contents | One reducing coupling. Pipe, supports and any separate pipe liners are not included. |
