Description
From pipe to valve
Bring 50mm MDPE pipe into a valve or fitting with a compatible 2-inch BSP female socket. This straight adapter combines a pipe compression end with an external male thread.
The grey nut receives the pipe and the black threaded end connects to the separate fitting. The illustrated pipework shows that transition; one adapter is supplied.
Match both connection sizes
50mm refers to the outside diameter of the MDPE pipe. Measure across the pipe exterior, rather than its bore or the compression nut.

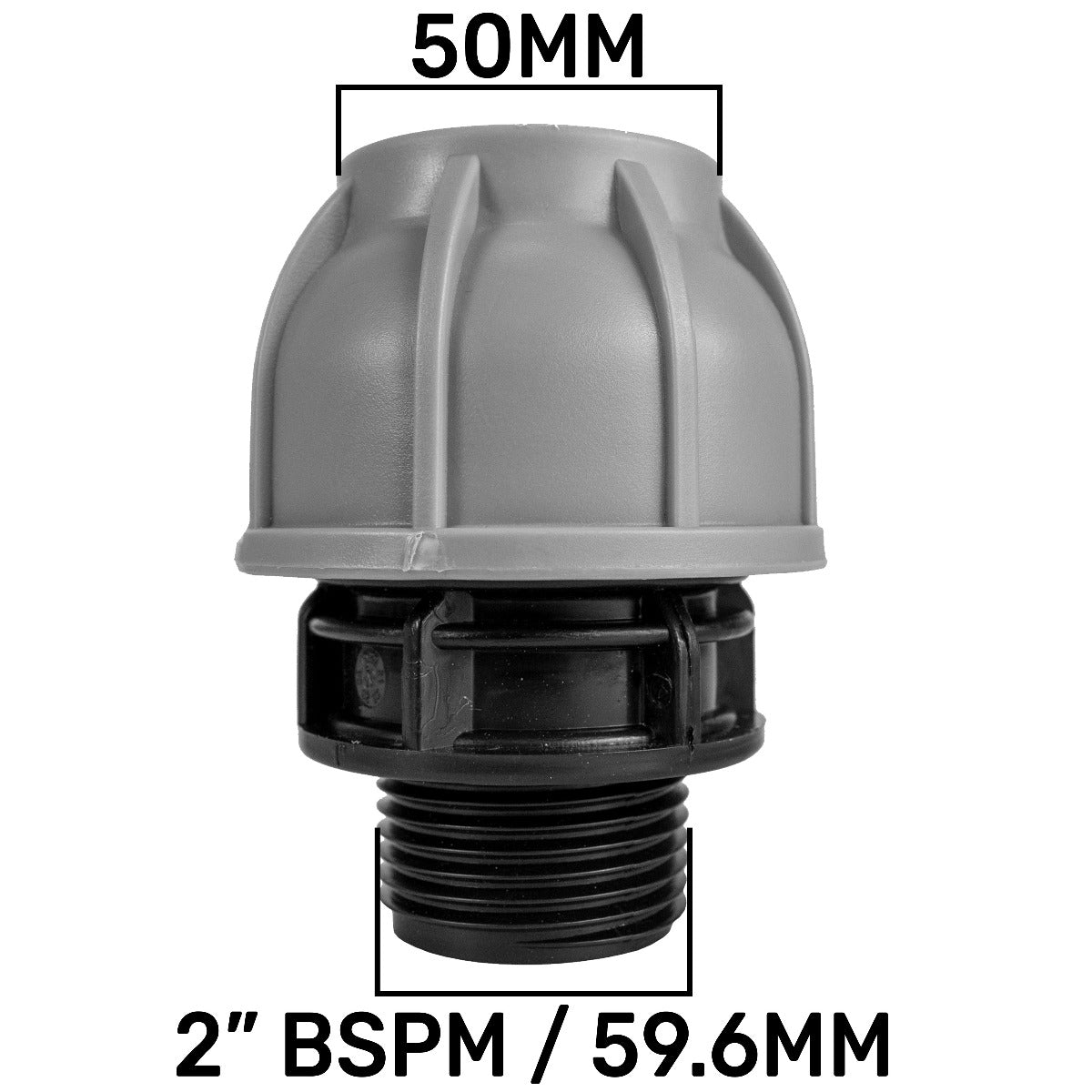

2-inch BSP is the nominal thread size. The labelled photo shows approximately 59.6mm across the male thread’s outer crests. These are two different size systems: the thread is wider than the pipe in this adapter.
Check the female fitting’s nominal size, thread form and sealing requirements. Browse the MDPE straight joiners and threaded adapters for other combinations.
Build a supported connection
Plan access to the nut and threaded joint before fitting the adapter.
Prepare the pipe
Isolate and depressurise the supply. Make a clean, square end on suitable 50mm OD MDPE pipe and check whether its specification requires a separate liner.
Fit the threaded end
Start the male thread squarely in a compatible female socket. Follow the components’ sealing and tightening instructions; avoid cross-threading or overtightening the plastic fitting.
Support and inspect
Support the adjoining pipework so its weight does not pull on the adapter. Check the PN10 designation against the complete assembly and service conditions, then restore the supply gradually and inspect both joints.
Check before ordering
Will it connect to a 2-inch BSP male outlet?
No. This adapter already has a male thread, so the mating fitting must have a compatible 2-inch BSP female socket. Choose a female-threaded adapter for an existing male outlet.
Is this a joiner for two plain 50mm pipes?
No. It has one compression end for pipe and one threaded end. Choose a 50mm equal compression coupling to join two matching plain MDPE pipe ends.
Product information & technical details
| SKU | MDPESTR50-2BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Male |
| MDPE size | 50mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 50mm outside-diameter MDPE compression socket × 2-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One adapter. Pipe, valve, supports and any separate pipe liners or thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
