Description
Adapt 50mm pipe
Connect a 50mm MDPE pipe end to a matching 1½-inch BSP female fitting. The grey compression nut takes the pipe; the black end provides the male thread.
The illustrated elbow shows a pipe-to-threaded transition. One adapter is supplied. The elbow, blue pipe and supports are separate items.
Check pipe and thread
50mm is the pipe outside diameter. Measure the exterior of the MDPE pipe, rather than its bore or the grey compression nut.

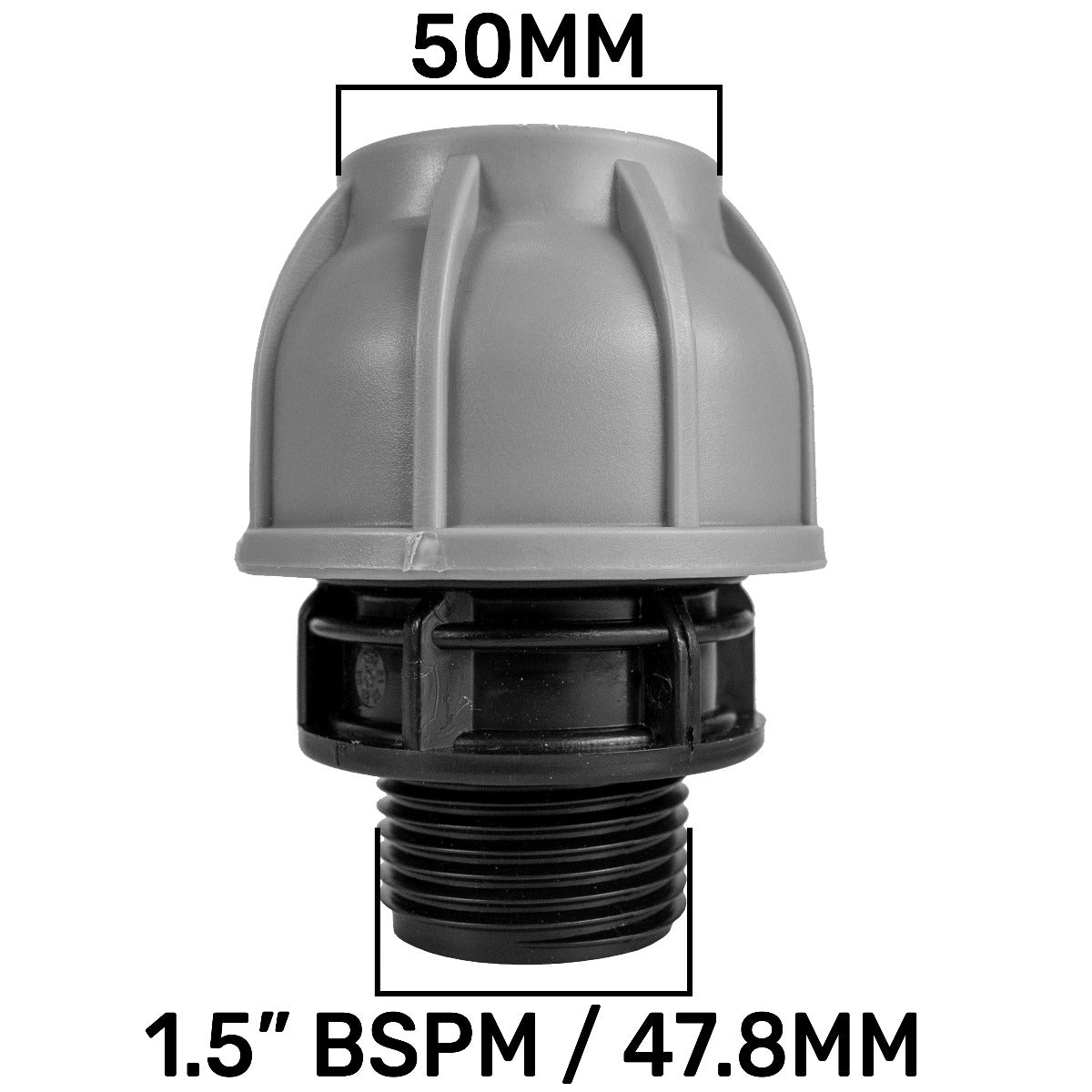

1½-inch BSP is the nominal thread size. The external male thread measures approximately 47.8mm across its outer crests, as shown in the labelled product photo. It is not a direct inch-to-millimetre conversion.
Check the mating female fitting’s size, thread form and sealing requirements. Compare the MDPE straight joiners and threaded adapters when you need a different connection.
Plan both sides of the joint
Leave access to the compression nut and support the adjoining pipework.
Prepare the MDPE
Isolate and depressurise the supply. Prepare a clean, square end on suitable 50mm OD pipe and check whether the pipe requires a separate liner.
Start the thread squarely
Engage the male thread in a compatible female socket. Follow the components’ sealing and tightening guidance; avoid cross-threading or overtightening the plastic adapter.
Check the finished assembly
Keep strain off both joints. Confirm the PN10 designation suits the complete assembly and service conditions, then restore the supply gradually and inspect the connections.
Choose the correct ends
Will this fit a 1½-inch BSP male outlet?
No. This adapter has an external male thread, so it needs a matching female socket. Choose the appropriate female-threaded adapter for a male outlet.
Can I use it to join two plain 50mm pipes?
This fitting has one pipe compression end and one threaded end. Use a 50mm equal compression coupling when you need to join two matching plain MDPE pipe ends.
Product information & technical details
| SKU | MDPESTR50-15BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1.5" |
| Thread gender | Male |
| MDPE size | 50mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 50mm outside-diameter MDPE compression socket × 1½-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One adapter. Pipe, elbow, support clips and any separate pipe liners or thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
