Description
From pipe to valve
Take a 40mm MDPE pipe run into a matching 1-inch BSP female fitting. This straight adapter combines a grey compression nut for the pipe with a male thread on the black end.
The illustrated valve connection shows how the two ends work together. One adapter is supplied; the valve, pipe and supports are separate items.
Measure the right part
40mm refers to the pipe’s outside diameter. Check the pipe exterior rather than the internal bore or the width of the compression nut.

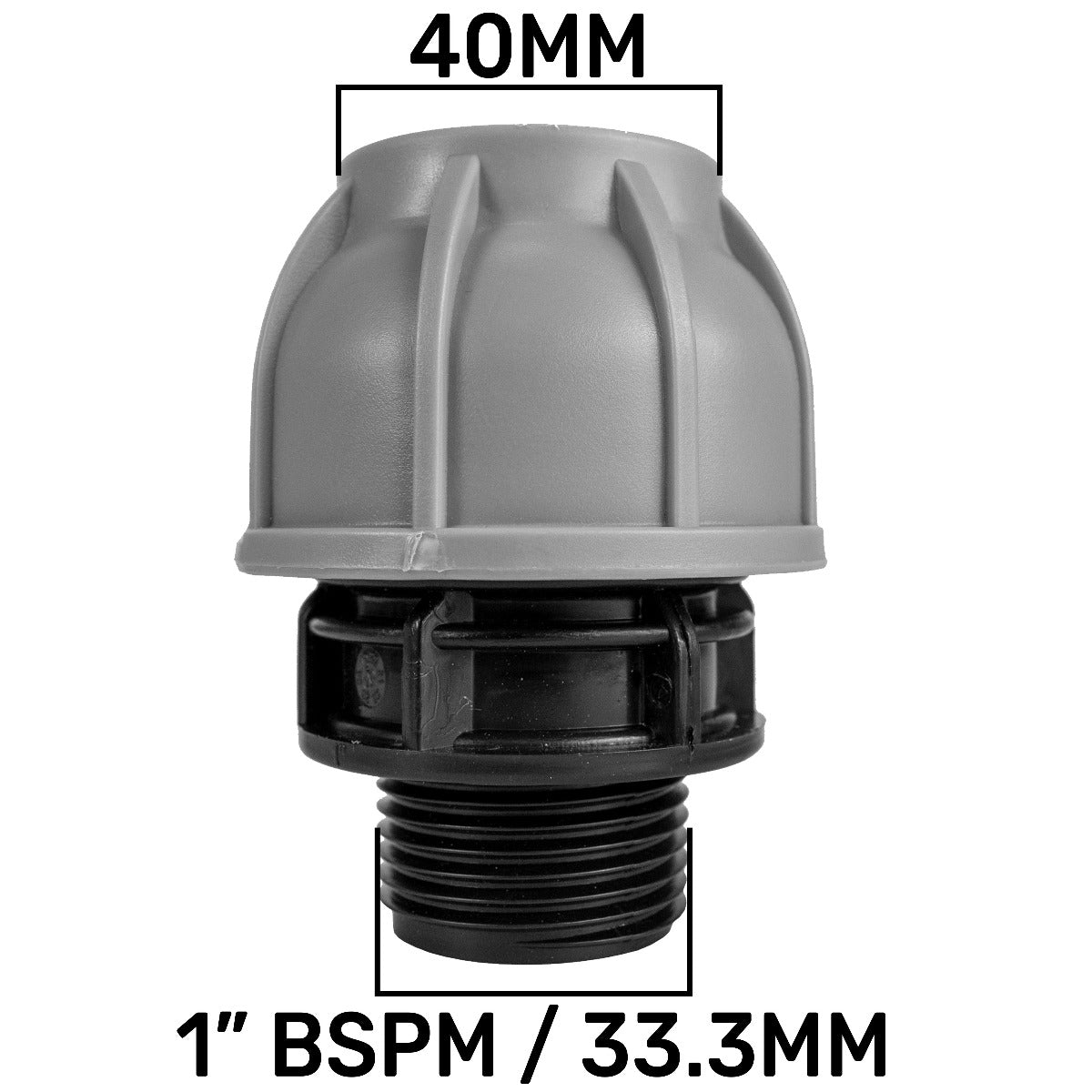

1-inch BSP describes the male thread. Its outside diameter is approximately 33.3mm across the thread crests, as the labelled photo shows. BSP sizes are nominal; converting one inch directly to 25.4mm will not identify this thread.
Match the female fitting’s thread size, form and sealing requirements. For a different combination, browse the MDPE straight joiners and threaded adapters.
Prepare both connections
Leave room to tighten the compression nut and keep strain off the threaded joint.
Check the pipe end
Isolate and depressurise the supply. Prepare a clean, square end on suitable 40mm OD MDPE pipe. Check whether the pipe needs a separate liner before assembling the compression connection.
Match the female thread
Start the male thread squarely in a compatible female fitting. Follow the components’ sealing and tightening guidance, avoiding cross-threading or overtightening the plastic adapter.
Support and inspect
Support the adjoining pipework. Confirm the PN10 designation suits the complete assembly and service conditions, then restore the supply gradually and inspect both connections.
Check before choosing
Will it screw onto a 1-inch BSP male outlet?
No. This adapter has a male thread and needs a matching female socket. A male-threaded outlet requires the appropriate female-threaded adapter.
Can it join two plain 40mm pipe ends?
This version has one pipe compression socket and one BSP male thread. Choose a 40mm equal compression coupling to connect two matching plain MDPE pipe ends.
Product information & technical details
| SKU | MDPESTR40-1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| MDPE size | 40mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 40mm outside-diameter MDPE compression socket × 1-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One adapter. Pipe, valve, support clips and any separate pipe liners or thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
