Description
Connect 32mm pipe

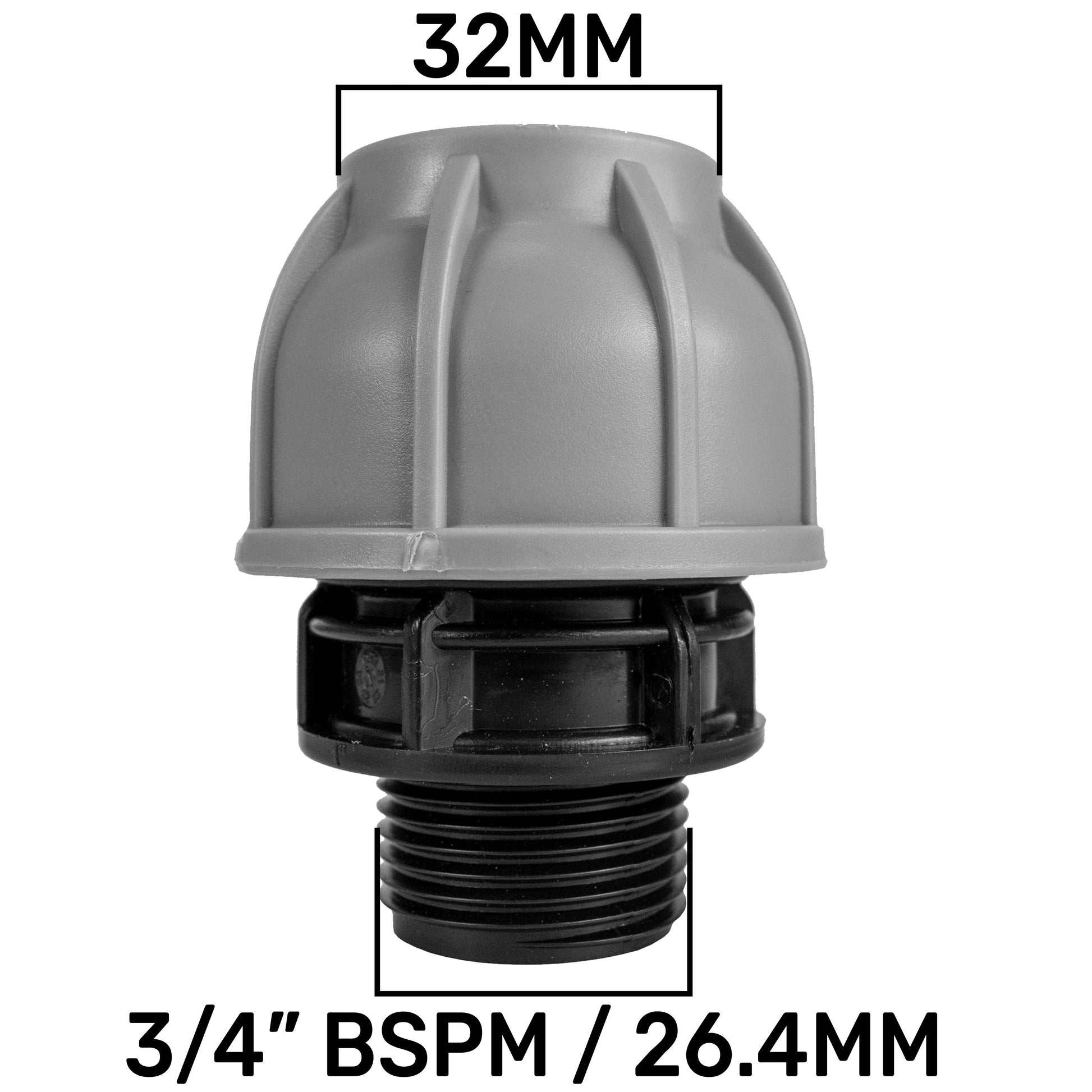

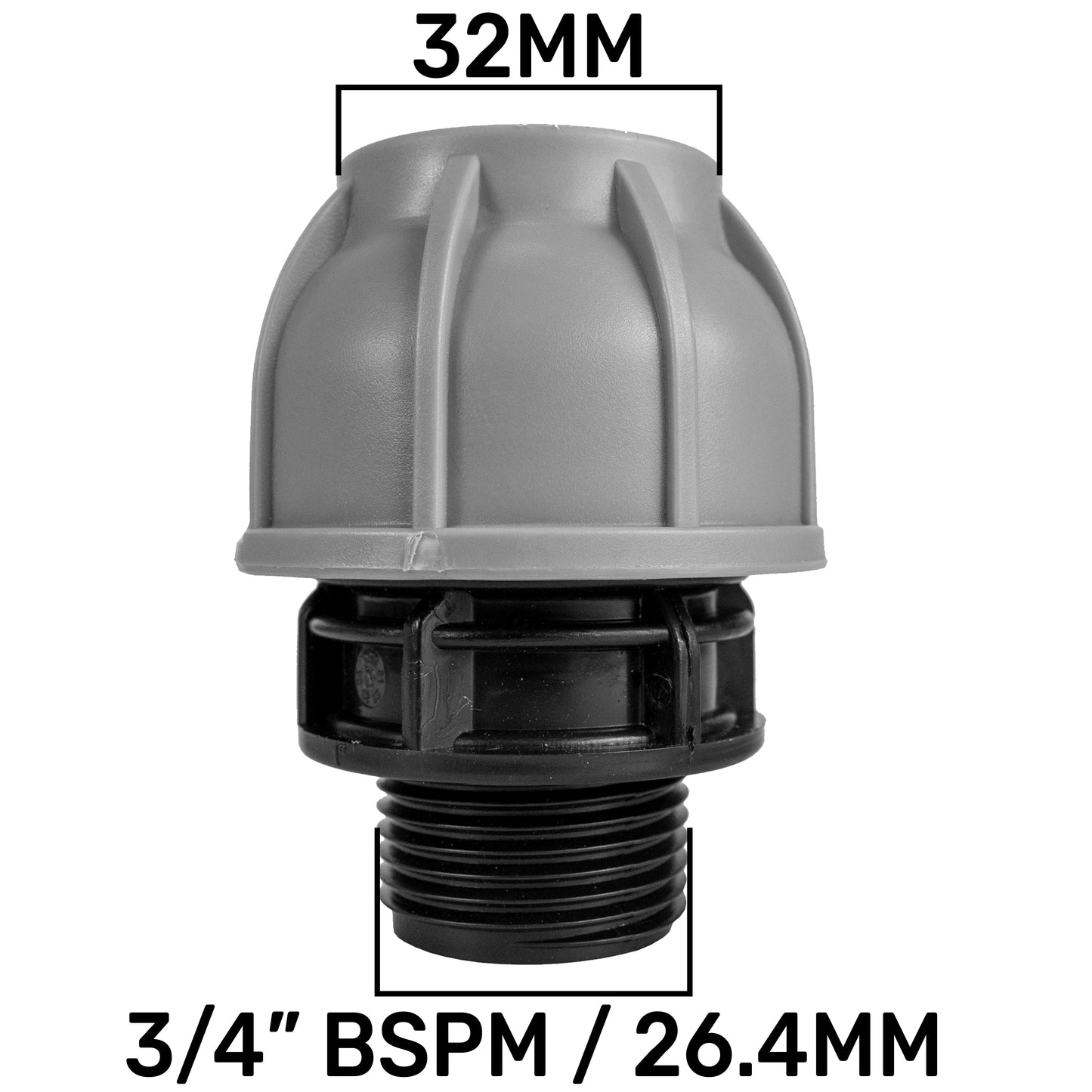

Connect 32mm MDPE pipe to a matching ¾-inch BSP female fitting. This straight adapter combines a grey compression nut for the pipe with an external male thread on its black end.
The installation shows how the male thread fits inside a separate brass elbow. One adapter is supplied; the pipe, elbow and support clip are illustrative extras.
Pipe diameter and BSP size are different
The grey end takes 32mm OD MDPE pipe. Check the diameter across the pipe’s exterior, rather than its bore or the compression nut.
The black end has a ¾-inch BSP male thread. It measures approximately 26.4mm across the outer thread crests. That measurement helps identify the nominal BSP size; it is not a direct conversion of ¾ inch to millimetres.
The mating component needs the correct female thread, form and sealing arrangement. Compare other combinations in our MDPE straight joiners and threaded adapters.
Make room for a supported joint
Keep the pipe aligned and leave access to the compression nut.
Prepare the pipe
Isolate and depressurise the supply. Prepare a clean, square end on suitable 32mm OD MDPE pipe. Check whether a separate pipe liner is required.
Start the thread squarely
Engage a compatible female fitting without forcing the thread. Follow the components’ sealing and tightening instructions, avoiding overtightening the plastic adapter.
Check both connections
Support the adjoining pipework without straining the fitting. Confirm the PN10 designation suits the complete assembly and service conditions, then restore the supply gradually and inspect both joints.
Check the fitting you are connecting to
Can this connect to a ¾-inch BSP male outlet?
No. This adapter also has an external male thread, so it needs a matching female socket. For a male outlet, choose the appropriate female-threaded MDPE adapter.
Does the 26.4mm label refer to the pipe size?
No. It identifies the approximate outside diameter of the ¾-inch BSP male thread. The compression end takes 32mm outside-diameter MDPE pipe.
Product information & technical details
| SKU | MDPESTR32-34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| MDPE size | 32mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 32mm outside-diameter MDPE compression socket × ¾-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One adapter. Pipe, elbow, support clip and any separate pipe liners or thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
