Description
A threaded end for your 32mm pipe run
Bring 32mm MDPE pipe to a matching 1-inch BSP female connection. This straight adapter has a grey compression nut for the pipe and an external male thread on its black end.
In the illustrated assembly, the male end screws into a separate brass elbow. One adapter is supplied; the elbow, pipe and support clip are not included.
Check the two ends separately
The compression end takes 32mm OD MDPE pipe. Measure the exterior of the pipe, not its bore or the grey nut. A hose described by its internal diameter is a different connection.

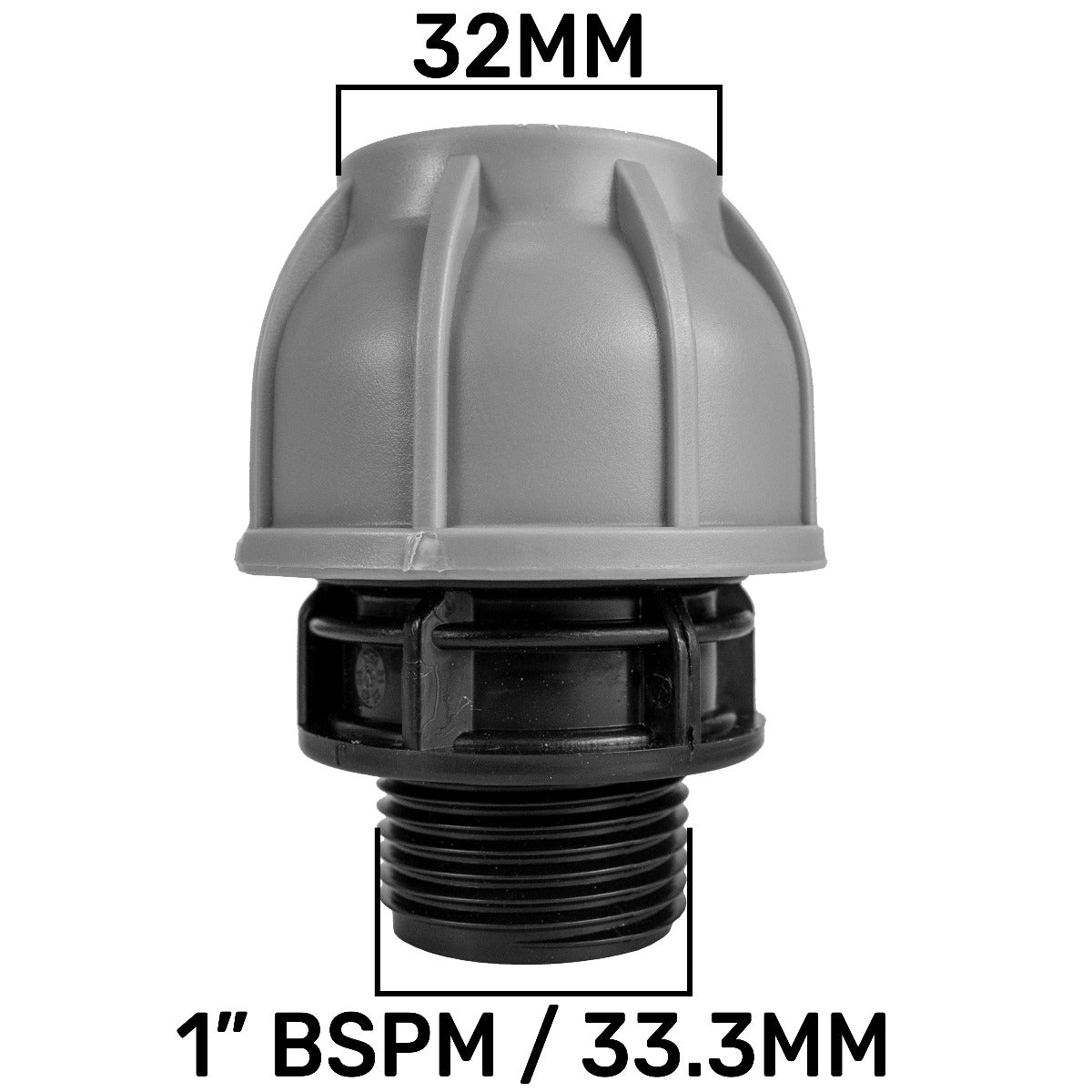

The male end is 1-inch BSP. Its thread measures approximately 33.3mm across the outer crests, as shown in the product photo. BSP is a nominal thread size; it is not a direct inch-to-millimetre conversion.
Match the mating fitting’s size, gender, thread form and sealing requirements. Browse our MDPE straight joiners and threaded adapters if you need a different combination.
Plan the joint before assembly
Give the compression nut room to turn and support the adjoining pipework.
Prepare the MDPE
Isolate and depressurise the supply. Prepare a clean, square end on suitable 32mm OD pipe and check whether a separate pipe liner is required.
Engage the matching socket
Start the male thread squarely in a compatible female fitting. Follow the components’ sealing and tightening instructions; do not force a mismatched thread or overtighten the plastic adapter.
Check the assembly
Keep strain off both joints. Confirm the PN10 designation suits the complete assembly and service conditions, then restore the supply gradually and inspect the connections.
Choose the correct connection
Does this connect to a 1-inch BSP male fitting?
No. This adapter already has an external male thread and needs a matching female socket. Choose the appropriate female-threaded adapter for a male fitting.
Is this the same as a 32mm equal coupling?
No. An equal coupling joins two plain pipe ends. This version has one 32mm MDPE compression end and one 1-inch BSP male thread, for a pipe-to-threaded transition.
Product information & technical details
| SKU | MDPESTR32-1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| MDPE size | 32mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 32mm outside-diameter MDPE compression socket × 1-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One adapter. Pipe, elbow, support clip and any separate pipe liners or thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
