Description
A male thread for MDPE

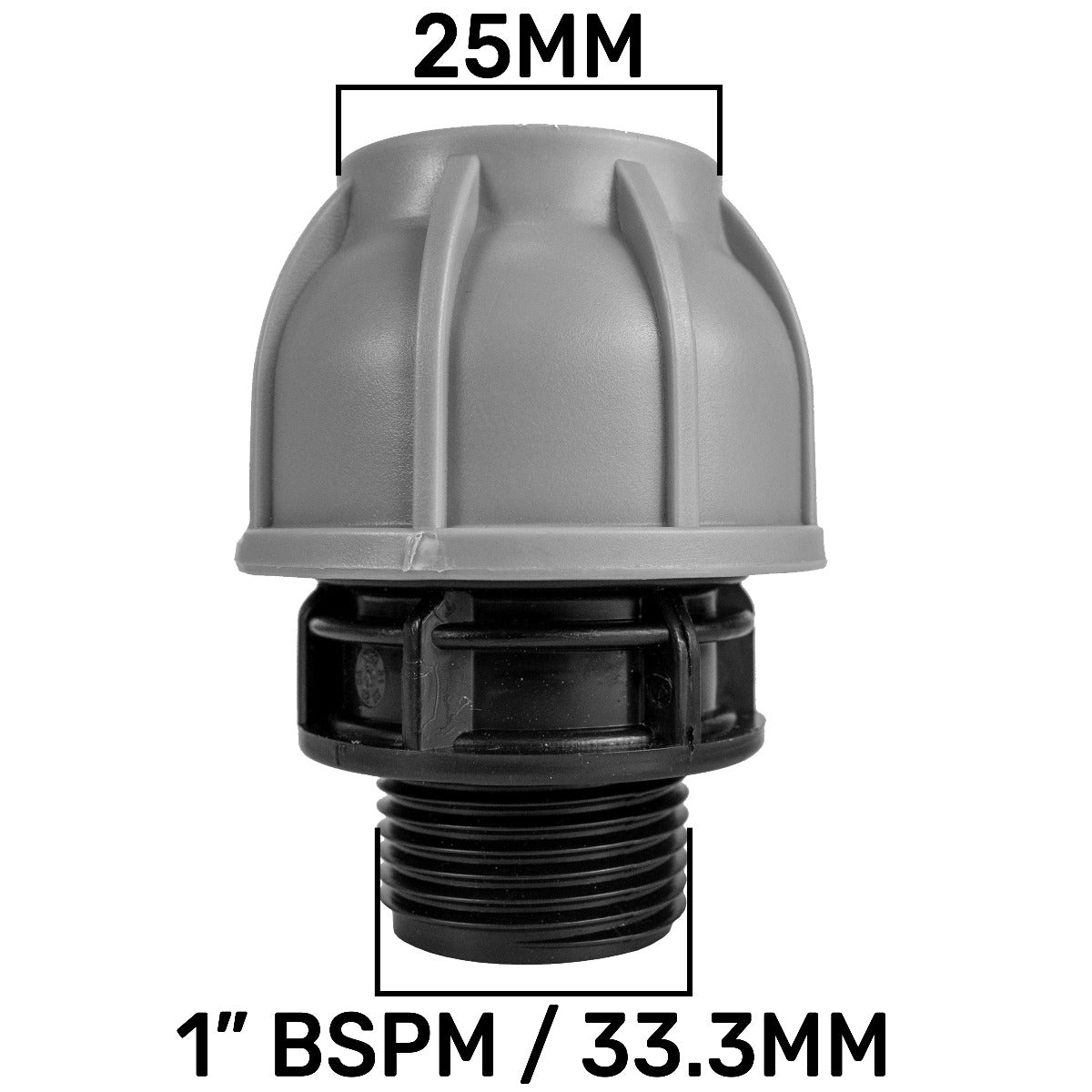

This 25mm MDPE to 1-inch BSP male adapter brings a pipe run to a compatible female-threaded component. The grey compression nut receives the MDPE pipe; the black external thread screws into the mating female port.
It is a straight pipe-to-thread transition, rather than a coupling for two plain pipe ends. One adapter is supplied.
Two ends. Two size checks.
The pipe end: measure the outside of the MDPE pipe. This compression socket is for 25mm outside diameter, not a 25mm internal bore.
The threaded end: match the external spigot to a 1-inch BSP female port. BSP is a nominal thread designation; a 1-inch male thread is about 33.3mm across its outer crests. It is not a direct 25.4mm thread measurement.
Also check the mating thread form and sealing method. For other pipe and thread pairings, compare our MDPE straight joiners and adapters.
Plan the connection before assembly
Leave access to the compression nut and avoid strain on the plastic threaded end.
Prepare suitable pipe
Isolate and depressurise the supply. Prepare a sound, clean and square pipe end, following the fitting guidance. Check whether a separate pipe liner is required.
Start the thread squarely
Use the sealing arrangement specified for the mating components. Align the male and female threads, follow tightening guidance and avoid forcing the plastic spigot.
Support and inspect
Support adjacent pipework and fittings. Assess the PN10 designation alongside the complete system and service conditions, then restore the supply gradually and check both joints.
Before choosing your fitting
Can the male end connect to another male thread?
No. The external 1-inch BSP thread needs a compatible female-threaded part. If the existing component is male, choose the appropriate female adapter or another suitable connection arrangement.
Is this a connector for two 25mm pipes?
No. Only one end has a compression socket for plain MDPE pipe. To join two 25mm pipe ends directly, choose a 25mm equal compression coupling instead.
Product information & technical details
| SKU | MDPESTR25-1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| MDPE size | 25mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 25mm outside-diameter MDPE compression socket × 1-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One adapter. Pipe, valve, support clip and any separate pipe liners or thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
